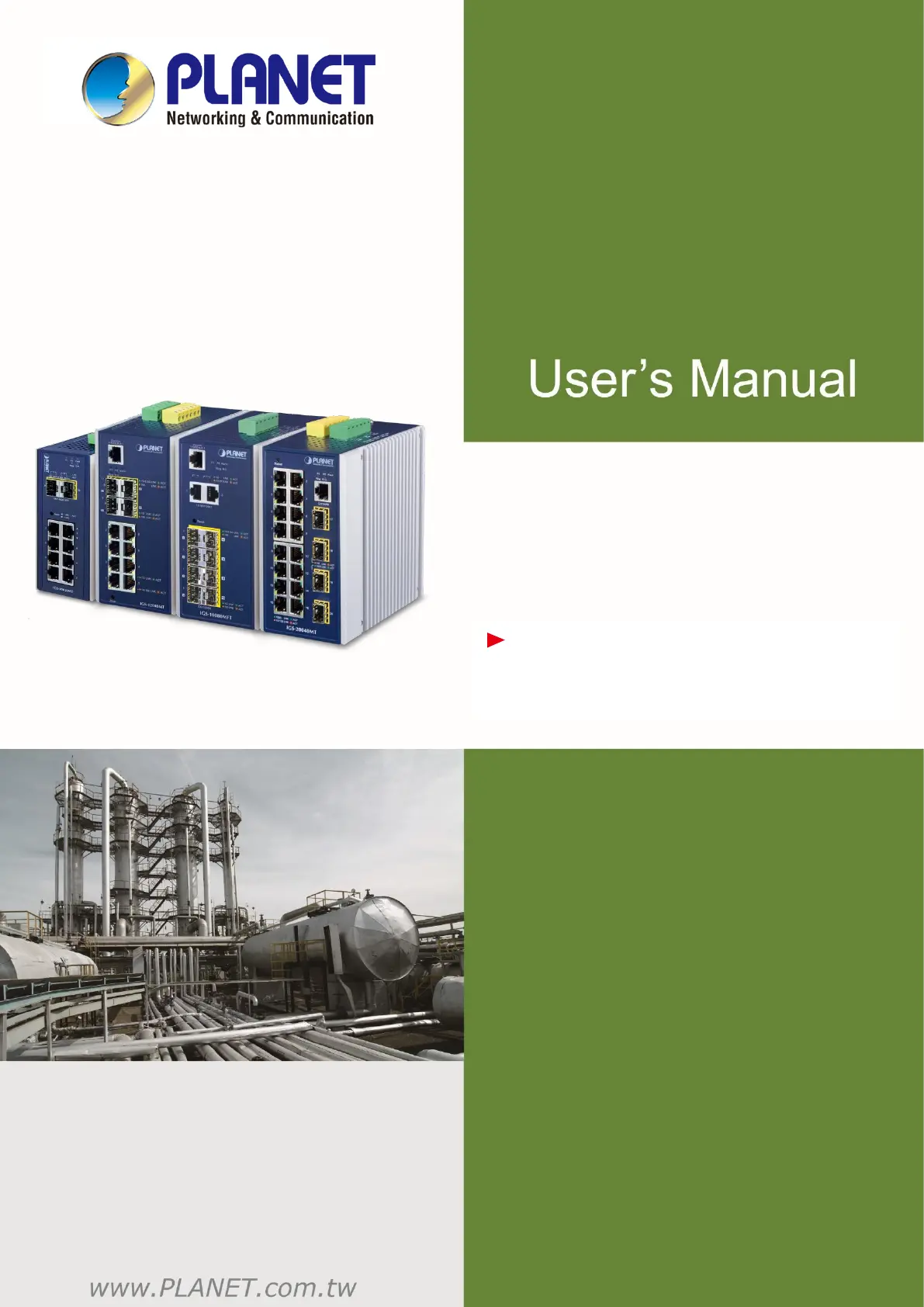

User’s Manual of IGS Series

Industrial L2+ Multi-Port Full

Gigabit Managed Ethernet

Switch

IGS-10020MT/IGS-10080MFT IGS-

12040MT/IGS-20040MT

User’s Manual of IGS series

Trademarks

Contents are subject to revision without prior notice.

PLANET is a registered trademark of PLANET Technology Corp. All other trademarks belong to their respective owners.

Disclaimer

PLANET Technology does not warrant that the hardware will work properly in all environments and applications, and makes no

warranty and representation, either implied or expressed, with respect to the quality, performance, merchantability, or fitness for

a particular purpose. PLANET has made every effort to ensure that this User's Manual is accurate; PLANET disclaims liability

for any inaccuracies or omissions that may have occurred.

Information in this User's Manual is subject to change without notice and does not represent a commitment on the part of PLANET.

PLANET assumes no responsibility for any inaccuracies that may be contained in this User's Manual. PLANET makes no

commitment to update or keep current the information in this User's Manual, and reserves the right to make improvements to

this User's Manual and/or to the products described in this User's Manual, at any time without notice.

If you find information in this manual that is incorrect, misleading, or incomplete, we would appreciate your comments and

suggestions.

FCC Warning

This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC

Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated

in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and

used in accordance with the Instruction manual, may cause harmful interference to radio communications. Operation of this

equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the

interference at his own expense.

CE Mark Warning

This device is compliant with Class A of CISPR 32. In a resdential environment this equipment may cause radio interference.

Energy Saving Note of the Device

This power required device does not support Standby mode operation. For energy saving, please remove the power cable to

disconnect the device from the power circuit. In view of saving the energy and reducing the unnecessary power consumption, it

is strongly suggested to remove the power connection for the device if this device is not intended to be active.

WEEE Warning

To avoid the potential effects on the environment and human health as a result of the presence of hazardous

substances in electrical and electronic equipment, end users of electrical and electronic equipment should

understand the meaning of the crossed-out wheeled bin symbol. Do not dispose of WEEE as unsorted

municipal waste and have to collect such WEEE separately.

Revision

User's Manual of PLANET Industrial L2+ Multi-Port Full Gigabit Managed Ethernet Switch

FOR MODELS: IGS-10020MT,IGS-10080MFT,IGS-12040MT,IGS-20040MT

REVISION:3.2 (April, 2025)

Part No: EM-IGS-Series(IGS-10020MT_IGS-10080MFT_IGS-12040MT_IGS-20040MT)_v3.2

User’s  Manual  of  IGS  series



TABLE OF CONTENTS
INTRODUCTION.................................................................................................................. 11
1 Packet Contents ................................................................................................................................................ 11
2 Product Description ......................................................................................................................................... 12
3 How to Use This Manual .................................................................................................................................. 17
4 Product Features .............................................................................................................................................. 18
5 Product Specifications ..................................................................................................................................... 21
INSTALLATION ................................................................................................................... 25
1 Hardware Description ....................................................................................................................................... 25
1.1 Physical Dimensions ........................................................................................................................................... 25
1.2 Front Panel .......................................................................................................................................................... 29
1.3 LED Indications ................................................................................................................................................... 32
1.4 Switch Upper Panel ............................................................................................................................................. 38
1.5 Wiring the Fault Alarm Contact ............................................................................................................................ 41
1.6 Wiring the Digital Input/Output ............................................................................................................................. 42
2 Installing the Industrial L2+ Managed Switch ................................................................................................ 44
2.1 Installation Steps ................................................................................................................................................. 44
2.2 DIN-rail Mounting Installation ............................................................................................................................... 45
2.3 Wall Mount Plate Mounting .................................................................................................................................. 46
3 Cabling ............................................................................................................................................................... 47
3.1 Installing the SFP Transceiver ............................................................................................................................. 48
3.2 Removing the SFP/SFP+ Transceiver ................................................................................................................. 52
SWITCH MANAGEMENT .................................................................................................... 53
1 Requirements .................................................................................................................................................... 53
2 Management Access Overview ....................................................................................................................... 54
3 CLI Mode Management ..................................................................................................................................... 55
4 Web Management ............................................................................................................................................. 58
5 SNMP-based Network Management ............................................................................................................... 61
6 PLANET Smart Discovery Utility ..................................................................................................................... 62
WEB CONFIGURATION ...................................................................................................... 64
1 Main Web page .................................................................................................................................................. 67
2 System ............................................................................................................................................................... 69
2.1 Management ........................................................................................................................................................ 70
2.1.1 System Information .................................................................................................................................... 70
2.1.2 IP Configuration ......................................................................................................................................... 71
2.1.3 IP Status .................................................................................................................................................... 75
2.1.4 ARP ........................................................................................................................................................... 76

Produkspesifikasjoner

Merke:	Planet
Kategori:	Ikke kategorisert
Modell:	IGS-10080MFT
Vekt:	1036 g
Bredde:	76.8 mm
Dybde:	107.3 mm
Høyde:	152 mm
LED-indikatorer:	Ja
Strømforbruk (maks.):	13.92 W
Sertifisering:	FCC, CE
Nettverksstandard:	IEEE 1588v2, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3bz, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Støttede nettverksprotokoller:	IPv4 / IPv6
Redundant strømforsyning:	Ja
Virtuelle LAN-funksjoner:	Private VLAN, Tagged VLAN, Protocol-based VLAN
10G støtte:	Nei
Antall VLAN:	4095
Multicast-støtte:	Ja
Portspeiling:	Ja
Varmespredning:	47.76 BTU/t
Auto-forhandling:	Ja
Jumbo rammer:	9000
DIN-skinnemontering:	Ja
Systemhendelseslogg:	Ja
Fiberoptisk kontakt:	MiniGBIC
Antall køer:	8
BPDU filtrering / beskyttelse:	Ja
Autentisering:	Portbasert autentisering
Produktfarge:	Blue, White
Driftstemperatur (T-T):	-40 - 75 °C
Oppbevaringstemperaturomåde (Celsius):	-40 - 75 °C
Lagringsrelativ fuktighet:	5 - 95
Harmonisert system (HS)-kode:	85176990
Quality of Service (QoS) støtte:	Ja
tilbakestillingsknapp:	Ja
Kroppsmateriale:	Aluminium
Kan monteres på vegg:	Ja
Internasjonal beskyttelses (IP)-kode:	IP30
Sikkerhetsalgoritmer:	802.1x RADIUS, SSH, SSL/TLS
Ethernet-kobberkabelteknologi:	10BASE-T, 100BASE-TX, 1000BASE-T
Relativ luftfuktighet under drift (H-H):	5 - 95
Rack-montering:	Nei
Ledelsesprotokoller/håndteringsprotokoller:	web, telnet, SNMP
Svitsjtype:	Håndtert
Trafikk klassifisering:	Ja
Webbasert administrasjon:	Ja
Antall Basic switching RJ-45 Ethernet-ports:	2
Basic switching RJ-45 Ethernet ports-type:	Gigabit Ethernet (10/100/1000)
Strømningskontroll støtte:	Ja
Størrelse på adressetabell:	8000 oppføringer
Ruting/svitsjekapasitet:	26 Gbit/s
Strøm over Ethernet (PoE):	Nei
IGMP-snooping:	Ja
DC inngående spenning:	12 - 48 V
Jumbo Frames-støtte:	Ja
Full tosidig:	Ja
VLAN støtte:	Ja
Lagre-og-videresend:	Ja
Gigabit Ethernet (kobber) antall porter:	2
SFP module antall spor:	8
MAC-adresse automatisk læring støttes:	Ja
MAC-adresse automatisk aldring støttes:	Ja
Omfangsbegrensning:	Ja
Access Control List (ACL)/tilgangskontrolliste:	Ja
ARP-inspeksjon:	Ja
Linkaggregasjon/Linksamling:	Ja
Treprotokoll (spekter):	Ja
SSH/SSL støtte:	Ja
Loop beskyttelse:	Ja
Ethernet-fiberkabelteknologi:	100BASE-FX, 1000BASE‑LX, 1000BASE‑SX
Halvdupleks:	Ja
Gjennomstrømming:	19.3 Mpps
