1. Package Contents
Thank you for purchasing PLANET Industrial 2-port 10/100/1000T
802.3at PoE+ Injector Hub, IPOE-260/IPOE-260-12V. In the
following section, the term “Industrial PoE+ Injector Hub”
means the IPOE-260 or IPOE-260-12V.
Open the box of the Industrial PoE+ Injector Hub and carefully
unpack it. The box should contain the following items:
Industrial PoE+
Injector Hub x 1
User’s Manual x 1 Wall-mount Kit x 1
DIN-rail Kit x 1 RJ45 Dust Caps x 4
If any of these are missing or damaged, please contact your dealer
immediately.
Power
Consumption
(Ethernet Full
Loading)
Max. 2 watts/6.8 BTU
(Power on without
any connection)
Max. 80 watts/272.9
BTU (Full loading
with PoE function)
Max. 4 watts/13.6
BTU (Power on
without any
connection)
Max. 80 watts/272.9
BTU (Full loading with
PoE function)

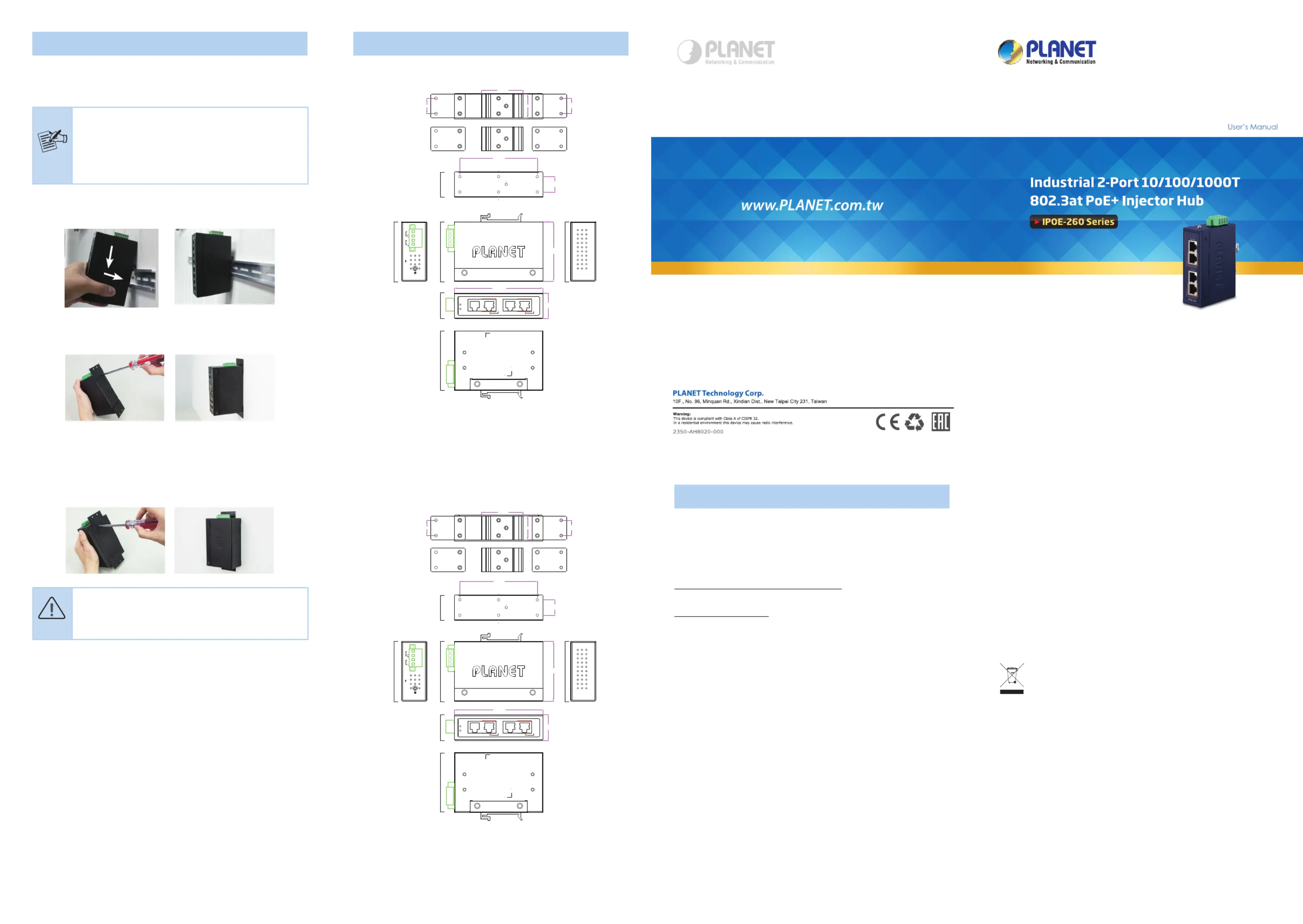

Dimensions
(W x D x H)
30 x 70 x 105 mm
Weight 280g 280g
Enclosure IP30 metal case
Installation DIN-rail kit and wall-mount kit
ESD Protection 6KV
EFT Protection 6KV
Power over Ethernet
PoE Standard
IEEE 802.3at Power over Ethernet Plus/
mid-span PSE
PoE Power Output
48V DC input: Per
PoE port max. 32
watts
56V DC input: Per
PoE port max. 36
watts
Per port 54V DC,
max. 36 watts
PoE Power Supply
Type
Mid-span
Power Pin
Assignment
4/5 (+), 7/8 (-)
3.4 Wiring the Power Inputs
The terminal block connector on the top panel of Industrial PoE+
Injector Hub is used for two DC redundant power inputs. Please
follow the steps below to insert the power wire.
Caution
When performing any of the procedures like inserting
the wires or tightening the wire-clamp screws, make
sure the power is OFF to prevent from getting an
electric shock.
1. Insert positive and negative DC power wires into contacts 1 and
2 for POWER 1, or contacts 3 and 4 for POWER 2.
V1+
PWR1
V2+ V2
PWR2
DC Input:
48-56V
, 1.6A max.
1 2 3 4
2. Tighten the wire-clamp screws for preventing the wires from
loosening.
1 2 3 4
Power 1 Power 2
+ - + -
3. Hardware Introduction
3.1 Switch Front Panel
The front panels of the Industrial PoE+ Injector Hubs consist of
Ethernet interfaces and LED indicators.
Front View
P1 P2
Ethernet
Ethernet
802.3at PoE+
802.3at PoE+
IPOE-260
P1 P2
Ethernet
Ethernet
802.3at PoE+
802.3at PoE+
IPOE-260-12V
Data port 1
PoE port 1
Data port 2
PoE port 2
Figure 1: Figure 2:
IPOE-260 Front View IPOE-260-12V Front View
2.ProductSpecications
Model IPOE-260 IPOE-260-12V
Hardware Specications
Copper Ports
2 pair 10/100/1000BASE-T RJ45 auto-MDI/
MDI-X ports:
Data input port 1 and PoE output port 1
Data input port 2 and PoE output port 2
Connector
Removable 4-pin terminal block
Pin 1/2 for Power 1; Pin 3/4 for Power 2
LED Indicator
System:
Power 1 (Green),
Power 2 (Green),
PoE Port:
802.3at PoE+ x 2 (Green + Orange)
Network Cable
Twisted-pair cable up to 100 meters (328ft)
10BASE-T: 4-pair UTP Cat. 3, 4, 5, 5e, 6
100BASE-TX: 4-pair UTP Cat. 5, 5e, 6
1000BASE-T: 4-pair UTP Cat. 5e, 6
Data Rate 10/100/1000Mbps
Power
Requirements
48~56V DC,
redundant power
with reverse polarity
protection function.
12~56V DC,
redundant power
with reverse polarity
protection function.
PoE Power Budget
(max.)
72 watts@48~56V
DC input
60W @12~23V DC
input
72W @24~56V DC
input
Number of devices
that can be
powered
2
Standards Conformance
Regulatory
Compliance
FCC Part 15 Class A, CE
Stability Testing
IEC 60068-2-32 (free fall)
IEC 60068-2-27 (shock)
IEC 60068-2-6 (vibration)
Standards
Compliance
IEEE 802.3 Ethernet
IEEE 802.3u Fast Ethernet
IEEE 802.3ab Gigabit Ethernet
IEEE 802.3at Power over Ethernet Plus
Environment
Temperature
Operating: -40~75 degrees C
Storage: -40~75 degrees C
Humidity
Operating: 5~90% (non-condensing)
Storage: 5~90% (non-condensing)
3.2 LEDDenition:
LED Color Function
P1 Green Lights to indicate power input 1 has power.
P2 Green Lights to indicate power input 2 has power.
802.3at
PoE+
PoE-in-Use
Green
Lights to indicate the device is providing
PoE power to 802.3af PD.
Green +
Amber
Lights to indicate the device is providing
PoE power to 802.3at PD.
3.3 Switch Upper Panel
The upper panels of the Industrial PoE+ Injector Hubs consist of
one terminal block connector within two power inputs.
V1+
PWR1
V2+ V2
PWR2
DC Input:
48-56V
, 1.6A max.
1 2 3 4
Figure 3: IPOE-260 Top View
V1+
PWR1
V2+ V2
PWR2
DC Input:
12-56V
, 6A max.
1 2 3 4
Figure 4: IPOE-260-12V Top View
Note
The wire gauge for the terminal block should be in the
range between 12 and 24 AWG.
3.5 Grounding the Device
Users MUST complete grounding wired with the device; otherwise,
a sudden lightning could cause fatal damage to the device.
V1+
PWR1
V2+ V2
PWR2
DC Input:
48-56V
, 1.6A max.
1 2 3 4
Earth Ground
Note
EMD (Lightning) DAMAGE IS NOT CONVERED UNDER
WARRANTY.
