1. Package Contents

Thank you for purchasing PLANET 1-port IEEE 802.3bt PoE++ to

4-port IEEE 802.3af/at Gigabit PoE Extender, POE-E304. “Gigabit PoE

Extender” mentioned in this manual refers to the POE-E304.

Open the box of the Gigabit PoE Extender and carefully unpack it. The

box should contain the following items:

Gigabit PoE Extender x 1

User’s Manual x 1 Rubber Feet x 4

If any of these are missing or damaged, please contact your dealer

immediately; if possible, retain the carton including the original packing

material, and use them again to repack the product in case there is a

need to return it to us for repair.

Automatic address learning and address aging

 Case and Installation

No external power cable installation required

Made of metal, desktop size design

Wall-mountable, Plug-and-Play installation

0 ~ 50 degrees C operating Temperature

Note

PSE (power sourcing equipment) is a device (switch or

hub for instance) that will provide power in a PoE setup.

The maximum allowed continuous output power per such

device in IEEE 802.3af is 15.4 watts and in IEEE 802.3at

is 30 watts.

PD (powered device) such as IP phone, network

camera or wireless access point is a PoE-enabled terminal

that consumes energy supplied by PSE.

3.ProductSpecications

Model POE-E304

Hardware Specications

Network

Connector

PoE In Port

1 x 10/100/1000BASE-T Ethernet with IEEE 802.3bt

PoE++ “Data + DC” in, auto MDI/MDI-X, auto-

negotiation RJ45 connector

PoE Out Port

4 x 10/100/1000BASE-T Ethernet with IEEE

802.3af/802.3at PoE out, auto MDI/“Data + DC”

MDI-X, auto-negotiation RJ45 connector

4. Hardware Introduction

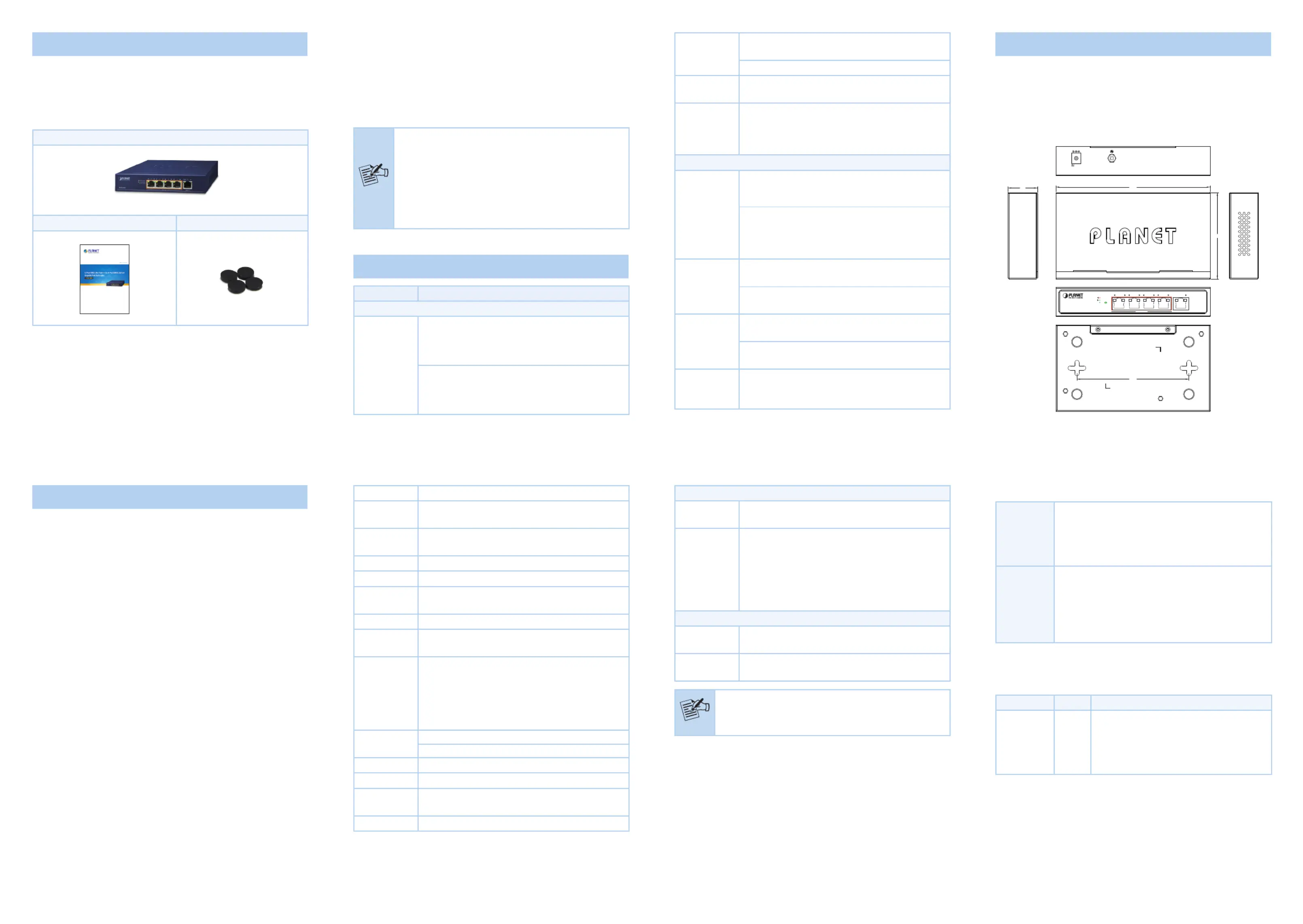

4.1 Three-View Diagram

The three-view diagram of the Gigabit PoE Extender consists of one

auto-sensing 10/100/1000BASE-T 802.3bt PoE In port, and four auto-

sensing 10/100/1000BASE-T 802.3af/802.3at PoE Out ports. The LED

Indicators are also located on the port of Gigabit PoE Extender front

panel.

168

122

50-56V

5PWR41 2

PoE In

PoE Out

PoE-in-Use

LNK ACT

10/100/1000

POE-E304

Power

Requirements

PoE In: IEEE 802.3bt or 4-pair 802.3at PoE+

compliant with voltage within 50-56V DC

External DC: 50~56V DC

Power

Consumption

0.9 watts/3.1BTU (System on)

74 watts/252.4BTU (Full loading with PoE function)

Network Cable

10BASE-T: 4-pair UTP Cat5 up to 100m (328ft)

100BASE-TX: 4-pair UTP Cat5 up to 100m (328ft)

1000BASE-T: 4-pair UTP Cat5e, 6, up to 100m (328ft)

EIA/TIA-568 100-ohm STP (100m, 328ft)

Power over Ethernet

PoE Standard

PoE In Port

IEEE 802.3bt Power over Ethernet Plus Plus end-

span and mid-span PD class 4 PD

Per PoE Out Port

IEEE 802.3at Power over Ethernet Plus end-span

PSE

IEEE 802.3af Power over Ethernet end-span PSE

PoE Power

PoE In Port

50~56V DC, max. 95 watts input

Per PoE Out Port

50~55V DC, max. 32 watts output

Power Pin

Assignment

PoE In Port

1/2 (-), 3/6 (+); 4/5 (+), 7/8 (-)

Per PoE Out Port

1/2 (-), 3/6 (+), end-span (Type A)

PoE Power

Budget

65 watts (max.) @ IEEE 802.3bt PoE++ Type 4 PSE

input

32 watts (max.) @ IEEE 802.3at PoE+ PSE input

2. Product Features

 Physical Port

5 10/100/1000BASE-T Gigabit RJ45 interfaces

- 1-port data + power input

- 4-port data + power output

 Power over Ethernet

1-port data + power input

- Complies with IEEE 802.3bt PoE++ PD

- Supports PoE input power up to 95 watts

4-port data + power output

- Complies with IEEE 802.3af/IEEE 802.3at PoE+/end-span PSE

- Up to 4 IEEE 802.3af/802.3at devices powered

- Supports PoE power up to 32 watts for each PoE port

- Auto detects powered device (PD)

Extends the range of PoE to an additional 100 meters (328ft.)

Forwards both Ethernet and power to remote devicedata PoE

 Layer 2 Features

Hardware-based 10/100/1000Mbps auto-negotiation and auto MDI/

MDI-X

Integrates address look-up engine, supporting 2K absolute MAC

addresses

9K jumbo packet support

Features Store-and-Forward mode with wire-speed ltering and

forwarding rates

IEEE 802.3x ow control for full duplex operation and backpressure

for half duplex operation

Standard Conformance

Regulatory

Compliance

FCC Part 15 Class A, CE

Standard

Compliance

IEEE 802.3 10BASE-T Ethernet

IEEE 802.3u 100BASE-TX Fast Ethernet

IEEE 802.3ab 1000BASE-T Gigabit Ethernet

IEEE 802.3af Power over Ethernet

IEEE 802.3at Power over Ethernet Plus

IEEE 802.3bt Power over Ethernet Plus Plus

IEEE 802.3x Flow Control

Environment

Operating

Temperature: 0 ~ 50 degrees C

Relative Humidity: 5 ~ 95% (non-condensing)

Storage

Temperature: -10 ~ 70 degrees C

Relative Humidity: 5 ~ 95% (non-condensing)

Note

The maximum distance that data and power can transmit

depends on the quality of the UTP cable and environment.

4.2 Ports Connection

PoE IN Port

Connect the port from the following 802.3bt PoE IN

PoE++ PSE devices through a Cat5/5e/6 UTP cable:

 802.3bt PoE++/UPOE/PoH injector

 802.3bt PoE++/UPOE/PoH injector hub

 802.3bt PoE++/UPOE/PoH Ethernet switch

PoE OUT Port

Connect the port to the following 802.3at/af PoE OUT

PD devices through a Cat5/5e/6 UTP cable:

 PoE IP camera

 PoE VoIP phone

 PoE wireless AP

 PoE splitter

4.3 LED Indicators

802.3bt PoE IN Port

LED Color Function

10/100/1000

LNK/ACT

Green

Lights to indicate the link through that

port is successfully established at

10/100/1000Mbps.

Blinks to indicate that the port is actively

sending or receiving data.

Data Rate 10/100/1000Mbps

Switch

Architecture

Store-and-Forward

MAC Address

Table

Data Buer 1Mbits

Switch Fabric 10Gbps

Switch

Throughput

7.44Mpps @ 64 bytes

Jumbo Frame 9K

Flow Control

IEEE 802.3x pause frame for full duplex

Back pressure for half duplex

LED Indicators

PoE In Port

10/100/1000 LNK/ACT (green)

PoE Out Port 1 to Port 4

10/100/1000 LNK/ACT (green)

PoE-in-Use (orange)

PWR (orange)

Protection

ESD: Contact 4KV, Air 6KV

Surge: 4KV

Enclosure Metal

Installation Desktop/Wall mountable

Dimensions

(W x D x H)

168 x 93 x 32mm

Weight 403g

- 9 -

- 10 -

- 11 -

- 12 - - 13 - - 14 -

802.3af/at PoE Out Ports

LED Color Function

10/100/1000

LNK/ACT

Green

Lights to indicate the link through that

port is successfully established at

10/100/1000Mbps.

Blinks to indicate that the port is actively

sending or receiving data.

PoE-in-Use Orange

Lights to to indicate the port is providing

55V DC in-line power output.

Power

LED Color Function

PWR Orange Lights to indicate the device is powered on.

5. Hardware Installation

5.1 Before Installation

The POE-E304 is installed between the PSE and the PD; it is powered

by PSE and forwards the Ethernet data and remaining PoE power or an

external power supply to the PD. It can be installed easily by just Plug

and Play without aecting the data transmission performance.

Note

1. To provide you with better PoE power and data

extension quality, we strongly recommend that you use

“Solid UTP Cable” when installing the POE-E304.

2. The POE-E304 can be installed with a third-party device

if the device complies with IEEE 802.3af/at standard.

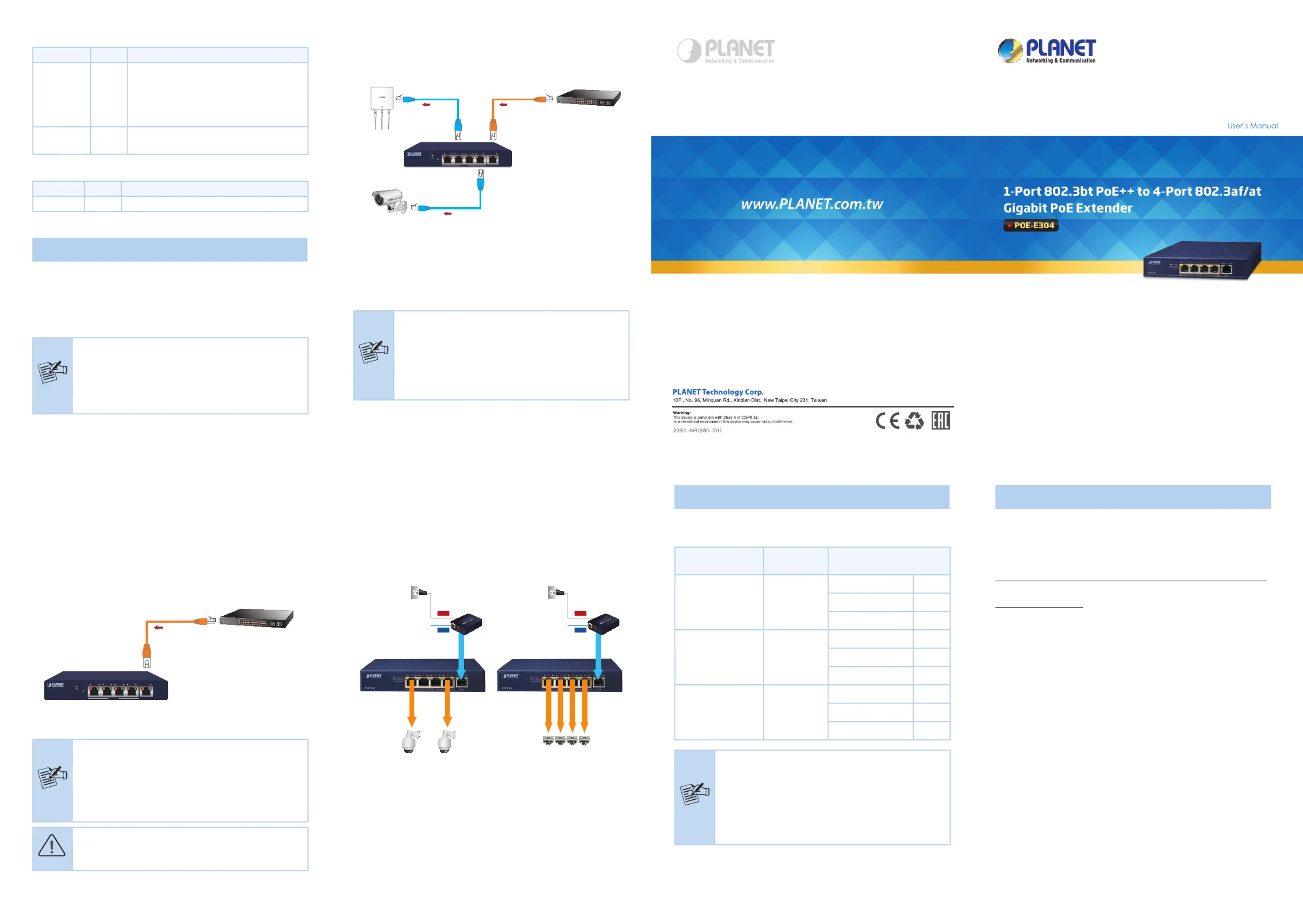

5.3 Connecting POE-E304 to PD

Step 1: Connect the additional Cat5e/6 cable that will be used to

connect to the remote to the port of the PD “PoE Out”

Gigabit PoE Extender.

PoE Wireless AP

UTP

PoE Camera

IEEE 802.3bt PoE Switch

UTP

PoE

5PWR41 2

PoE In

PoE Out

PoE-in-Use

LNK ACT

10/100/1000

POE-E304

Step 2: The "PoE Out" port is also the power injector which transmits

DC voltage to the Cat5e/6 cable and transfer data and power

simultaneously between the PSE and PD.

Step 3: Once the Gigabit PoE Extender detects the existence of an

IEEE 802.3af/at device, the LED indicator will “PoE-in-Use”

be lit steadily, showing it is providing power.

Note

1. If the connected device is not fully complying with IEEE

802.3af/at standard or in-line power device, the PoE-in-

Use LED indicator of the Gigabit PoE Extender will not

be lit steadily.

2. According to IEEE 802.3af/at standard, the Gigabit

PoE Extender will not inject power to the cable if not

connected to a standard IEEE 802.3af/at device.

5.2 Connecting POE-E304 to PSE

This section describes how to install Gigabit PoE Extender and make

connection to it. Please read the following descriptions and perform the

procedures in the order being presented.

There are 5 RJ45 ports in the Gigabit PoE Extender, of which the “PoE

IN” port functions as "PoE (Data and Power) input" and the four

”PoE Out” "PoE (Data and Power) output"ports function as .

Step 1: Connect a standard Cat5e/6 UTP cable from PSE, such as

PoE++ switch, PoE++ injector hub and single port PoE++

injector, to the port of the Gigabit PoE Extender.“PoE IN”

IEEE 802.3bt PoE Switch

UTP

PoE

5PWR41 2

PoE In

PoE Out

PoE-in-Use

LNK ACT

10/100/1000

POE-E304

Step 2: The PSE delivers both Ethernet data and PoE power over UTP

cable to the Gigabit PoE Extender.

Note

1. When the PoE-in-Use LED turns steady orange,

it means the Gigabit PoE OUT is supplying power

successfully from PSE.

2. If the PoE-in-use LED is not lit, please check the

remote PSE or the cable connecting to a PC or a

network device to see if the cable is correct.

Caution

Never connect any PoE PSE to the non-standard

Gigabit PoE Extender or else it will damage the device

permanently.

5.4 PoE Power Distribution

The POE-E304 can obtain a maximum of 95-watt PoE power from

IEEE 802.3bt PoE++ input port and supplies a maximum of 65-watt

PoE power budget to four PoE output ports, extending both the reach

of Gigabit Ethernet Data and IEEE 802.3af/802.3at PoE over the

standard 100m (328 ft.) Cat 5/5e/6 UTP cable to up to 200m at the

same time.

IEEE 802.3at (25W)

PoE PTZ IP Camera

IEEE 802.3af (12W)

PoE Dome IP Camera

IEEE 802.3af (12W)

Ultra PoE (60W)

Power

Data

1 In 2 Out

Ultra PoE (60W)

Power

Data

1 In 4 Out

6. Power Over Ethernet Budget

The following table lists how many PoE devices can be powered by

POE-E304:

Power Source

PoE Output

Budget*

Max. Number of PDs

supported

IEEE 802.3at PoE+

PSE

25 watts max.

Class 4 PD@25-watt 1 unit

Class 3 PD@15-watt 1 unit

Class 2 PD@7-watt 3 units

IEEE 802.3bt PoE

PSE

65 watts max.

Class 4 PD@25-watt 2 units

Class 3 PD@15-watt 4 units

Class 2 PD@7-watt 4 units

External Power

Adapter –

56V DC, 74W

65 watts max.

Class 4 PD@25-watt 2 units

Class 3 PD@15-watt 4 units

Class 2 PD@7-watt 4 units

Note

1. The PoE Output Budget means the 4-port PD

aggregated power output. The aggregated power

consumption will be below 65 watts if with IEEE

802.3bt PoE++ PSE.

2. If the PoE output, whose power source is IEEE

802.3at PoE+, is more than 25 watts, the device will

be shut down.

7. Customer Support

Thank you for purchasing PLANET products. You can browse our online

FAQ resource at PLANET web site rst to check if it could solve your

issue. If you need more support information, please contact PLANET

support team.

PLANET online FAQs:

https://www.planet.com.tw/en/support/faq.php?method=category&c1=2

PLANET support team mail address:

support@planet.com.tw

Contents are subject to revision without prior notice.

PLANET is a registered trademark of PLANET Technology Corp.

All other trademarks belong to their respective owners.

Produkspesifikasjoner

Merke:	Planet
Kategori:	wifi-repeterer
Modell:	POE-E304
Vekt:	403 g
Bredde:	168 mm
Dybde:	93 mm
Høyde:	32 mm
LED-indikatorer:	Ja
Strømforbruk (maks.):	60 W
Sertifisering:	FCC Part 15 Class A, CE
Kablingsteknologi:	10/100/1000Base-T(X)
Nettverksstandard:	IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3u, IEEE 802.3x
Auto MDIX IEEE:	Ja
Auto-forhandling:	Ja
Produktfarge:	Blå
Antall ethernets-/bredbåndstilkoblinger (RJ-45):	5
Driftstemperatur (T-T):	0 - 50 °C
Oppbevaringstemperaturomåde (Celsius):	-10 - 70 °C
Lagringsrelativ fuktighet:	5 - 95
Harmonisert system (HS)-kode:	85176990
Modell/Type:	Sender og mottaker
Kroppsmateriale:	Metall
Ethernet LAN dataoverføringshastigheter:	10,100,1000 Mbit/s
Relativ luftfuktighet under drift (H-H):	5 - 95
Montasjetype:	Bord/Vegg
Strømningskontroll støtte:	Ja
Størrelse på adressetabell:	2000 oppføringer
Strøm over Ethernet (PoE):	Ja
Power over Ethernet (PoE)-ports, antall:	5
Plugg inn og spill:	Ja
Jumbo Frames-støtte:	Ja
Maksimal overføring avstand:	100 m
Kabeltyper som støttes:	Cat5, Cat5e, Cat6
Tosidig system:	Full
RJ45 porter antall (sender):	4
RJ45 porter antall (mottaker):	1
