37"- 63" 2.45" (62mm) 12˚175 lbs. (79 kg) 800 x 505mm

LIFETIME

WARRANTY

FLAT PANEL MOUNTS

Tilting Multipurpose Mounts

FEATURES SPECIFICATIONS

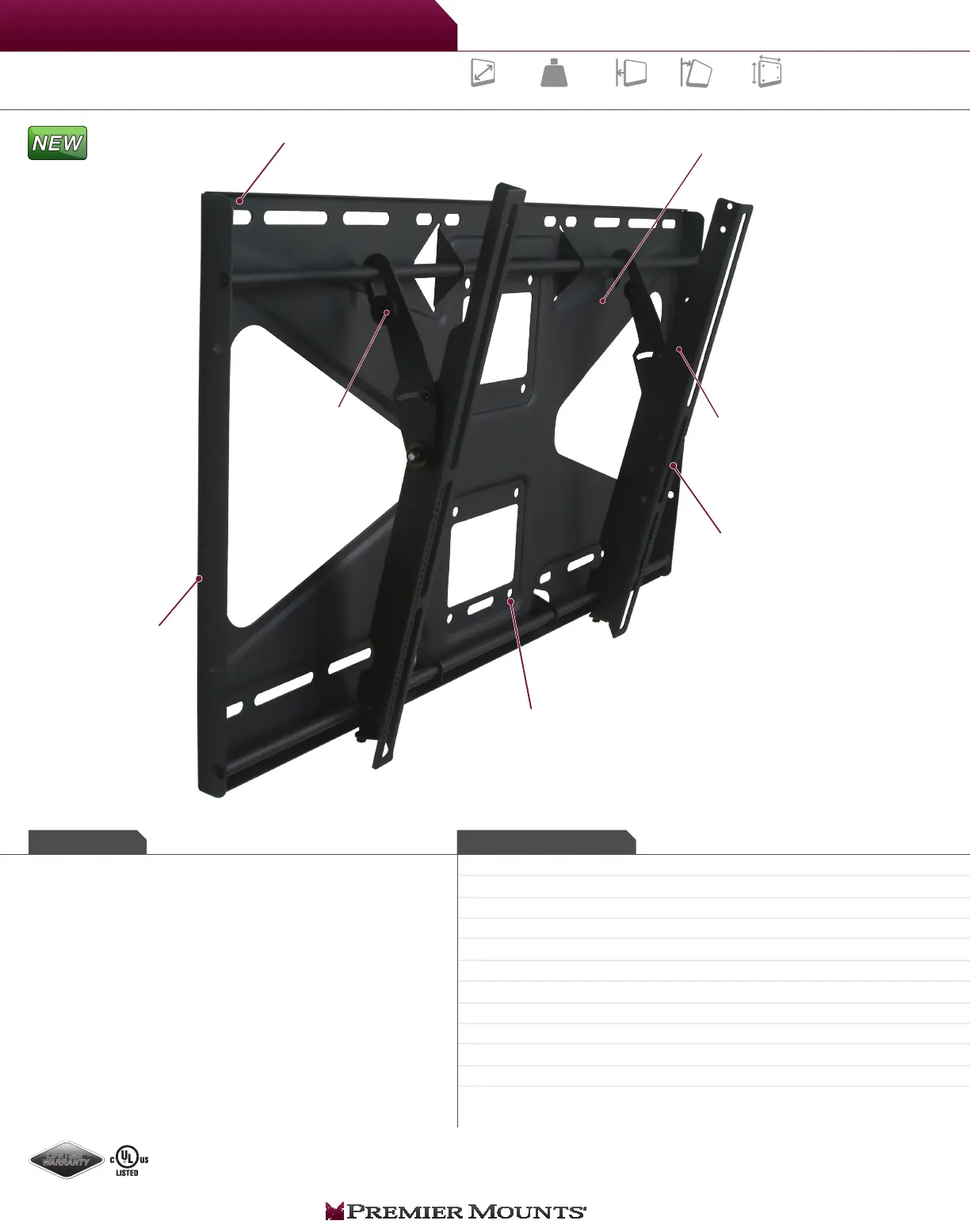

CTM-MS2

Tilting Mount for Flat-Panels up to 63"

• Mounts to walls, floor stands, carts and ceiling adapters

• Features patented Clevis™ technology for effortless tilt

• Three vertical height mounting options for carts and stands

• Patented Griplate™ system holds display securely in place

• Built-in lateral shift

• Extensive hardware pack including exclusive universal spacers

• Cable and power box access

• Now includes PANELOCK™ theft-resistance system

Model CTM-MS2

Display Range 37"-63"

Weight Capacity 175 lbs. (79 kg)

Depth 2.45" (62mm)

Tilt 12°

Mounting Patterns 200 x 200mm (Min) - 800 x 505mm (Max)

Adjustable Tilt

12° of continuous tilt places

ﬂat-panel at the perfect

viewing angle

Structural Ribs

Reinforced construction keeps wall

plate rigid under heavy loads

Versatile Design

Allows attachment to wall,

ceiling, cart or stand

Secure Mounting

Locking screws and knurl

knobs secure ﬂat-panel

Lightweight

Redesigned model

weighs 20% less than

previous version

Vertical Adjustment

Multiple height settings for ﬂexible

placement on a cart or stand

Griplate™

Patented washer "grips"

mounting bracket for

secure installation

24.00

[610]

18.00

[457]

16.00

[406]

32.25

[819]

2.45

[62]

10.00

[254]

19.00

[483]

4.50

[114]

4.50

[114]

31.63

[803]

32.88

[835]

21.00

[533]

19.90

[505]

12°

P 714.632.7100 | 800.368.9700 | F 800.832.4888 | www.mounts.com

ACCESSORY OPTIONS FAQ

DIMENSIONAL DRAWING

Dimensions in inches and millimeters [mm].

Drawings subject to change without notice.

CTM-MS2

Tilting Mount for Flat-Panels up to 63"

What if I don't know my mounting pattern?

Check the mount locator tool on www.mounts.com to see a list of

compatible mounts or select a universal mount, which fits a broader

range of mounting points.

How does this mount to a ceiling?

Use of a PSD-S ceiling adapter allows you to attach to any length of

1.5" NPT or adjustable height suspension adapters.

Why would I pick this over the P4263T?

The unique bolt pattern found in the center of each CTM Series

allows for installation on walls, ceiling adapters or floor stands. The

P4263T is meant for wall installation only.

PSD-S Ceiling Adapter

PCB-CSL1 Cable Lock

Produkspesifikasjoner

Merke:	Premier
Kategori:	Flatpanelstøtte
Modell:	CTM-MS2
Vekt:	10432.6 g
Bredde:	695 mm
Dybde:	62 mm
Høyde:	505 mm
Produktfarge:	Sort
Vippevinkelområde:	-12 - 12 °
Skjermstørrelsekompabilitet:	37 - 61 "
Monteringsgrensesnitt:	16" / 24" mounting_slots
Montasjetype:	Vegg
Maksimalvekt (kapasitet):	79 kg
Pakningsstørrelse (BxDxH):	736.6 x 57.15 x 488.95 mm
