Side 1/1

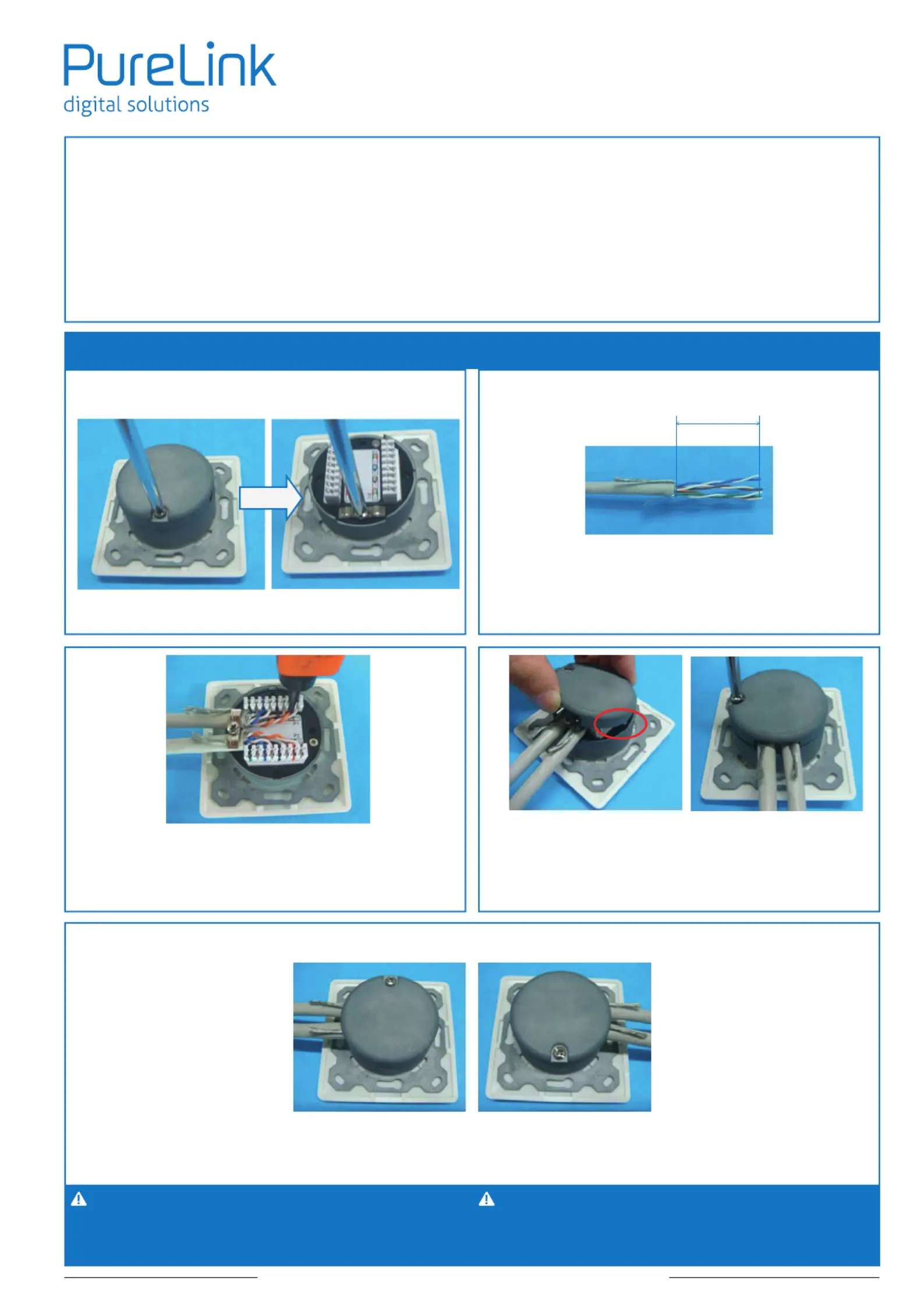

Cat.6 A Wallplate | User Guide

Item No.

MCA200

User Guide

T568A

Pin 1

Color-coding information for

T568A & T568B wiring.

White / Green

Pin 2 Green

Pin 3 White / Orange

Pin 4 Blue

Pin 5 White / Blue

Pin 6 Orange

Pin 7 White / Brown

Pin 8 Brown

T568B

Pin 1 White / Orange

Pin 2 Orange

Pin 3 White / Green

Pin 4 Blue

Pin 5 White / Blue

Pin 6 Green

Pin 7 White / Brown

Pin 8 Brown

30mm

Strip 30mm cable jacket approximately,

and separtate the wires into 4 pairs

It´s done.

Place the cable(s) underneath the M-shape cabe holder properly,

make sure the ﬁol or braid shield contact with the cable holder,

and then fasten the screw.

Follow the wiring instruction to puch the wires by KRONE impact

tool.

Adjust the gap on the cover to ﬁt the cables. Latch the snag (the

circle in the ﬁgure above) to the hole on the body and then fasten

the screw.

SAFETY INSTRUCTION

Avoid connection errors - read installation instructions carefully before connecting!

Unplug the RJ45 Plug only when without voltage. Unplugging of device under voltage

(e.g. POE) may damage the contacts. Only be installed by qualiﬁed personnel. The safety

requirements must be observed.

SICHERHEITSHINWEIS

Anschlussfehler vermeiden - vor dem Anschluss Montageanleitung sorgfältig lesen!

Ziehen des RJ45 Steckers nur bei Geräten ohne Spannung. Ausstecken unter Spannung

(z.B. POE) kann zu Schäden an den Kontakten führen! Die Installation ist nur von Fachpersonal

durchzuführen. Hierbei sind Sicherheitsanforderungen zu beachten.

PureLink GmbH | Von-Liebig-Str. 10 | 48432 Rheine | Germany | www.purelink.de

Produkspesifikasjoner

Merke:	PureLink
Kategori:	Stikkontakt
Modell:	MCA200
Sertifisering:	ANSI/TIA-568-C.2\nISO/IEC 11801 Ed 2.2
Antall per pakke:	1 stykker
Produktfarge:	Hvit
Harmonisert system (HS)-kode:	85389099
Sokkeltype:	RJ-45
Stikkontakter, antall:	2
