QTX J-MIC Bruksanvisning
Les nedenfor 📖 manual på norsk for QTX J-MIC (4 sider) i kategorien Mikrofon. Denne guiden var nyttig for 2 personer og ble vurdert med 3.7 stjerner i gjennomsnitt av 1.5 brukere
Side 1/4
J-MIC
Item ref: 171.824UK
Rechargeable Dual Handheld UHF Wireless Set
User Manual
Version 1.0
Caution: Please read this manual carefully before operating
Damage caused by misuse is not covered by the warranty
J-MIC DUAL User Manual
Introduction
Thank you for choosing the J-MIC set for your wireless microphone requirements.
This system is designed to provide a reliable, cable-free solution with minimal
setup and ease of use. Please read and keep this user manual to get the best
results from your product and avoid damage through misuse.

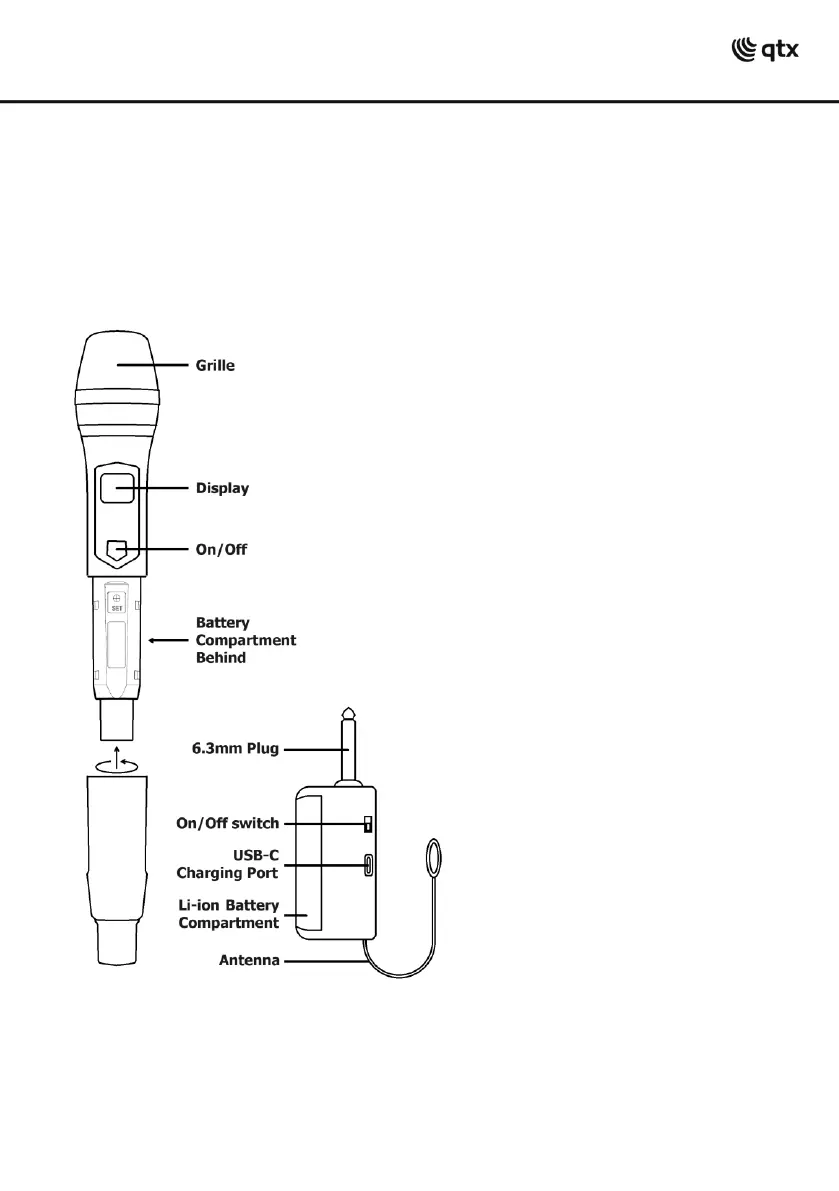

Setting up

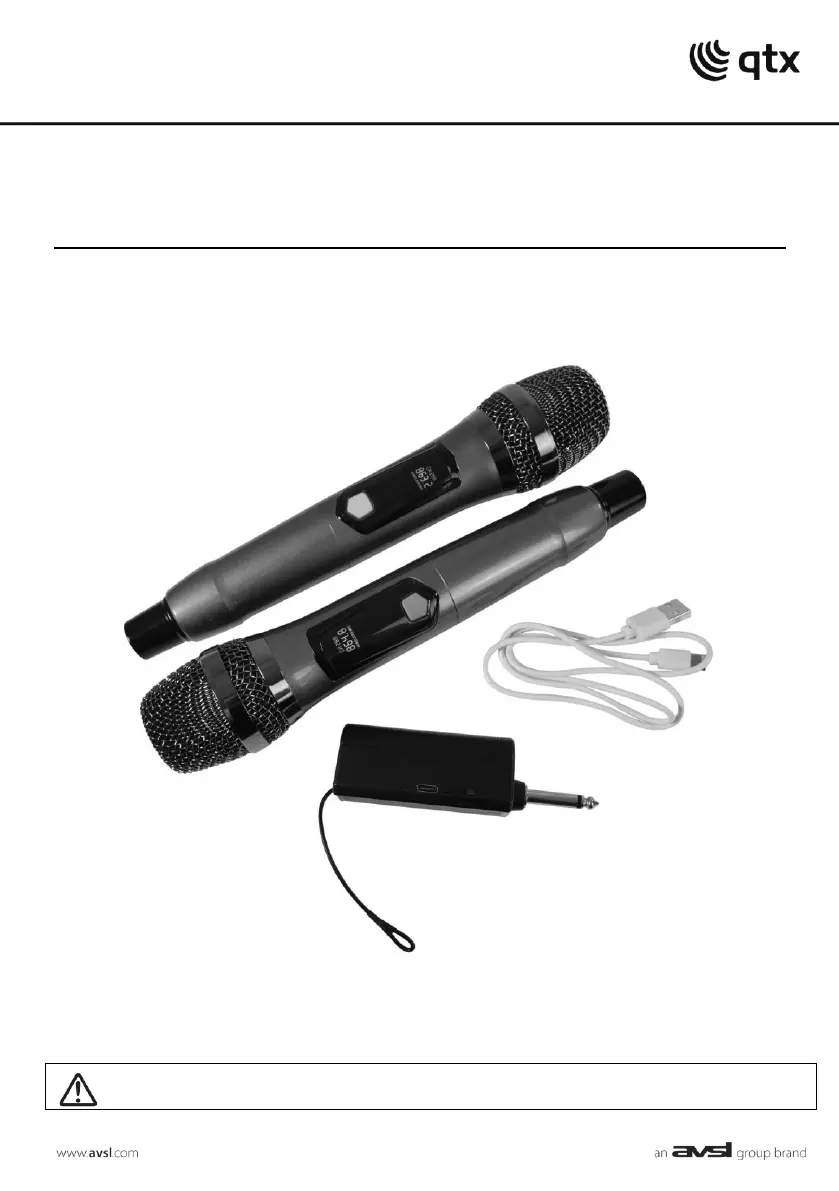

The J-MIC set is supplied as 2
individual handheld microphone
transmitters and a rechargeable
6.3mm plug-in receiver.
To charge the receiver, connect
the supplied USB lead from the
type-C socket on the receiver to a
USB power supply with the type-
A plug.
Note: the audio is not transmitted
to the USB port. The USB is for
power only.
The internal rechargeable battery
is a Li-ion 18650 type and may
be replaced if needed by sliding
off the cover on the transmitter.
Unscrew the lower part of each
handheld transmitter to reveal
the battery compartment at the
rear. Slide in 2 x AA batteries in
tandem with the positive button
towards the microphone grille.
Note: The front side of the opened microphone compartment has an aperture
labelled “SET”. This is not used, as the J-MIC system is pre-set to operate on the
UK/EU license-free UHF band.
Replace the lower cover of each microphone once batteries are installed.
Produkspesifikasjoner
| Merke: | QTX |
| Kategori: | Mikrofon |
| Modell: | J-MIC |
