QTX U-MIC-863.2-L Bruksanvisning
Les nedenfor 📖 manual på norsk for QTX U-MIC-863.2-L (4 sider) i kategorien Mikrofon. Denne guiden var nyttig for 2 personer og ble vurdert med 4.9 stjerner i gjennomsnitt av 1.5 brukere
Side 1/4
U-MIC
Item ref: 171.814UK 171.815UK
USB Powered UHF Lavalier Microphone
User Manual
Version 1.1
Caution: Please read this manual carefully before operating
Damage caused by misuse is not covered by the warranty
171.814UK, 171.815UK User Manual
Introduction
Thank you for choosing the U-MIC for your wireless microphone requirements.
This system is designed to provide a reliable, cable-free solution with minimal
setup and ease of use. Please read and keep this user manual to get the best
results from your product and avoid damage through misuse.

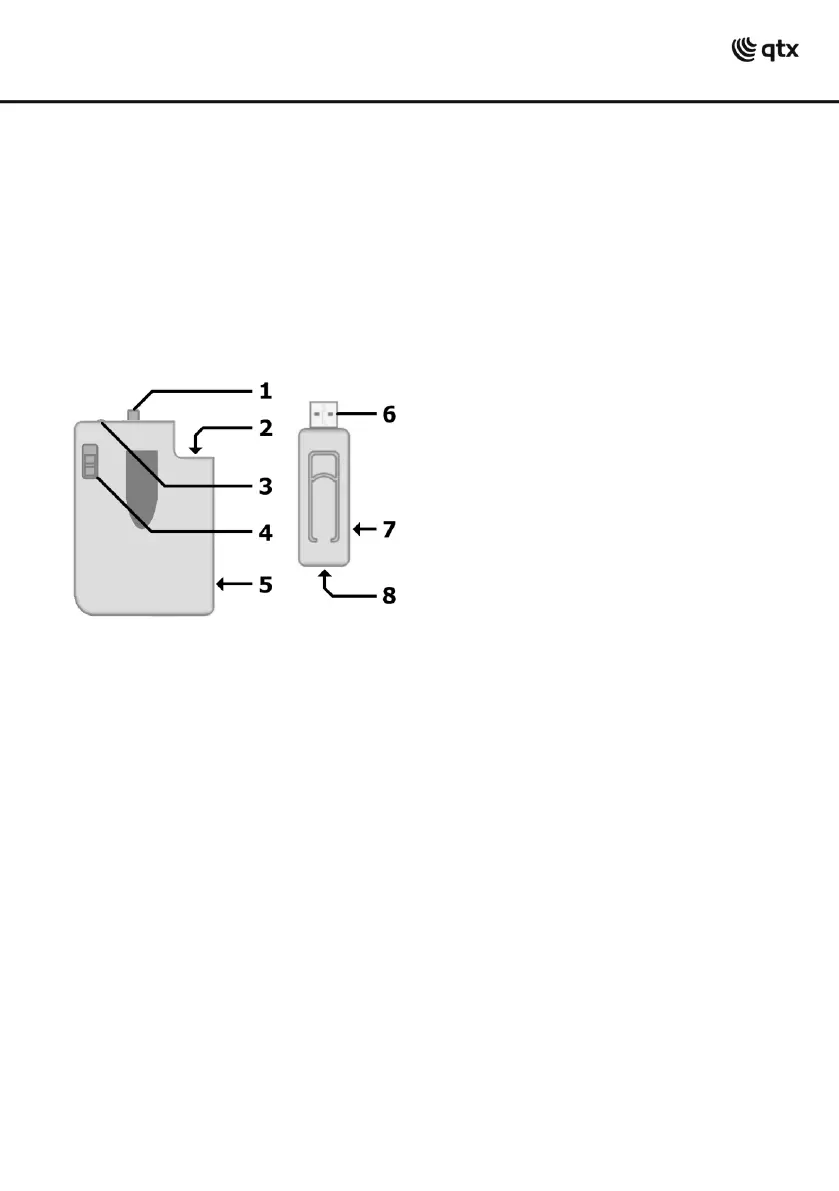

Layout
Setting up
The U-MIC is supplied as a lavalier microphone, beltpack transmitter and USB
receiver with a 3.5mm to 6.3mm jack lead.
The USB type A plug (6) on the receiver should be connected to a USB port for
power (5V, 1000mA). This can be from a USB power adaptor or power bank for
portable use if required. The connection can also be made to the receiver using
an optional USB extension lead if preferred.
Note: the audio is not transmitted to the USB port. The USB is for power only.
If the USB port is a U-Disk player or computer port, the digital media (USB stick)
or other peripheral device can still be connected through the receiver by
connecting to the USB type A socket (8) on the rear of the receiver.
1.
Volume control
2.
3.5mm lavalier mic input
3.
LED power indicator
4.
Power switch
5.
Battery compartment (rear)
6.
USB type A plug
7.
3.5mm audio output
8.
USB type A socket
Produkspesifikasjoner
| Merke: | QTX |
| Kategori: | Mikrofon |
| Modell: | U-MIC-863.2-L |
