Side 1/2

EXT=300MM

M5x0.8P

H-370 4PC

Ø12

18.0

15.0

Ø8,4

2.0

6.0

H-315 4PC

Stag -Beatle tool-less server slide, 180 pounds (80kg) loading.

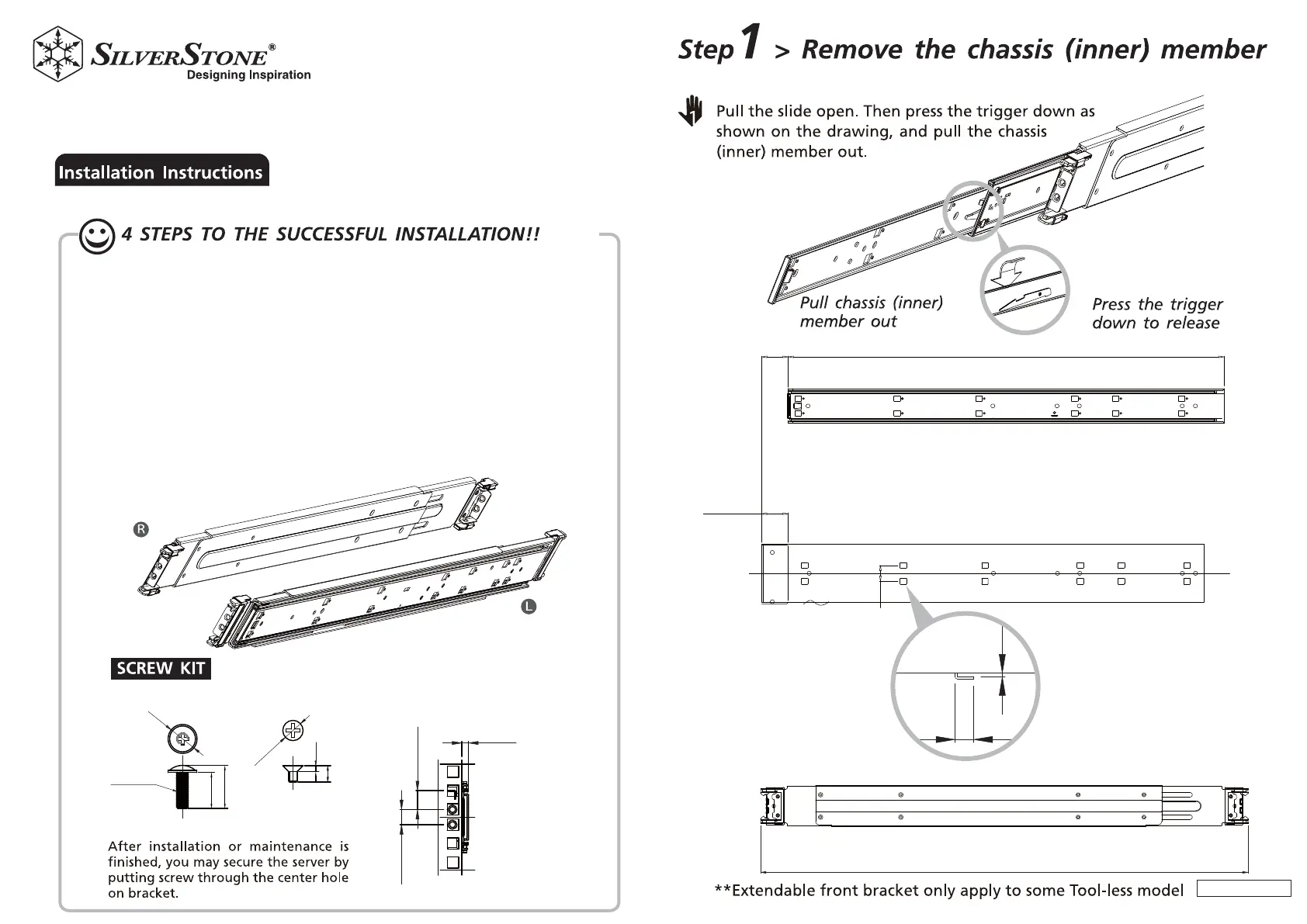

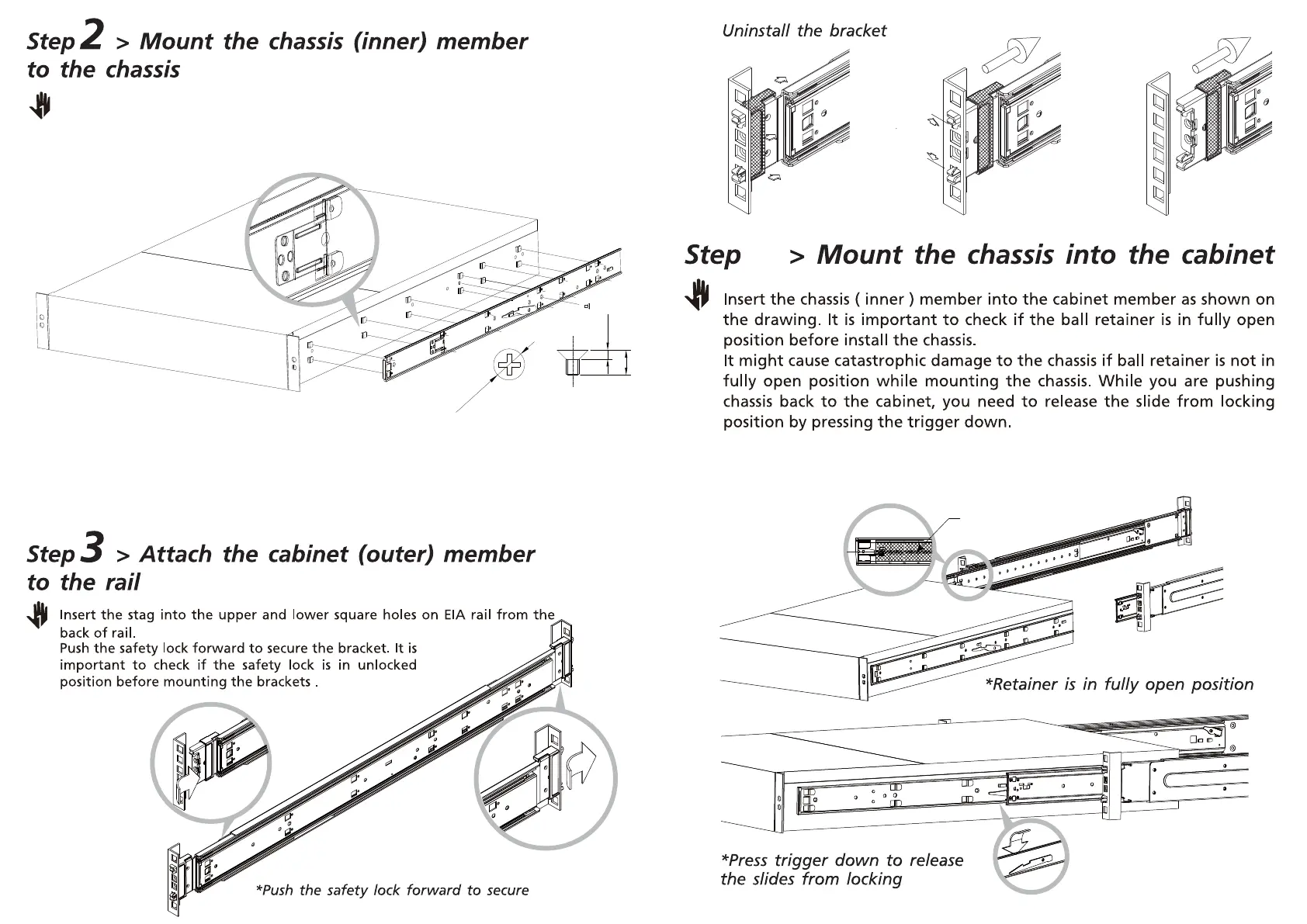

Quick installation Guide of RMS02

A. Please note that the 180lb-grade SB Tool-less is designed and built

for 2U chassis or above. Not recommended for 1U applications.

B. The SB bracket is for EIA rail with hole pitch as shown on fig-1 and

square holes, and can only be mounted behind the rail. You will

need to purchase transfer bracket in order to mount SB bracket on

the rail with round holes. The standard retail packaging shall include

one piece of left hand,one piece of right hand, 4 pieces of H-370

screws for ear plate fastening and 2 pieces of H-315 screws for

chassis fastening.

* The 180lb-grade SB tool-less is not designed to be screw mounted.

You Must mount the slides with bayonet pre-formed on the chassis.

CHASSIS

40.00

EAR BRKT

MAX=40mm

24.0

MIN=662.0±3

MAX=914.0±3

5.5

1/2"

5/8"

(Fig-1)

8.0

1.50

Produkspesifikasjoner

Merke:	SilverStone
Kategori:	Datamaskinbehuizing
Modell:	RMS02
Vekt:	4220 g
Bredde:	660.4 mm
Dybde:	8 mm
Høyde:	56 mm
Materiale:	SPCC, Zinc
Antall per pakke:	1 stykker
Dimensjoner (B x D x H):	660.4 x 8 x 56 mm
Produktfarge:	Sølv
Modell/Type:	Andre
