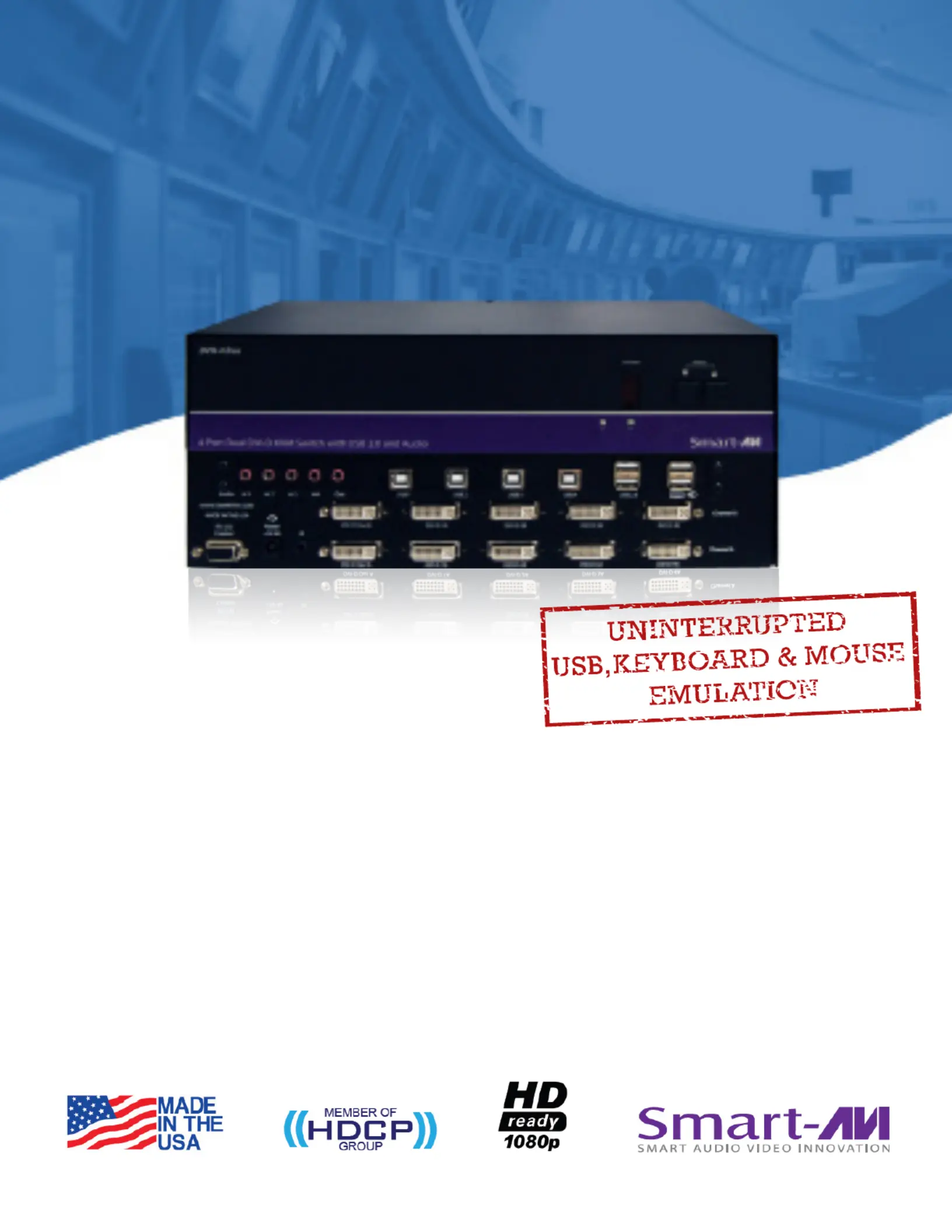

4-Port Dual Display DVI-D KVM Switch with

USB 2.0 Sharing

Access and Control 4 Dual Display Computers Using Only One USB

Keyboard and One USB Mouse

DVN-4Duo

REAL-WORLD APPLICATIONS

FEATURES

• SupportsMac,PC,LinuxandSunMacOS,SunOS,Unix

• SupportsHighResolution1920x120060HzWUXGA

• UsesuniversalDVISingleLinkconnectors

• ZeropixellosswithTMDSsignalcorrection

• SupportsallUSB2.0Devices

• ControlSun,MacorPCcomputersfromacommonKVMconsole

• CompatiblewithallmajorsoftwareincludingWindows,Linux,

MacOS,SunOS,Unix

• Rackmountableinastandard19inchrack

• Flashupgradeablermware

• Frontpanelkeysforselectingusersandchannelsmanually

• SupportsUSBkeyboardandmouse

• Balancedstereoaudiooutput

• RS-232controlforremotecontrol

• OptionalTCP/IPcontrol

• Hot-keycommandsforquickchannelselection.

• Independent(asynchronous)switchingofKVMand

peripheralUSB/audioports.Userscanlistentoaudio

fromonecomputerwhileworkingontheotheror

scanadocumentandsaveinanothercomputer.

• Completekeyboardemulationforerrorfreebooting

• Superiorvideoquality-1920x1200@60Hz

SOURCESWITCHINGMADEEASY

TheDVN-4Duoprovidesasimpliedmanagementapproachtoup4computerswithDVI-D,audio,andUSB2.0outputs.This

dynamicKVMconsolecanbecontrolledremotelyfromeasilyaccessiblekeyboardhotkeysorRS-232commands,aswellas

directlythroughtheconsole’seasytoreadfrontpanel.

EDIDLEARNING&PROGR AMMING

DetectionofDDCsignalsforallattacheddevicesiseffortlesswithDVN-4DuoduetoitsrealEDIDlearningandprogramming.

Thisisvitalinoptimizingtheresolutionoftheselectedgraphicscardtoproperlydisplayontheremotemonitor.Furthermore,the

EDIDlearningfeaturecontinuestoreplicatetherightDDCforthecomputertoenablethedisplaycardtoeffectivelyworkwhen

unusedportsarenotselected.

FULLUSBKEYBOARDANDMOUSEEMULATION

TheUSBkeyboardandmouseemulationutilizedbyDVN-4Duoprovidesaccurateandquicksourceswitchingbymeansof

keyboardhotkeysandmouseactions.DVN-4Duoimitatesthepresenceofakeyboardandmouseforeveryattachedcomputer

throughaUSBcable.Thisisessentialasitsimulatestheexistenceofthekeyboardandmousetoallthecomputerswhileswitching

withoutinterruptions.

DVN-4Duoisadedicatedmulti-platformKVMswitchcapableofmanagingupto4differentcomputersthroughtwoDVI-D

monitors,oneUSBkeyboard&mouse,asinglesetofspeakersandaUSB2.0Device.

TheUSBemulationtechnologyutilizedbyDVN-4DuoenablesimmediatehotkeysourceswitchingthrougharemoteUSB

keyboardandmouse.DVN-4Duousessinglelinkconnectorsprovidinghighresolutionsofupto1920x1200withzeropixelloss

fromTMDSsignalcorrection.

• ControlRooms

• Audio/VisualPresentations

• ShoppingCenters

• Hotels/Resorts

• KVMSwitches

TheDVN-4Duohasabroadrangeofapplications,butthemainfunctionofthisKVMswitchistocentralizetheaccessofseveral

computersintoonecomprehensivePC.NotonlydoesitfunctionasaKVMconsole,italsosupportsUSB2.0functionality.This

allowsauserattheconsoletouseUSBdevicesthatwouldotherwisebeunavailablewithconventionalKVMdevices.Forexample,

itallowsausertouseaashmemorydriveorcamerawithouthavingtoplugitdirectlyintotheremotecomputer.DVN-4Duois

aperfectsolutionforthemedicalorindustrialeld,whereitmaynotbepracticalorsafetohaveoneormoreCPUsin

thegeneralvicinity.

• ServerCollocation

• DigitalSignage

• Education

• Airports

• DealerRooms

OVERVIEW

INDEPENDENTSIMULTANEOUSDEVICESELECTION:FlexibilityiskeywiththeDVN-4Duo.ItenablestheuseofaUSB

keyboardandmouseofonecomputerwhileotherUSBperipheralssuchasspeakers,scannersandprintersareconnectedto

othercomputersources.DVN-4Duomaintainstheabilitytoswitchallconnecteddevicestoanyoneofthecomputersourcesas

withanyotherKVMswitches.

FLEXIBLE CONTROL

FLEXIBLE SHARING

RS-232:AnyexternaldeviceorprogramsupportingRS-232cancontroltheDVN-4Duo.TheDVN-4Duousesverysimple

protocol,thatenableseasyintegrationwithotherdevices.

USB/KEYBOARD:HotkeysenabletheusertoswitchandcontrolallthedifferentfunctionsoftheKVMsystem.

TCP/IP:SMTCP-2isaSmartAVIoptionalTCP/IPconverterthatenablesuserstoswitchandcontroltheDVN-4Duocontrolfrom

anywhereintheworldusingaLANorWANconnection.

DVI 2

DVI 1

4 Computers

DVN-4 Duo

4 Port Dual DVI-D KVM Switch with USB 2.0 and Audio

Produkspesifikasjoner

Merke:	Smart-AVI
Kategori:	Bryter
Modell:	DVN-4Duo
Innebygd skjerm:	Nei
Vekt:	4535.93 g
Bredde:	431 mm
Dybde:	88.9 mm
Høyde:	171.45 mm
LED-indikatorer:	Ja
Maksimal oppløsning:	1600 x 1200 piksler
Antall USB 2.0-porter:	8
Antall datamaskiner:	4
Lydtilkoblinger:	Ja
Produktfarge:	Sort
Antall DVI-D-porter:	5
Strømforbruk (vanlig bruk):	20 W
Driftstemperatur (T-T):	0 - 55 °C
Oppbevaringstemperaturomåde (Celsius):	-20 - 85 °C
Relativ luftfuktighet under drift (H-H):	0 - 95
Rack-montering:	Nei
Video tilkoblingstype:	DVI-D
Tastatur tilkoblingstype:	USB
Mus tilkoblingstype:	USB
