Model: TX-271; Article No. 5118; 10/2023

Technaxx

* User Manual

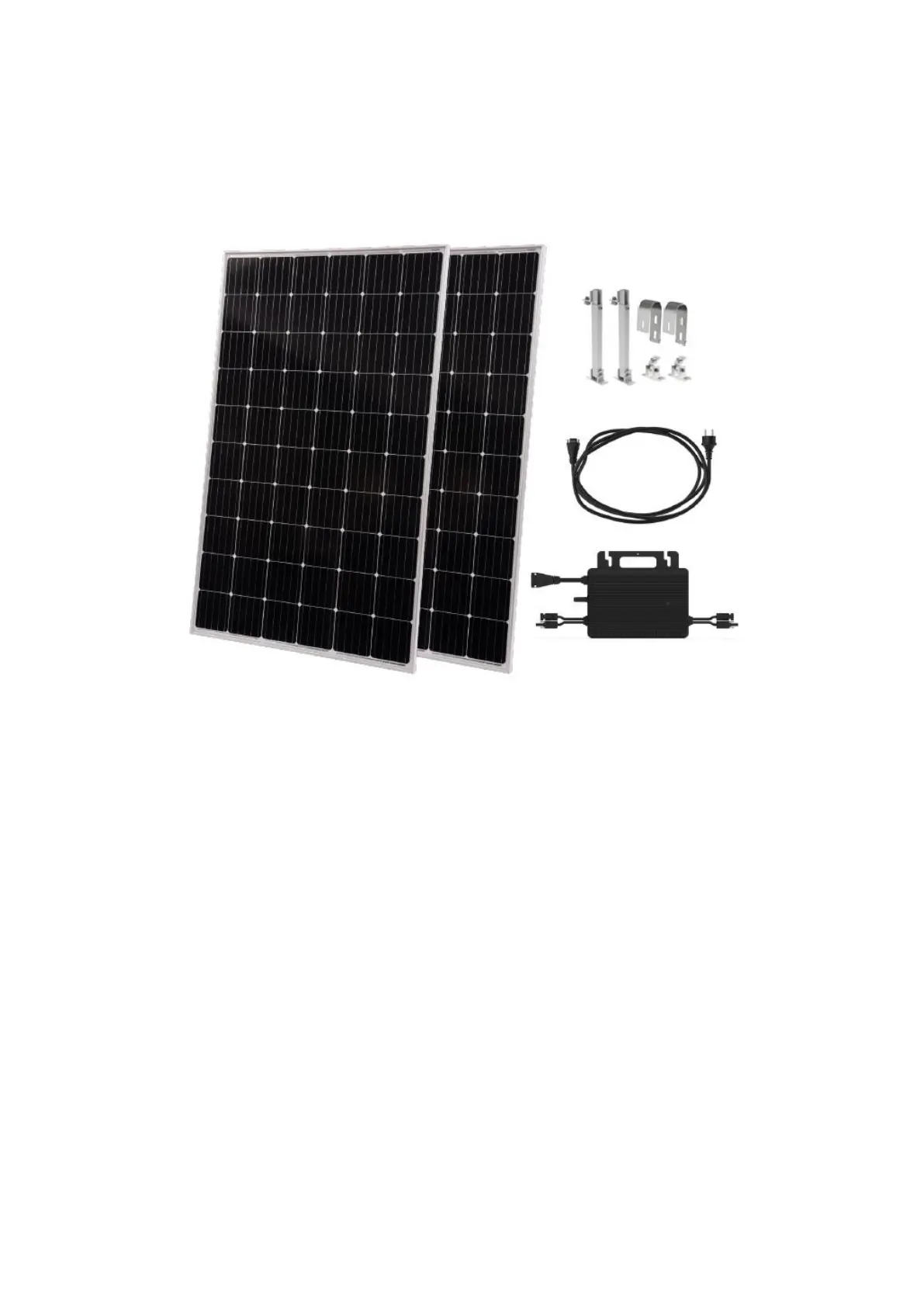

Solar Balcony Power Plant 600W WiFi TX-271

Before using the appliance for the first time, please read the instructions for use and

safety information carefully.

This appliance is not intended for use by persons (including children) with reduced

physical, sensory or mental capacities, or by persons lacking in experience or

knowledge, unless they are supervised or instructed on the use of this device by a

person responsible for their safety. Children should be supervised to ensure they do

not play with this device.

Keep this user manual for future reference or product sharing carefully. Do the same

with the original accessories for this product. In case of warranty, please contact the

dealer or the store where you bought this product.

Enjoy your product. * Share your experience and opinion on one of the well-

known internet portals.

2
Model: TX-271; Article No. 5118; 10/2023
Table of Contents
Important notes at the start ................ 3
Explanation of the pictograms used 3
Note ............................................... 4
Safety instructions .......................... 4
Intended use .................................. 5
Caution measures during installation
 ....................................................... 6
Qualified personnel ........................ 6
Disclaimer ...................................... 6
Features ............................................ 7
Product details ................................... 7
Package content: ............................ 7
Product overview ............................ 7
PV  Micro  Inverter  800W  HMS-
800W-2T ..................................... 7
Preparation ........................................ 8
Requirements for  the  operation of  a
photovoltaic system ........................ 8
Connecting the micro inverter ............ 8
Connect  the  solar  panels  (DC
connection) ..................................... 9
Connecting the micro inverter to the
AC grid (AC connection) ................. 9
Mounting .......................................... 10
General hints ................................ 10
Balcony ......................................... 10
Flat roof (bitumen roof) ................. 10
Facade .......................................... 11
First commissioning .......................... 11
WiFi configuration ............................. 12
Get the App ................................... 12
Webpage ...................................... 13
LED status ........................................ 13
Troubleshooting ................................ 14
Technical specifications .................... 15
PV Micro Inverter 800W HMS-800W-
2T ................................................. 15
Appendix .......................................... 16
Determining the line reserve ......... 16
Load capacity of copper lines ........ 17
Determination of the line reserve .. 18
Support ............................................ 18
Care and maintenance ..................... 18
Declaration of Conformity ................. 18
Disposal ........................................... 18



Model: TX-271; Article No. 5118; 10/2023

Important notes at the start

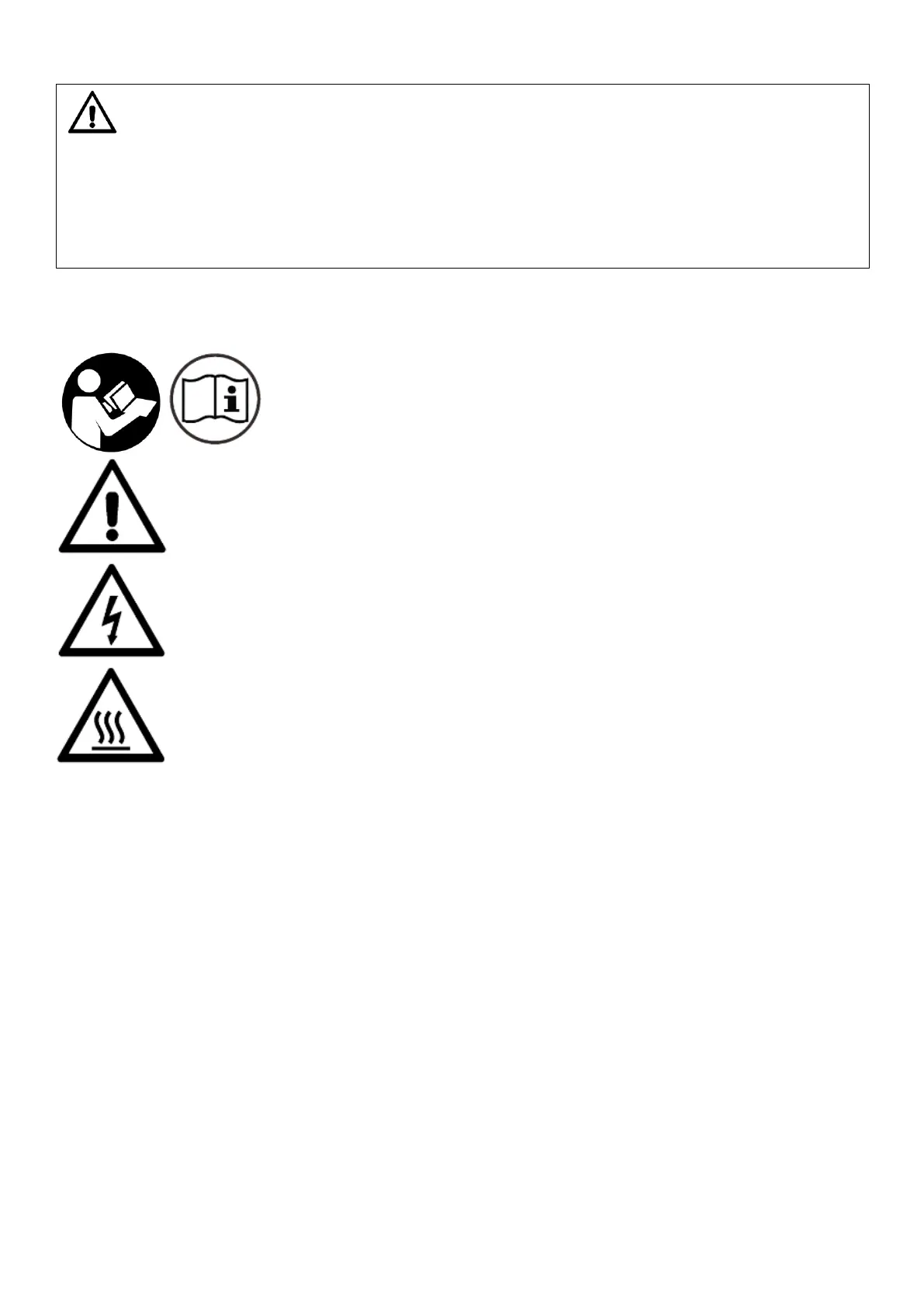

Explanation of the pictograms used

Read the user manual

Warning

Caution, risk of electric shock.

Caution, hot surface

Specifications subject to change without notice - please make sure you are using the

latest manual available on the manufacturer's website.

ATTENTION!

According to the German Federal Network Agency, installations exceeding

600W may only be carried out by electrical contractors. In addition, a

corresponding report must be made to the network operator! Therefore,

contact a specialist electrical company if your installation exceeds 600W!

Produkspesifikasjoner

Merke:	Technaxx
Kategori:	solcelle
Modell:	TX-271
Vekt:	22000 g
Bredde:	1040 mm
Dybde:	20 mm
Høyde:	580 mm
Utgangsspenning (maks.):	230 V
Beste bruk:	Balkong
Nominell effekt:	600 W
Maksimal systemspenning:	1000 V
Energiutbytte (år):	570 kWh
Energiutbytte (dag):	1.56 kWh
Solcelle type:	Monokrystallinsk silisium
PV-omformer inkludert:	Ja
Kabellengde:	5 m
Produktfarge:	Sort
Pakketype:	Boks
Driftstemperatur (T-T):	-40 - 85 °C
Strøm:	10.29 A
Kontakttype:	MC4
Energiutbytte:	600 W
Solpanel kraft:	325 W
Solcelle spenning:	31.6 V
Solpanelbasert strøm:	10.29 mA
Celleeffektivitet:	22.7
Invertertype:	Mikro
PV inverter-kraft:	800 W
