TEF1105P-4-38W v1.0

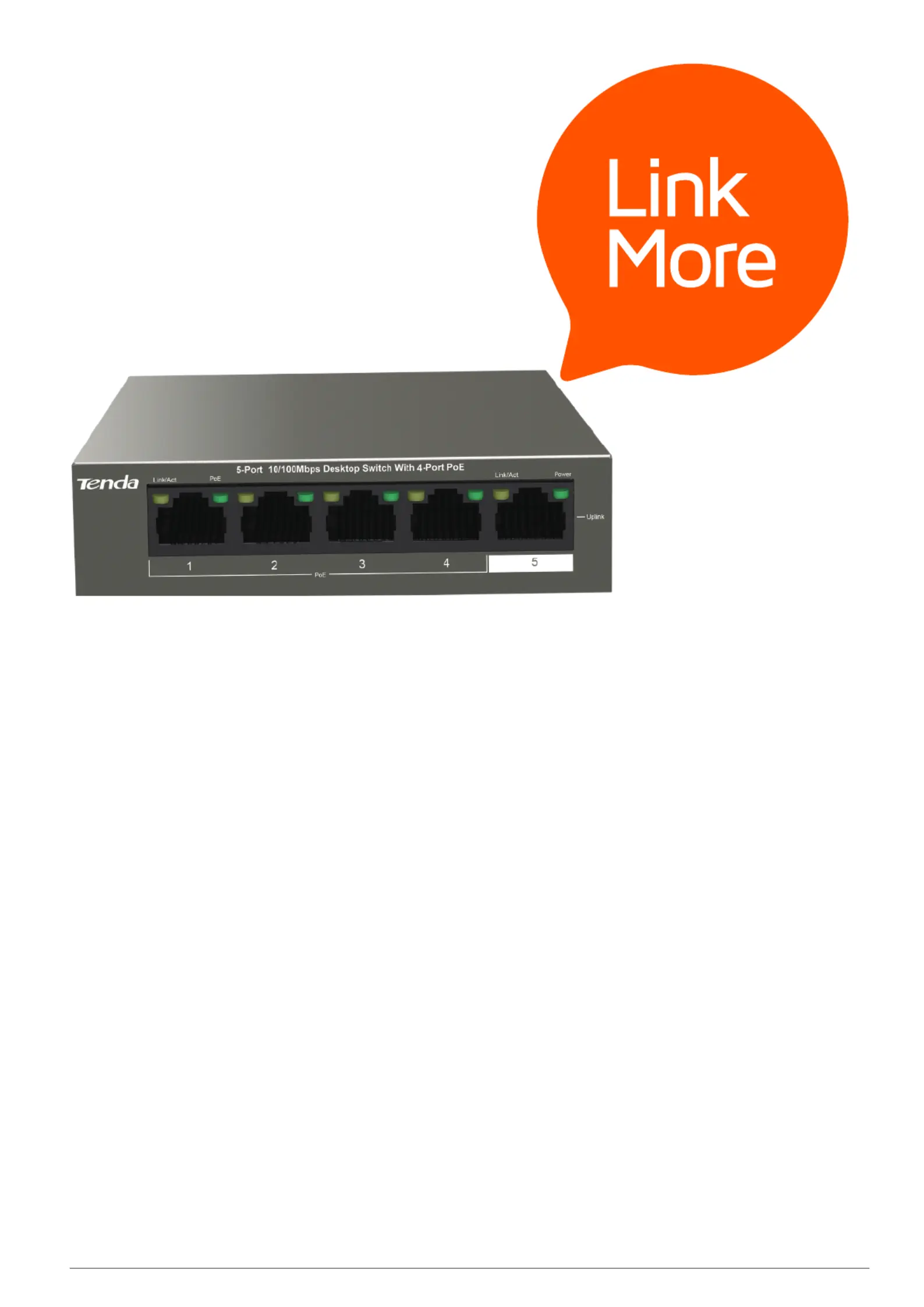

5-Port 10/100 Mbps Desktop Switch with 4-Port PoE（35W）

www.tendacn.com

TEF1105P-4-38W v1.0 / 5-Port 10/100 Mbps Desktop Switch with 4-Port PoE(35W)

TEF1105P-4-38W v1.0

5-Port 10/100 Mbps Desktop Switch with 4-Port PoE(35W)

Product Description

TEF1105P-4-38W is a Tenda PoE switch that offers 5 10/100 Mbps Base-TX RJ45 ports.Up to 250 meters long distance trans-

mission, beyond hundred meters transfer limit.6KV lightning protection PoE switch is the real monitoring private

switch .Ports

1-4 support IEEE 802.3af PoE standard. It provides 15W maximum

PoE output a single port and 35W the whole

device.

Key Feature

 5 10/100 Mbps Base-T RJ45 port;Ports 1-4: IEEE 802.3af PoE ports

 Maximum power output of each PoE port:15W

 Maximum power output of the switch: 35 W

 Desktop size,Metal case,Power Adapter Output 38W

 Support extend mode,the transmission distance of both power and data will

extend up to 250m

Lightning Protection 6KV

The ports and embedded power can provide lightning protection of up to 6kV.

It also provides PSE shortcircuiting protection, PoE overloading, power over

temperature, over voltage and surge current protection.

35 W PoE power supply

PPorts 1-4 comply with the IEEE802.3af power supply standards. The entire

switch offers a maximum PoE power output of 35W, whereas each port offers a

maximum PoE power output of 15W. The ports can be used to supply power to

and exchange data with APs and IP cameras.

Extend Mode

If the extend mode is enabled, the transmission distance of both power and

data will extend up to 250m(10Mbps), this funcation can replace the extender

and parts of the Fiber. It will extend the distance of the whole system and save

the cost of the project.

250m

6KV

TEF1105P-4-38W v1.0 / 5-Port 10/100 Mbps Desktop Switch with 4-Port PoE(35W)

Produkspesifikasjoner

Merke:	Tenda
Kategori:	Bryter
Modell:	TEF1105P-4-38W
Bredde:	100 mm
Dybde:	100 mm
Høyde:	26 mm
LED-indikatorer:	Ja
Strømforbruk (maks.):	38 W
Nettverksstandard:	IEEE 802.3, IEEE 802.3af, IEEE 802.3u
10G støtte:	Nei
AC-inngangsspenning:	100 - 240 V
AC-inngangsfrekvens:	50 - 60 Hz
Produktfarge:	Grå
Driftstemperatur (T-T):	0 - 40 °C
Oppbevaringstemperaturomåde (Celsius):	-40 - 70 °C
Lagringsrelativ fuktighet:	5 - 90
Harmonisert system (HS)-kode:	85176990
Overspenningsvern:	Ja
Ethernet-kobberkabelteknologi:	10BASE-T, 100BASE-TX
Relativ luftfuktighet under drift (H-H):	10 - 90
Rack-montering:	Nei
Svitsjtype:	Uhåndtert
Antall Basic switching RJ-45 Ethernet-ports:	5
Basic switching RJ-45 Ethernet ports-type:	Fast Ethernet (10/100)
Strømningskontroll støtte:	Ja
Størrelse på adressetabell:	1024 oppføringer
Ruting/svitsjekapasitet:	1 Gbit/s
Strøm over Ethernet (PoE):	Ja
Power over Ethernet (PoE) effekt per port:	15 W
Power over Ethernet (PoE)-ports, antall:	4
Full tosidig:	Ja
Lagre-og-videresend:	Ja
Strømbryterbelegg:	L2
Fast Ethernet (kobber)-ports, antall:	5
