Les nedenfor 📖 manual på norsk for Thermaltake View 71 TG (13 sider) i kategorien Datamaskinbehuizing. Denne guiden var nyttig for 31 personer og ble vurdert med 4.8 stjerner i gjennomsnitt av 16 brukere
Side 1/13
User's Manual
Benutzerhandbuch
Mode d’emploi
Manual del usuario
Manuale dell’utente
Manual do Utilizador
安裝說明書
用戶手冊
ユーザーズマニュアル
Руководство пользователя
kullanıcı elkitabı
(EEE Yönetmeliğine Uygundur)
คู่มือการใช้
© 2017 Thermaltake Technology Co., Ltd. All Rights Reserved. 2017.07
All other registered trademarks belong to their respective companies.
www.thermaltake.com
Tested To Comply
With FCC Standards
FOR HOME OR OFFICE USE
Picture is for reference only
藍色線條為尺寸標示，請勿印刷上去！
產品料號
CA-1I7-00F1WN-00 View 71 TG
說明書
17/06/26
A
產品名稱
印刷項目
發稿日期
版本
騎馬釘24 105G
雙銅
單色 無無
其他特殊處理效果表面處理
2
厚度(g/m )
裝訂方式 材質頁數 印刷色彩
規格樣式
整本
CHECK DESIGN
Allen Lee
(17/06/26)
Averson
(17/06/26)
刀模線
125 mm
176 mm
Join Tt Community To Receive Benefits
Tt LCS-Liquid Cooling Support Certification
Dear Valued Customer,
Thank you for choosing Thermaltake.
As a new user we value your thoughts and opinions and
your feedback is important to us. We at Thermaltake
would like to use this opportunity to invite you to join our
Community Forums. Register today to start enjoying the
full benefits of our community.
Benefits of being a member:
Quick and responsive user support
Receive help and advice with new builds
Keep up to date with new product releases
Share your thoughts and builds with the community
Enter monthly contests and giveaways
Tt LCS Certified is a Thermaltake exclusive certification
applied to only products that pass the design and
hardcore enthusiasts standards that a true LCS chassis
should be held to. The Tt LCS certification was created
so that we at Thermaltake can designate to all power
users which chassis have been tested to be best
compatible with extreme liquid cooling configurations to
ensure you get the best performance from the best
features and fitment.
Brand official website
http://www.thermaltake.com/
Global Facebook
https://www.facebook.com/ThermaltakeInc
Taiwan Facebook
http://www.facebook.com/ThermaltakeTW
Global community forums
http://community.thermaltake.com
藍色線條為尺寸標示，請勿印刷上去！
產品料號
CA-1I7-00F1WN-00 View 71 TG
說明書
17/06/26
A
產品名稱
印刷項目
發稿日期
版本
騎馬釘24 105G
雙銅
單色 無無
其他特殊處理效果表面處理
2
厚度(g/m )
裝訂方式 材質頁數 印刷色彩
規格樣式
整本
CHECK DESIGN
Allen Lee
(17/06/26)
Averson
(17/06/26)
刀模線
125 mm
176 mm

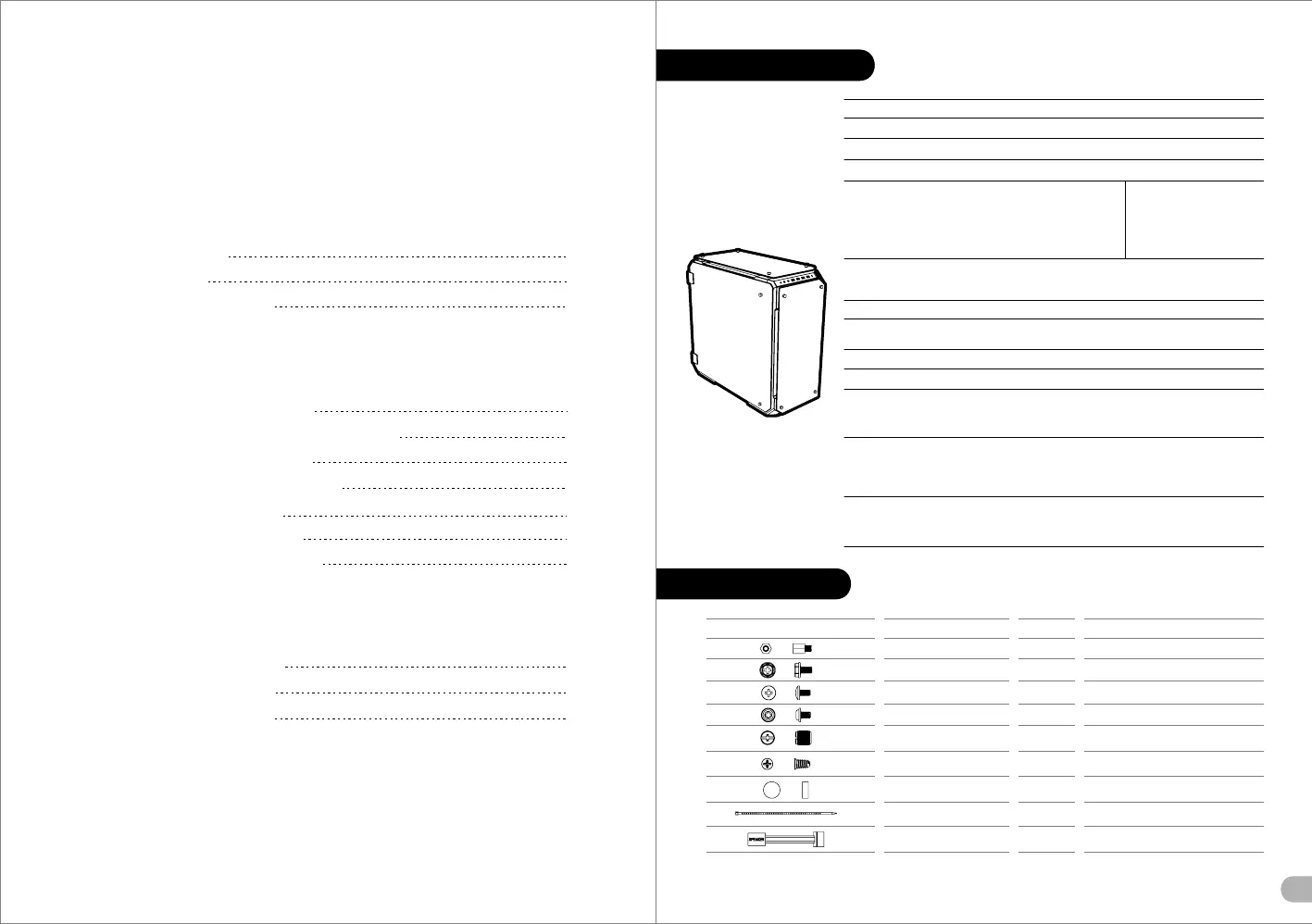

Chapter 1. Product Introduction
Specification
Accessory
Warning and Notice
1.0
1.1
1.2
01
01
02
Contents
Chapter 2. Installation Guide
2.0
2.1
2.2
2.3
2.4
2.5
2.6
Side Panels Disassembly
Power Supply Unit (PSU) Installation
Motherboard Installation
3.5" & 2.5" HDD Installation
PCI Card Installation
Air Cooling Installation
Liquid Cooling Installation
04
05
06
07
09
10
11
Chapter3 Leads Installation Guide
Case LED connection
USB 3.0 connection
Audio connection
3.0
3.1
3.2
13
13
13
Specification
Accessory
Rubber Ø14 x 5mm
4
PSU
Figure
Parts Name
Cable Ties
Buzzer
Screw＃6-32 x 6.5mm
Screw＃6-32 x 5mm
Stand-off＃6-32 x 6.5mm
Screw M3 x 5mm
Screw Ø5 x 12mm
Q'ty
4
4
30
50
8
10
1
Used for
Cable Management
MB / 2.5”HDD / SSD
PSU
Motherboard Alarm
Motherboard
3.5”HDD
Case Fan
Nut Setter
1
MB Stand-off
Full Tower
Radiator Support
Front: 1 x 360mm , 1 x 420mm
Top: 1 x 360mm , 1 x 420mm
Rear: 1 x 120mm, 1 x 140mm
Right: 1 x 360mm, 1 x 420mm
Bottom: 1x 240mm
Case Type
Dimension (H*W*D) 592 x 274 x 577 mm (23.3 x 10.78 x 22.72 inch)
Cooling System
Fan Support
Clearance
View 71 TG
Rear (exhaust) :
140 x 140 x 25 mm Riing LED Blue fan
(1400rpm, 28dBA) (1000rpm, 22 dBA with LNC)
Front (intake) :
140 x 140 x 25 mm Riing LED Blue fan
(1400rpm, 28dBA) (1000rpm, 22 dBA with LNC)
Front: 3 x 120mm , 2 x 140mm
Top: 3 x 120mm , 3 x 140mm
Rear: 1 x 120mm , 1 x 140mm
Bottom: 2 x 120mm
Drive Bays
- Accessible
- Hidden
2.5” x 4 or 3.5” x 4 (HDD Rack)
2.5” x 6 or 3.5” x 3
Expansion Slots
8 + 2
Motherboards
6.7” x 6.7” (Mini ITX), 9.6” x 9.6” (Micro ATX),
12” x 9.6” (ATX) , 12” x 13” (E-ATX)
I/O Port
USB 3.0 x 2, USB 2.0 x 2, HD Audio x 1
PSU
Standard PS2 PSU (optional)
Side Panel
5mm Tempered Glass x 4 (Left & Right & Front & Top)
CPU cooler height limitation: 190mm
VGA length limitation: 310mm(With HDD Rack)
410mm(Without HDD Rack)
PSU length limitation: 220mm (Without Bottom Fan)
Material
SPCC
View 71 TG RGB
Rear (exhaust) :
140 x 140 x 25 mm Riing RGB fan
(1400rpm, 28dBA)
Front (intake) :
140 x 140 x 25 mm Riing RGB fan
(1400rpm, 28dBA) x2
1
