Side 1/17
H-
16RCA
16 CHANNELS AGILE MODULATOR
User Manual
16RCA
-RF-MOD
16 CHANNELS AGILE MODULATOR
User Manual
16 CHANNELS AGILE MODULATOR
A Note from Thor Broadcast about this Manual
Intended Audience
This user manual has been written to help people who have to use, integrate and to install the product.
Some chapters require some prior knowledge in, especially in broadcast technologies and standards.
Disclaimer
No part of this document may be reproduced in any form without the written permission of Thor Fiber.
The contents of this document are subject to revision without notice due to continued progress in
methodology, design and manufacturing. Thor shall have no liability for any error or damage of any kind
resulting from the use of this document.
Copy Warning
This document includes some confidential information. Its usage is limited to the owners of the product
that it is relevant to. It cannot be copied, modified, or translated in another language without prior written
authorization from THOR.
Table of Contents
1. INTRODUCTION
………………………………….. 3
2. FEATURES
………………………………….. 3
3. SPECIFICATION
………………………………….. 3
4. SYSTEM MAP
………………………………….. 3
5. SAFT INTRODUCTIONS
………………………………….. 4
6. INSTALLATION
………………………………….. 5
7. FRONT PANEL VIEW
………………………………….. 6
8. REAR PANEL VIEW
………………………………….. 6
9. SETTING UP
………………………………….. 6
10. FINE TUNING
………………………………….. 6
11. SYSTEM INTERFACE
………………………………….. 7
12. TROUBLESHOOTING
………………………………….. 9
1. INTRODUCTION
The H-16RCA-RF-AMOD is a professional quality agile modulator with 16 output channels in 1RU size. It is SAW filtered and
microprocessor controlled with an output capability of 860MHz. The unit offers high performance, low cost and compact
design for the system operators.
2. FEATURES
1. SAW filtering for maintenance free adjacent channel configuration
2. Double I.F loop for superior in band C/N
3. Fewer cables and connector but greater reliability
4. Rack mountable 1RU space saving shipping cost
5. Web UI accessible level controls for easy set-up and adjustment

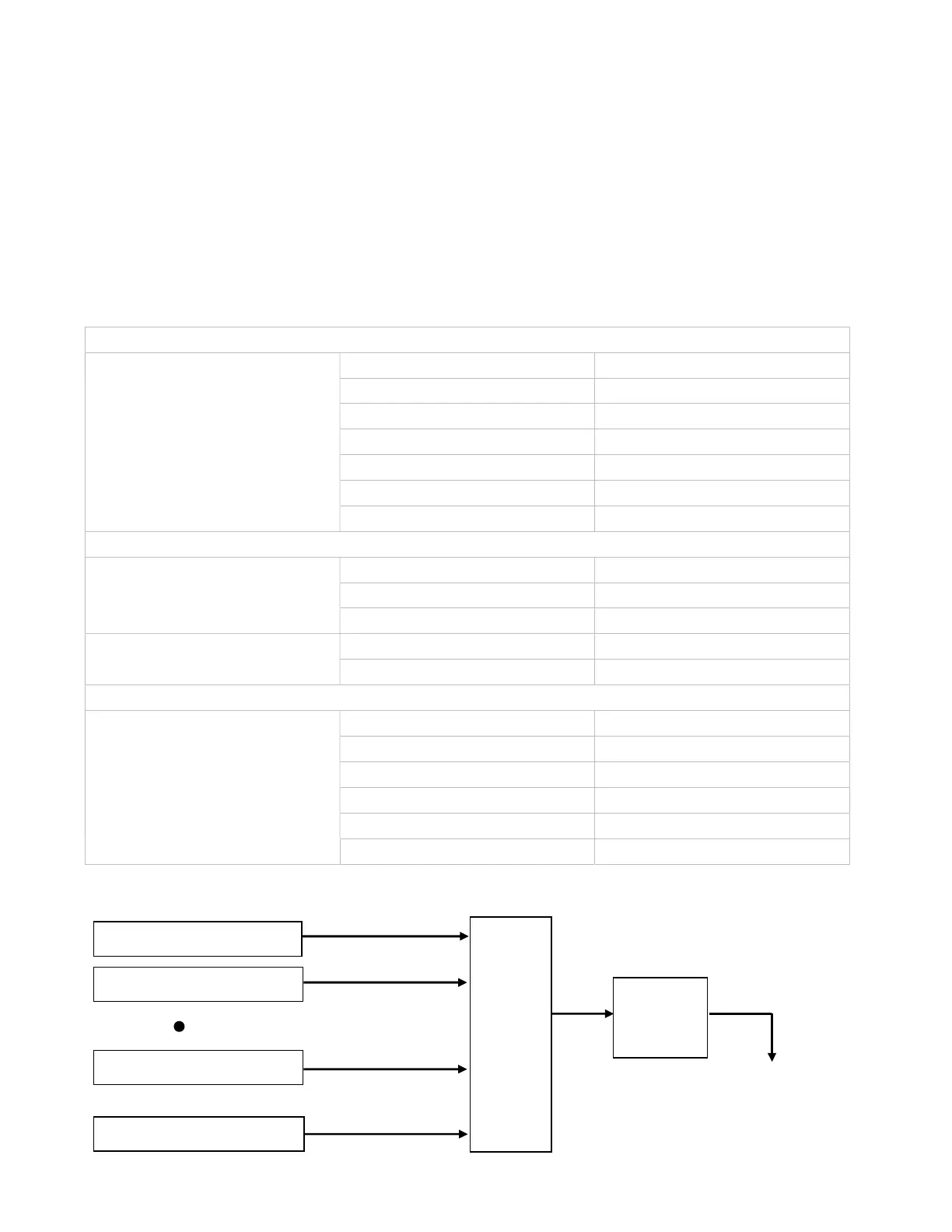

3. SPECIFICATION
OUTPUT
RF
Output Connector F Connector @ 75Ohms
Output Frequency 45~860MHz any 16 channels
Output Level 113 dBµV (Adj.)
Out-band Rejection 60dB
A / V Ratio -21~ -18 dB (Adj.)
Frequency Stability ±5kHz
Test Point -20 dB ±3dB
INPUT
VIDEO
Video Input Level 0.6-1.5Vp-p (87.5% Modulation)
Input Connector Yellow RCA Jack
Video C/N 60dB
AUDIO
Input Level 0.8Vp-p(25KHz Peak Deviation)
Input Connector White RCA Jack
GENERAL
POWER AND SIZE
Voltage AC 90 ~ 264V @ 47~63Hz
Power Consumption 100W
Cooling Fans
4
Dimension
48.4*32.9*4.44 (CM)
Carton Size
55*39*13 (CM)
Shipping Weight
6KG
4. SYSTEM MAP
TV Camera
Satellite Receiver
VCR or DVD Player
SKD162X
Agile
MOD.
SK-3051RK
Launch
Amplifier
RF Out
To Network
Satellite Receiver
