INSTALLATION MANUAL
ANGLE ADJUSTMENT BRACKETS
HY-60DB, HY-60DW, HY-60DB-WP, HY-60DW-WP
Thank you for purchasing TOA’s Angle Adjustment Bracket.
Please carefully follow the instructions in this manual to ensure long, trouble-free use of your equipment.
1. SAFETY PRECAUTIONS
• Beforeinstallationoruse,besuretocarefullyread
all the instructions in this section for correct and
safe operation.
• Besuretofollowalltheprecautionaryinstructions
in this section, which contain important warnings
and/or cautions regarding safety.
• After reading, keep this manual handy for future
reference.
• (HY-60DBandHY-60DWonly)
Since the bracket is designed for indoor use, do not
install it outdoors. If installed outdoors, the aging
of parts causes the speaker to fall off, resulting in
personal injury. Also, when it gets wet with rain,
there is a danger of electric shock.
• Donotuseothermethodsthanspeciedtomount
the bracket. Extreme force is applied to the speaker
and it could fall off, possibly resulting in personal
injuries.
• Tighten each nut and bolt securely. Ensure that
the bracket has no loose joints after installation
to prevent accidents that could result in personal
injury.
• UsethespeciedSpeakerSystemincombination.
Doing otherwise may cause the speaker or
component to fall off, resulting in personal injury.
• Avoidinstallingthespeakerinlocationsclosetothe
seashore or in indoor swimming facilities that are
not well ventilated. In such locations, the bracket
may be vulnerable to corrosion, eventually allowing
the speaker to fall resulting in personal injury.
• Avoid touching the bracket’s sharp metal edge to
prevent injury.
• Havethebracketcheckedperiodicallybytheshop
from where it was purchased. Failure to do so may
result in corrosion or damage to the bracket that
could cause the speaker to fall, possibly causing
personal injury.
Indicates a potentially hazardous situation which,
if mishandled, could result in death or serious
personal injury.
WARNING
Indicates a potentially hazardous situation which,
if mishandled, could result in moderate or minor
personal injury, and/or property damage.
CAUTION
2. GENERAL DESCRIPTION

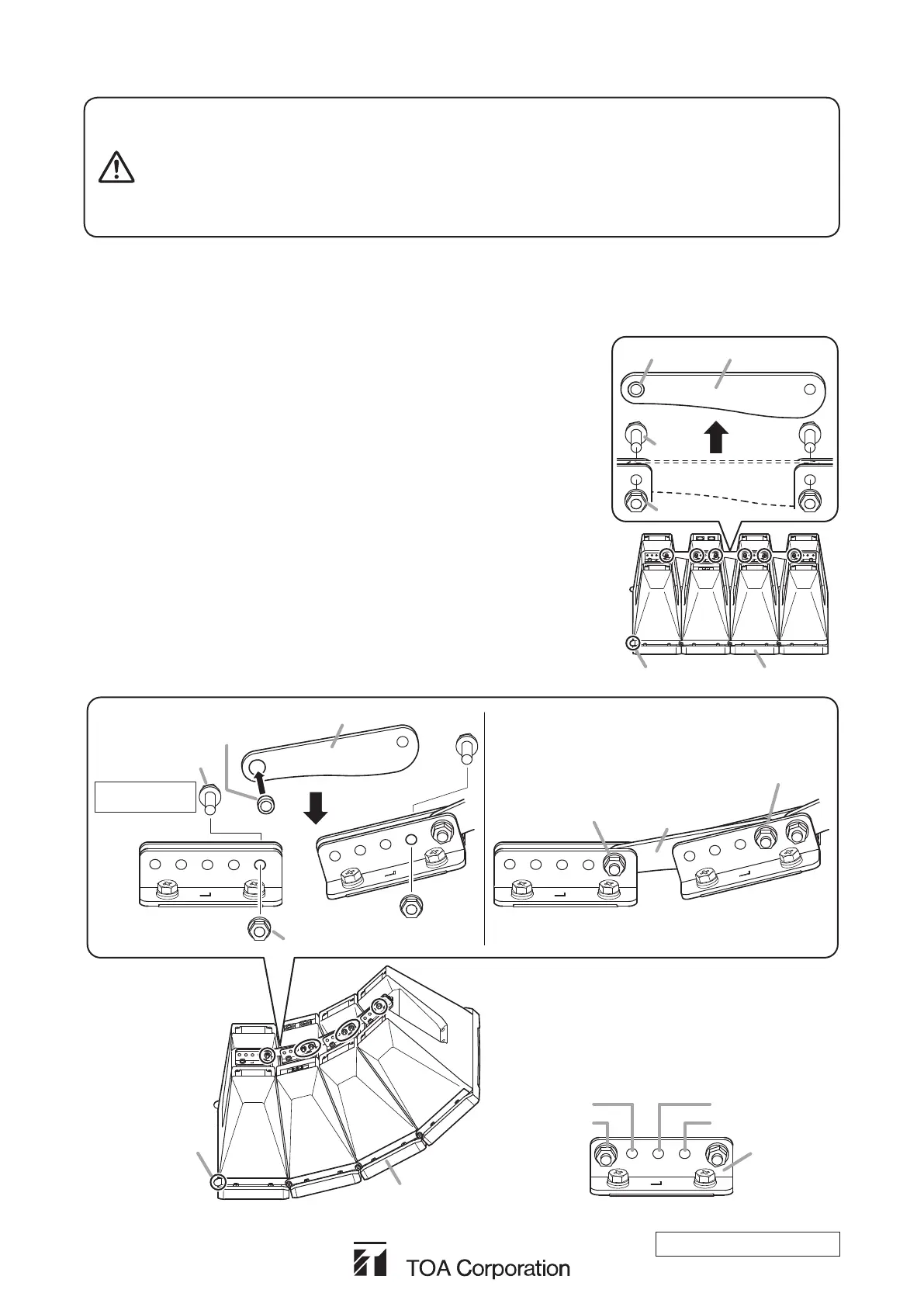

TOA’sHY-60DSeriesBracketsareusedtochangethedirectivityanglemode
ofHX-7SeriesSpeakerSystemto60°mode.ThreepiecesoftheHY-60D
Seriesarerequiredtoobtain60°modeofdirectivityangle.
Both HY-60DB and HY-60DW brackets are designed for indoor use only.
The HY-60DB-WP and HY-60DW-WPbrackets can beused outdoors, but
only under eaves or in other locations not directly exposed to rain and the
elements.
Usethesebracketsincombinationwiththespeakersystemsshownatright.
3. SPECIFICATIONS
Model No. HY-60DB HY-60DW HY-60D-WP HY-60W-WP
Finish Steel plate, black,
semi-gloss, paint
Steel plate, white,
semi-gloss, paint
Stainless plate, black,
semi-gloss, paint
Stainless plate, white,
semi-gloss, paint
Dimensions 102.2x26.2mm(4.02"x1.03"),t=4.5mm(0.18"),withø9.4mm(0.37")andø6.4mm(0.25")holes
Weight 70g(0.15lb)
Note: Thedesignandspecicationsaresubjecttochangewithoutnoticeforimprovement.
Speaker System Angle Adjustment Bracket
HX-7B HY-60DB
HX-7W HY-60DW
HX-7B-WP HY-60DB-WP
HX-7W-WP HY-60DW-WP
