Side 1/2

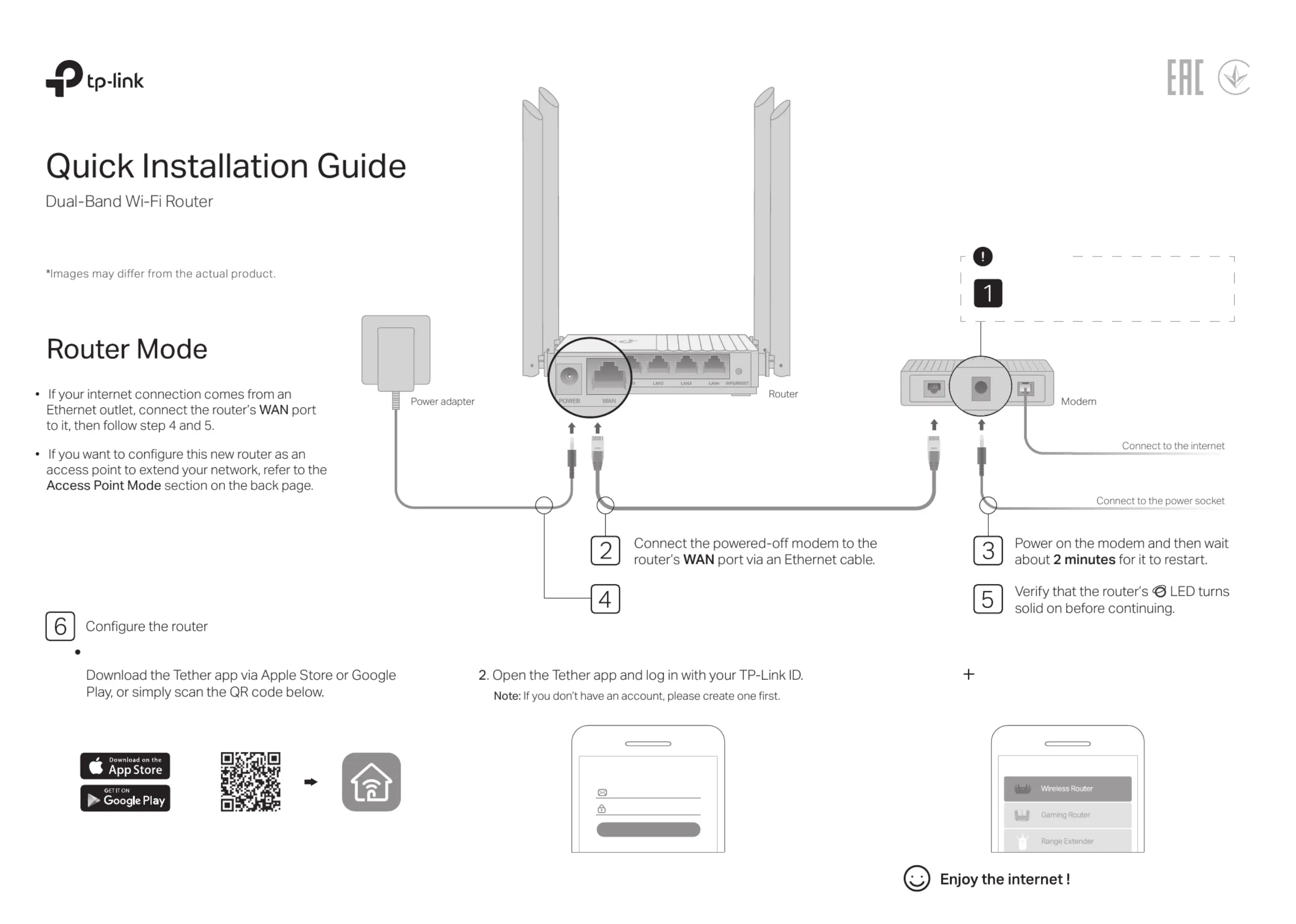

Unplug your modem, and remove

the backup battery if it has one.

Important

Connect the power adapter to the router.

Method 1: Via TP-Link Tether App

3. Tap the button in the Tether app and select Wireless

Router > Standard Routers . Follow the steps to

complete the setup and connect to the internet.

Scan for Tether Tether

Welcome to Tether

TP-Link ID (Email)

Password

Choose Your Device Type

Access Point Mode

If you already have a router, you can switch this new router to

Access Point mode to extend your existing network. Follow the

steps below.

a. Power on the router.

b. Connect the router's WAN port to your existing router’s Ethernet port

via an Ethernet cable as shown above.

c. Connect a computer to the router via an Ethernet cable or wirelessly by

using the SSID (network name) and Wireless Password printed on the

label at the bottom of the router.

d. Launch a web browser and enter http://tplinkwifi.net in the address bar.

Create a password to log in.

e. Run the in the top right cornerQuick Setup Change Mode, click then

select Access Point Mode.

Note: You can also go to Advanced Operation Mode> to switch to Access Point Mode.

f. Wait for the router to reboot, then log in and follow the Quick Setup to

complete the setup.

ClientsNew RouterExisting Router

ernet4EthInternet

Ethernet

WAN

Safety Information

• Keep the device away from water, re, humidity or hot environments.

• Do not attempt to disassemble, repair, or modify the device. If you need

service, please contact us.

• Do not use damaged charger or USB cable to charge the device.

• Do not use any other chargers than those recommended.

• Do not use the device where wireless devices are not allowed.

• Adapter shall be installed near the equipment and shall be easily accessible.

Need Help?

For technical support, replacement services, user guides, and

other information, please visit https://www.tp-link.com/support,

or simply scan the QR code.

To communicate with TP-Link users or engineers, please join the TP-Link

Community at https://community.tp-link.com.

Appearance

WPS/RESET

Button

Press for 1 second to enable the WPS function.

Press and hold the button until all LEDs turn o to reset the router to

its factory default settings.

Item Description

Power

Solid on:

Power is on.

Blinking slowly:

The system is starting up or rmware upgrade is in progress.

Blinking quickly:

WPS connection is in progress.

Green

2.4 GHz

Green

Solid on: The 2.4GHz wireless band is enabled.

5 GHz

Green

Solid on: The 5GHz wireless band is enabled.

LAN

Green Solid on: At least one LAN port is connected.

Internet

Orange

Solid on:

Router Mode: The WAN port is connected, but internet is not

available.

Green

Solid on:

Router Mode: Internet is available.

Access Point Mode: The WAN port is connected.

Current Device MAC, and click SAVE. Then reboot both the modem and the router.

Q3. How do I restore the router to its factory default settings?

• With the router powered on, press and hold the WPS/RESET button on the back

panel of the router until all LEDs turn o. The router will reboot.

• Log in to the web management page of the router. Go to Advanced System> >

Backup & Restore, and locate the Factory Default Restore section. Then click

FACTORY RESTORE. The router will restore and reboot automatically.

Q4. What can I do if I forgot my web management page password?

• If you are using a TP-Link ID to log in, click Forgot Password? on the login page and

then follow the instructions to reset it.

• Alternatively, refer to Q3 to reset your router, then visit to create http://tplinkwi.net

a new login password.

Q5. What can I do if I forgot my wireless network password?

• If you have not changed the default wireless password, it can be found on the label

at the bottom of the router.

•

Connect a computer directly to the router using an Ethernet cable. Log in to the

router’s web management page at , and go to http://tplinkwi.net Wireless > Wireless

Settings to retrieve or reset your wireless password.

Q1. What can I do if the login window does not appear?

• Reboot your router and try again.

• If the computer is set to a static IP address, change its settings to obtain an IP

address automatically.

•

Verify that http://tplinkwifi.net is correctly entered in the web browser. Alternatively,

enter or in the web browser and press .http://192.168.0.1 http://192.168.1.1 Enter

• Use another web browser and try again.

• Disable and then enable the network adapter being used.

Q2. What can I do if I cannot access the internet?

• Power o your modem for about 5 minutes, then power it on and check the internet.

If your modem has more than one Ethernet port, keep other ports unconnected.

• Check if the internet is working normally by connecting a computer directly to the

modem using an Ethernet cable. If it is not, contact your internet service provider.

• Log in to the web management page of the router, and go to the Network Map

page to check whether the WAN IP address is valid or not. If it’s valid, go to

Advanced Network Internet Advanced Settings> > , click , select Use the Following

DNS Addresses Primary DNS 8.8.8.8 Secondary DNS, set the to , and set the to

8.8.4.4. If it is not, check the hardware connection or contact your internet service

provider.

• For cable modem users, log in to the web management page of the router. Go to

Advanced Network Internet MAC Clone Clone > > and locate the section. Select

Launch a web browser, and enter http://tplinkwifi.net or

http://192.168.0.1 in the address bar. Create a password to log in.

Follow the step-by-step instructions to set up the internet connection

and register for the TP-Link Cloud service.

2. Connect the router to the internet.

http://tplinkwi.net

Let’s Get Started

Conrm Password

Password

Note: If the login window does not appear, please refer to Q1 Need Help? of in this guide.

Wired

Wireless

Turn off the Wi-Fi on your computer and connect to the router using an

Ethernet cable.

1. Connect your device to the router (wired or wireless).

Find the SSID and wireless password printed on the label of the router.

Click the network icon of your computer or go to Wi-Fi settings of

your smart device, and then select the SSID to join the network.

Method 2: Via a Web Browser

Produkspesifikasjoner

Merke:	TP Link
Kategori:	Ruter
Modell:	Archer A64
Produkttype:	Frittstående router
Bredde:	120 mm
Dybde:	120 mm
Høyde:	27.9 mm
LED-indikatorer:	LAN, Power, WLAN
Prosessorfrekvens:	1200 MHz
Wi-Fi-standarder:	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
USB-port:	Nei
Strømkildetype:	DC
SIM-kortspor:	Nei
Kablingsteknologi:	10/100/1000Base-T(X)
Nettverksstandard:	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
3G:	Nei
4G:	Nei
Ethernet WAN:	Ja
Brannmur:	Ja
Utgangsstrøm:	12 V
DHCP-server:	Ja
Universal Plug and Play (UPnP):	Ja
DHCP-klient:	Ja
Støttet nettleser:	Internet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+, or other JavaScript-enabled
DSL WAN:	Nei
5G:	Nei
URL-filtrering:	Ja
MU-MIMO-teknologi:	Ja
Dynamisk DNS (DDNS):	Ja
Stateful Packet Inspection (SPI):	Ja
Antall gjestenettverk (5 GHz):	1
4K-streaming:	Ja
Produktfarge:	Sort
Beste Wi-Fi-standard:	Wi-Fi 5 (802.11ac)
Kabler inkludert:	LAN (RJ-45)
Antall ethernets-/bredbåndstilkoblinger (RJ-45):	4
Driftstemperatur (T-T):	0 - 40 °C
Lagringsrelativ fuktighet:	5 - 90
Bærekraftsertifikater:	RoHS
Quality of Service (QoS) støtte:	Ja
tilbakestillingsknapp:	Ja
Innebygd prosessor:	Ja
DC-inngangskontakt:	Ja
Av/på-bryter:	Ja
Ethernet LAN dataoverføringshastigheter:	10,100,1000 Mbit/s
Sikkerhetsalgoritmer:	WPA, WPA2, WPA2-Enterprise, WPA3
Ethernet/bredbåndsforbindelse:	Ja
Relativ luftfuktighet under drift (H-H):	10 - 90
AC-adapter bunt:	Ja
Webbasert administrasjon:	Ja
Wi-Fi-bånd:	Dobbelbånd (2.4 GHz / 5 GHz)
WLAN dataoverføringshastighet (første band):	400 Mbit/s
WLAN dataoverføringshastighet (andre band):	867 Mbit/s
Antall gjestenettverk (2.4 GHz):	1
Portvideresending:	Ja
Guide for hurtiginstallering:	Ja
Foreldrestyring:	Ja
Ethernet LAN-grensesnittype:	Gigabit Ethernet
DMZ støttes:	Ja
Antall antenner:	4
3G / 4G USB-modem kompatibilitet:	Nei
WAN tilkoblingstype:	RJ-45
WLAN data overførings rate (max):	867 Mbit/s
Mottakersensitivitet:	5 GHz: 11a 6Mbps:-95dBm, 11a 54Mbps-77dBm, 11ac VHT20 MCS8-71dBm, 11ac VHT40 MCS9-67dBm, 11ac VHT80 MCS9-63dBm\n2.4 GHz: 11g 6Mbps -96dBm, 11g 54Mbps -78dBm, 11n HT20 MCS7-77dBm, 11n HT40 MCS7-74dBm, 11ac VHT20 MCS8-73dBm, 11ac VHT40 MCS9-68dBm
Portutløsning:	Ja
Antennedesign:	Utvendig
WPS-trykknapp:	Ja
Sendeeffekt:	<20dBm(2.4 GHz), <23dBm(5.15 GHz~5.25 GHz) dBmW
Avtagbar antenne:	Nei
MIMO:	Ja
