Owner’s Manual

4-Port HDMI Multi-Viewer Switch

Model: B119-4X1-MV

1111 W. 35th Street, Chicago, IL 60609 USA • www.tripplite.com/support

PROTECT YOUR INVESTMENT!

and ultimate peace of mind.

You could also win an ISOBAR6ULTRA

surge protector—a $100 value!

www.tripplite.com/warranty

Español 9 • Français 17 • Русский 25

18-03-032-933813.indb 1 4/19/2018 10:59:10 AM

Product Features

Package Includes

Optional Accessories

• Simultaneously monitor and seamlessly switch between four devices in

real-time

• Toggle between display modes via front panel pushbutton or remote

control

• Supports viewing in Quad, Dual and Full Screen display modes

• Switch audio independently of video from connected HDMI sources

• Supports high deﬁnition video resolutions up to 1080p @60 Hz

• Plug and Play – No software or drivers required

• 4-Port HDMI Multi-Viewer Switch

• External Power Supply*

(Input: 100-240V, 50/60 Hz, 0.6A; Output: 12V 2A)

• Mounting Hardware

• Remote Control

• Owner’s Manual

*Includes NEMA 1-15P (North America), CEE 7/16 Schuko (Europe), BS 1363 (UK)

and AS/NZS 3112 (Australia) plug adapters.

• P568-Series High-Speed HDMI Cables

18-03-032-933813.indb 2 4/19/2018 10:59:10 AM

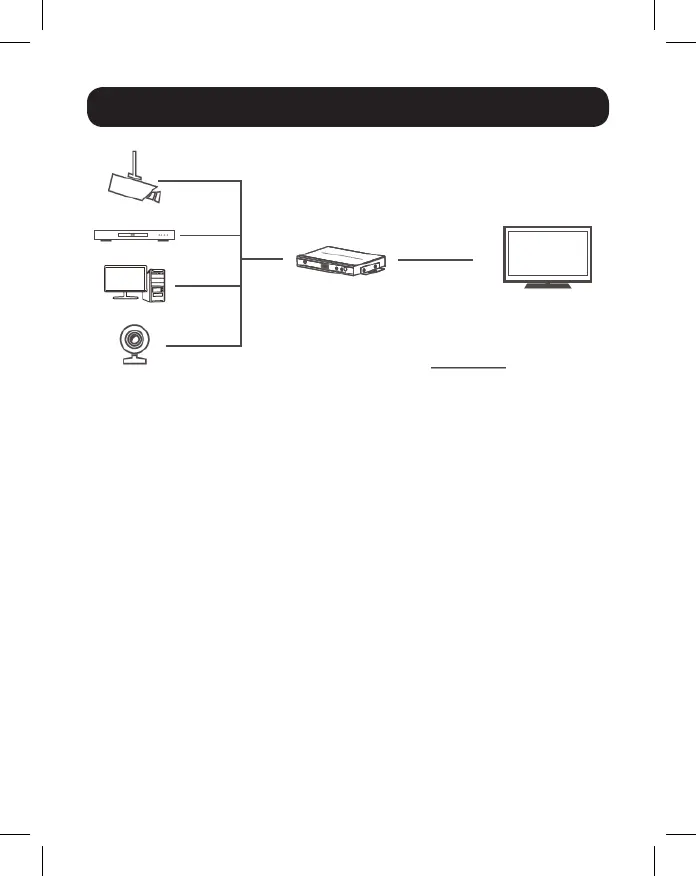

Standard Installation

1. Make sure all devices being connected are turned off.

2. Connect the ﬁrst HDMI source to the port labeled “HDMI 1”.

Note: When connecting the source to the switch, make sure the HDMI cable does

not exceed 16 ft. (5 m).

3. Repeat Step 2 to connect additional HDMI sources to the remaining

ports.

4. Connect the HDMI display to the port labeled “Output”.

Note: When connecting the switch to the display, ensure the HDMI cable does not

exceed 16 ft. (5 m).

5. Connect the external power supply to the switch and plug it into a

Tripp Lite Surge Protector, Power Distribution Unit (PDU), or

Uninterruptible Power Supply (UPS). When the switch is receiving power,

the red Power LED and blue Source LED will illuminate.

Note: Source LEDs will not illuminate until the sources are receiving power.

6. Turn on the power to the connected devices. The video image should

display on the connected monitor/TV.

HD Camera

Camera

DVD

HDMI Display

HDMI Cable

18-03-032-933813.indb 3 4/19/2018 10:59:10 AM

Produkspesifikasjoner

Merke:	Tripp Lite
Kategori:	Hi-fi system
Modell:	B119-4X1-MV
Vekt:	340 g
Bredde:	103.4 mm
Dybde:	21.3 mm
Høyde:	148.5 mm
LED-indikatorer:	Link, Power
Bruksanvisning:	Ja
AC-adapter inngangsspenning:	100 - 240 V
Opprinnelsesland:	China
Pakkevekt:	680 g
Antall HDMI-porter:	5
Sertifisering:	CE, FCC, RoHS, REACH
HDCP:	Ja
Maksimal oppdateringshastighet:	60 Hz
Materiale:	Strykejern
HDMI-versjon:	1.3
HDMI inn:	1
HDCP-versjon:	1.2
Antall HDMI-utganger:	4
Varmespredning:	34.12 BTU/t
Kabellengde:	1.2 m
Produktfarge:	Sort
Pakkedybde:	148.1 mm
Pakkehøyde:	80 mm
Monteringssett:	Ja
Pakkebredde:	198.9 mm
AC-adapter utgangsspenning:	12 V
AD-adapter utgangsstrøm:	2 A
Pakketype:	Boks
Strømforbruk (vanlig bruk):	10 W
Støttede videofunksjoner:	1080p
Driftstemperatur (T-T):	0 - 40 °C
Oppbevaringstemperaturomåde (Celsius):	-20 - 60 °C
Bærekraftsertifikater:	RoHS
Fjernkontroll medfølger:	Ja
DC-inngangskontakt:	Ja
Relativ luftfuktighet under drift (H-H):	20 - 90
AC-adapter bunt:	Ja
Plugg inn og spill:	Ja
Masterkassens (ytterkassens) GTIN (EAN/UPC):	10037332213997
Masterkassens (ytterkassens) bruttovekt:	13610 g
Masterkassens (ytterkassens) lengde:	315 mm
Produkter per masterkasse (ytterkasse):	20 stykker
Masterkassens (ytterkassens) bredde:	424.9 mm
Masterkassens (ytterkassens) høyde:	420.1 mm
Video tilkoblingstype:	HDMI
AC-adapter inngangsstrøm:	0.6 A
AC-adapter frekvens:	50/60 Hz
Pluggadaptertype:	NA, UE, UK, AU
