Owner’s Manual

Thunderbolt

™

3 Dock with 4K

HDMI and DisplayPort Video,

VGA, Gigabit Ethernet, Audio,

USB-A and USB-C Hub Ports

Model: MTB3-DOCK-02

1111 W. 35th Street, Chicago, IL 60609 USA • tripplite.com/support

WARRANTY REGISTRATION

automatically entered to win an ISOBAR

surge protector in our monthly drawing!

tripplite.com/warranty

Este guía esta disponible en español en la página de Tripp Lite:

tripplite.com/support

Ce guide est disponible en français sur le site Web de Tripp Lite :

tripplite.com/support

Русскоязычная версия настоящего краткого руководства

представлена на веб-сайте компании Tripp Lite по адресу:

tripplite.com

20-04-269 93-3B0F.indd 1

20-04-269 93-3B0F.indd 120-04-269 93-3B0F.indd 1 5/6/2020 3:33:22 PM

5/6/2020 3:33:22 PM

5/6/2020 3:33:22 PM5/6/2020 3:33:22 PM

Product Features

System Requirements

Package Contents

• Supports Thunderbolt 3 data transfer rates up to 40 Gbps, up to four

times faster than USB 3.1 Gen2 (10 Gbps)

• HDMI and DisplayPort video ports support 3840 x 2160 (4K x 2K) @

60 Hz

• VGA port supports 1920 x 1080 (1080p) @ 60 Hz

• Supports MST Mode in order to transmit different video content to each

of the HDMI, DisplayPort and VGA ports

• Included 120W DC power supply provides up to 20V 3A (60W) to the

host device

• Includes two USB 2.0 Type-A ports and two USB 3.0 Type-A ports for

connecting USB peripherals

• Includes one USB 3.0 Type-C port for connecting USB-C peripherals

• RJ45 port supports full Gigabit Ethernet speeds for connecting to a wired

network

• 3.5 mm mini stereo jack on front of unit for connection of speaker or

microphone

• 3.5 mm mini stereo jack on back of unit for connection of speaker

• Plug-and-play; no drivers or software required

• Computer with Thunderbolt 3 port that supports DisplayPort MST Mode

Note: See section for detailsMulti-Monitor Requirements

• DisplayPort, HDMI or VGA monitor

• Ethernet network with speeds up to 10/100/1000 Mbps

• MTB3-DOCK-02

• Thunderbolt 3 Cable, M/M, 1.6 ft. (0.5m)

• External Power Supply

(Input: 100-240V, 50/60 Hz, 3.0A; Max. Output: 20V 6A)

• Owner’s Manual

20-04-269 93-3B0F.indd 2

20-04-269 93-3B0F.indd 220-04-269 93-3B0F.indd 2 5/6/2020 3:33:22 PM

5/6/2020 3:33:22 PM

5/6/2020 3:33:22 PM5/6/2020 3:33:22 PM

Optional Accessories

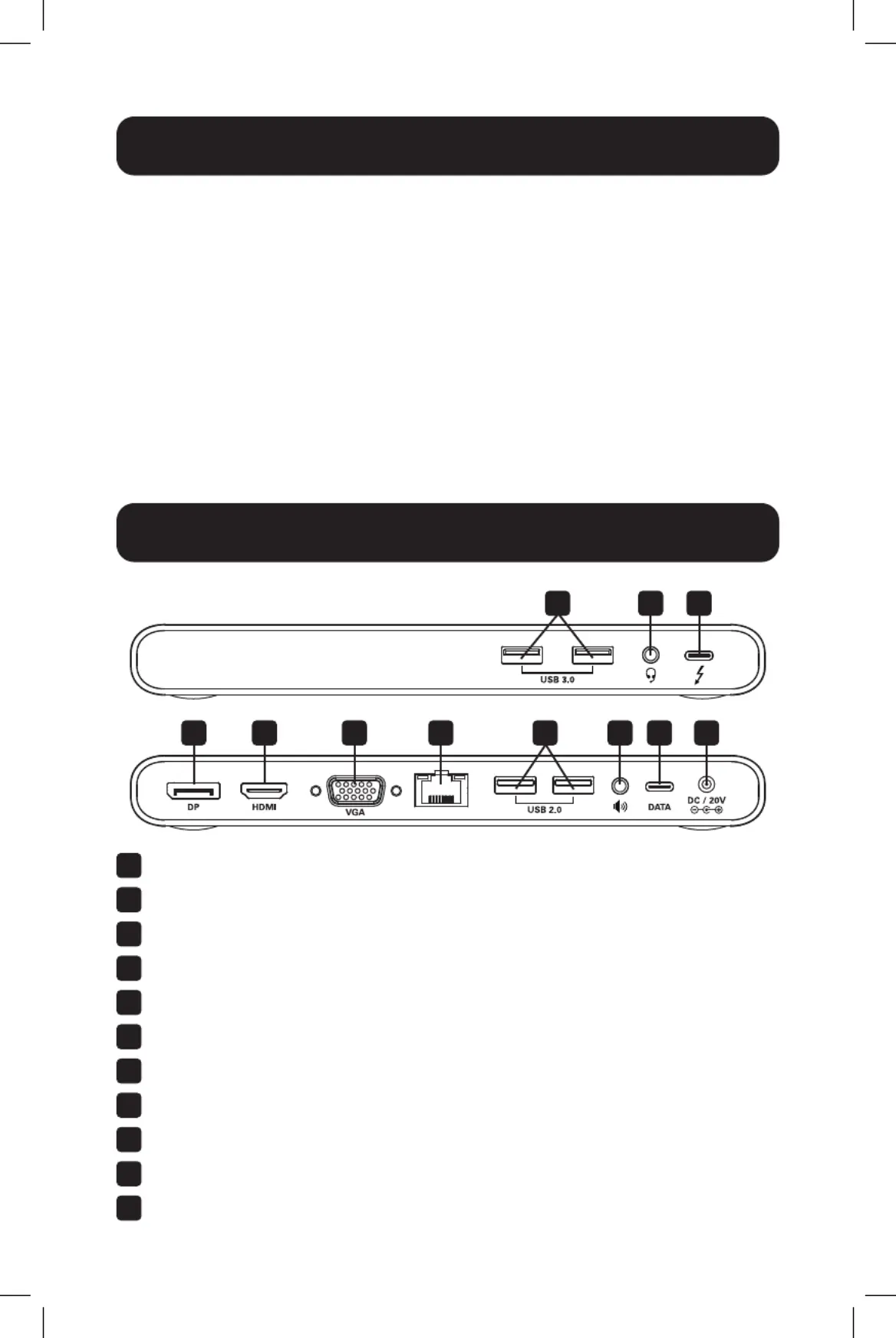

Product Overview

• MTB3-Series 40 Gbps Active Thunderbolt 3 Cables

• N201-Series Cat6 Gigabit Snagless Patch Cables

• P568-Series High-Speed HDMI Cables

• P580-Series DisplayPort Cables

• P502-Series High-Resolution VGA Cables

• U322-Series USB 3.0 A/B Device Cables

• U326-Series USB 3.0 A/Micro-B Device Cables

• U420-003-G2-5A USB 3.1 Gen2 USB-C Cable (3 ft.)

USB-A 3.0 (x2)

3.5 mm Audio

Thunderbolt 3 Host Port

DisplayPort

HDMI

VGA

RJ45

USB-A 2.0 (x2)

3.5 mm Audio

USB Type-C 3.0

DC Power Supply (120W)

A B

D E F G H I J K

20-04-269 93-3B0F.indd 3

20-04-269 93-3B0F.indd 320-04-269 93-3B0F.indd 3 5/6/2020 3:33:23 PM

5/6/2020 3:33:23 PM

5/6/2020 3:33:23 PM5/6/2020 3:33:23 PM

Produkspesifikasjoner

Merke:	Tripp Lite
Kategori:	hub & dokkstasjon
Modell:	Thunderbolt MTB3-DOCK-02
Vekt:	530 g
Bredde:	197.1 mm
Dybde:	85.1 mm
Høyde:	22.1 mm
LED-indikatorer:	Ja
Bruksanvisning:	Ja
Tilkoblingsteknologi:	Koblet med ledninger (ikke trådløs)
Strømkildetype:	DC
Opprinnelsesland:	Vietnam
Pakkevekt:	590 g
Antall HDMI-porter:	1
Hodetelefonutganger:	1
HDMI-versjon:	2.0
Antall DisplayPorts:	1
Antall per pakke:	1 stykker
Nettverksstandard:	IEEE 802.3ab
Kombinert hodetelefon/mikrofonport:	Ja
Utgangsstrøm:	20 V
Vertsgrensesnitt:	Thunderbolt 3
Antall skjermer som støttes:	2
AC-inngangsspenning:	100 - 240 V
AC-inngangsfrekvens:	50 - 60 Hz
Produktfarge:	Grå
HD-type:	4K Ultra HD
Pakkedybde:	180.1 mm
Pakkehøyde:	66 mm
Pakkebredde:	264.9 mm
Hodetelefontilkobling:	3,5 mm
Kabler inkludert:	Thunderbolt
Maksimal digital oppløsning:	3840 x 2160 piksler
Antall VGA (D-Sub)-porter:	1
Mikrofon, linje-inn-støpsel:	Nei
Antall ethernets-/bredbåndstilkoblinger (RJ-45):	1
Driftstemperatur (T-T):	0 - 45 °C
Oppbevaringstemperaturomåde (Celsius):	0 - 70 °C
Lagringsrelativ fuktighet:	5 - 90
Bærekraftsertifikater:	RoHS
Innebygd kortleser:	Nei
Kroppsmateriale:	Aluminium, Zinc
Ethernet LAN dataoverføringshastigheter:	10,100,1000 Mbit/s
Ethernet/bredbåndsforbindelse:	Ja
Relativ luftfuktighet under drift (H-H):	10 - 85
Antall USB 3.2 Gen 1 (3.1 Gen 1)Type-A-porter:	3
AC-adapter bunt:	Ja
Antall USB 3.2 Gen 1 (3.1 Gen 1) Type-C-porter:	1
Masterkassens (ytterkassens) GTIN (EAN/UPC):	10037332248456
Masterkassens (ytterkassens) bruttovekt:	6200 g
Masterkassens (ytterkassens) lengde:	350 mm
Produkter per masterkasse (ytterkasse):	10 stykker
Masterkassens (ytterkassens) bredde:	380 mm
Masterkassens (ytterkassens) høyde:	279.9 mm
Innput-strøm:	3 A
USB Power Delivery:	Nei
Strømkabelens lengde:	1.2 m
Thunderbolt 3-porter antall:	1
