Side 1/20

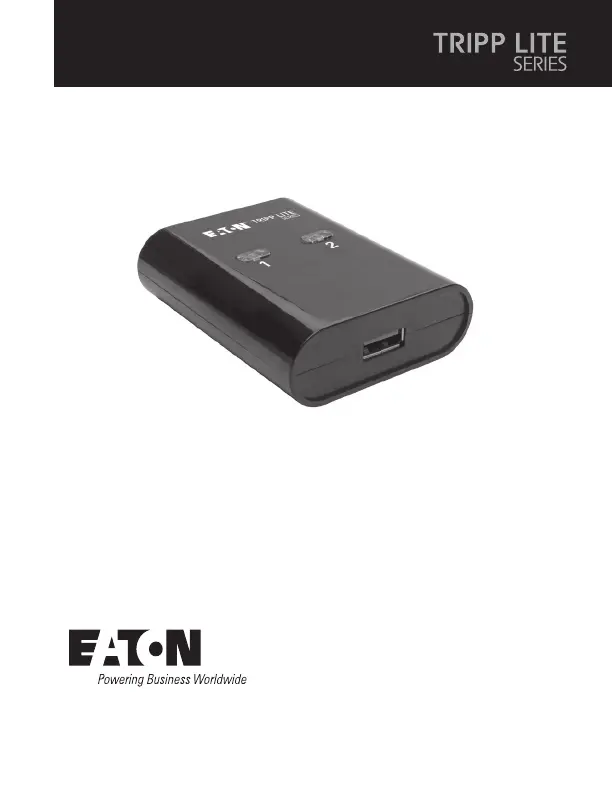

Owner’s Manual

Purchased product

may differ from image.

Models:

U359-002

U359-004

USB 3.2 Gen 1 Peripheral

Sharing Switch

Español 5

Français 9

Deutsch 13

Italiano 17

Product Features

Package Includes

System Requirements

• Up to 2 (U359-002) or 4 (U359-004) computers can share a USB

printer, ash drive or other device

• Backward compatible with USB 2.0 and 1.1

• Features instant switching, delivering one-touch port control via

manual push button

• Supports USB 3.2 Gen 1 data transfer speeds up to 5 Gbps

• Supports all major operating systems that have a USB port

• Hot-pluggable

• Bus-powered; no power supply required

• 2- or 4-Port USB USB 3.2 Gen 1 Peripheral Sharing Switch

• Owner’s Manual

• Computers with available USB ports

• USB Device

Quick Installation

Warranty

Notes:

• When using the USB Peripheral Sharing Switch to share a USB storage device, you

must eject the device before switching ports in order to avoid any data loss.

• Although these switches do not require any software or drivers, the peripheral device

that you are sharing between may. Please be sure that you have installed the latest

drivers for your peripheral onto both systems before connecting to avoid detection or

functionality issues.

• Be sure your computer is powered on prior to installation.

• Maximum distance from host device to peripheral is 5 m (16 ft.).

• A USB hub can connect to a USB port on the switch, allowing you to add multiple

USB peripherals to the installation. To ensure proper function, it is recommended to

use a hub with an external power supply.

1. Connect your USB peripheral device to the USB-A port on the switch.

2. Connect the rst PC to the switch using a user-supplied USB 3.2

Gen 1 or lower cable. The computer will detect the switch, and it will

be recognized in the Device Manager or System Preferences section.

3. Repeat Step 2 for the remaining ports that need to be connected

with user-supplied USB 3.2 Gen 1 or lower cables.

4. Once all ports needed are connected, the LEDs on top of the switch

will indicate which computer is selected. To switch from one port to

another, use the push buttons.

3-Year Limited Warranty

We warrant our products to be free from defects in materials and workmanship for a period of

three (3) years from the date of initial purchase. Our obligation under this warranty is limited to

repairing or replacing (at its sole option) any such defective products. Visit Tripplite.Eaton.com/

support/product-returns before sending any equipment back for repair. This warranty does not

apply to equipment which has been damaged by accident, negligence or misapplication or has

been altered or modied in any way.

EXCEPT AS PROVIDED HEREIN, WE MAKE NO WARRANTIES, EXPRESS OR IMPLIED, INCLUDING

WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE. Some states do

Produkspesifikasjoner

Merke:	Tripp Lite
Kategori:	kontroll
Modell:	U359-002
Vekt:	60 g
Bredde:	56 mm
Dybde:	20 mm
Høyde:	71 mm
LED-indikatorer:	Ja
Bruksanvisning:	Ja
Opprinnelsesland:	China
Pakkevekt:	30 g
Sertifisering:	CE, FCC, RoHS, REACH
Vertsgrensesnitt:	USB 3.2 Gen 1 (3.1 Gen 1) Type-A
Antall porter:	2
Produktfarge:	Sort
Pakkedybde:	95 mm
Pakkehøyde:	37.1 mm
Pakkebredde:	113 mm
Pakketype:	Boks
Driftstemperatur (T-T):	0 - 40 °C
Oppbevaringstemperaturomåde (Celsius):	-10 - 55 °C
Lagringsrelativ fuktighet:	5 - 95
Harmonisert system (HS)-kode:	8471.80.1000
Kroppsmateriale:	ABS syntetisk
USB-strøm:	Ja
Relativ luftfuktighet under drift (H-H):	5 - 90
Antall USB 3.2 Gen 1 (3.1 Gen 1)Type-A-porter:	1
Grensesnitt (hub):	USB Type-B
Overføringshastighet (Mbps):	5000 Mbit/s
Masterkassens (ytterkassens) GTIN (EAN/UPC):	10037332224771
Masterkassens (ytterkassens) bruttovekt:	730 g
Masterkassens (ytterkassens) lengde:	214.9 mm
Produkter per masterkasse (ytterkasse):	10 stykker
Masterkassens (ytterkassens) bredde:	235 mm
Masterkassens (ytterkassens) høyde:	110 mm
