Side 1/52

Owner’s Manual

Español 11

Français 21

Deutsch 31

Italiano 41

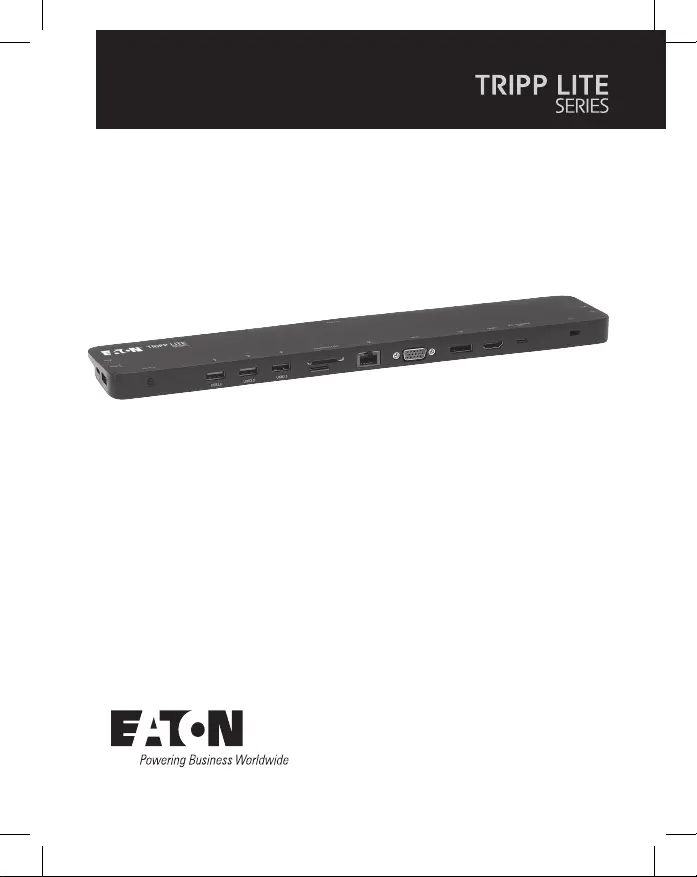

Model:

U442-DOCK7D-B

USB-C

Triple Display

Docking Station

Purchased product may differ from image.

• All-in-one docking station includes ports for HDMI, DisplayPort, VGA,

Gigabit Ethernet, USB-C (x2), USB-A (x5) and 100W Power Delivery

(PD) charging.

• Connect up to three displays simultaneously and extend across all

displays (up to three).

• Supports HDMI and DisplayPort video resolutions up to 4096 x 2160

@ 30 Hz.

• Supports VGA video resolutions up to 1920 x 1200 @ 60 Hz.

• Ethernet port supports true 10/100/1000 Mbps network speeds.

• PD 3.0 Fast Role Swap maintains data and power connections upon

removal and connection of charging power adapter.

• USB-C PD charging port supports power input up to 20V/5A (100W).

• Supports dynamic current detection and power distribution enabling

your source (host) to be charged at a dynamic power level instead

of a xed power level.

• Dedicated 5V/1.5A USB ports provide fast charging power to

mobile devices.

• Secure Digital v3.0 SD/Micro SD card slots for external memory

may be used simultaneously.

• USB 3.2 and USB 2.0 ports support 5 Gbps and 480 Mbps data

transfer speeds respectively.

• Thunderbolt 3 compatible.

• Plug-and-play design – no software, drivers or external power required.

Product Features

• N201-Series Cat6 Gigabit Snagless Patch Cables

• P312-Series 3.5 mm Mini Stereo Audio Cables

• P502-Series High-Resolution VGA Cables

• P569-Series High-Speed HDMI Cables

• P580-Series DisplayPort Cables with Latches

• U322-Series USB 3.2 A/B Device Cables

• U420-Series USB 3.2 Gen 1 C/C Cables

• U428-Series USB 3.2 Gen 1 A/C Cables

• M100-Series USB Sync/Charge Cable – USB-A to Lightning

• U442-DOCK7D-B

• USB 3.2 Type-C Cable – 1 ft. (0.3 m), Black

• Owner’s Manual

Package Contents

Optional Accessories

Produkspesifikasjoner

Merke:	Tripp Lite
Kategori:	hub & dokkstasjon
Modell:	U442-DOCK7D-B
Vekt:	250 g
LED-indikatorer:	Ja
Bruksanvisning:	Ja
Tilkoblingsteknologi:	Koblet med ledninger (ikke trådløs)
Strømkildetype:	USB
Opprinnelsesland:	Vietnam
Pakkevekt:	640 g
Antall USB 2.0-porter:	2
Antall HDMI-porter:	1
Sertifisering:	CE, FCC, REACH
HDMI-versjon:	1.4
Antall DisplayPorts:	1
Antall per pakke:	1 stykker
Vertsgrensesnitt:	USB 3.2 Gen 1 (3.1 Gen 1) Type-C
Ladefunksjon:	Ja
Produktfarge:	Sort
Pakkedybde:	119.9 mm
Pakkehøyde:	39.9 mm
Pakkebredde:	385.1 mm
Minnekortenhet:	MicroSD (TransFlash), SD
Kabler inkludert:	USB Type-C
Antall VGA (D-Sub)-porter:	1
Mikrofon, linje-inn-støpsel:	Nei
Antall ethernets-/bredbåndstilkoblinger (RJ-45):	1
Driftstemperatur (T-T):	0 - 45 °C
Oppbevaringstemperaturomåde (Celsius):	-10 - 70 °C
Lagringsrelativ fuktighet:	5 - 90
Bærekraftsertifikater:	RoHS
Innebygd kortleser:	Ja
Harmonisert system (HS)-kode:	84733020
Kroppsmateriale:	Akrylonitril-butadien-styren (ABS)
DC-inngangskontakt:	Ja
Line-in:	Ja
Ethernet LAN dataoverføringshastigheter:	1000 Mbit/s
Ethernet/bredbåndsforbindelse:	Ja
Relativ luftfuktighet under drift (H-H):	10 - 85
Antall USB 3.2 Gen 1 (3.1 Gen 1)Type-A-porter:	3
Antall USB 3.2 Gen 1 (3.1 Gen 1) Type-C-porter:	2
Masterkassens (ytterkassens) GTIN (EAN/UPC):	10037332250695
Masterkassens (ytterkassens) bruttovekt:	2920 g
Masterkassens (ytterkassens) lengde:	260.1 mm
Produkter per masterkasse (ytterkasse):	10 stykker
Masterkassens (ytterkassens) bredde:	400 mm
Masterkassens (ytterkassens) høyde:	220 mm
Strømtilkobling:	USB Type-C
USB Power Delivery:	Ja
USB Power Delivery opp til:	100 W
USB Power Delivery-revisjon:	3.0
