Owner’s Manual

UBC41

4-in-1 Battery Charger

AC: 100-240V, 50-60 Hz DC: 12/24/36/48V Selectable

Important Safety Instructions 2

Controls 3

Installation 3

Operation 4

Mounting (Optional) 4

Speciﬁcations 5

Maintenance and Service 5

Warranty and Product Registration 6

Espanol 7

Francais 13

Русский

PROTECT YOUR INVESTMENT!

You could also win an ISOBAR6ULTRA surge protector—a $100 value!

www.tripplite.com/warranty

1111 W. 35th Street, Chicago, IL 60609 USA • www.tripplite.com/support

Important Safety Instructions

SAVE THESE INSTRUCTIONS!

This manual contains important instructions and warnings that should be followed during the installation, operation and

storage of all Tripp Lite Chargers.

Location Warnings

• Do not mount unit with its front or rear panel facing down (at any angle). Mounting in this manner will seriously inhibit the unit’s internal

cooling, eventually causing product damage not covered under warranty.

• Use your charger in a location or compartment that minimizes exposure to heat, dust, direct sunlight and moisture. Flooding the unit with

water will cause it to short-circuit and could cause personal injury due to electric shock.

• For proper ventilation, allow a minimum 2 inches of clearance at front and back of the charger. To avoid overheating, the compartment

that houses the charger must be properly ventilated with adequate outside air ﬂow. The heavier the load of connected equipment, the

more heat will be generated by the unit.

• Do not install or use the charger near ﬂammable materials, fuel or chemicals.

Battery Connection Warnings

• Because explosive hydrogen gas can accumulate near batteries if they are not well ventilated, do not connect to batteries in a “dead air”

compartment. The battery compartment should have some ventilation to outside air.

• Sparks may result during ﬁnal battery connection. Always observe proper polarity as batteries are connected.

• Do not allow objects to contact the DC input terminals or battery terminals. Do not short or bridge these terminals together. Serious

personal injury or property damage could result.

Service Warnings

• During service work, both the AC source and battery should be disconnected.

• Potentially lethal voltages exist when the AC source is connected.

• An energy hazard exists when the battery is connected to the charger and AC source.

Equipment Connection Warnings

• Use of this equipment in life support applications where failure of this equipment can reasonably be expected to cause the failure of the

life support equipment or to signiﬁcantly affect its safety or effectiveness is not recommended. Do not use this equipment in the presence

of a ﬂammable anesthetic mixture with air, oxygen or nitrous oxide.

Operation Warnings

• Your charger is designed only for battery charging. It cannot be used as a power supply.

• Only charge lead-acid, NiMH and enclosed cell batteries.

• Do not attempt to charge a battery whose voltage differs from the charger’s selected voltage setting.

• Your charger does not require routine maintenance.

• Your charger is designed with an aluminum heat-sink housing that safely dissipates excess heat. Avoid touching the unit during charging,

as external temperatures can reach up to 122°F (50°C).

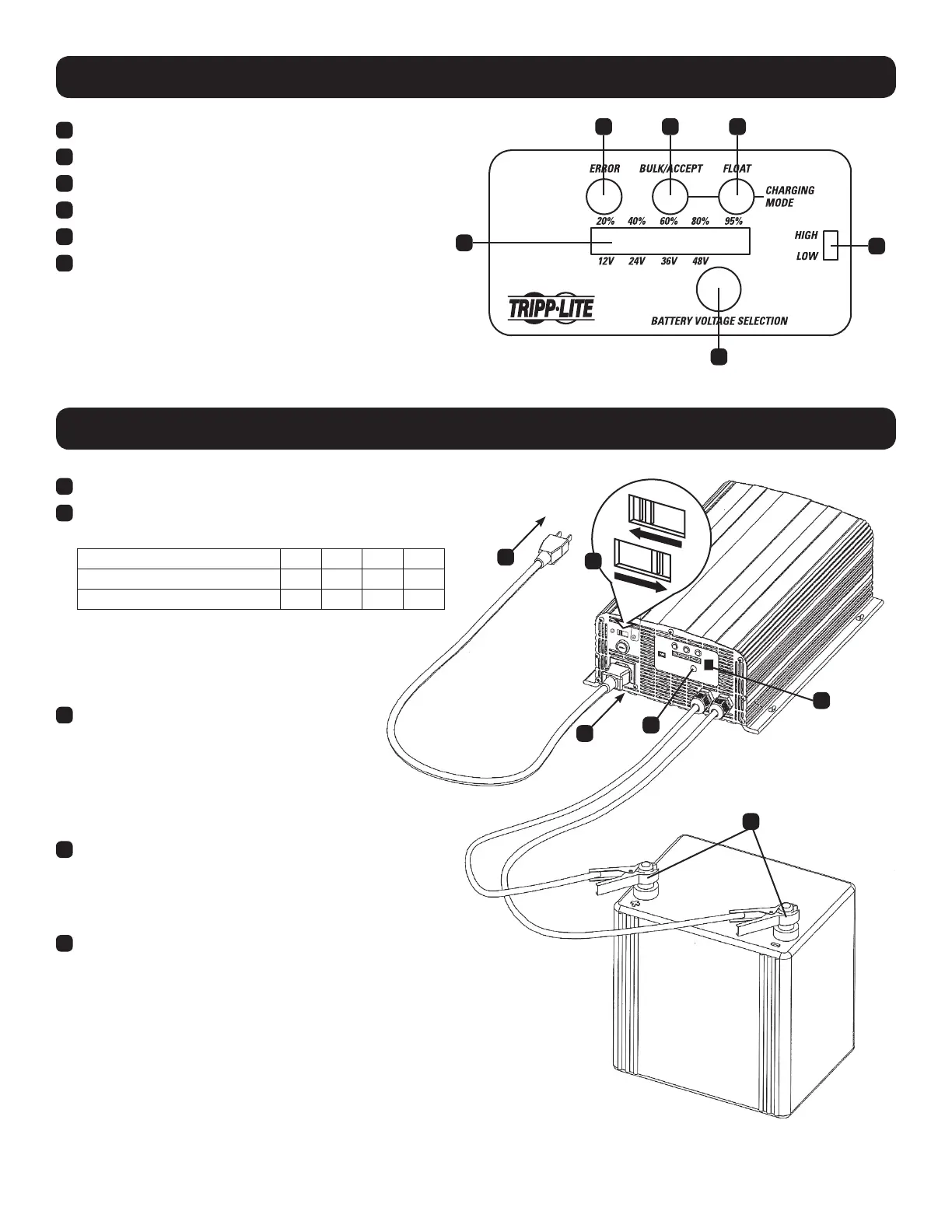

Controls

C D E

Battery Voltage Selection Button

High/Low Charge Rate Switch

Error (Red) LED

Bulk/Accept (Yellow) LED

Charging/Float (Green) LED

Battery Charge % / Battery Voltage Selector LEDs

Installation

115

230

Select the appropriate mains voltage for your region.

Set the High/Low Charge Rate Switch according to battery’s

capacity:

DC Output Voltage to Battery

12V 24V 36V 48V

Set to “High”

30A 30A 25A 15A

Set to “Low”

10A 10A 10A 7A

Note: The “Low” setting is recommended for general battery charging

and batteries whose charge has been severely depleted. The “high”

setting will charge a battery faster, but repeated fast charges may

overcharge a battery and reduce useful battery life. Reference your

battery manufacturer’s charging instructions to determine the

proper setting.

Insert the power cord’s C19 connector into the

charger’s C20 power inlet. Then plug the other

end of the power cord into an available AC power

outlet. CAUTION: Do not establish power

connections with an ungrounded AC outlet.

Note: Complete Step 3 before connecting the

charger to a battery.

Once an AC power connection is established, press the

Battery Voltage Selection button to match the battery’s

voltage (12/24/36/48V). LEDs will illuminate in the Battery

Charge % / Battery Voltage Selector bar to correspond

with the desired charging voltage.

Connect the charger’s clamps to the battery terminals.

Note: Always attach the red clamp to the positive (POS, P, +) battery

terminal before attaching the black clamp to the negative (NEG, N, -)

terminal. For unmarked terminals, the positive post usually has a larger

diameter than the negative post. When disconnecting the charger, reverse

the order of the connecting steps.

Produkspesifikasjoner

Merke:	Tripp Lite
Kategori:	Batterilader
Modell:	UBC41
Innebygd skjerm:	Nei
Vekt:	4390 g
Bredde:	223 mm
Dybde:	299.9 mm
Høyde:	100.6 mm
Håndtak:	Ja
LED-indikatorer:	Ja
Ladespenning:	12/24/36/48 V
AC-inngangsspenning:	120/240 V
AC-inngangsfrekvens:	50 - 60 Hz
Ladestrøm:	7/10/15/25/30 A
Produktfarge:	Sølv
Bærekraftsertifikater:	RoHS
Kroppsmateriale:	Aluminium
Av/på-bryter:	Ja
