INSTRUCTION MANUAL

INFRARED MOTION SENSOR ROUND MOVING HEAD

TECHNICAL DATA

MODEL VT-8028

SKU 23678, 5088, 5089

INPUT VOLTAGE AC: 220-240V, 50/60Hz

RATED LOAD Max. 800W

400W +LED

DETECTION RANGE 180°

DETECTION DISTANCE 12m max (<24°C)

TIME DELAY Min. 10 sec ±3sec

Max. 15min ±2min

AMBIENT LIGHT <3-2000LUX (Adjustable)

INSTALLATION HEIGHT 1.8-2.5m

WORKING TEMPERATURE -20° ~+40°C

WORKING HUMINDITY <93%RH

POWER CONSUMPTION > 0.5 W

DETECTION MOTION

SPEED

0.6-1.5 m/s

IN CASE OF ANY QUERY/ISSUE WITH THE PRODUCT, PLEASE REACH OUT TO US AT: SUPPORT@V-TAC.EU

FOR MORE PRODUCTS RANGE, INQUIRY PLEASE CONTACT OUR DISTRIBUTOR OR NEAREST DEALERS.

V-TAC EUROPE LTD. BULGARIA, PLOVDIV 4000, BUL.L.KARAVELOW 9B

MULTI-LANGUAGE

MANUAL QR CODE

Please scan the QR code

to access the manual in

multiple languages.

INTRODUCTION & WARRANTY

WARNING

Thank you for selecting and buying V-TAC product. V-TAC will serve you the best. Please read these instructions

carefully before starting the installation and keep this manual handy for future reference. If you have any another

query, please contact our dealer or local vendor from whom you have purchased the product. They are trained

and ready to serve you at the best. The warranty is valid for 5 years from the date of purchase. The warranty

does not apply to damage caused by incorrect installation or abnormal wear and tear. The company gives no

warranty against damage to any surface due to incorrect removal and installation of the product. This product is

warranted for manufacturing defects only.

1. Please make sure to turn o the power before starting

the installation.

2. Installation must be performed by a qualiﬁed electrician.

3. For Indoor use only.

MATERIAL PC

DIMENSION 80.2x55.5x68.2 mm

This marking indicates that this product

should not be disposed of with other

household wastes.

Caution, risk of electric shock.

FUNCTION

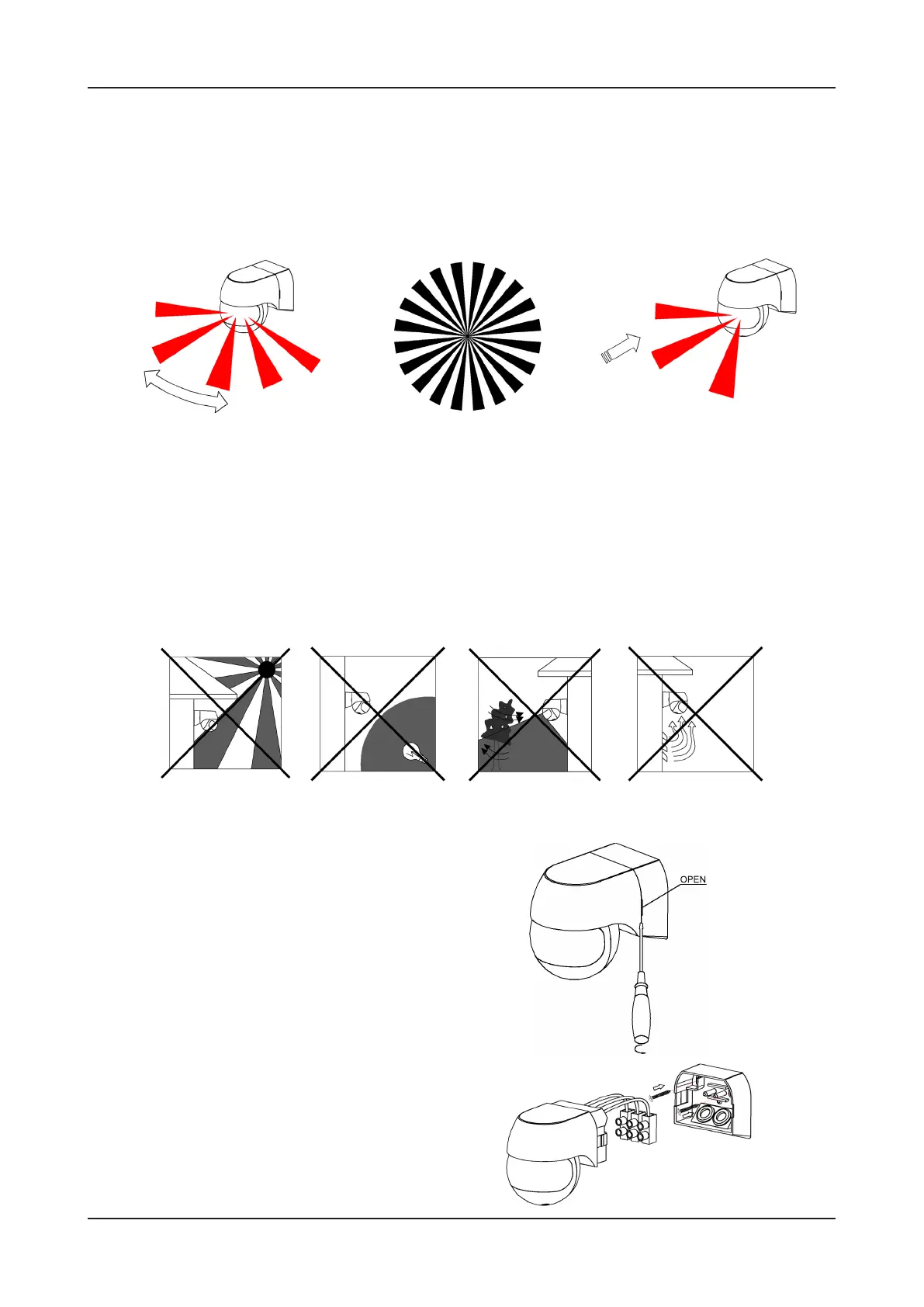

INSTALLATION ADVICE

INSTALLATION DIAGRAM

• Can identify day and night: The consumer can adjust working state in dierent ambient light. It can

work in the daytime and at night when it is adjusted on the “sun” position (max). It can work in the

ambient light less than 3LUX when it is adjusted on the “3” position (min). As for the adjustment

pattern, please refer to the testing pattern.

• Time-Delay is added continually: When it receives the second induction signals within the ﬁrst

induction, it will restart to time from the moment.

As the detector responds to changes in temperature, avoid the following situations:

• Avoid pointing the detector towards objects with highly reﬂective surfaces, such as mirrors etc.

• Avoid mounting the detector near heat sources, such as heating vents, air conditioning units,

light etc.

• Avoid pointing the detector towards objects that may move in the wind, such as curtains, tall

plants etc.

• Loosen the screw in the back and unload the bot-

tom (refer to ﬁgure 1).

• Find the wire hole with gasket in the downside of

the sensor and pass the power wire through hole.

Connect the power wire into connection-wire col-

umn according to the connection-wire diagram.

• Fix the bottom with inﬂated screw on the selected

position.

• Install back the sensor on the bottom, tighten the

screw and then test it.

Good Sensitivity Poor Sensitivity

Figure 1

Figure 2
