Features

Applications

Specifications

www.VikingElectronics.com

• Automatic polling and programming software included

• 2 Amp relay contacts for door/gate or SL-2 strobe light control

• SIP compliant (see page 2 for more information)

• Outbound Proxy, Authentication ID, Peer to Peer, VLAN Tagging

• PoE powered (class 1, <4 Watts)

• Automatic Noise Canceling (ANC) feature for proper operation in noisy areas

• VoIP eliminates the need for “Push to Talk” mode

• Network downloadable firmware

• Meets ADA requirements for Emergency Phones:

- Automatically lights the Red “Call Connected” LED

- Transmits a unique location I.D. code or voice announcement

- Grade 2 Braille label for the visually impaired

• Non-volatile digital voice announcer with 28 seconds of voice memory

• Handsfree operation

• Marine grade 316 stainless steel prevents corrosion on the stainless steel models

• Laser etched graphics on stainless steel models

• Dials up to 5 emergency numbers

• E-1600-20-IP, E-1600-22-IP, E-1600-52-IP, and E-1600-TP2IPEWP dial up to 5

non-emergency “INFO” numbers

• Cycles through backup phone numbers on busy or no-answer

• Optional Enhanced Weather Protection (EWP), EWP products are designed to meet

IP66 Ingress Protection Rating, see DOD 859

• Hangs up on busy signal, time-out or touch tone command

• Extended temperature range (-40°F to 140°F)

• 11 different chassis or board only available

• Available in 42” tower phone model E-1600-BLTIPEWP (DOD 249)

• Optional LV-1K Line verification Panel (DOD 246 )

• Optional PB-100 Polling System available (DOD 232)

• Optional SL-2 or BLK-4-EWP strobe light kit available (DOD 242/654)

• Optional E-1600A-MK-GNP Pedestal Mounting Kit (DOD 227)

• Optional PB-1 Panic Button Kit (DOD 233)

• Diagnostics for testing microphone, speaker, and relay

Power: PoE class 1 (<4 Watts)

Maximum Sound Pressure: 95 dB SPL @ 1m

Dimensions: See Installation and Specifications

Operating Temperature: -40°F to 140°F (-40° C to 60° C)

Humidity - Standard Products: 5% to 95% non-condensing

Humidity - EWP Products: Up to 100%

Audio Codecs: G711u, G711a, G722

Network Compliance: IEEE 802.3 af PoE, SIP 2.0 RFC3261, 100BASE-TX with

auto cross over

Regulatory Compliance: CE, FCC Part 15 and Canada ICES-003 Class A

Connections: (1) RJ45 10/100 Base-T, (3) gel-filled butt connectors

* Americans with Disabilities Act of 1992 contains federal

regulations regarding elevator telephones (Public Law 101-336).

• Elevators

• Parking ramps/lots

• Emergency pool phones

• ATM machines

• Medical centers

• Silent hold-up alarm dialer

with an optional PB-1 Panic

Button Kit (DOD 233)

• Area of refuge locations

• Lobbies

• Entryways

• Campus emergency stations

• Stadiums

• Convention centers

• Public access areas

ADA & CE Compliant VoIP Emergency Phones

with Built-In Dialer and Digital Voice Announcer

The 1600-IP Series of ADA Compliant VoIP Emergency Phones are designed to

provide quick and reliable handsfree communication for SIP VoIP phone systems

with PoE. All 1600-IP Series phones meet ADA requirements for elevator or

emergency telephones, and can be programmed from any touch tone phone or

PC on the same LAN or remotely using a static IP address. The phones can dial

up to 5 programmable emergency numbers. In addition, the E-1600-20-IP,

E-1600-22-IP, E-1600-52-IP and E-1600-TP2IPEWP feature a second "INFO"

button that will dial up to 5 non-emergency numbers. Two amp relay contacts are

provided for strobe light, camera, door/gate control, etc.

The 1600-IP Series phones can be programmed to automatically deliver a digital

announcement to identify the location of the emergency call. Alternatively, a DTMF

touch tone code may also be delivered. A “Call Connected” LED can be initiated

manually or automatically. All programming parameters, including phone numbers

and location numbers, are stored in non-volatile memory, requiring no batteries.

All units are PoE powered.

For outdoor installations where the unit is exposed to precipitation or condensation,

select 1600-IP Series phones are available with Enhanced Weather Protection

(EWP). EWP products are designed to meet IP66 standards and may feature foam

rubber gaskets, sealed connections, gel-filled butt connectors, as well as potted

circuit boards with internally sealed, field-adjustable trim pots and DIP switches for

easy onsite programming. For more information on EWP, see DOD 859.

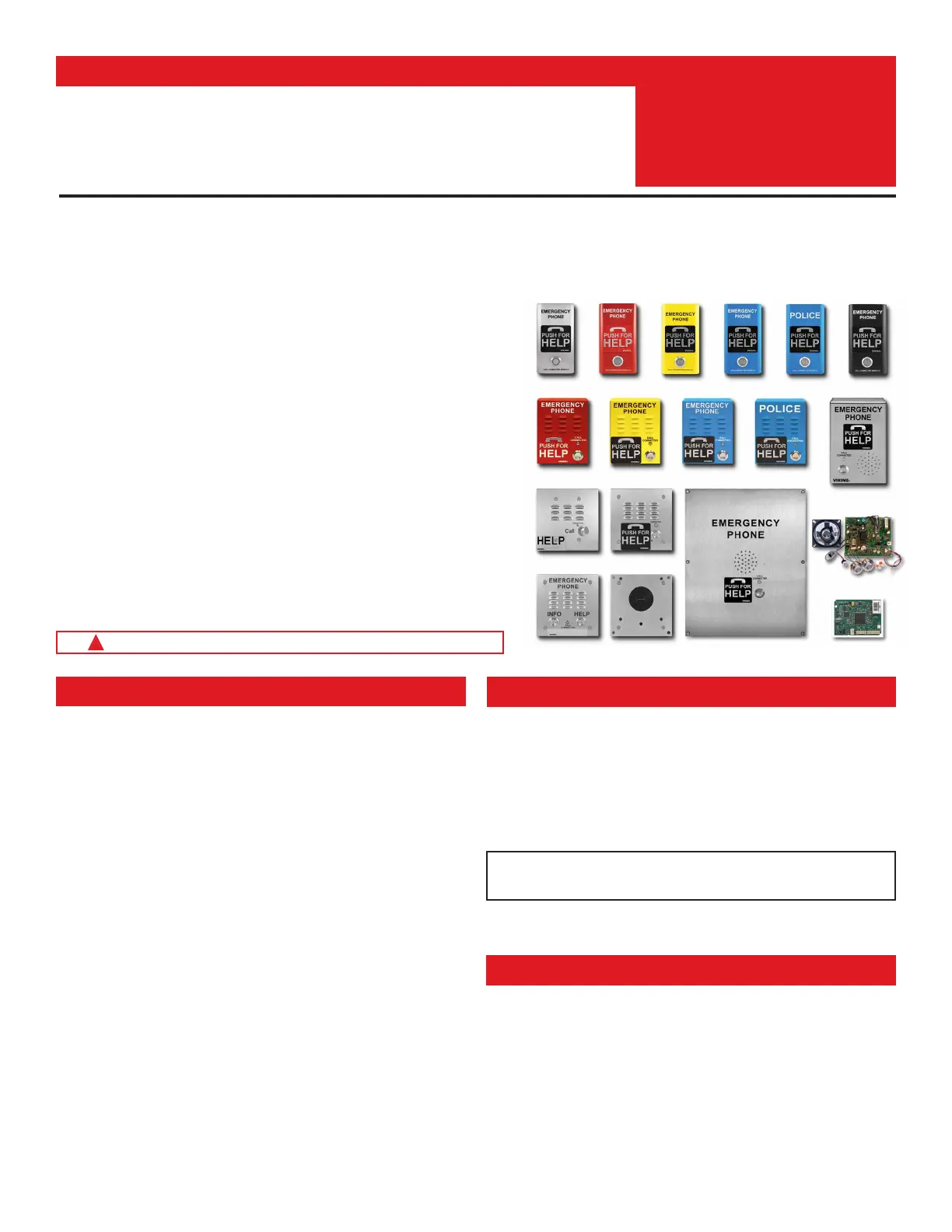

PRODUCT

MANUAL

Designed, Manufactured and Supported in the USA

1600-IP Series

ADA Compliant VoIP

Emergency Phones

October 2, 2023

SECURITY & COMMUNICATION

VIKING

E-1600-45-IPE-1600-IP

E-1600-03-IP

E-1600-20-IP E-1600-55-IP

E-1600-30-IP

E-1600-65-IP E-1600-60-IP

E-1600-32-IP

E-1600-SS-IP E-1600-RD-IP E-1600-YL-IP E-1600-BL-IP E-1600-BLP-IP E-1600-BK-IP

E-1600-02-IP/E-1600-TP-IPEWP

E-1600-TP2IPEWP/E-1600-GT-IPEWP

E-1600-50/52-IP

E-1600-53-IP

Installation requires a Network Administrator / IT Technician
