Features

Applications

Specifications

Provide Reliable and Intelligent

Handsfree Communication!

• Automatic Noise Canceling (ANC) feature for clear audio - even in noisy

environments

• Vandal Resistant Features: 14 gauge louvered 316 brushed stainless steel

faceplate with permanent laser etched graphics, speaker/mic screen, heavy duty

metal “Call” button and T-10 Torx security mounting screws and drive bit

• Weather Resistant Features: Marine grade 316 stainless steel faceplate, screws

and push button switch. Switch internally sealed per IP67. Mylar speaker. Self-

draining mic mount. Faceplate, mic and speaker gaskets. Weather resistant

powder paint on optional VE-5x5 (DOD 424).

• Telephone line powered

• Non-volatile memory (no batteries required)

• Programmable to dial up to 5 numbers on busy / ring no answer

• Blue off-hook LED indicator

• Volume adjustments for microphone and speaker

• Advanced call progress detection: disconnects on busy signal, return to dial tone,

CPC, reorder tone, maximum call time out and programmable silence time out

• Selectable auto-answer feature for monitoring

• Extended temperature range (-30°F to 170°F)

• E-30 Flush mounts using the included rough-in box or surface mount using an

optional VE-5x5 surface mount box, sold separately (DOD 424)

• E-30-EWP and E-32-EWP are designed to meet IP66 Ingress Protection Rating

(see DOD 859 for more information)

• E-32 flush mounts in a standard double gang box (not included)

• Optional PB-1 Panic Button Kit (DOD 233)

• Also available with VoIP interface, see DOD 248 for more information

Power: Telephone line powered. Minimum 24V DC talk battery voltage, with a

minimum loop current of 20mA loop. Loop current may be boosted on low current

lines with a Viking TBB-1B Talk Battery Booster (DOD 632).

Minimum Ring Voltage: 25VAC RMS

REN #: 0.5A

Dimensions: Overall: 5” x 5” x 2.25” (127mm x 127mm x 57mm)

Plastic Electrical Box: 4” x 4” x 2.12” (102mm x 102mm x 54mm)

Shipping Weight: 2.2 lbs (1 Kg)

Operating Temperature: -30°F to 17 0°F (-34°C to 77°C)

Humidity - E-30 / E-32: 5% to 95% non-condensing

Humidity - E-30-EWP / E-32-EWP: Up to 100% condensing

Connections: Gel-filled butt connectors

The E-30 and E-32 handsfree phones are

designed to provide quick and reliable

handsfree communication and can be

connected directly to a C.O. line or analog

PABX/KSU station.

The E-30 and E-32 feature non-volatile

memory, built in dialers, and intelligent call

progress detection for automatic hang-up when

a call is completed. They can be programmed

to dial up to 5 different numbers on ring no

answer or busy and can be configured to dial

these numbers until answered.

Models E-30-EWP and E-32-EWP add Enhanced Weather Protection (EWP) for outdoor installations where the unit is exposed

to precipitation or condensation. EWP products feature foam rubber gaskets, sealed connections, gel-filled butt connectors, as

well as urethane or thermal plastic potted circuit boards with internally sealed, field-adjustable trim pots and DIP switches for easy

on-site programming. For more information on Enhanced Weather Protection, see DOD 859.

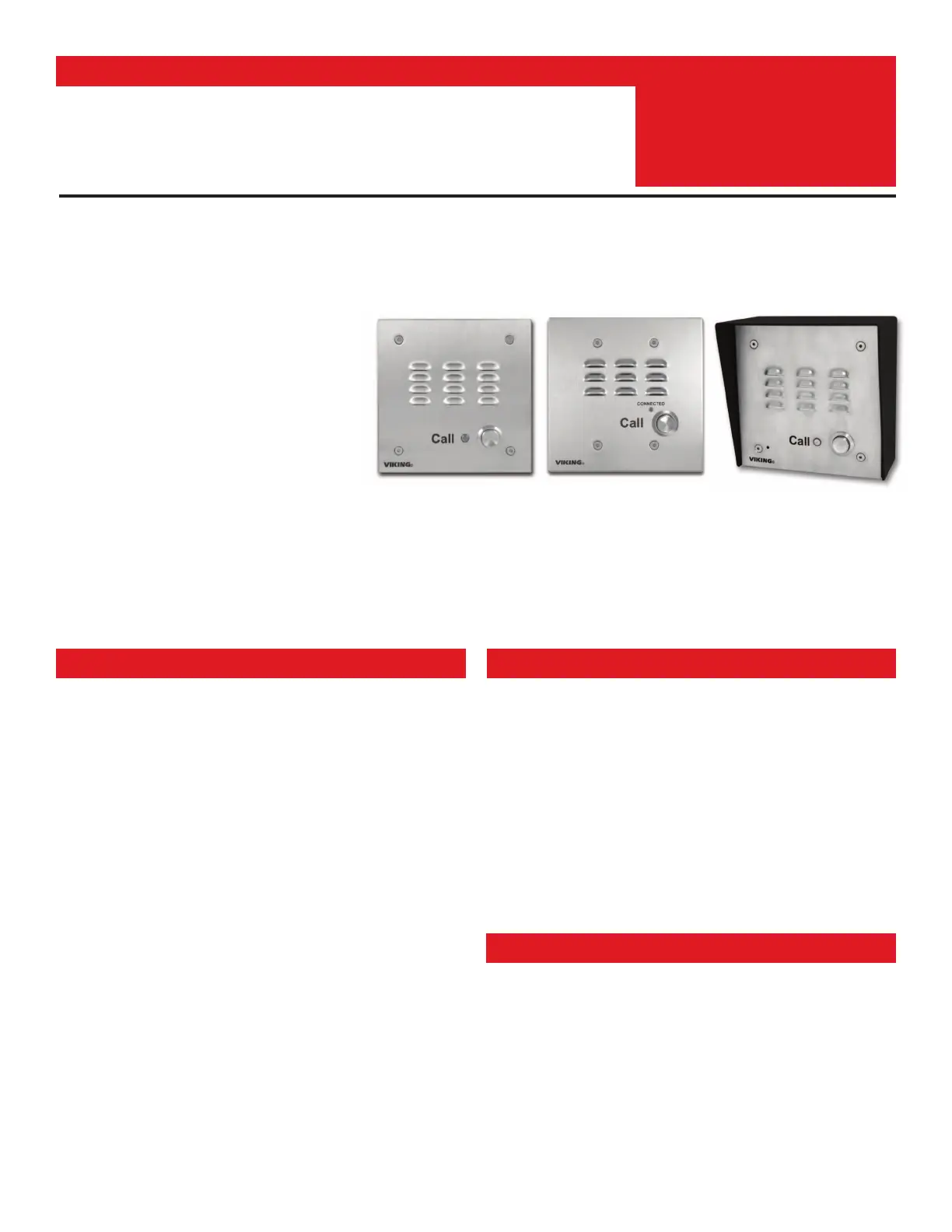

E-30 / E-30-EWP

Flush mount with the

included rough-in box

E-30 shown with optional

VE-5x5 Surface Mount Box

(sold separately)

CAUTION - When installing on an analog extension of a phone system: Some phone systems do

not conform to analog telecom standards and might not be compatible with the E-30 or E-32 speaker

phones. For a detailed description of the telephone line specifications required for any of the E-30 or

E-32 phones, see DOD 869.

Note: Areas with loud background noise may require the push to talk version: E-30-PT or E-30-PT-EWP.

• ATM machines

• Convention centers

Non-ADA Hot-Line Phone for:

• Elevators

• Parking lots

• Stadiums

• Parking ramps

• Residences

• Businesses

Gate and Door Entry Phone for:

• Building lobbies

• Pedestrian gates

• Silent holdup alarm dialer

using optional Viking PB-1

E-32 / E-32-EWP

Flush mount in a standard

double gang electrical box

(not included)

www.VikingElectronics.com

PRODUCT

MANUAL

Designed, Manufactured and Supported in the USA

E-30 / E-30-EWP

E-32 / E-32-EWP

Handsfree Speaker

Phones with Dialers

September 7, 2022

SECURITY & COMMUNICATION

VIKING

Produkspesifikasjoner

Merke:	Viking
Kategori:	Intercomsystem
Modell:	E-30-EWP
Vekt:	1000 g
Bredde:	127 mm
Dybde:	57 mm
Høyde:	127 mm
Plassering:	Vegg
Tilkoblingsteknologi:	Koblet med ledninger (ikke trådløs)
Sertifisering:	EWP\nIP66\nFCC Part 68\nFCC Part 15
Antall knapper:	1
Antall utendørsenheter:	1
Produktfarge:	Rustfritt stål
Driftstemperatur (T-T):	-26 - 54 °C
Internasjonal beskyttelses (IP)-kode:	IP66, IP67
Innendørsenhet medfølger:	Nei
Utendørsenhet medfølger:	Ja
Enkel installering:	Ja
