Features

Applications

Specifications

Information: 715-386-8861

www.VikingElectronics.com

• Vandal Resistant Features: 14 gauge louvered 316 stainless steel faceplate with

permanent laser etched graphics. Speaker/mic screen. Heavy duty metal keypad and

“Call” button. Scratch resistant powder coating (K-1700-BN-IP). T-10 Security Torx

drive mounting screws.

• Weather Resistant Features: Marine grade 316 stainless steel faceplate, screws and

push button switch. Switch internally sealed per IP67. Mylar speaker. Self-draining mic

mount. Faceplate, mic and speaker gaskets. Weather resistant powder paint

(K-1700-BN-IP)

• Available in 2 standard finishes: 316 brushed stainless steel with laser etched graphics

or oil rubbed bronze powder paint with copper metallic graphics

• Two sets of SPDT 2 Amp relay contacts for door/gate or camera control

• Optional RC-4A for Secure Remote Relay Control, see DOD 582

• Blue “Call /Status” LED indicator

• SIP compliant (see page 2 for compatible SIP servers and IP phone systems)

• Outbound Proxy, Authentication ID, Peer to Peer, VLAN Tagging

• PoE powered (class 2, <6.5 watts)

• Automatic Noise Canceling (ANC) feature for operation in noisy environments

• Viking’s proprietary VOX switching eliminates the need for “Push to Talk” mode

• Network downloadable firmware

Power: PoE class 2 (<6.5 watts)

Dimensions: Overall: 5.5” x 6.5” x 2.6” (140mm x 165mm x 66mm)

Rough-in box: 4.5” x 5.5” x 2.5” (114mm x 140mm x 64mm)

Shipping Weight: 3.2 lbs (1.5 kg)

Operating Temperature: -40°F to 140°F (-40° C to 60° C)

Humidity - Standard Products: 5% to 95% non-condensing

Humidity - EWP Products: Up to 100%

Audio Codecs: G711u, G711a, G722

Network Compliance: IEEE 802.3 af PoE, SIP 2.0 RFC3261, 100BASE-TX with

auto cross over

Regulatory Compliance: CE, FCC Part 15 and Canada ICES-003 Class A

Connections: (1) RJ45 10/100 Base-T, (14) gel-filled butt connectors

Installation requires the assistance of a Network Administrator / IT Technician.

The K-1700-IP Series entry phones provide a durable and attractive hands-free phone for

apartment and residential door entry or applications requiring a vandal resistant VoIP

speaker phone. The K-1700-IP phone is designed to provide quick and reliable hands-free

communication for SIP VoIP phone systems with PoE. The unit can be programmed from

any PC on the same LAN or remotely using a Static IP Address. The K-1700-IP entry phone

can dial up to 250 programmable numbers and another 250 rollover numbers. They are

available in two attractive finishes: “Brushed Stainless Steel” and “Oil Rubbed Bronze”.

When the K-1700-IP phone is connected to an apartment or business tenant, a built-in

contact closure may be activated to control an electric gate or door strike. Up to 1,000

keyless entry codes may be programmed, providing tenants with keyless entry. A 26 Bit

Wiegand input is provided for adding an optional proximity card reader with capacity to

program up to 1,000 card numbers. Keyless entry codes and card numbers can be

programmed to only allow access at specific times and/or day of the week. The K-1700-IP

includes a request for exit (REX) input and also offers activity logging.

• Apartment Entry Phone

• Residential Gate Entrance

• Door Entry Phone

• Courtesy Assistance Phone

• Customer Service Phone

• Automated Teller (ATM) Phone

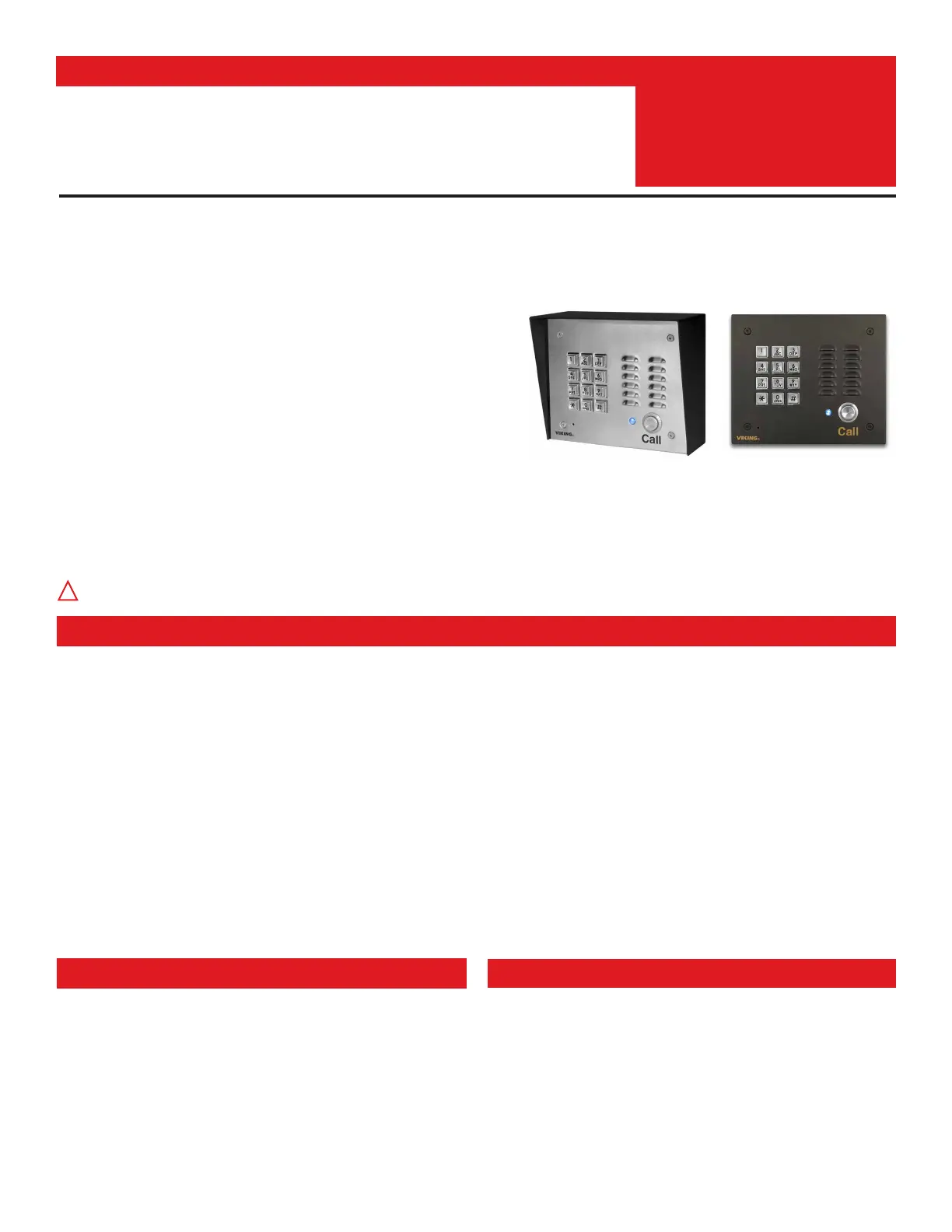

K-1700-IP

“Brushed 316 Stainless Steel”

(similar to brushed nickel)

(shown in optional surface mount box)

K-1700-BN-IP

“Oil Rubbed Bronze”

(satin dark brown powder paint

with fine copper metallic)

The K-1700-IP-EWP shares all of the features of the K-1700-IP in addition

to Enhanced Weather Protection (EWP) for outdoor installations where

the unit is exposed to precipitation or condensation. EWP products are

designed to meet IP66 standards and may feature foam rubber gaskets,

sealed connections, gel-filled butt connectors, as well as potted circuit

boards. For more information on EWP, see DOD 859.

• 26 Bit Wiegand input for optional proximity card readers, see DOD 221 and 228

• 26 Bit Wiegand output connect to card reader input of an Access Control System

• Programmable to speed dial up to 250 numbers

• Cycles to roll over phone number on busy or no-answer

• Program up to 1,000 keyless entry codes and/or proximity card numbers

• Keyless entry codes and proximity card numbers can be programmed to only allow

access at specific times and day of week

• Event logging with time and date stamp

• Optional Enhanced Weather Protection (EWP), EWP products are designed to meet IP66

Ingress Protection Rating, see DOD 859

• Hangs up on busy signal, time-out or touch tone command

• Remotely programmable

• Extended temperature range (-40°F to 140°F)

• Programmable volume adjustments for microphone and speaker

• Selectable auto-answer feature for monitoring

• Flush mount with included steel rough-in box,

• Surface mount using an optional VE-6x7 surface mount box (not included, see DOD 424)

• Optional VE-LIGHT kit to illuminate the front panel at night, see DOD 428

• Diagnostics (for testing mic, speaker and relays)

• Security or Emergency

Phone

• Hot-Line Phone

• Kiosk Phone with up to

250 number speed dialing

Vandal Resistant VoIP Entry Phone System

with Integrated Keypad

PRODUCT

MANUAL

Designed, Manufactured and Supported in the USA

K-1700-IP Series

VoIP Entry Phone System

with Built-In Keypad

September 28, 2021

SECURITY & COMMUNICATION

VIKING
