Features

The K-1775-3 Series entry phones provide a tough and

attractive handsfree phone for commercial, apartment, and

residential door entry or applications requiring a vandal

resistant speaker phone with built-in 125 KHz Proximity Card

Reader and analog Color Video Camera. The card reader

outputs industry standard 26-bit Wiegand data, allowing it to

be used with a Viking ES-1 or C-4000 door controller or any

controller compatible with 26-bit Wiegand format. The

K-1775-3 Series entry phones are available in two attractive

finishes: “brushed stainless steel” and “oil rubbed bronze”.

When the “Call” button is pressed, the K-1775-3 returns dial

tone. The keypad may then be used to dial any number. If

no Touch Tone is entered within 8 seconds, CPC is detected,

a busy signal is detected, or the programmable maximum call

time has elapsed, the K-1775-3 will automatically disconnect.

Alternatively, the K-1775-3 may be disconnected by pressing

the “Call” button again. The K-1775-3 provides CCTV video

of the entry area and comes complete with a standard, flush

mount, rough-in box. In addition, an optional VE-6x7 weather

resistant, surface mount box is available (see DOD 424).

• Apartment entry phone when used with the K-1900-3 Apartment

Entry Dialer or C-4000 Apartment/Office Entry Controller or

C-3000 Apartment Entry Controller

• Use with a Viking C-500 to control 1 or 2 (expandable to 8)

K-1775’s and door/gate control on a single phone line (DOD 177)

• Use with a Viking C-2000B to control 1 to 4 K-177 5’s and

door/gate control on a single phone line (DOD 156)

• Courtesy and customer assistance phone

• Automated teller (ATM) phone

• Use with a Viking ES-1 for proximity card reader door control

• Provide unique front and back door chimes and paging when use

with a Viking SLP-1 or SLP-4 and C-2000B

• Kiosk phone with (100 number speed dialing) when used with the

K-1900-9 Multi-Number Dialer (DOD 321)

• Use with Viking’s Proximity Cards: PRX-C, PRX-C-ISO, PRX-FOB

(DOD 198)

Dimensions: Overall: 5.5” x 6.5” x 2.6” (140mm x 165mm x 66mm),

Rough-in box: 4.5” x 5.5” x 2.5” (114mm x 140mm x 64mm)

Shipping Weight: 3.5 lbs (1.6 kg)

Environmental: -30°F to 150°F (-34°C to 65°C)

Humidity - K-1775-3: 5% to 95% non-condensing

Humidity - K-1775-3-EWP: Up to 100% condensing

(see page 2 for complete specifications)

Applications

Specifications

• Built-in 125KHz 26-bit Wiegand proximity card reader with LED and

beep card read confirmation and EWP board protection

• Built-in high resolution analog NTSC color video camera with wide

viewing angle, tilt/swivel adjustments, and operating temperature of

-40°F to 140°F

• Audio and video transmission on one CAT5E cable (see page 6)

• Compatible with the following Viking Proximity Cards and Fobs:

PRX-C, PRX-C-ISO and PRX-FOB (DOD 198)

• Vandal Resistant Features: 14 gauge louvered 316 stainless

steel faceplate with permanent laser etched graphics, stainless

steel “Call” button, heavy duty metal keypad and T-10 Torx

security screws, scratch resistant powder coating (K-1775-3-BN)

• Weather Resistant Features: Marine grade 316 stainless steel

faceplate, screws and and push button switch. Switch internally

sealed per IP67. Mylar speaker. Self-draining mic mount.

Faceplate, mic and speaker gaskets. Weather Resisant powder

paint (K-1775-3-BN)

• K-1775-3-EWP is designed to meet IP66 Ingress Protection

Rating (see DOD 859 for more information)

• Available in 2 standard faceplate finishes: 316 brushed stainless

steel or oil rubbed bronze powder paint

• Blue “in use” LED

• Telephone line powered

• Volume adjustments for microphone and speaker

• Advanced call progress detection: disconnects on busy signal,

return to dial tone, CPC, reorder tone, maximum call time out and

40 second silence time out

• Selectable auto-answer feature for monitoring

• Zinc plated steel rough-in box with (2) 3/4” conduit knockouts

The K-1775-3-EWP shares all of the features of the K-1775-3

in addition to Enhanced Weather Protection (EWP) for outdoor

installations where the unit is exposed to precipitation or

condensation. EWP products feature foam rubber gaskets

and boots, sealed connections, gel-filled butt connectors, as

well as urethane or thermal plastic potted circuit boards with

internally sealed, field-adjustable trim pots and DIP switches

for easy on-site programming. For more info, see DOD 859.

K-1775-3

“Brushed Stainless Steel”

(similar to brushed nickel)

K-1775-3-BN

“Oil Rubbed Bronze”

(satin dark brown powder paint

with fine copper metallic)

Vandal Resistant Entry Phones with Built-In Keypad,

Proximity Card Reader, and Color Video Camera

DESIGNED, MANUFACTURED AND SUPPORTED IN THE USA

K-1775-3 Series

Video Entry Phones with

Keypads and Card Readers

September 29, 2023

PRODUCT

MANUAL

SECURITY & COMMUNICATION

VIKING

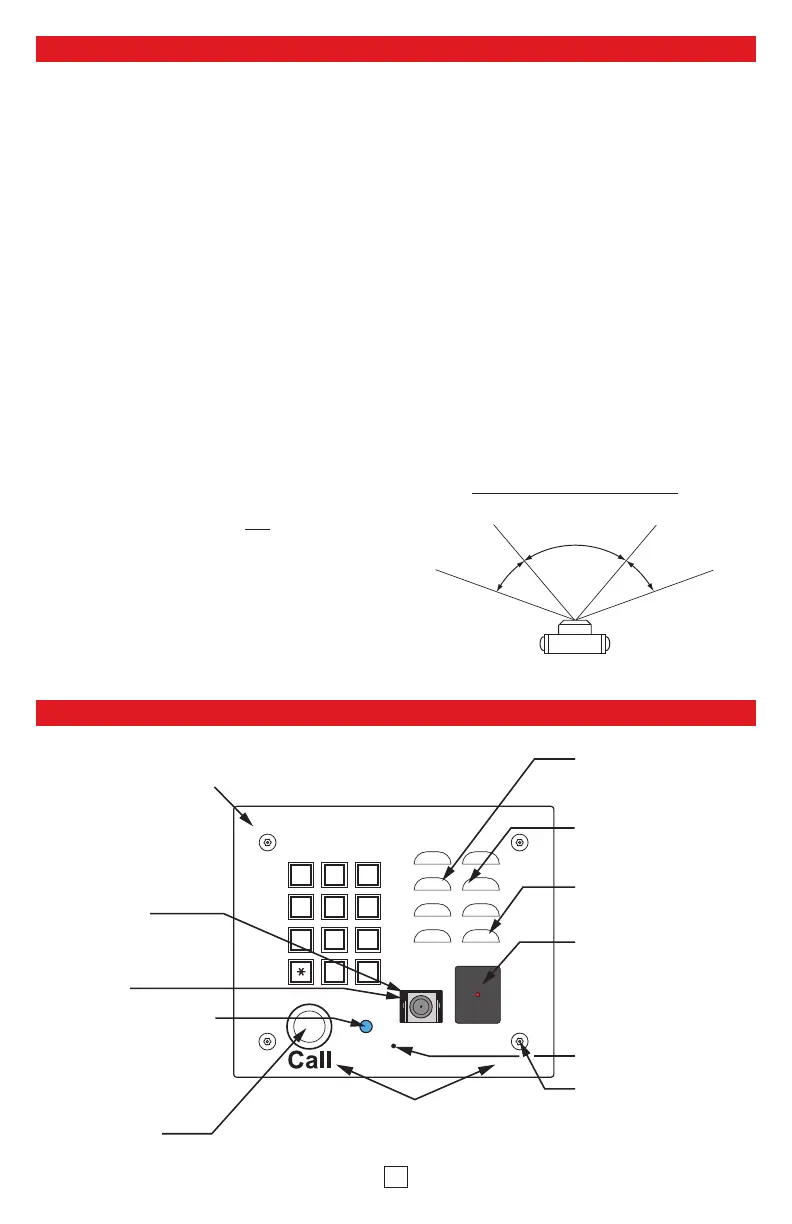

Features Overview

Push Button Switch:

Push to

initiate call, push again to

disconnect. Solid 316 stainless steel

internally sealed per IP67.

Speaker Screen:

Speaker screen

with 0.018" wide slots to prevent

punctures from paperclips, etc.

Faceplate Material:

14 gauge

316 stainless steel. The SS model

has a #4 brushed finish, the BN

models have a powder painted finish.

Speaker:

Mylar speaker with

rubber gasket to maintain water-tight

seal and eliminate water

deterioration.

Blue Call LED:

Lights steady to

help locate the button in low light,

flashes during dialing, then lights

steady when answered.

Microphone:

Omni-directional

microphone with protective

water-resistant cloth.

Front View of the

K-1775-3 Entry Phone

Condensation Drain Hole

Mounting Screws:

(4) 6-32 X

3/4” Marine grade 316 stainless

steel, flat head, T-10 Torx security

screws and drive bit (included).

Laser Etched Graphics:

For long lasting easy to

read graphics (Copper Metallic on model K-1775-BN-3).

Proximity Card Reader:

26-bit

Wiegand, 125KHz, red LED turns off

and transducer will beep during card

read. Fully potted EWP. Read range

1.25" to 2.0". Impact resistant

polycarbonate lens with water-tight

gasket.

ABC

JKL

TUV

OPER

GHI

PRS

DEF

MNO

WXY

VIKING

Color Video Camera:

Wide

operating temperature range of

-40°F to 140°F, NTSC composite

video output with 420 lines of

resolution, 80° wide viewing angle

lens, tilt and swivel adjustments for

aiming towards visitors.

Protective Camera Window:

Impact resistant polycarbonate lens

with scratch resistant coating and

water-tight gasket.

CAMERA SPECIFICATIONS

Power: 6-22V DC 150mA (12V DC UL Listed adapter included)

Image Sensor: 1/4” color CMOS

Video Output: 1 VP-P composite, NTSC, 75 ohms

Resolution: 420 lines (640 x 480 @ 30fps / 307,200 pixels)

Sensitivity: 0.025 LUX (50 IRE) F 1.2 3200K

Lens: 2.1mm, conical pinhole

FOV(Field of View): 80° Horizontal, 60° Vertical, 100° Diagonal

Tilt/Swivel Adjustment: Vertical +/- 20°, horizontal +/- 30° (see

Diagram A right)

IR Compatibility: This camera is equipped with an OLP (Optical

Low Pass) filter to maintain correct video color in outside

applications. The standard camera is NOT compatible with IR

illuminators. If IR illumination is required, you will need to replace

the exisiting camera with a Viking model VCAM-1IR, see DOD# 190.

Maximum Wire Run Length:1000 ft with *RG59/RG6 for video and

CAT5 for power (1 pair) and entry phone audio (1 pair). 150 ft with

CAT5E for video, power and entry phone audio (longer video runs

are possible by using video balun transceivers, see Installation

section F, page 6).

Specifications

PROXIMITY CARD SPECIFICATIONS

Power: 5 to 14V DC @ 60mA maximum

Maximum Cable Length: 500 ft 24 Awg stranded shielded (Belden

9537)

Frequency: 125KHz

Format: 26 bit Wiegand

Read Range: 1.25” to 2.0”

Technologies Supported: Viking PRX-C, PRX-C-ISO, PRX-FOB,

certain legacy HID® proximity protocols** and certain AWID 125Khz

proximity protocols***

Transducer: Beeps during card read

LED: Red, turns off during card read

Humidity: Up to 100% (fully potted EWP)

Operating Temperature: -34° C to 65° C (-30° F to 150° F)

* Note: RG59 or RG6 with solid center conductor and 95% bare

copper braid shield.

** HID and the HID logo are registered trademarks of HID Global

Corporation, an ASSA ABLOY company. All other trademarks are

the property of their respective owners.

*** AWID is a trademark of Applied Wireless Identification Group.

ENTRY PHONE SPECIFICATIONS

Power: Telephone line powered 20V DC/20mA minimum

Dimensions: Overall: 140mm x 165mm x 66mm (5.5” x 6.5” x 2.6”),

Rough-in box: 114mm x 140mm x 64mm (4.5” x 5.5” x 2.5”)

Shipping Weight: 1.6 kg (3.5 lbs)

Environmental: -29°C to 54°C (-20°F to 130°F)

Humidity - K-1775-3: 5% to 95% non-condensing

Humidity - K-1775-3-EWP: Up to 100% condensing

Speaker Volume: Approximately 70 db maximum @1m

Connections: Gel-filled tip and ring connectors

CPC Disconnect Time: 500ms minimum

REN #: 0.5 A

80° Lens FOV

Rotate

Left 30°

Rotate

Right 30°

Camera Lens

Diagram A

Camera Horizontal Field of View:

Optional Instruction Label

(included): Clean surface

and adhere label when using

a K-1705-3 with a K-1900-3

Apartment Entry Dialer.

(4) 6-32 X 3/4” Stainless

steel, flat head, T-10 Torx

security screws (included)

(1) .74”

diameter

Rear View of the Optional

VE-6x7 Surface Mount Box

3.0”

3.3”

3.0”

2.25”

Condensation

Drain Hole

5.64”

6.72”

3.25”

(2) 0.2 x 0.43 slots

Optional VE-6x7

Surface Mount Box

(not included)

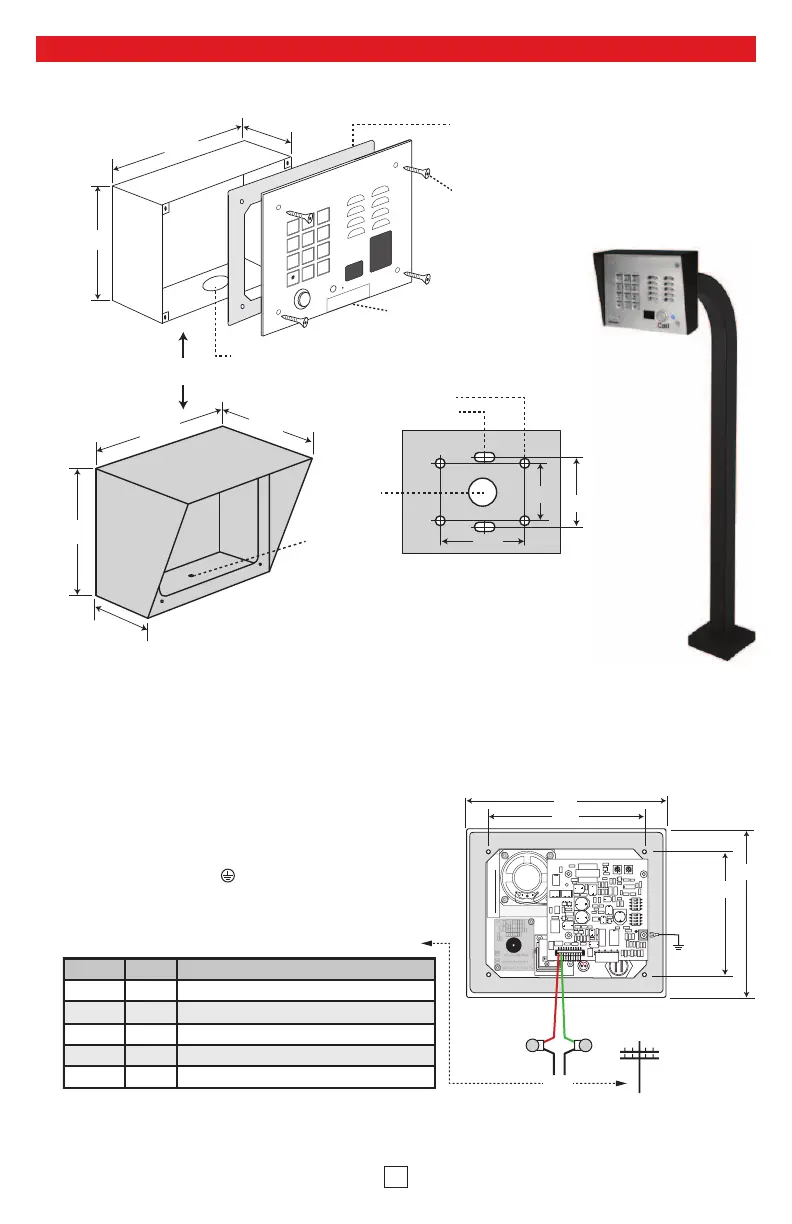

The optional VE-6x7 Surface Mount Box (above) is designed

to be surface mounted to a single gang box, double gang box,

or VE-GNP Gooseneck Pedestal (shown right). For more

information on the VE-6x7 and VE-GNP, see DOD 424.

Peel paper liner and adhere gasket to back of

panel, centering over mounting holes.

Caution: For rough surfaces (ie: brick, stucco,

etc.) additional caulking may be required.

(4) 0.38” diameter

K-1705-3-EWP

shown with VE-6x7

Surface Mount Box

and VE-GNP

Gooseneck

Pedestal

(not included)

4.5”

2.5”

5.5”

ess "C

ll"

tto

ten

t co

3/4” Conduit

Knockouts

Rough-In

Box

(included)

Installation

A. Mounting

VIKING

Model:

XXXXXX

Serial No: XXXXXXXX

Viking Electronics, Inc. (715) 386-8861

1531 Industrial St., Hudson, WI 54016

P/N: DEV:

RoHS

5.5”

4.04”

6.5”

5.12”

* C.O. Line or Analog

PABX/KSU Station

Spade

Terminal

(included)

*** Earth

Ground

(optional)

Red

(Ring)

Green

(Tip)

Rear View of

the K-1775-3

B. Wiring the K-1775-3

** Note: The gel-filled (water-tight) butt connectors are designed for insulation displacement on 19-26 gauge wire with a maximum

insulation of 0.082 inches. Cut off stripped wire ends prior to terminating.

*** Note: To increase surge protection, loosen the PCB

mounting screw labeled (shown right) and fasten a wire

with spade terminal (included) from the mounting screw to

Earth Ground (grounding rod, water pipe, etc.)

* Note: When installing a line powered phone on a low

voltage and/or low loop current phone system extension, a

TBB-1B Talk Battery Booster may be required (DOD# 632).

Model DOD# Description

C-500 177 Advanced 2 Door Controller

C-2000B 156 Advanced 4 Door/Gate Entry Phone Controller

C-3000 162 Multi-Tenant Entry System

C-4000 164 Apartment/Office Entry Controller

K-1900-3 312 Apartment Entry Dialer

To Optional Viking Entry Controllers (not included)

Produkspesifikasjoner

Merke:	Viking
Kategori:	sikkerhetstilgang-kontrollsystem
Modell:	K-1775-3-EWP
Innebygd skjerm:	Nei
Vekt:	1600 g
Bredde:	165 mm
Dybde:	66 mm
Høyde:	140 mm
Støynivå:	70 dB
Plassering:	Vegg
Tilkoblingsteknologi:	Koblet med ledninger (ikke trådløs)
Pakkevekt:	1600 g
Antall høyttalere:	1
Sertifisering:	FCC Part 68\nFCC Part 15
Antall knapper:	1
Frontkamera:	Ja
Strømforbruk:	20 mA
Integrert tastatur:	Ja
Autentiseringstype:	Access chip/card, Password
Produktfarge:	Rustfritt stål
Driftstemperatur (T-T):	-29 - 54 °C
Modell/Type:	Smart adgangskontroll-leser
Kroppsmateriale:	Rustfritt stål
Internasjonal beskyttelses (IP)-kode:	IP67
Relativ luftfuktighet under drift (H-H):	5 - 95
Enkel installering:	Ja
Antall taster på tastatur:	12
Tilgangskode leser:	Ja
Chip/kortleser, adgang:	Ja
