Dishwasher
Door Panel Kit
3

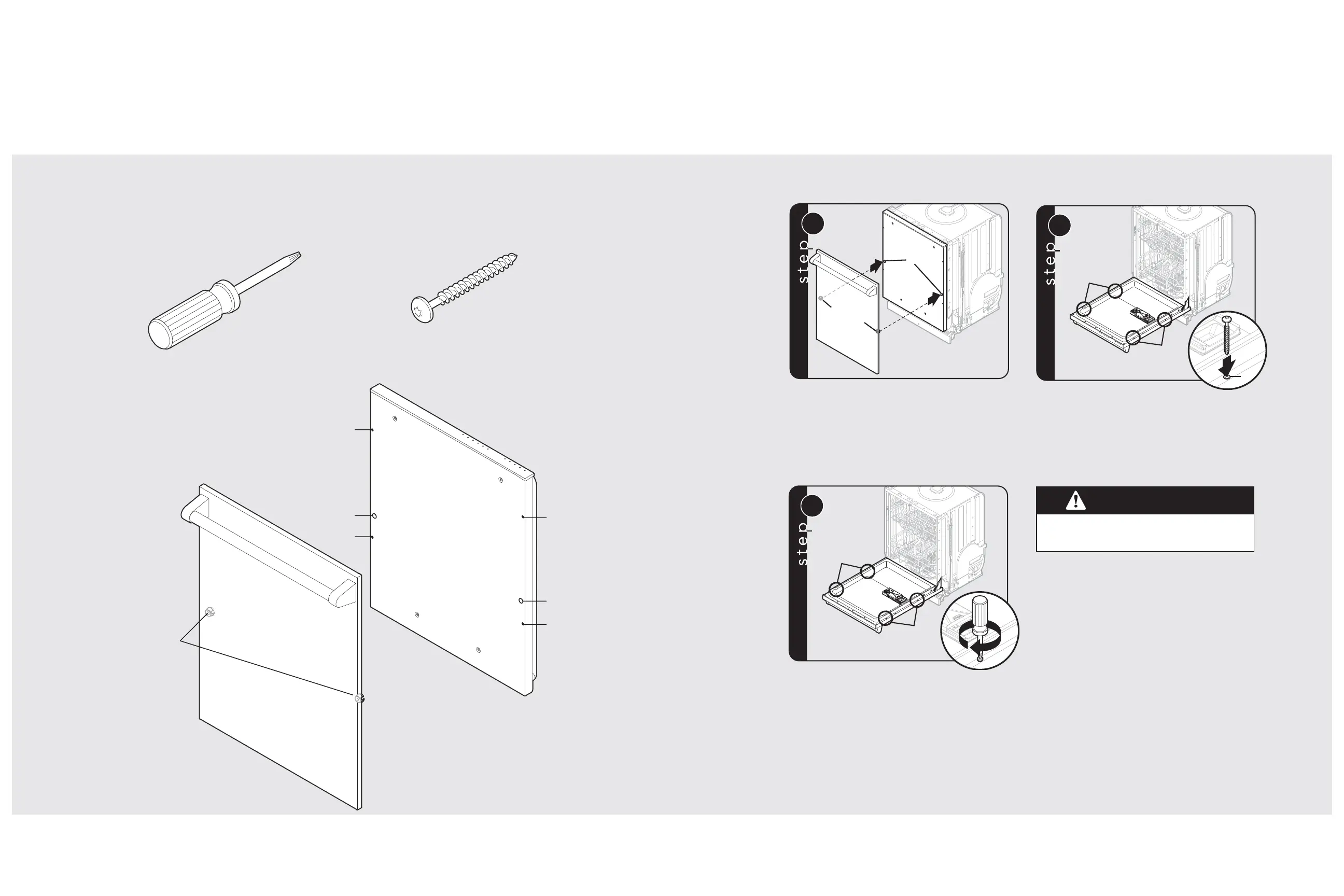

Door Panel Installation (Purchased Separately)
For FDW100 / FDW100WS Models
2
Installation
Plastic
Retainers
C
Dishwasher Door
D
C
D
1
Plastic
Retainers
2
3
x2
D
D
D
C
C
Phillips Head
Screwdriver
#8 1-3/4” long, Stainless Steel
Phillips Head Screw
(4 su
pp
lied)
Remove plastic retainers from door panel
and discard.
Remove plastic mounting brackets from the
dishwasher and discard.
Carefully open the dishwasher door.
Remove the (2) white caps from holes (C)
and the (2) top screws from holes (D) on
dishwasher door
4
x4
D
D
Carefully secure the door panel to the
dishwasher through holes (C) and (D) using
the four flat PHD screws provided. Carefully
tighten all four screws and check to ensure
that the panel is square with the dishwasher
door.
Do not over tighten screws.
This
may cause damage to the inner door.
The unit comes with everything needed to make installing the door panel easy.
What you will need:
Note: Verify the operation of the door
counterbalance springs after installation of the
door skin.
Note: Verify that the door does not hit the
kickplate. Adjust kickplate if necessary.
5
Installation
1
C
Plastic
Retainers
2
x4
D
D
D
WARNING
The door skin must not obstruct the
fan exhaust vent.
Position door skin on front of dishwasher
door. Snap the plastic retainers on the door
skin into the holes (C) on dishwasher door.
While holding the door skin in position,
carefully open the dishwasher door. Using
the four truss head screws provided, secure
the door skin to the four holes (D) on the
dishwasher door.
3
x4
D
D
Carefully tighten all four screws and check
to ensure that the panel is square with the
dishwasher door.
Note: Verify the operation
of the door counterbalance springs after
installation of the door skin.
Door Panel Installation (Purchased Separately)
For FDB451 Model
4
C
Plastic
Retainers
Dishwasher Door
D
D
C
D
D
Torx Driver
#8 1-3/4” long, Stainless Steel
Truss Head Screw
(4 su
pp
lied)
The unit comes with everything needed to make installing the door panel easy.
What you will need:
