VE-9x12 Series
Outdoor Enclosures
December 7, 2022
SECURITY & COMMUNICATION
VIKING
Add Protection to Your Viking Emergency Phone,
Entry Phone, Doorbox or Other Product
The VE-9x12 series of outdoor enclosures provide the
ultimate in weather protection for your Viking product
or other device. The VE-9x12 enclosures are
constructed of durable UV stable polycarbonate / ABS
composite to provide years of outdoor service. The
heavy-duty doors are labeled “Telephone” and have a
gasket seal to keep out even the harshest weather. The
VE-9x12 allows you to choose from three panels that
allow mounting many different Viking products.

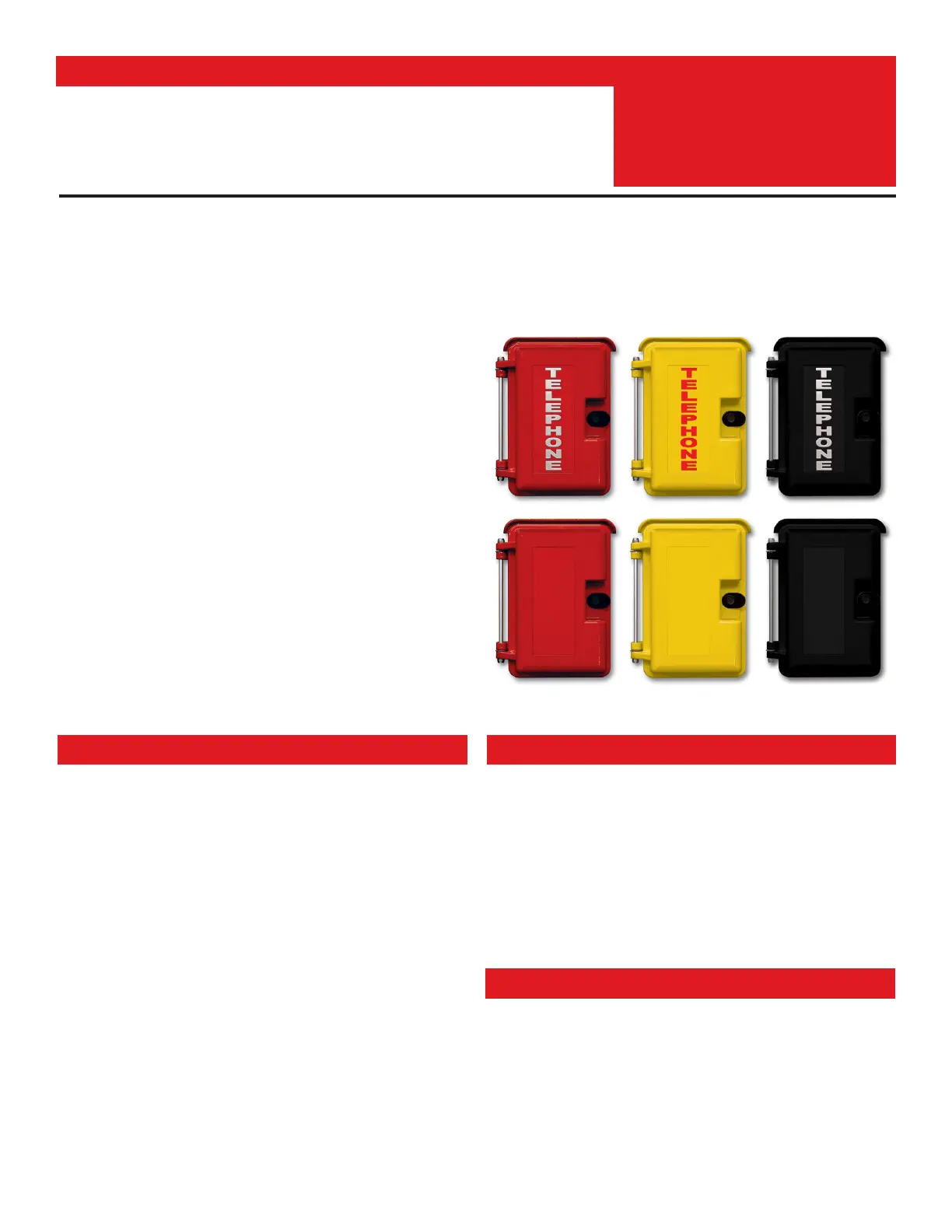

The VE-9x12 enclosures are available in three high
visibility colors: red with silver lettering, yellow with red
lettering, or black with silver lettering.
Models VE-9x12(R/Y/B)-0P come without an adapter
panel, ideal for mounting non-Viking equipment. These
enclosures are available in all three colors and include
a separate “Telephone” label.
VE-9x12Y-0PVE-9x12R-0P VE-9x12B-0P
• Designed to meet NEMA/EEMAC Type 4/4X/12
requirements
• Constructed of heavy-duty UV stable polycarbonate /
ABS composite with flame-retardant UL 94 V-0 rating
• Drip guard and gasket sealed door
• 0.020” thick stamped aluminum “Telephone” label with
scratch resistant UV stable clear coat
All models are available in Red, Yellow, or Black
• Three internal adapter panel options, see page 3
• Models available without internal adapter panel for
mounting other (non-Viking) products and include a
separate “Telephone” label
• Mounting holes for standard RJ11 wall plate available,
see Installation section B on page 4
• Optional VE-SPG door return hinge spring available
• Optional VE-PBL push button lock and key set available
Dimensions: See Specifications on pages 2-3
Shipping Weight: See Specifications on pages 2-3
Compatible Viking Products: See pages 6-7
Material: Heavy-duty UV stable polycarbonate / ABS composite
Colors: Red with silver lettering, yellow with red lettering, or
black with silver lettering
Flame Retardancy: Meets UL 94 V-0 rating
NEMA Rating: Designed to meet NEMA/EEMAC Type 4, 4X and
12 requirements
Applications
• Parking lots
• Maintenance areas
• Building exteriors
• Gas stations
• Swimming pools
• Playgrounds
• Roadside help areas
2

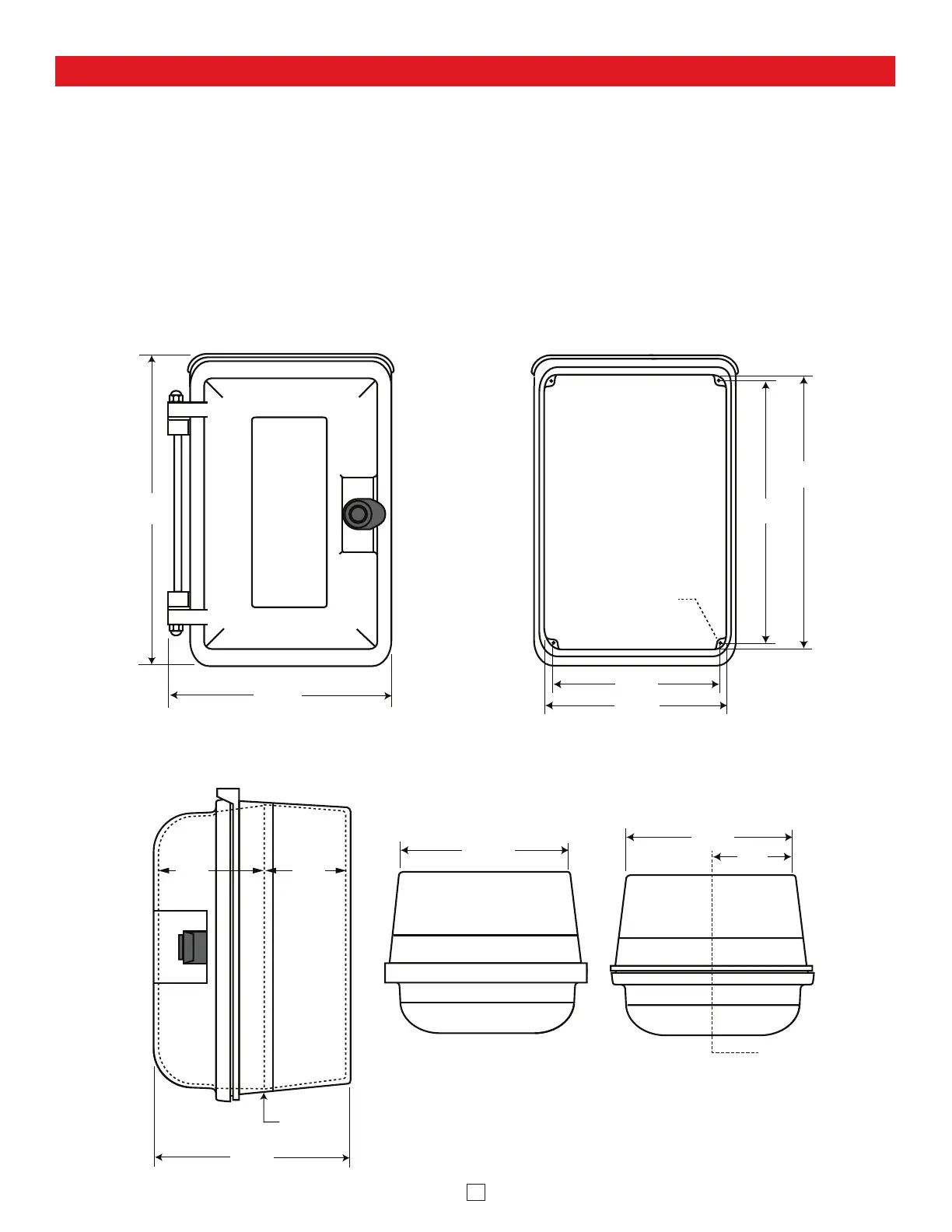

Specifications
9.375
12.6
E
E
E
P
H
N
O
T
L
6.50
7.08
10.725
11.23
(4) 8-32x0.5
Brass Inserts
2.754.14
7.45
Adapter
Panel
Location
7.20
7.20
3.6
Center Line
FRONT VIEW INSIDE VIEW
SIDE VIEW
TOP VIEW
BOTTOM VIEW
A. Enclosure
Material: Heavy-duty UV stable polycarbonate / ABS composite
Enclosure Shipping Weight (no adapter panel): 6.6 lbs (2.99 kg)
Mounting: Mounting holes can be drilled where needed in the back of the enclosure
*Conduit Openings: Conduit holes can be drilled where needed in the bottom of the enclosure
* CAUTION: When warm air comes in contact with cold surfaces, such as outside walls and conduits, it causes condensation. To prevent
condensation and moisture from accumulating inside the VE-9x12 enclosure, always bring conduit into the bottom of the enclosure.
3
6.23
0.08
7.08
0.29
10.725
3.54
3.25
2.30
2.250
0.25
4.75
4.50
11.239.50
9.00
4.50
4.60
(4) 6-32
Clinch
Nuts
0.203
Diameter
4 Places

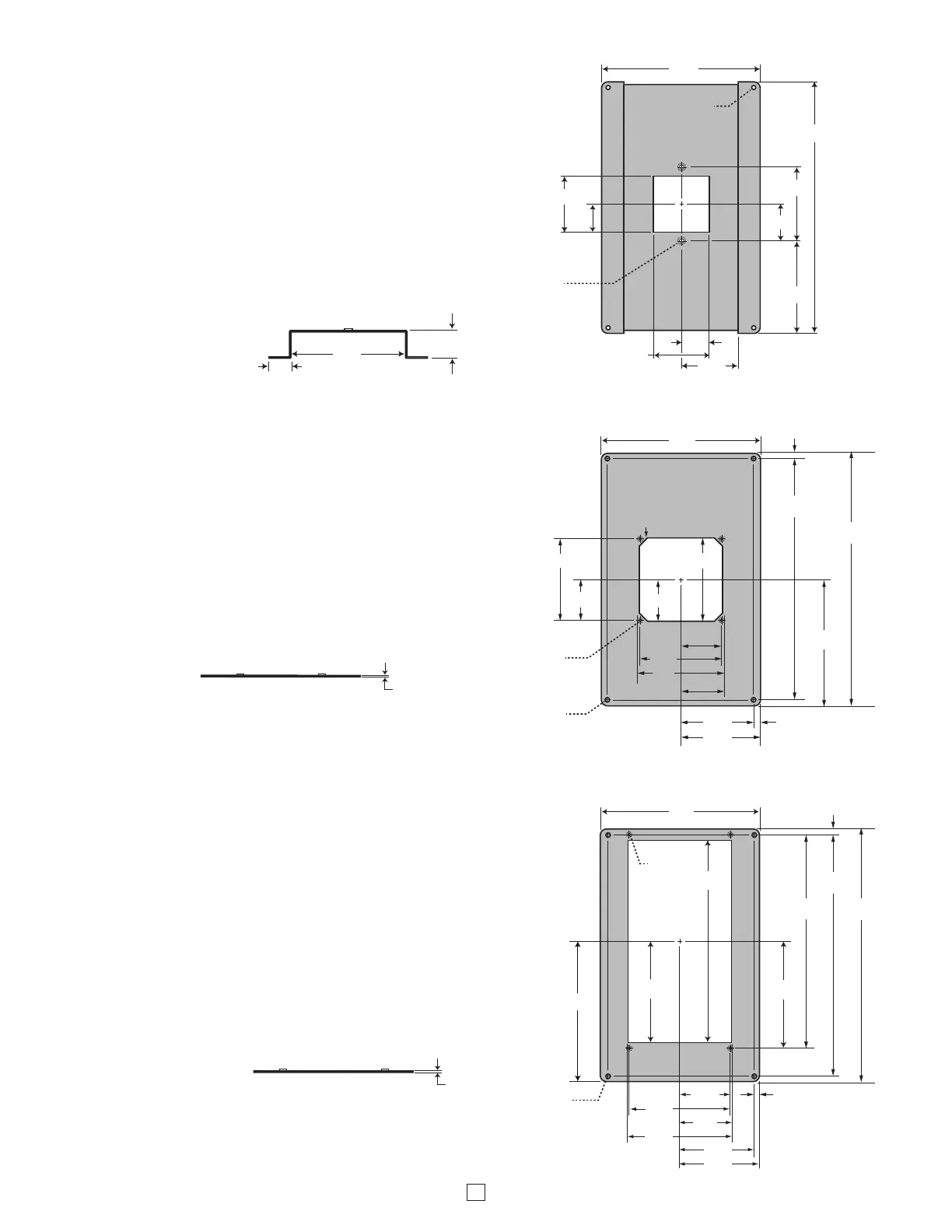

3. Adapter Panel 3
Material: 14 gauge aluminum
Finish: Black powder paint
Adapter Panel 3 Dimensions: 7.08”W x 11.23”H x 0.08”D
Adapter Panel 3 Shipping Weight: 0.3 lbs
VE-9x12(R/Y/B)-3P Shipping Weight: 6.9 lbs
Minimum Internal Clearance: 5.75”W x 10.0”H x 4.0”D
Adapter Panel 3 is also available for purchase separately, see
model VE-9X12MK-3 on page 8.
2. Adapter Panel 2
Material: 12 gauge aluminum
Finish: Black powder paint
Adapter Panel 2 Dimensions: 7.08”W x 11.23”H x 0.08”D
Adapter Panel 2 Shipping Weight: 0.5 lbs
VE-9x12(R/Y/B)-2P Shipping Weight: 7.1 lbs
Minimum Internal Clearance: 5.75”W x 10.0”H x 4.0”D
Adapter Panel 2 is also available for purchase separately, see
model VE-9X12MK-2 on page 8.
7.08
0.29
1.810
3.625
5.615
0.36 Typ.
3.25
3.625
3.54
3.70
1.81
0.36
(4) 6-32
Clinch Nuts
0.08
0.203
Diameter
4 Places
1.85
10.725
0.25
11.23
1.85
3.70
7.08
5.48
11.23
3.30
2.50
4.40
1.65
1.25
1.25
2.74
2.50
1.25
0.80
Typ.
(2) 8-32
Clinch Nuts
0.203
Diameter
4 Places
1. Adapter Panel 1
Material: 12 gauge aluminum
Finish: Black powder paint
Adapter Panel 1 Dimensions: 7.08”W x 11.23”H x 1.25”D
Adapter Panel 1 Shipping Weight: 0.8 lbs
VE-9x12(R/Y/B)-1P Shipping Weight: 7.4 lbs
Minimum Internal Clearance: 5.75”W x 10.0”H x 5.25”D
Adapter Panel 1 is also available for purchase separately, see
model VE-9X12MK-1 on page 8.
TOP VIEW
FRONT
VIEW
B. Adapter Panels
TOP VIEW
FRONT
VIEW
TOP VIEW
FRONT
VIEW
