Viale Vicenza, 14 - 36063 Marostica VI Italy
Tel. +39 0424 488 600 - Fax (Italia) +39 0424 488 188 - Fax (Export) +39 0424 488 709
www.vimar.com

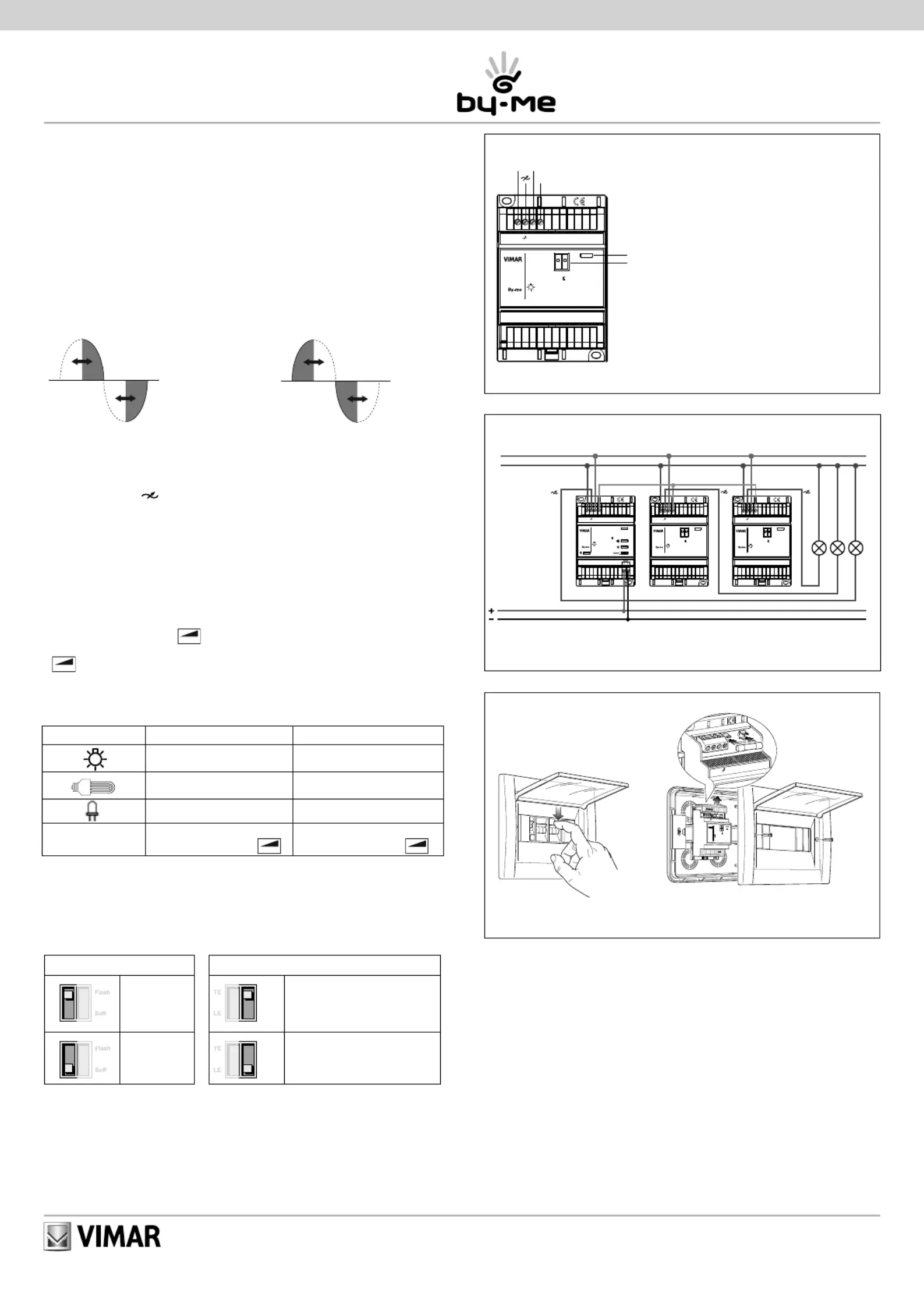

SLAVE dimmer 120 V~ 60 Hz for incandescent lamps 40-500 W electronic
transformers 40-300 VA, CFL lamps 10-200 W, LED lamps 3-200 W, control from
universal MASTER dimmer with load adapter, protection fuse, installation on
DIN rails (60715 TH35), occupies 4 modules size 17.5 mm. For nautical scope.
MOSFET+TRIAC microprocessor technology, works in both LE (Leading Edge) and TE (Trailing
Edge) modes, equipped with protection fuse, can be installed on DIN rails (60715 TH35). It does
not require connecting to the busbar, but the sync signal from a MASTER dimmer for DIN rails
01985.120. No buzzing whatsoever.
IMPORTANT: Lamps controllable from a single master or slave dimmer must all be the same.
All controllable loads must be declared DIMMERABLE by the manufacturer. Check the type
of compatible dimmering on the lamp package: LE (Leading Edge) or TE (Trailing Edge). If it is
not specified, the lamp can operate in both modes (chosen at the discretion of the installer).
CHARACTERISTICS.
• Ratedsupplyvoltagemains:120V~,60Hz
• Dissipatedpower:7.4W
• Terminals:N neutral,
load, phase, synchronizationL S
• ProtectionfusetypeF5AH250V
• SLAVEdimmersneedasynchronismsignaltofunction
• Softstart: ensuresgradual lightingfrom zeroto maximumorpresetlighting levels.Thisway
the life of a lamp is increased by reducing stress on the filament and prevents light flash.
• Flashstart: used with compact fluorescent lamps, ensuresthat the lamps areswitched on
correctly, reducing any difficulties to a minimum.
• Softend:slowlybringstheloaddownfromontooff.
• Lightinglevelissavedwhenturnedoff(unlessthereisablackout);
• LeadingEdge mode: usedwith incandescent lamps,compact fluorescentlampsand LED
compatible lamps, as well as
L
type electronic transformers.
• TrailingEdge mode: usedwithcompatible loadssuchas fluorescent lamps,LEDlamps or
C
type electronic transformers.
• Protectionagainstshort-circuitingwhenturningonwithflashingblow-outindicator.
• Thermalprotectionwithflashingblow-outindicator.
• InstallationonDIN rails (60715 TH35) , occupies 4 modules of 17.5 mm.
CONFIGURATION.
WARNING: When connecting MASTER-SLAVE, the SLAVE must be configured (using the
dip-switches) in the same operating mode as the MASTER.
The dimmer 01986.120 can be configured by the two dip switches which are accessible from
the
front:
INSTALLATION RULES.
Installation should be carried out in compliance with the current regulations regarding the instal-
lation of electrical systems in the country where the products are installed.
• It
shouldbeusedinplacesatatemperatureofbetween-5°Cand+45°C.
• Thelampsconnectedtothemasterorslavemustallbethesame.
• Notsuitableforcontrollingmotors(e.g.fans,ventilators).
•
Theratedpowerlevelshouldneverbeexceeded.
Controllable loads LE TE
40 to 500 W 40 to 300 W
10 to 100 W 10 to 200 W (Max 5 lamps) (Max 10 lamps)
3 to 100 W 3 to 200 W (Max 5 lamps) (Max 10 lamps)
Electronic transformers
for halogen lamps
40 to 300 W
(Max 3 transformers type
L
)
40 to 300 W
(Max 5 transformers type
C
)
Dimmering with Leading Edge mode
Dimmering with Trailing Edge mode
• Overloading, power surges and short-circuits may irreparably damage dimmers. Before
installation check the circuit carefully and eliminate any of the above causes.
• The dimmer does not have a mechanical circuitbreaker in the main circuit and so is not
galvanically separated. The circuit load should be considered always powered.
For further instructions see the manual enclosed with the control panel.
CONFORMITY TO STANDARDS.
For MARINE use,thisdevicehasbeensubmittedtothefollowingtests:
IEC60068-2-52-TestKb:Saltmist,cyclic(sodium,chloridesolution),
IEC60068-2-6-TestFc:Vibration(sinusoidal)
This device complies with part 15 of the FCCRules(withthelimitsforaClassBdigitaldevice).
Operation is subject to the following two conditions: (1) This device may not cause harmful
interference, and (2) this device must accept any interference received, including interference
that may cause undesidered operation.
FRONT VIEW
CONNECTIONS
MaximumlengthofcablesconnectinguniversalMASTERdimmeranduniversalSLAVEdimmer:100m
Connect at least the minimum load required to the universal master dimmer.
A:IndicatorLED
B:Dipswitch
CHANGING FUSE
OFF
1.
Setting
onto TE
Setting
onto LE
Setting onto Flash
instant lighting on maximum
brightness and then it adjusts
linearly to the set brightness
Setting onto Soft
gradual lighting up to the set
brightness
TE
LE
TE
LE
Flash
Soft
Flash
Soft
A
LN
S
N L S
TE Flash
Soft
LE
01986.120
SLAVE
DIMMER
40-500W LE
40-300W TE
120 V~ 60 Hz
B
NLS
NLS
01986.120
SLAVE
TE Flash
Soft
LE
DIMMER
120V~
60Hz
40-500W LE
40-300W TE
By-me
NLS
2.
01986.120
01986.12001985.120 01986.120
N L S
TE Flash
Soft
LE
01986.120
SLAVE
DIMMER
40-500W LE
40-300W TE
120 V~ 60 Hz
N L S
TE Flash
Soft
LE
01986.120
SLAVE
DIMMER
40-500W LE
40-300W TE
120 V~ 60 Hz
N L S
01985.120
MASTER DIMMER
120 V~ 60 Hz
40-500W LE
40-300W TE
L
N
Bus
MASTER SLAVE SLAVE
49400503A0 01 1309
VIMAR - Marostica - Italy
