Instruction manual
40510
7” Due Fili Plus porter switchboard
2
7” Due Fili Plus porter switchboard
EN
GENERAL INFORMATION

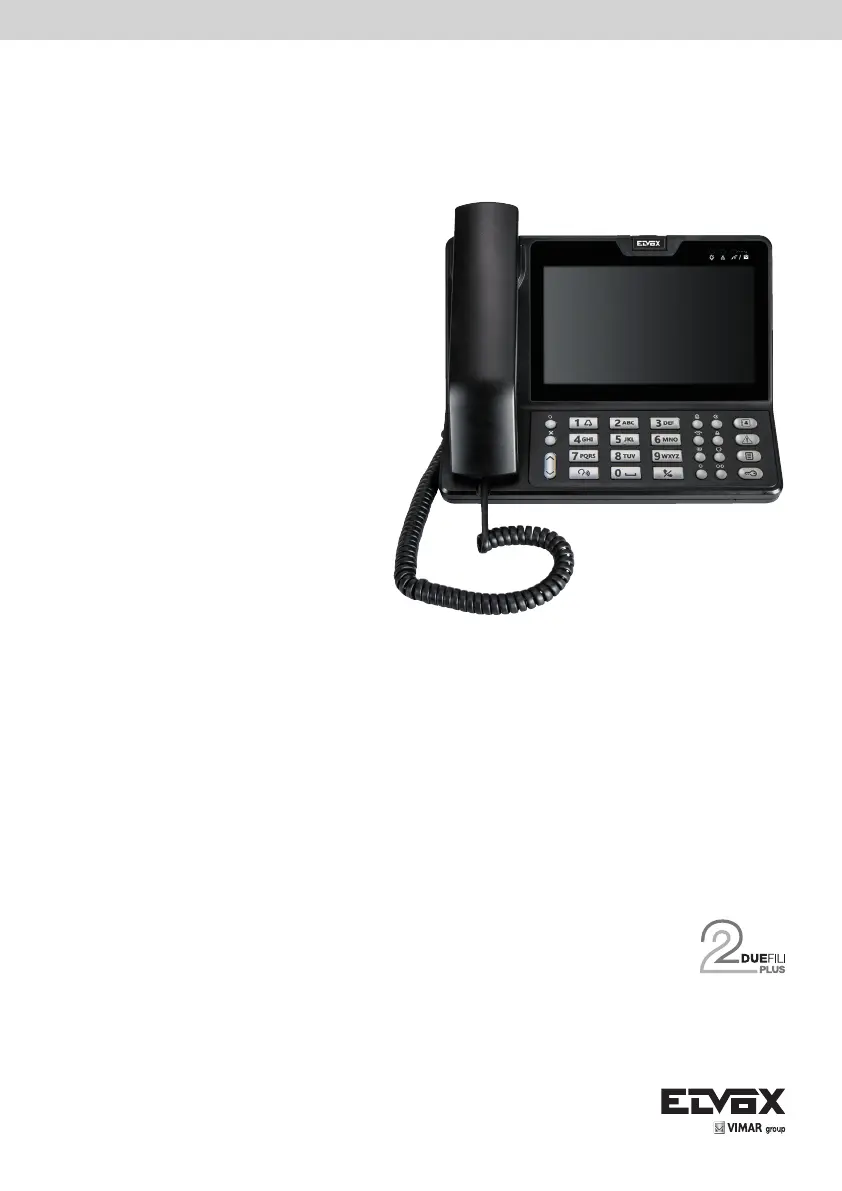

Device 40510 is a switchboard for the DueFili Plus video door entry system, equipped with a 7-inch colour screen. It can
be used in hands-free mode or with a handset.
The instruction manual can be downloaded from www.vimar.com
Installation rules
Installation should be carried out in compliance with the current regulations regarding the installation of electrical equipment
in the country where the products are installed.
Regulatory Compliance
EMC directive
Standards EN 60065, EN 61000-6-1 and EN 61000-6-3.
INFORMATION FOR USERS UNDER DIRECTIVE 2002/96 (WEEE)
In order to avoid damage to the environment and human health as well as any administrative sanctions, any appli-
ance marked with this symbol must be disposed of separately from municipal waste, that is it must be reconsigned
to the dealer upon purchase of a new one. Appliances marked with the crossed out wheelie bin symbol must be collected
in accordance with the instructions issued by the local authorities responsible for waste disposal. For more information call
the free-phone number 800-862307.
This product was developed using FreeRTOS
TM
software - http://www.freertos.org/
3
VIMAR group
7” Due Fili Plus porter switchboard
EN
Main functions
The switchboard offers the following functions:
1. making and receiving audio calls with the indoor units;
2. receiving audio/video calls from the speech units;
3. implementing automatic self-starts from the speech units;
4. forwarding speech unit calls to indoor units;
5. calling another switchboard;
6. managing warnings from indoor units;
7. managing speech unit locks, stair lights and system relays;
8. activating CCTV cameras for monitoring purposes;
9. logging calls, warnings and activations.
Advanced functions
1. management of Competence Areas
2. management of operation time bands (Day/Night)
3. interception / non-interception of calls (Indoor/Outdoor mode)
The following languages are supported:
1. Italian
2. English
3. French
4. German
5. Spanish
6. Greek
7. Portuguese
Technical characteristics
Technical data:
• Supply voltage: 28VDC nominal
Power supply via power supply unit 6923 (not supplied)
• Maximum absorption: 300 mA
• Absorption in standby: 86 mA
• 7-inch colour display, 800x480 pixel resolution, 16:9 format
• Ambient class: Class A1 (indoor use)
• Protection degree IP30
• Operating temperature: -5°C to +40°C (indoor use)
• Operating ambient humidity 10 - 80% (non-condensing)
• Electronic chimes with different tunes (10 melodies).
• Dimensions: 242x213x221 mm (WxHxD with support open)
• DIP switch for line impedance termination.
