1. Install the switch in a ventilated and dry place that is free of electromagnetic source, vibration, moisture, and dust.

2. Make sure the ventilation openings on the switch are not blocked.

3. DC input (24V~56VDC). Follow the printed polarity for V+, V-, and Ground.

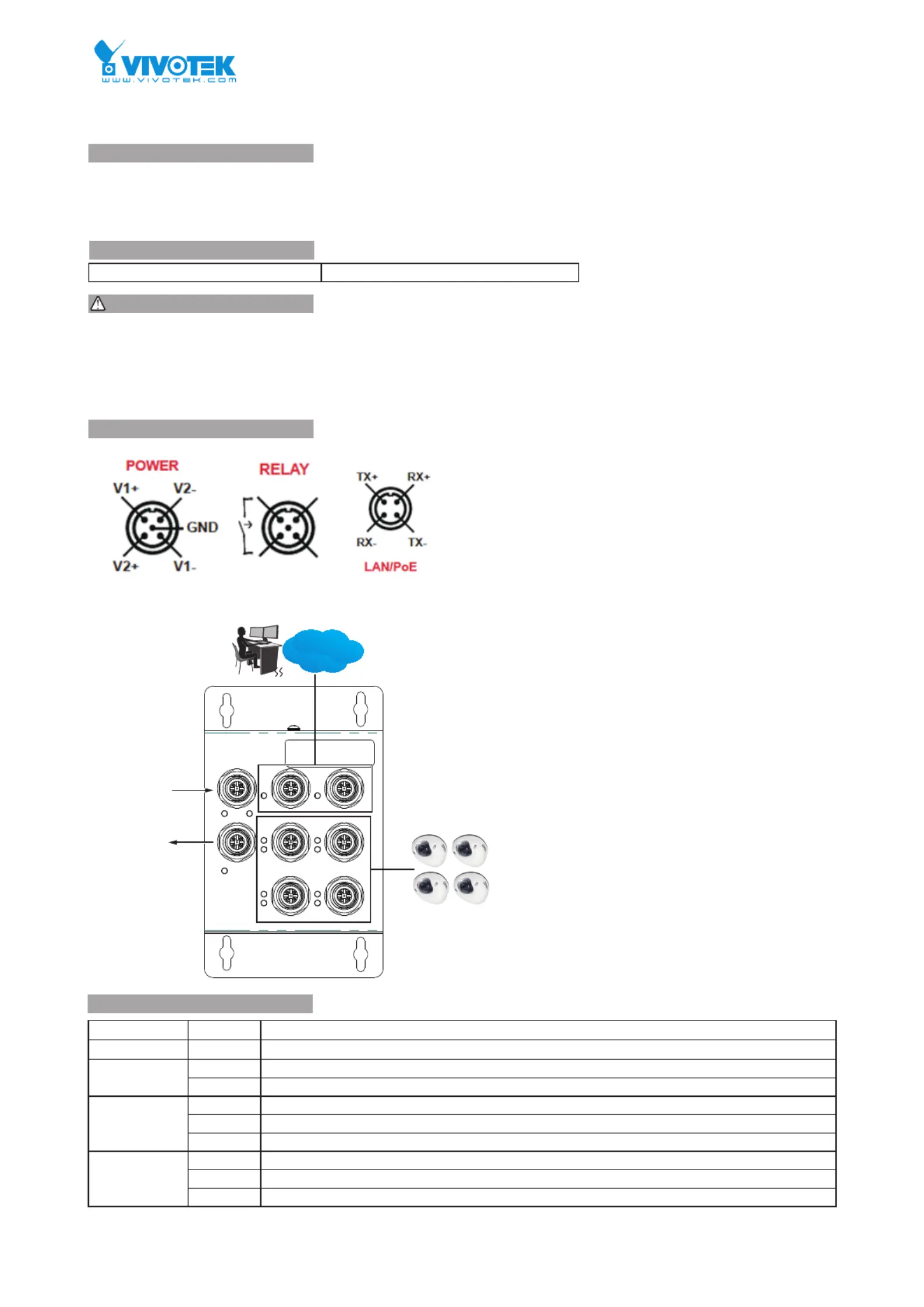

AW-IHT-0602 Industrial EN50155 M12 PoE Switch

Quick Installation Guide

The AW-IHT-0602 is a rugged M12 PoE switch designed for delivering a max. of 30 watts to powered devices. The uplink

port can be used to extend the connection to a remote site. With ruggedized and M12 connection design, it is t for IP

surveillance in transportation applications in critical environments. The machine features a total budget of 126 watts and

a wide range of operating temperatures ranging from -40°C to 75°C.

IMPORTANT:

INTRODUCTION

CONNECTION

* 1x PoE switch * 1x Quick Installation Guide

PACKAGE CONTENTS

WARNING - Always ground the power source to maintain a clean power input.

LAN/WAN

VDC 24~56

Alarm output

PW1 ON When V1+ and V1- are connected.

PW2 ON When V2+ and V2- are connected.

PW-FAIL

(Relay LED)

ON Either PW1 or PW2 is conncted.

OFF Both PW1 or PW2 are connected.

LAN

(Data LED)

ON Link port is detected.

OFF Link port is not detected.

Flashing Data is being transmitted or received.

PoE LED

- Green

ON PD is detected.

OFF PD is not detected.

Flashing Port is active, or current is over-loading.

LED DEFINITIONS

Produkspesifikasjoner

Merke:	Vivotek
Kategori:	Bryter
Modell:	AW-IHT-0602
Vekt:	850 g
Bredde:	163 mm
Dybde:	100 mm
Høyde:	56.2 mm
LED-indikatorer:	LAN, PoE, Power
Sertifisering:	CE, C-Tick, FCC, VCCI, LVD
Nettverksstandard:	IEEE 802.3, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x
Auto MDI/MDI-X:	Ja
Bufferstørrelse:	128 KB
Produktfarge:	Sort
Strømforbruk (vanlig bruk):	126 W
Driftstemperatur (T-T):	-40 - 75 °C
Oppbevaringstemperaturomåde (Celsius):	-40 - 85 °C
Lagringsrelativ fuktighet:	5 - 95
Kroppsmateriale:	Metall
Strømbeskyttelsesfunksjoner:	Over current, Short circuit
Kan monteres på vegg:	Ja
Internasjonal beskyttelses (IP)-kode:	IP40
Ethernet-kobberkabelteknologi:	10BASE-T, 100BASE-TX
Relativ luftfuktighet under drift (H-H):	5 - 95
Antall Basic switching RJ-45 Ethernet-ports:	6
Basic switching RJ-45 Ethernet ports-type:	Fast Ethernet (10/100)
Størrelse på adressetabell:	1000 oppføringer
Ruting/svitsjekapasitet:	1.2 Gbit/s
Strøm over Ethernet (PoE):	Ja
Power over Ethernet (PoE) effekt per port:	30 W
Power over Ethernet (PoE)-ports, antall:	4
DC inngående spenning:	24 - 56 V
Total Power over Ethernet (PoE)-budsjett:	120 W
Kabeltyper som støttes:	Cat3, Cat4, Cat5, Cat5e
Lagre-og-videresend:	Ja
Pakke videresending rate (100 Mbps):	148000 pps
Pakke videresending rate (10 Mbps):	14880 pps
