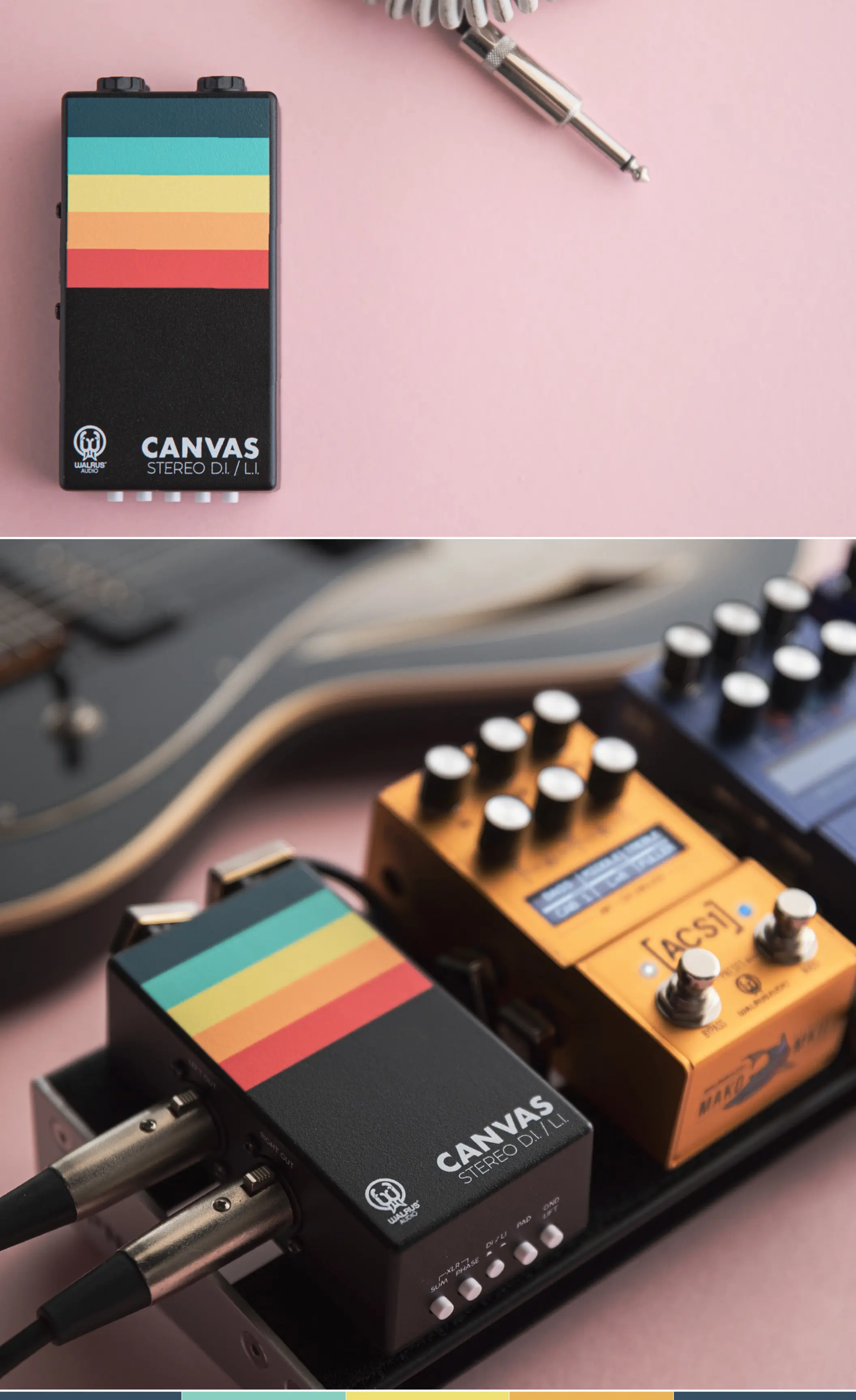

You are the artist. Your sound is the paint, and this is your canvas. After years of creating tone-
painting devices, Walrus Audio is releasing The Canvas Stereo Direct Box/Line Isolator. The Canvas
is designed to remove any resistance between you and your audience by giving a pristine, sonic
foundation upon which to build your dual-channel masterpiece. From houses of worship to the
dive bar downtown, use it to preserve audio fidelity, reduce unwanted noise or hum, and benefit
from convenient features such as phase flipping, pad attenuation, and mono-summing. Canvas
Use Canvas Stereo to connect your instrument to a variety of sources.
The following diagrams are a few examples of use cases.
Fun tip: The left & right jacks are independent and can also run two mono sources.

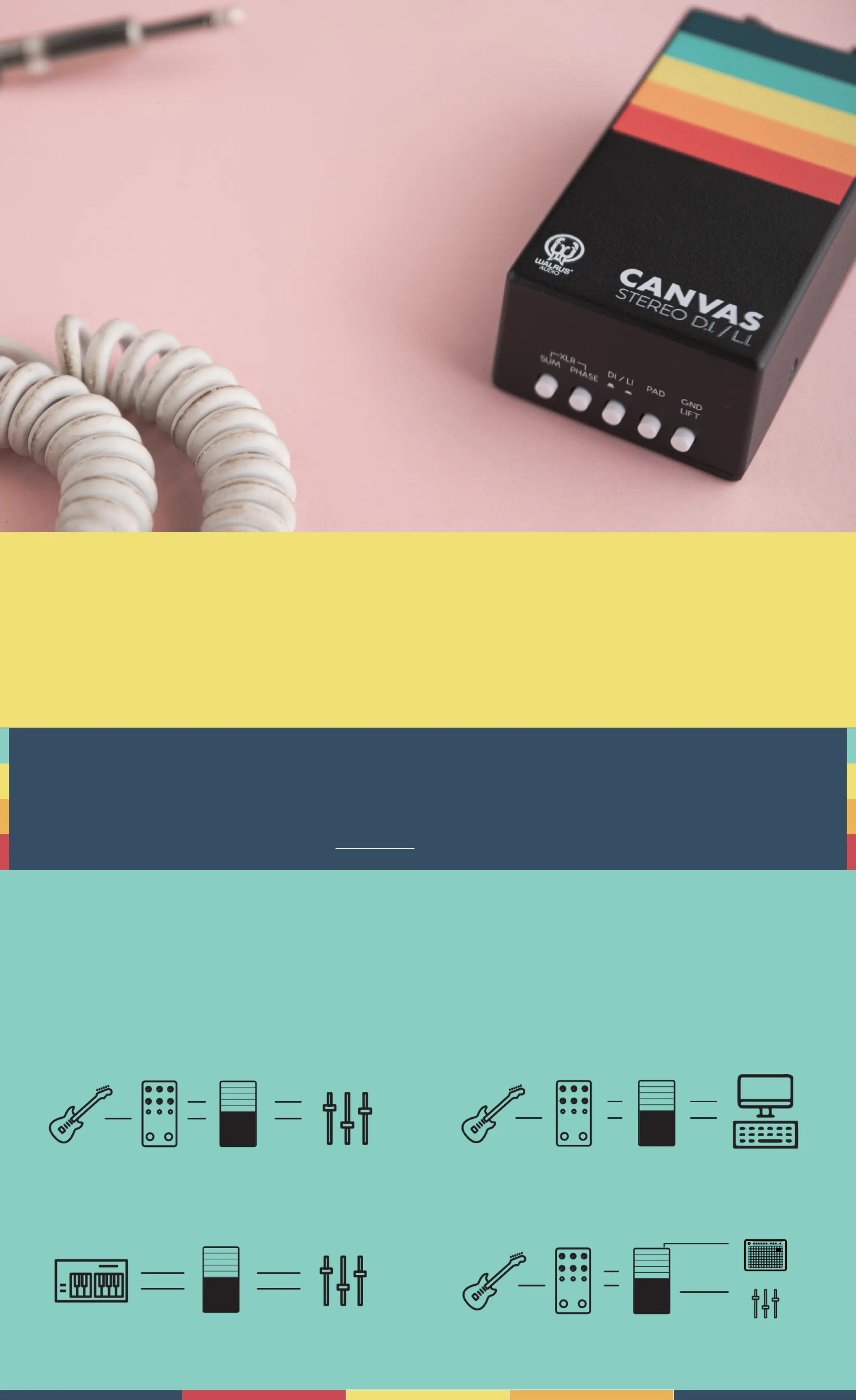

WHERE TO USE THE CANVAS D.I./L.I.
STEREO
DUAL LINE ISOLATOR & D.I.
CANVAS
AT THE VENUE
GUITAR CANVASDSP AMP FRONT OF HOUSE
VARIOUS INSTRUMENT RECORDING
KEYS/SYNTH CANVAS FRONT OF HOUSE
USE THE THRU FOR TWO DIFFERENT OUTPUTS
GUITAR CANVASDSP AMP FRONT OF HOUSE
AMP
XLR OUT
THRU OUT
AT THE STUDIO
GUITAR CANVASDSP AMP DAW
DI (DIRECT INJECTION) – Use DI mode when connecting an unbalanced, high
impedance source (Electric Guitar, Bass Guitar, etc). The signal will be reduced by -20dB
(-35dB with pad engaged) and converted to a balanced signal via the transformer
connected to the XLR output. Use the gain on your mixer or preamp to bring the signal
up to line level.
LI (LINE ISOLATOR) - Use LI mode when connecting your unbalanced, low-impedance
source (Amp + Cab Sim like the ACS1, keys, etc.). The signal will remain at full volume
and be converted to a balanced signal via the transformer connected to the XLR
output. Less preamp gain will be required in LI mode.
Note - When deciding between DI or LI, check
with the manufacturer of your gear to find the
output impedance of the device you’re wanting
to interface with. For a general guide:
High Impedance = anything above 1k = Use DI
Low Impedance = less than 1k = Use LI
If you lose high-frequency information when using
LI mode, then you should probably be in DI mode.
Both left and right channels are affected when
using the DI/LI switch.

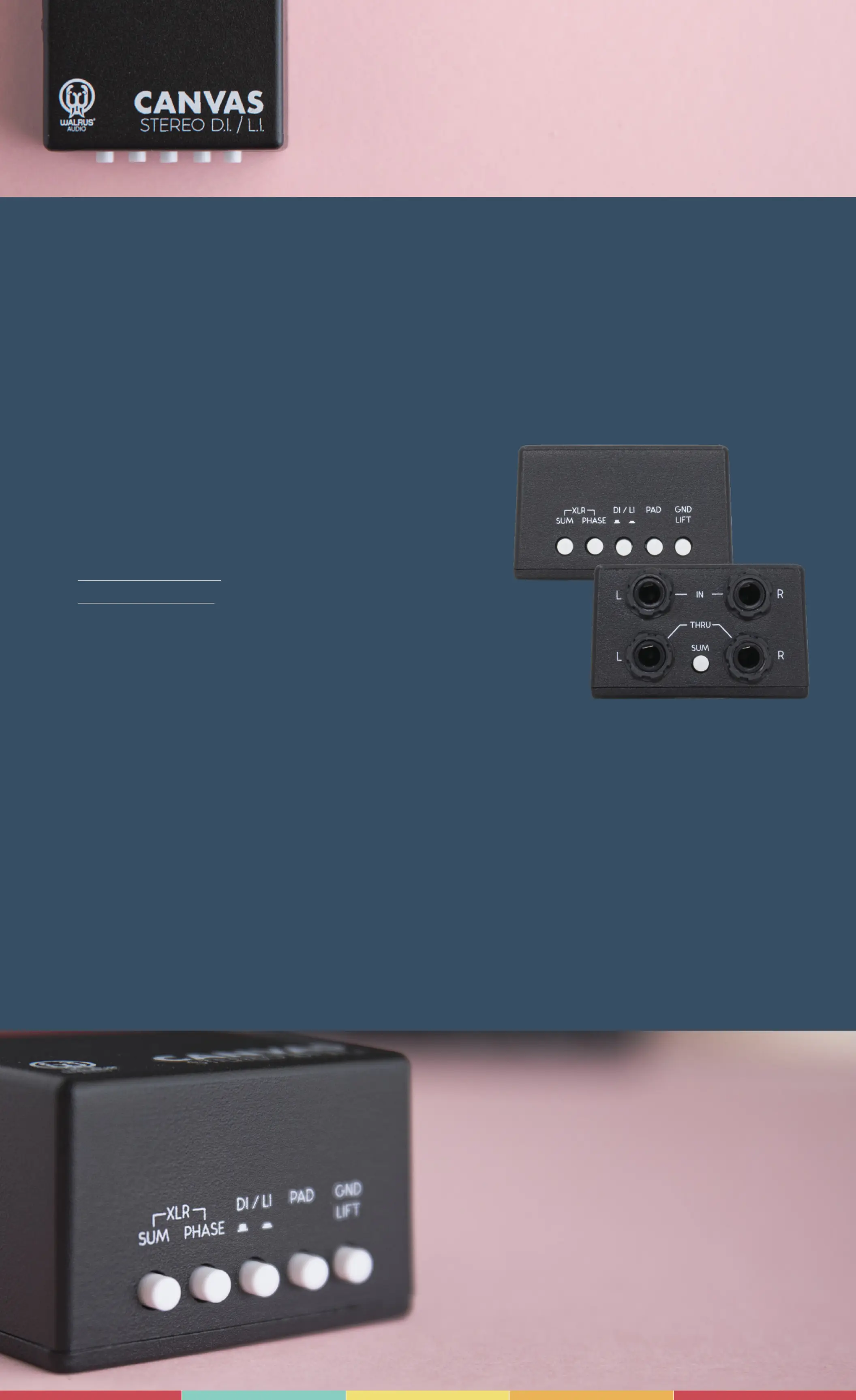

PAD – Enables a -15dB input pad when in D.I. mode to reduce hot signals in order to
minimize distortion.
GND LIFT – Isolates the GND pin on XLR to help reduce hum if present. Leave out for
normal operation.
1/4in THRU SUM – When disengaged (out), the left input connects to the left thru. The
right input connects to the right thru allowing the use of stereo amplifiers.
When engaged (in), Sum connects the left and right thru jacks together to combine the
signals for running into a single amplifier (use either thru jack).
THRU - The Thru jack is a pass through that can be plugged into a guitar amp or other
source.
CONTROLS
XLR SUM – Sums the Left and Right XLR
outputs together, combining them to form a
mono balanced signal if only one XLR input
is available at the mixer/interface. The Right
XLR out will be disabled, and the combined
signal will be on the Left XLR out.
XLR PHASE (RIGHT ONLY) - Flips the phase
of the Right XLR output relative to the Left,
fixing out-of-phase issues in stereo setups.
TECHNICAL INFO
Modes: Selectable Line Isolator or Direct Injection
Pad: -15dB attenuation (DI mode only)
Phase: Right output can be flipped via XLR Phase switch
Mono Summing: XLR Sum (balanced) or Thru Sum
(unbalanced)
Ground Lift: Eliminates hum from ground loops
Recommended Placement: End of a pedalboard, or after
any stereo or line-level device
Power Requirements: Passive operation (no external power
needed)
Size:
Height: 4.8” / 123mm
Width: 3.06” / 77.6mm
Depth: 1.65” / 41.9mm
