Side 1/8
Page๎˜ƒ1๎˜ƒof๎˜ƒ8๎˜ƒ
๎˜ƒ
ยฉCopyright 2015 WESCO Industrial Products, Inc. Specifications subject to change. Not responsible for errors or omissions.
๎˜ƒ
๎˜ƒ
๎˜ƒ
๎˜ƒ
๎˜ƒ
๎˜ƒ
๎˜ƒ
๎˜ƒ
๎˜ƒ
๎˜ƒ
๎˜ƒ
๎˜ƒ
๎˜ƒ
๎˜ƒ
๎˜ƒ
๎˜ƒ
TABLE OF CONTENTS
1 General Information ......................................................................................................... 2
1.1 Description.............................................................................................................. 2
1.2 Specifications.......................................................................................................... 2
2 Assembly & Adjustment..................................................................................................... 2
3 Troubleshooting................................................................................................................. 4
4 Fork Frame Information..................................................................................................... 5
4.1 Fork Frame Parts Diagram...................................................................................... 5
4.2 Fork Frame Parts List.............................................................................................. 6
5 Pump Assembly Information.............................................................................................. 7
5.1 Pump Assembly Parts Diagram............................................................................... 7
5.2 Pump Assembly Parts List....................................................................................... 8
๎˜ƒ
WESCO๎˜ƒINDUSTRIAL๎˜ƒPRODUCTS,๎˜ƒINC
๎˜ƒ
Instruction๎˜ƒManual
Manual๎˜ƒNonโ€Telescoping๎˜ƒHigh๎˜ƒLift๎˜ƒTruck๎˜ƒ
๎˜ƒ
Part๎˜ƒNumber: 272462๎˜ƒ&๎˜ƒ272463๎˜ƒ
๎˜ƒ
Note: Operator MUST read and understand these operating instructions before
using this Truck.
๎˜ƒ
Page๎˜ƒ2๎˜ƒof๎˜ƒ8๎˜ƒ
๎˜ƒ
ยฉCopyright 2015 WESCO Industrial Products, Inc. Specifications subject to change. Not responsible for errors or omissions.
๎˜ƒ
๎˜ƒ๎˜ƒ
๎˜ƒ
๎˜ƒ
๎˜ƒ
๎˜ƒ
๎˜ƒ
๎˜ƒ
๎˜ƒ
Manual Non-Telescoping High Lift Truck
(Part # 272462 & 272463)
Instruction Manual
ATTENTION: TO INSURE SAFE AND EASY USE OF YOUR WESCO HIGH LIFT
TRUCK, READ THESE INSTRUCTIONS ENTIRELY BEFORE USING.
1. GENERAL INFORMATION
1.1 DESCRIPTION
Thank you for purchasing a Wesco Manual Non-Telescoping High Lift Truck. This pallet truck is
designed for transporting and horizontal lifting. The manual high lift trucks feature a one year pump
warranty, a 180ยฐ steering arc and a loop handle with inner hand control.
1.2 SPECIFICATIONS
Model 272462 272463
Capacity 2,200 lbs 2,200 lbs
Weight 275 lbs 300 lbs
Fork Lowered Height 3.3โ€ 3.6โ€
Fork Raised Height 31.5โ€ 31.5โ€
Single Fork Width 6.5โ€ 6.5โ€
Fork Length 44.5โ€ 44.5โ€
Overall Width 21โ€ 27โ€
Overall Length 56โ€ 56โ€
Overall Height 48.5โ€ 48.5โ€
Telescoping No No
Steering & Load Wheels Polyurethane Polyurethane
Materials and specifications are subject to change without notice.
2. ASSEMBLY & ADJUSTMENT
1) Screw (Item 132)
- To prevent oil-leaking from oil tank during transportation the air screw (Item 132) is replaced with
oil-sealing screw in the factory. Upon reaching its destination and before operation the air screw
must be inserted back in place. Screw out the Oil-sealing screw, then screw in the air screw.
2) Handle
- During transportation, the handle is disassembled from the truck and packed separately. It must
be properly reassembled before operation of the unit.
๎˜ƒ
๎˜ƒ

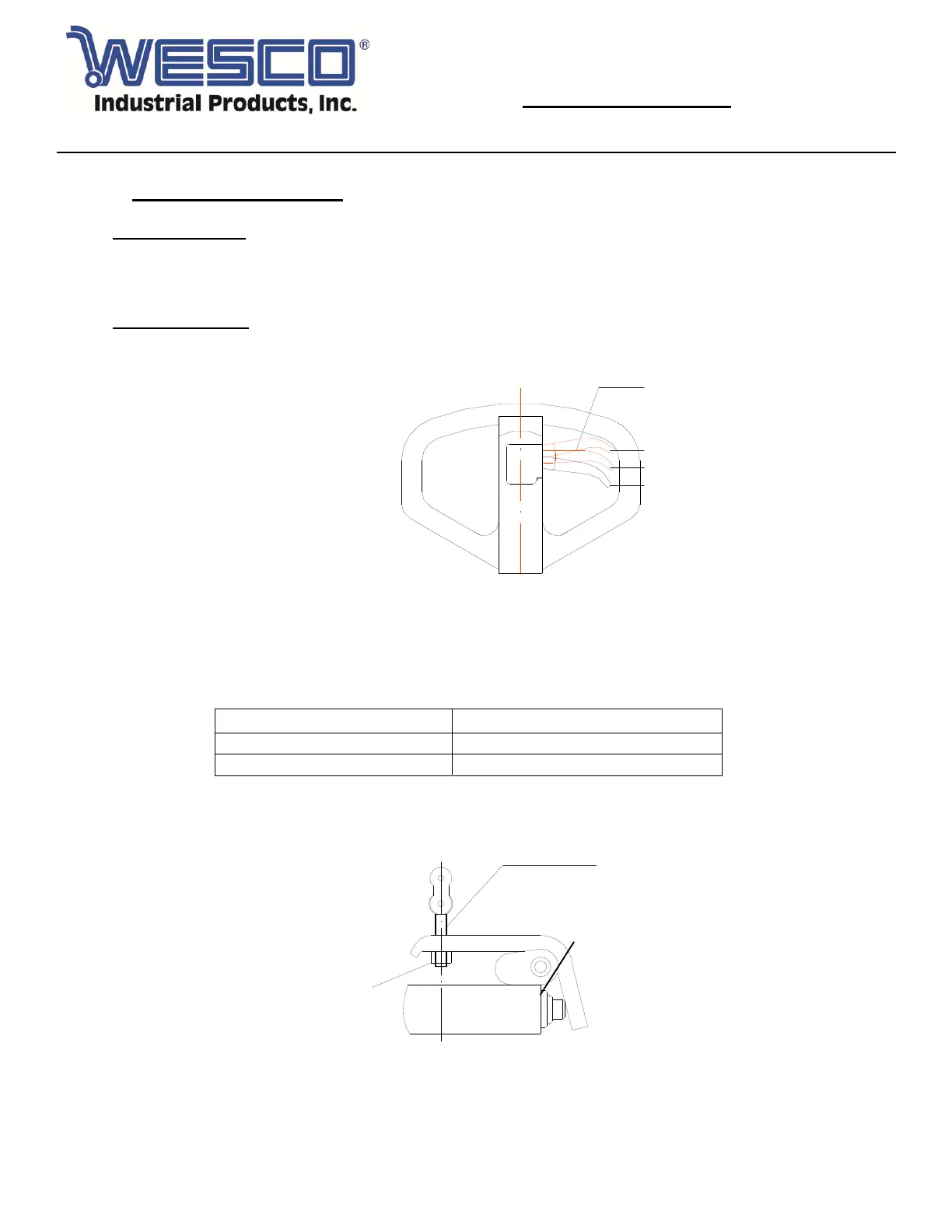

Page๎˜ƒ3๎˜ƒof๎˜ƒ8๎˜ƒ
๎˜ƒ
ยฉCopyright 2015 WESCO Industrial Products, Inc. Specifications subject to change. Not responsible for errors or omissions.
๎˜ƒ
๎˜ƒ๎˜ƒ
๎˜ƒ
๎˜ƒ
๎˜ƒ
๎˜ƒ
๎˜ƒ
๎˜ƒ
2. ASSEMBLY & ADJUSTMENT
Handle Installation
- Take off screw (Item 33) and pin (Item 32).
- Assemble the handle on the Handle Base with the two items screw (item 33) and Pin (Item 32).
- Press the handle, and take off the hooked plate.
Handle Adjustment
- There are 3 different positions with different functions for the Release Lever (Item 49).
Position I: Lifting forks
Position II: Neutral Position of forks
Position III: Descending forks
- Test the functions of the unit by setting the Release Lever in each position. If it does not
function properly, then make the following adjustment to the Lock Nut (Item 36) depending on the
problem occurring:
Problem Turning Direction of Lock Nut
Forks do not lift up
- (counter-clockwise)
Forks do no lower down
+ (clockwise)
Eye Bolt (No.37)
Adjusting
Nut (No.36)
-+
Figure 2
Manual Non-Telescoping High Lift Truck
(Part # 272462 & 272463)
Instruction Manual
ATTENTION: TO INSURE SAFE AND EASY USE OF YOUR WESCO HIGH LIFT
TRUCK, READ THESE INSTRUCTIONS ENTIRELY BEFORE USING.
Figure 1
๎˜ƒ
Position๎˜ƒIII๎˜ƒ
Position๎˜ƒII๎˜ƒ
Position๎˜ƒI๎˜ƒ
Release๎˜ƒLever๎˜ƒ
(Item๎˜ƒ49)๎˜ƒ
