Instruction๎˜ƒManual
Standard๎˜ƒDeluxe๎˜ƒPallet๎˜ƒTruck๎˜ƒ
๎˜ƒ
Part๎˜ƒNumber:๎˜ƒ272136,๎˜ƒ272142,๎˜ƒ272148,๎˜ƒ272736,๎˜ƒ272742,๎˜ƒ272748๎˜ƒ
Note: Operator MUST read and understand these operating instructions before
using this Hand Pallet Truck.
Page๎˜ƒ2๎˜ƒof๎˜ƒ9๎˜ƒ
๎˜ƒ
ยฉCopyright๎˜ƒ2020๎˜ƒWESCO๎˜ƒIndustrial๎˜ƒProducts,๎˜ƒLLC.๎˜ƒSpecifications๎˜ƒsubject๎˜ƒto๎˜ƒchange.๎˜ƒNot๎˜ƒresponsible๎˜ƒfor๎˜ƒerrors๎˜ƒor๎˜ƒomissions.๎˜ƒ
๎˜ƒ๎˜ƒ
๎˜ƒ
TABLE OF CONTENTS
1 General Information ............................................................................................................... 2
1.1 Description..................................................................................................................... 2
1.2 Specifications................................................................................................................. 2
2 Handle Assembly...................................................................................................................... 3
3 Operation................................โ€ฆโ€ฆโ€ฆ........................................................................................4
3.1 Lower.............................................................................................................................. 4
3.2 Lift................................................................................................................................... 4
4 Maintenance..............................................................................................................................4
4.1 Daily Check..................................................................................................................... 4
4.2 Lubrication...................................................................................................................... 4
5 Safety Information..................................................................................................................... 4
6 Trouble Shooting.................................................................................................................. ..... 5
7 Fork Frame & Handle Part Information..................................................................................... 6
7.1 Fork Frame & Handle Parts Diagram............................................................................. 6
7.2 Fork Frame & Handle Parts List..................................................................................... 7
8 Hydraulic System Part Information............................................................................................8
8.1 Hydraulic Jack System Parts Diagram........................................................................... 9
8.2 Hydraulic Jack System Parts List................................................................................... 9
Standard Deluxe Pallet Truck
(Part # 272136, 272142, 272148, 272736, 272742, 272748)
Instruction Manual
ATTENTION: TO INSURE SAFE AND EASY USE OF YOUR WESCO PALLET
TRUCK, READ THESE INSTRUCTIONS ENTIRELY BEFORE USING.
1. GENERAL INFORMATION
1.1 DESCRIPTION
Thank you for purchasing a Wesco Standard Deluxe Pallet Truck. This pallet truck is designed
for transporting and horizontal lifting. The pallet truck features a 5 year pump warranty, 6โ€ wide forks
and a rubber coated handle. It operates with 7โ€ or 8โ€ moldon polyurethane steering wheels and 3โ€
moldon polyurethane load wheels.
1.2 SPECIFICATIONS
Model 272136 272142 272148 272736 272742 272748
Capacity 5,500 lbs 5,500 lbs 5,500 lbs 5,500 lbs 5,500 lbs 5,500 lbs
Weight 143 lbs 152 lbs 157 lbs 151 lbs 161 lbs 166 lbs
Fork Lowered Height 3โ€ 3โ€ 3โ€ 3โ€ 3โ€ 3โ€
Fork Raised Height 8โ€ 8โ€ 8โ€ 8โ€ 8โ€ 8โ€
Single Fork Width 6โ€ 6โ€ 6โ€ 6โ€ 6โ€ 6โ€
Fork Length 36โ€ 42โ€ 48โ€ 36โ€ 42โ€ 48โ€
Overall Width 21โ€ 21โ€ 21โ€ 27โ€ 27โ€ 27โ€
Overall Length 51โ€ 57โ€ 63โ€ 51โ€ 57โ€ 63โ€
Overall Height 48โ€ 48โ€ 48โ€ 48โ€ 48โ€ 48โ€
Materials and specifications are subject to change without notice.
Page๎˜ƒ3๎˜ƒof๎˜ƒ9๎˜ƒ
๎˜ƒ
ยฉCopyright๎˜ƒ2020๎˜ƒWESCO๎˜ƒIndustrial๎˜ƒProducts,๎˜ƒLLC.๎˜ƒSpecifications๎˜ƒsubject๎˜ƒto๎˜ƒchange.๎˜ƒNot๎˜ƒresponsible๎˜ƒfor๎˜ƒerrors๎˜ƒor๎˜ƒomissions.๎˜ƒ
๎˜ƒ๎˜ƒ
๎˜ƒ
๎˜ƒ
๎˜ƒ
๎˜ƒ
๎˜ƒ
๎˜ƒ
Standard Deluxe Pallet Truck
(Part # 272136, 272142, 272148, 272736, 272742, 272748)
Instruction Manual
ATTENTION: TO INSURE SAFE AND EASY USE OF YOUR WESCO PALLET
TRUCK, READ THESE INSTRUCTIONS ENTIRELY BEFORE USING.
1.2 SPECIFICATIONS (CONTINUED)

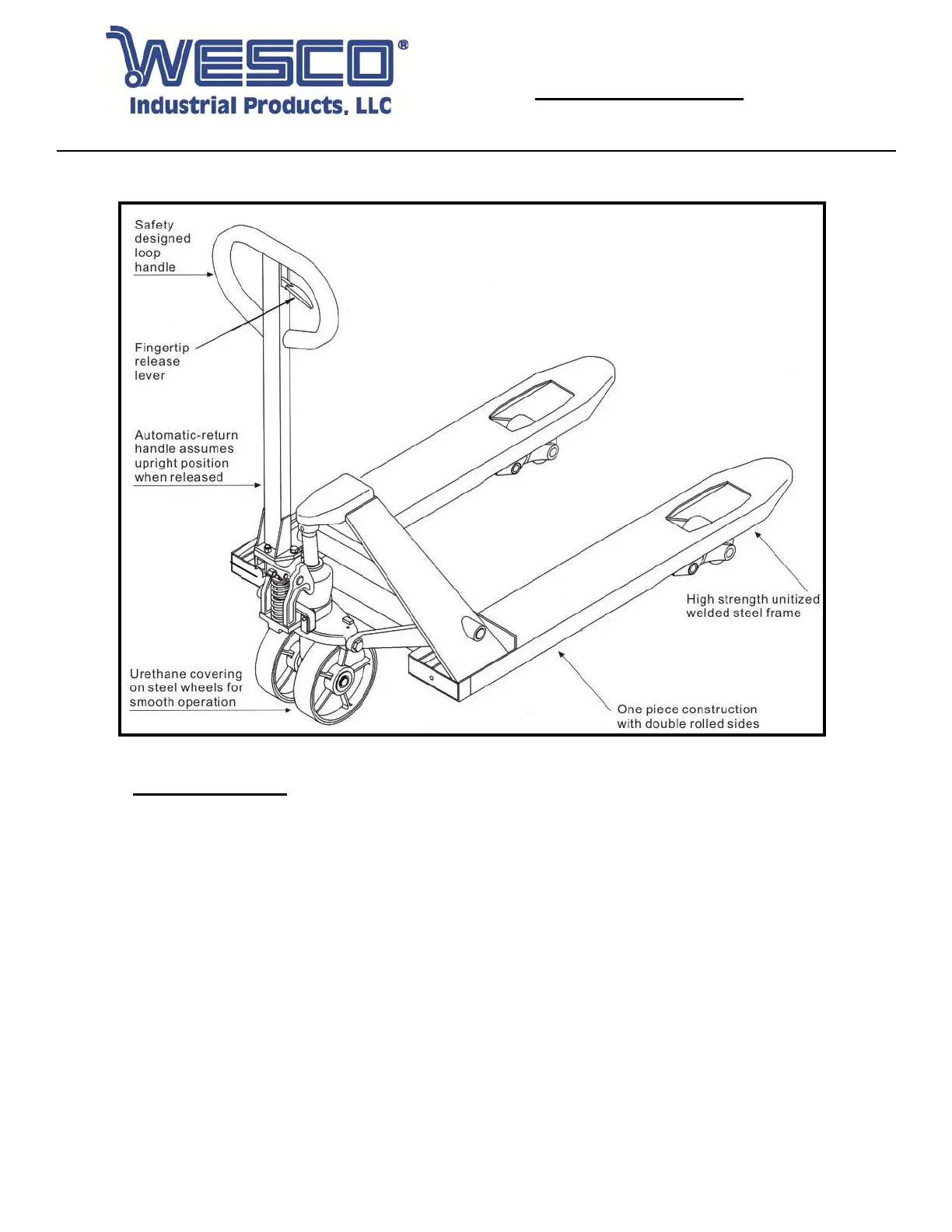

Figure 1
2. HANDLE ASSEMBLY
Items identified in Parts Diagrams
1) Use schematics and Figure 1 as a reference.๎˜ƒ
2) Position yourself behind the truck with forks pointing away.๎˜ƒ
3) Remove (3) screws [Item 22] from handle base [item 23].๎˜ƒ
4) Holding handle [item 68] in one hand, and a screwdriver in the other, place the screwdriver in one
of the 3 screw holes in handle base [item 23]. Pull on the screw driver so that the handle base [item
23] tilts back until the center hole in the handle [item 23] and axle [item 21] are aligned. ๎˜ƒ
5) Slip chain [item 72] through both holes.๎˜ƒ
6) Replace 3 each screws [item 22] attaching handle [item 68] to handle base [item 23].๎˜ƒ
7) Pull up on lowering arm [item 35] and slip chain and nut assembly [items 72, 73] into slot. Nut [item
73] should be resting against underside of lowering arm [item 35].๎˜ƒ
