Side 1/11
Page๎˜ƒ1๎˜ƒof๎˜ƒ11๎˜ƒ
๎˜ƒ
ยฉ Copyright 2015 WESCO Industrial Products Inc. Specifications subject to change. Not responsible for errors or omissions
๎˜ƒ
๎˜ƒ
๎˜ƒ
๎˜ƒ
๎˜ƒ
๎˜ƒ
๎˜ƒ
๎˜ƒ
๎˜ƒ
๎˜ƒ
๎˜ƒ
๎˜ƒ
๎˜ƒ
๎˜ƒ
๎˜ƒ
TABLE OF CONTENTS
1 General Information ......................................................................................................... 2
1.1 Description.............................................................................................................. 2
1.2 Specifications.......................................................................................................... 2
2 Assembly & Adjustment..................................................................................................... 2
3 Trouble Shooting............................................................................................................... 4
4 Fork Frame Information..................................................................................................... 5
4.1 Fork Frame Parts Diagram...................................................................................... 5
4.2 Fork Frame Parts List.............................................................................................. 6
5 Pump Assembly Information.............................................................................................. 7
5.1 Pump Assembly Parts Diagram............................................................................... 7
5.2 Pump Assembly Parts List....................................................................................... 8
6 Handle Assembly Information............................................................................................ 10
6.1 Handle Assembly Parts Diagram............................................................................. 10
6.2 Handle Assembly Parts List..................................................................................... 11
๎˜ƒ
WESCO๎˜ƒINDUSTRIAL๎˜ƒPRODUCTS,๎˜ƒINC
๎˜ƒ
Instruction๎˜ƒManual
Telescoping๎˜ƒManual๎˜ƒHigh๎˜ƒLift๎˜ƒTruck๎˜ƒ
๎˜ƒ
Part๎˜ƒNumber:๎˜ƒ272754,๎˜ƒ272755,๎˜ƒ272975๎˜ƒ&๎˜ƒ272976๎˜ƒ๎˜ƒ
๎˜ƒ
Note: Operator MUST read and understand these operating instructions before
using this Truck.
๎˜ƒ
Page๎˜ƒ2๎˜ƒof๎˜ƒ11๎˜ƒ
๎˜ƒ
ยฉ Copyright 2015 WESCO Industrial Products Inc. Specifications subject to change. Not responsible for errors or omissions
๎˜ƒ๎˜ƒ
๎˜ƒ
๎˜ƒ
๎˜ƒ
๎˜ƒ
๎˜ƒ
๎˜ƒ
๎˜ƒ
Telescoping Manual High Lift Truck
(Part # 272754, 272755, 272975 & 272976)
Instruction Manual
ATTENTION: TO INSURE SAFE AND EASY USE OF YOUR WESCO HIGH LIFT
TRUCK, READ THESE INSTRUCTIONS ENTIRELY BEFORE USING.
1. GENERAL INFORMATION
1.1 DESCRIPTION
Thank you for purchasing a Wesco Telescoping Manual High Lift Truck. This pallet truck is
designed for transporting and horizontal lifting. The trucks feature a 180ยฐ steering arc, loop handles
with inside hand control and a 1 year pump warranty.
1.2 SPECIFICATIONS
Model 272754 272755 272975 272976
Capacity 2,200 lbs 2,200 lbs 3,300 lbs 3,300 lbs
Weight 228 lbs 219 lbs 260 lbs 276 lbs
Fork Lowered Height 3.3โ€ 3.6โ€ 3.6โ€ 3.6โ€
Fork Raised Height 31.5โ€ 31.5โ€ 31.5โ€ 31.5โ€
Single Fork Width 6.5โ€ 6.5โ€ 6.5โ€ 6.5โ€
Fork Length 44.5โ€ 44.5โ€ 43โ€ 43โ€
Overall Width 27โ€ 21โ€ 20โ€ 27โ€
Overall Length 63โ€ 63โ€ 63โ€ 63โ€
Overall Height 48.5โ€ 48.5โ€ 48.5โ€ 48.5โ€
Telescoping Yes Yes Yes Yes
Steering & Load Wheels Polyurethane Polyurethane Polyurethane Polyurethane
Materials and specifications are subject to change without notice.
2. ASSEMBLY & ADJUSTMENT
1) Screw (Item 158)
- To prevent oil-leaking from oil tank during transportation the air screw (Item 158) is replaced with
oil-sealing screw in the factory. Upon reaching its destination and before operation the air screw
must be inserted back in place. Screw out the Oil-sealing screw, then screw in the air screw
which the pump housing (Item 160) is hung.
2) Handle
- During transportation, the handle is disassembled from the truck and packed separately. It must
be properly reassembled before operation of the unit.
๎˜ƒ
๎˜ƒ

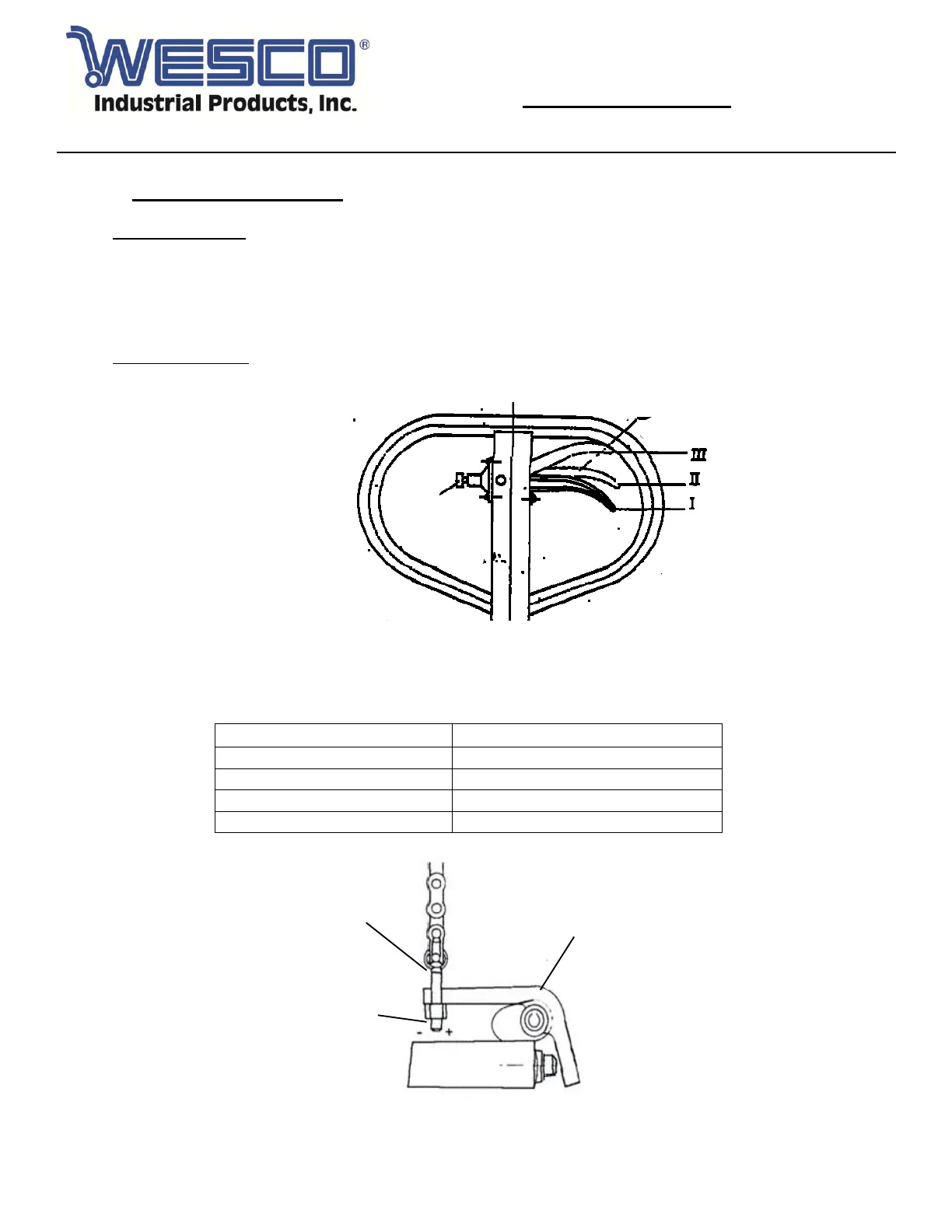

Page๎˜ƒ3๎˜ƒof๎˜ƒ11๎˜ƒ
๎˜ƒ
ยฉ Copyright 2015 WESCO Industrial Products Inc. Specifications subject to change. Not responsible for errors or omissions
๎˜ƒ๎˜ƒ
๎˜ƒ
๎˜ƒ
๎˜ƒ
๎˜ƒ
๎˜ƒ
๎˜ƒ
2. ASSEMBLY & ADJUSTMENT
Handle Installation
- Take 3 pieces of M10 Nut (Item 185) & Spring Washer from spare parts bag. Select handle to
match the truck with the same fitting numbers.
- Assemble the handle on the Handle Base (Item 181) with 3 pieces of M10 Nut & Spring Washer
tightly.
- Put the chainโ€™s Eye Bolt (Item 110) in the slot at the front end of Pendulum Arm (Item 112).
Handle Adjustment
- There are 3 different positions with different functions for the Release Lever (Item 106).
Position I: Rapid lifting of forks
Position II: Slow lifting of forks
Position III: Descending of forks
- Test the functions of the unit by setting the Release Lever in each position. If it does not
function properly, then make the following adjustment to the Lock Nut (Item 113) depending on the
problem occurring:
Problem Turning Direction of Lock Nut
Forks do not lift up
- (counter-clockwise)
Forks do no lower down
+ (clockwise)
Slow lifting function does not work
+ (clockwise)
Rapid lifting function does not work
- (counter-clockwise)
Figure 2
Telescoping Manual High Lift Truck
(Part # 272754, 272755, 272975 & 272976)
Instruction Manual
ATTENTION: TO INSURE SAFE AND EASY USE OF YOUR WESCO HIGH LIFT
TRUCK, READ THESE INSTRUCTIONS ENTIRELY BEFORE USING.
Figure 1
๎˜ƒ
Eye๎˜ƒBolt๎˜ƒ
(Item๎˜ƒ110)
Pendulum๎˜ƒArm๎˜ƒfor๎˜ƒ
Releasing๎˜ƒOil๎˜ƒ
Adjusting๎˜ƒNut๎˜ƒ๎˜ƒ
(Item๎˜ƒ113)๎˜ƒ
Screw
(Item๎˜ƒ187)
Release๎˜ƒLever๎˜ƒ
(
Item๎˜ƒ106
)
๎˜ƒ
