Side 1/11

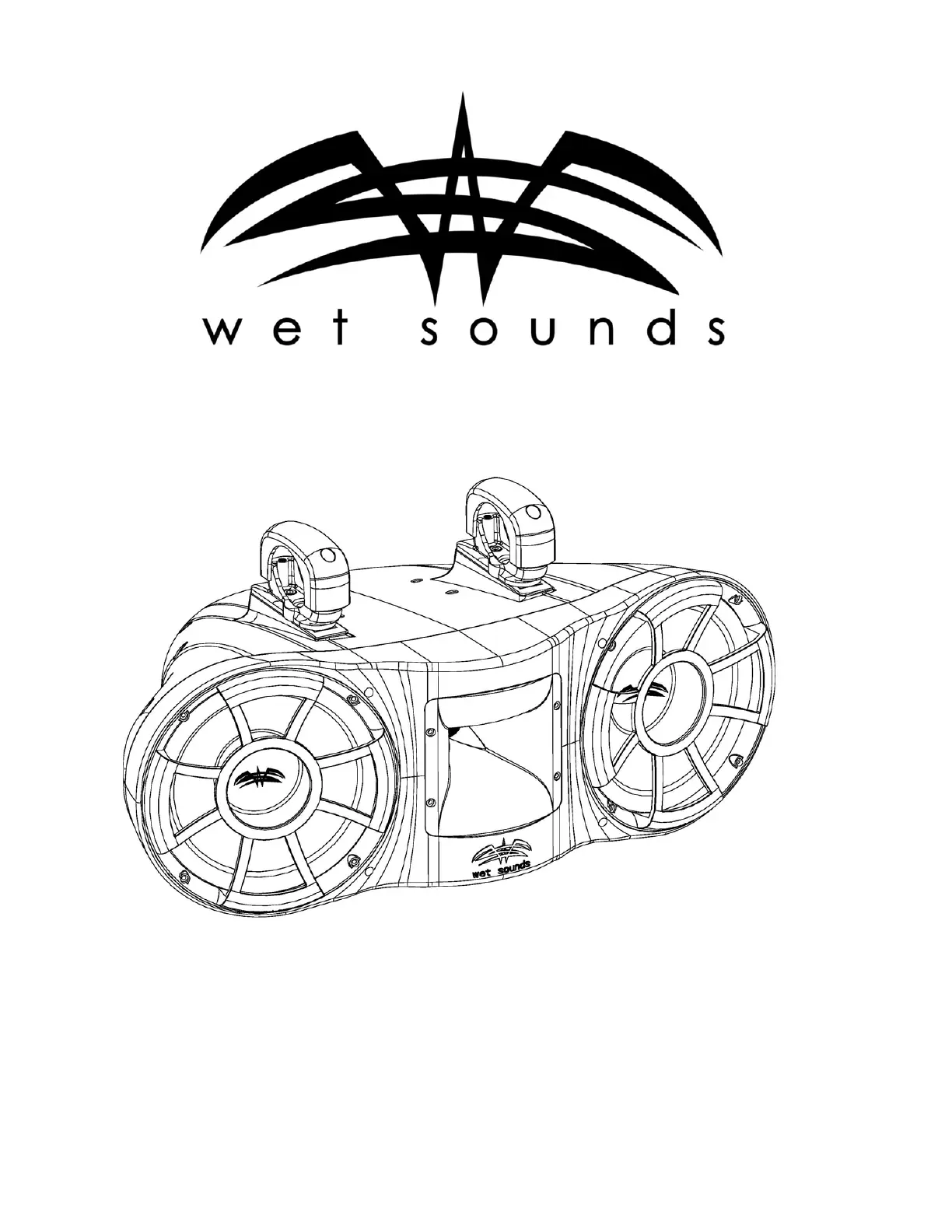

REV 410
Owner’s Manual & “Limited” Warranty
TM
Technology Specifications:
Thank You for purchasing this Wet Sounds product. Wet Sounds marine audio
products represent the ultimate in high performance standards. The Revolution
Series is specifically engineered to withstand the rigorous marine environment.
Utilizing the state of the art acoustic engineering and three dimensional
computer aided design, our “Revolution Technology” represents the most
advanced technologies available for wakeboard tower speaker systems. The
Revolution series also provides multiple fitment options from fixed clamp
mount to our revolutionary (Patent Pending) stainless steel TC3 Quick
Disconnect Swivel clamp.
Please take a moment to read the instruction manual before starting your
installation. This manual will explain the benefits of the technologies developed
by Wet Sounds and will help you understand the correct installation methods
and use of this product. If you have any questions or concerns please contact a
certified Wet Sounds dealer. You may also contact Wet Sounds technical
support by dialing 1-877-WET-SPKR (1-877-938-7757)
SPEAKER SPECIFICATIONS REV 410
RMS: 400 watts
Peak: 800 watts
Mid Bass: Dual 10 inch Kevlar reinforced EFG™ cone woofers with
polyurethane surround
High Frequency: Separate Titanium Diaphragm High Output Horn Loaded
Compression Driver
Impedance: 4 ohm
Frequency Response: 20Hz to 20 kHz
Sensitivity: 92DB at 1W/1M
The Revolution™ series uses our proprietary REV TEC™ technology. Unlike
most conventional designs, REV TEC technology provides remarkable volume
and amazing full range sound quality on axis and off axis at long distances.
Extensive acoustic testing has confirmed these speakers ability to project
volume at 80 feet and beyond without any loss of detail or information. Not
only does the Revolution series achieve volume and sound quality at a
minimum of 80 ft, but with the REV TEC technology the rider can enjoy
quality sound while riding outside the wake and being almost parallel to boat.
Taking high performance wakeboard tower speakers to the next level, Wet
Sounds has consulted with experts who spent countless hours examining the
human auditory system to find out which frequencies affect your ears the most
at loud volumes. The Revolution series has been designed from the ground up
to provide stunning output while eliminating certain frequencies that give that
“ringing” or harsh sound associated with loud volumes. This allows the
Revolution speakers to provide maximum output while still providing world
class sound quality without the listener fatigue usually associated with high
volumes.
The driver compliment in each REV 410 combines Dual 10 inch Kevlar
reinforced EFG™ drivers and one center mounted HLCD (Horn Loaded
Compression Driver) which provide stellar output and a higher performance for
the marine environment, Wet Sounds™ developed a proprietary cone material
called EFG™, which is an epoxy and fiberglass composite mix. Adding a
reinforcement of Kevlar, the mid bass cones become more rigid without any
added weight. This cone material incorporates characteristic values that are
impermeable to damage from intermittent Ultra Violet exposure and minimal
moisture exposure. Like the EFG™ cone material, the Polyurethane that is used
for the surround will provide protection against Ultra Violet exposure and
moisture. This will prevent deterioration of the surround yielding longer life
and better reliability. We do, however, encourage you to either remove or cover
your tower speakers when they are not in use. Limiting exposure to Ultra Violet
Rays and to moisture will help extend the life of your tower speakers.
The high frequency transducer is our proprietary titanium diaphragm Wet
Sounds HLCD (horn loaded compression driver). This driver was designed to
provide a wide; horizontal trajectory that would not only produce sound in the
directed path but will disperse sound off axis with little to no degradation. The
HLCD is considered to be one of the most efficient transducer designs
providing remarkable output while using less power. Our unique design
incorporates the HLCD mounted in the center of dual mid bass drivers that have
a slight angle to further enhance the off axis response.
***Caution: Do not spray any of the speakers directly with any liquid base
substance. Warranty will be voided if improper care is discovered during
extensive examination of the product.
