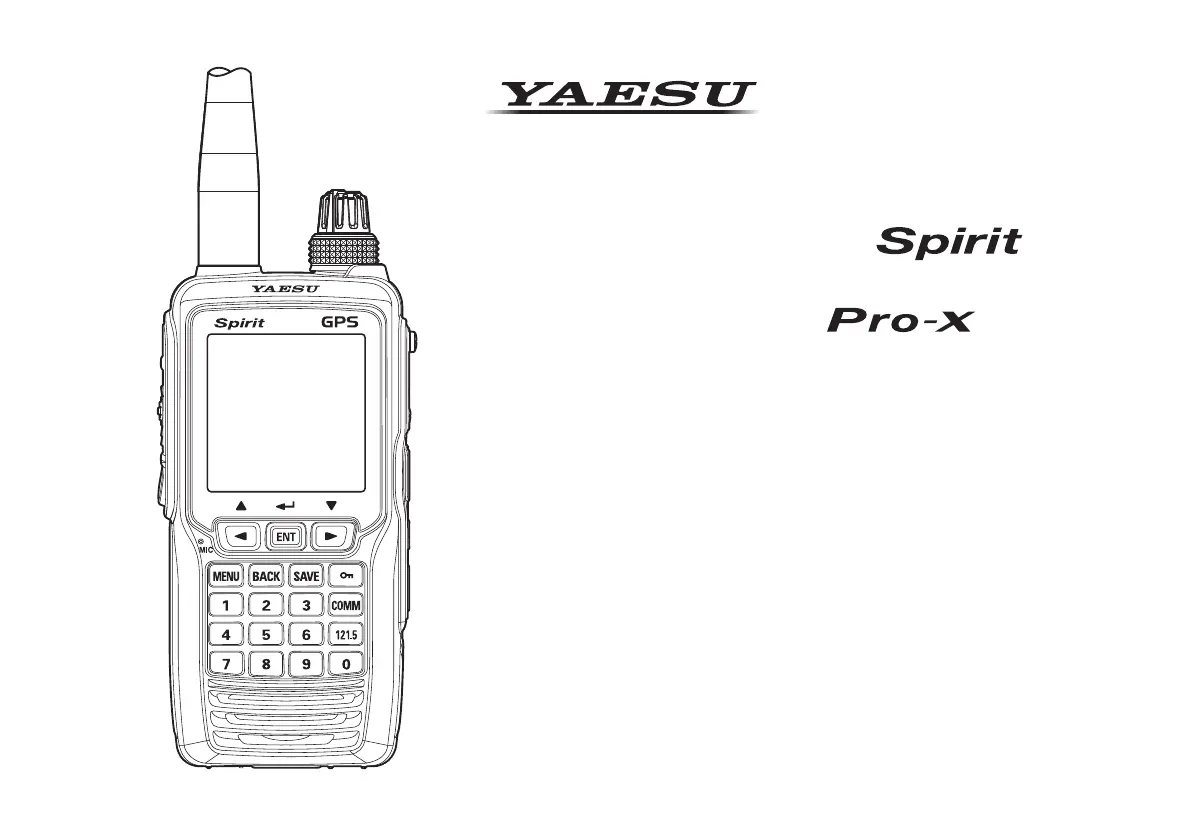

Operating Manual
AIR BAND TRANSCEIVER
FTA-750L
FTA-550
FTA-450L

Important Notice! .......................................................... 1
Introduction ................................................................... 2
Safety Precautions ....................................................... 3
Models, Accessories and Options .............................. 5
Models .................................................................................. 5
Supplied Accessories ............................................................ 5
Available Options ................................................................. 5
Controls & Connectors
(
Top Panel
) ............................ 6
LCD Display
(
COM Band
) ........................................... 10
Before You Begin ........................................................ 14
Battery Installation and Removal ....................................... 14
Battery Charging ................................................................. 15
Alkaline Battery Tray Installation....................................... 16
Low Battery Indication ....................................................... 16
External DC Power Supply Connection ............................. 17
Antenna Installation ............................................................ 17
Belt Clip Installation ........................................................... 18
Headset Connection ............................................................ 18
Precautions .......................................................................... 19
Basic Operation .......................................................... 20
Reception (COM Band) ...................................................... 20
Accessing the 121.5 MHz Emergency Frequency .............. 23
Transmission (COM Band) ................................................. 24
Operation Bands ................................................................. 25
Operation Modes................................................................. 26
Resetting the Radio ............................................................. 27
Advanced Operation .................................................. 29
Reception of VOR Signals .................................................. 29
Reception of ILS Signals .................................................... 33
Split Operation .................................................................... 35
Reception of Weather Channel Broadcasts ......................... 37
- Weather Channels for USA/ Canada only - ...................... 37
Dual Watch Operation ......................................................... 39
Timer Mode Operation ....................................................... 41
TOT Feature ........................................................................ 45
Saving the Battery during Reception .................................. 45
Using the Headset Microphone........................................... 46
VOX Operation ................................................................... 46
Side Tone Control ............................................................... 47
Lock Function ..................................................................... 48
PTT Lock Function ............................................................. 50
Changing the Channel Steps ............................................... 50
ANL Feature ....................................................................... 51
Memory Operation ...................................................... 52
Recalling the Memories ...................................................... 52
Instant Storage .................................................................... 54
Maintenance of the Memory ............................................... 55
Scanning Operation ................................................... 59
Scanning Channels .............................................................. 59
Selecting Scanning Band (FTA-750L/FTA-550 only) ........ 60
Scanning the Specied Channels ........................................ 61
Activating the GPS Unit ..................................................... 63
GPS Function (FTA-750L Only) ................................. 63
Displaying the Position Information ................................... 64
Memorizing the Position Information................................. 66
Recording the Position Information .................................... 67
Waypoint Navigation (FTA-750L Only) ...................... 68
Entering the Navigation (NAVI) Mode .............................. 68
Setting the Destination ........................................................ 69
Basic Operation................................................................... 72
Maintenance of the Memory ............................................... 73
Setting of the COMM Mode Operation .............................. 74
Setting of the GPS Mode Operation (FTA-750L Only) ...... 77
Setting of the Operation and Conguration of the Radio ... 82
About the Radio .................................................................. 84
Summary of the SETUP Menu ........................................... 85
 ............................................................. 87
Troubleshooting for Headset Connection ................ 89
1
Important Notice!
FCC RF Exposure Compliance Requirements for Occupational Use Only:
The
FTA-750L/FTA-550/FTA-450L
have been tested and comply with the Federal Communications Commission (FCC)
RF exposure limits for Occupational Use/Controlled Exposure Environment. In addition, both radios comply with the
following Standards and Guidelines:
FCC 96-326, Guidelines for Evaluating the Environmental Eects of Radio-Frequency Radiation.
FCC OET Bulletin 65 Edition 97-01 (1997) Supplement C, Evaluating Compliance with FCC Guidelines for Human
Exposure to Radio Frequency Electromagnetic Fields.
ANSI/IEEE C95.1-1992, IEEE Standard for Safety Levels with Respect to Human Exposure to Radio Frequency
Electromagnetic Fields, 3 kHz to 300 GHz.
ANSI/IEEE C95.3-1992, IEEE Recommended Practice for the Measurement of Potentially Hazardous Electromag-
netic Fields - RF and Microwave.
This radio is NOT approved for use by the general population in an uncontrolled environment. This radio is
restricted to occupational use, work related operations only where the radio operator must have the knowl-
edge to control its RF exposure conditions.
When transmitting, hold the radio in a vertical position with its microphone 1 to 2 inches (2.5 to 5 cm) away
from your mouth and keep the antenna at least 1 inch (2.5 cm) away from your head and body.
The radio must be used with a maximum operating duty cycle not exceeding 50%, in typical Push-to-Talk
congurations. DO NOT transmit for more than 50% of total radio use time (50% duty cycle). Transmitting
more than 50% of the time can cause FCC RF exposure compliance requirements to be exceeded.
The radio is transmitting when the TX icon is displayed on the upper left corner of the screen of the radio.
You can cause the radio to transmit by pressing the PTT button.
Always use YAESU authorized accessories.
NOTICE
There are no user-serviceable points inside this transceiver.
All service jobs must be referred to your Authorized Service Center.
