NS-U30
Natural Sound 2-way Acoustic-suspension Speaker System
Enceinte 2 voies à suspension acoustique natural
OWNER’S MANUAL
MODE D’EMPLOI
BEDIENUNGSANLEITUNG
BRUKSANVISNING
MANUALE DI ISTRUZIONI
MANUAL DE INSTRUCCIONES
GEBRUIKSAANWIJZING
G
English
E-1
Please read the following operating precautions
before use.
YAMAHA will not be held responsible for any
damage and/or injury caused by not following the
cautions below.
● To assure the finest performance, please read this
manual carefully. Keep it in a safe place for future
reference.
● To prevent the enclosure from warping or
discoloring, do not place the speakers where they
will be exposed to direct sunlight or excessive
humidity.
● Do not place the speakers where they are liable to
be knocked over or struck by falling objects.
Stable placement will also ensure better sound
performance.
● Placing the speakers on the same shelf or rack as
the turntable can result in feedback.
● Any time you note distortion, reduce the volume
control on your amplifier to a lower setting. Never
allow your amplifier to be driven into “clipping”.
Otherwise the speakers may be damaged.
● When using an amplifier with a rated output power
higher than the nominal input power of the
speakers, care should be taken never to exceed
the speakers’ maximum input.
● Do not attempt to clean the speakers with
chemical solvents as this might damage the finish.
Use a clean, dry cloth.
● Secure placement or installation is the owner’s
responsibility.
YAMAHA shall not be liable for any accident
caused by improper placement or installation
of speakers.
These speakers feature a magnetically shielded
design, but there is still a chance that placing
them too close to a TV or a computer monitor
might impair picture color. Should this happen,
move the speakers away from the TV or the
computer monitor.

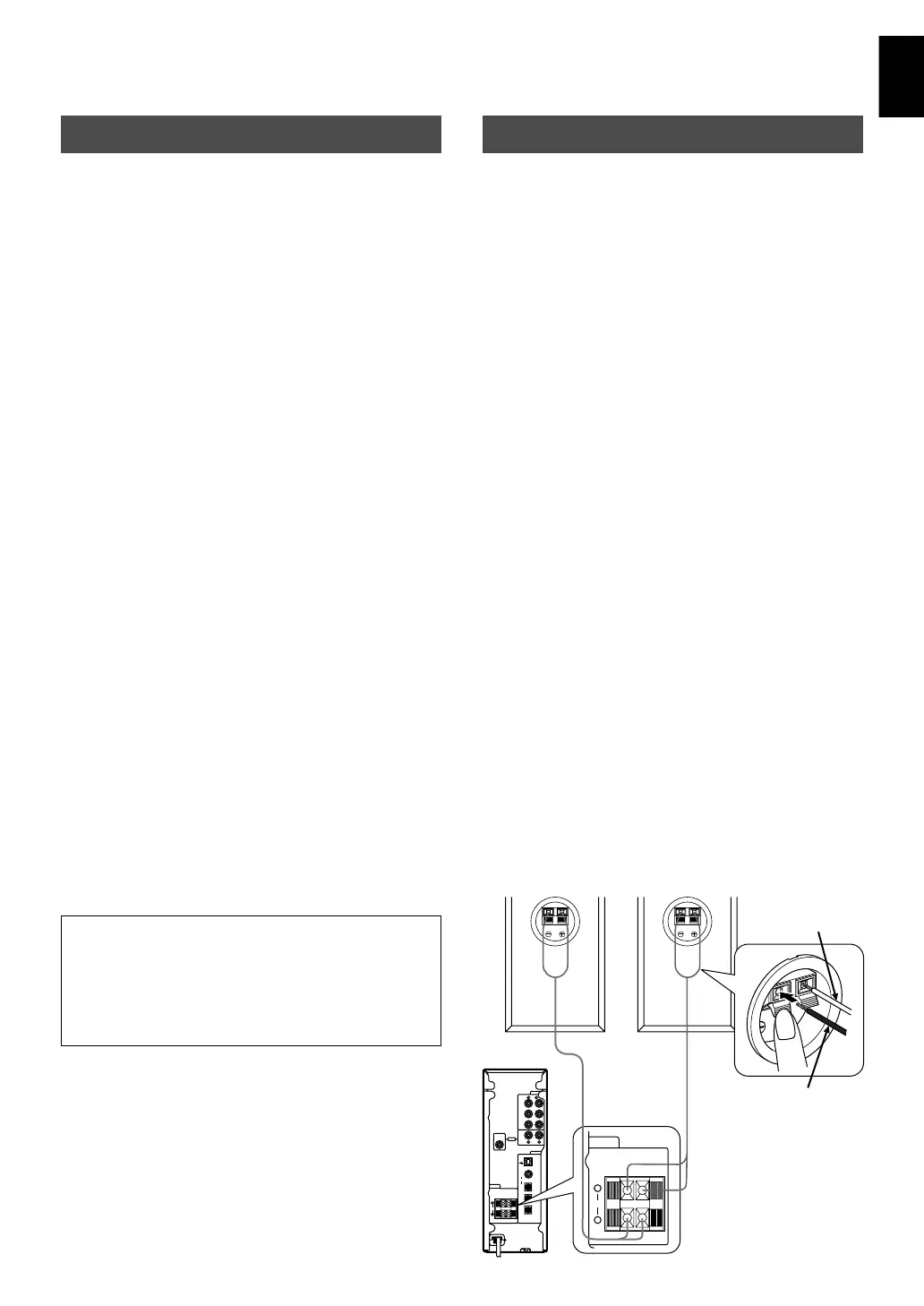

Thank you for selecting Yamaha’s NS-U30 Natural Sound 2-way Acoustic-suspension Speaker System.
CAUTIONS
Before making the connections, make sure that
the amplifier is switched off.
CONNECTIONS
● Connect the push-type input terminals at the rear
of the speakers to the speaker output terminals of
your amplifier with the provided speaker cord.
● One side of the speaker cord is red and the other
side is black. Connect the (+) terminals on both
the amplifier and the speakers using the red side.
Connect the (–) terminals on both components
using the black side.
● Connect one speaker to the left (marked L)
terminals of your amplifier, and the other speaker
to the right (marked R) terminals, making sure not
to reverse the polarity (+, –). If one speaker is
connected with reversed polarity, the sound will be
unnatural and lack bass.
How to Connect:
1 Press and hold the terminal’s tab, as shown in the
figure.
2 Insert the bare wire end properly into the terminal
hole. [Remove approx. 10 mm (3/8”) insulation
from the speaker cord.]
3 Release your finger from the tab to allow it to lock
securely on the cord’s wire end.
4 Test the firmness of the connection by pulling
lightly on the cord at the terminal.
Note
Do not let the bare speaker wires touch each
other as this could damage the speaker or the
amplifier, or both of them.
CONNECTION TO YOUR AMPLIFIER
R L
R L
ANALOG
PC IN
AUX 1
IN
AUX 2
IN
REC
OUT
OUTPUT
SUB
WOOFER
DIGITAL
USB
COAX
IN
OPT
IN
AUX 1
OPT IN
OPT
OUT
PC
MAINS
+–
R
L
SPEAKERS
6Ω MIN.
/
SPEAKER
MAIN
+–
R
L
SPEAKERS
6Ω MIN.
/
SPEAKER
MAIN
Speaker (R) Speaker (L)
Red
Black
Amplifier/Receiver
E-2
Type ...... 2-way acoustic-suspension speaker system
Magnetically shielded type
Driver
Woofer ................................ 9 cm (3-1/2”) cone type
Tweeter ................................. 2 cm (3/4”) dome type
Nominal input power........................................ 20 W
Maximum input power ..................................... 60 W
Sensitivity ........................................................88 dB
Impedance .......................................................... 6 Ω
Frequency response ........................75 Hz – 25 kHz
Dimensions (W X H X D)
.................................. 110 mm 3 293 mm 3 192 mm
(4-3/8” 3 11-1/2” 3 7-1/2”, stand included)
Weight ..................... 1.8 kg (4.0 lbs., stand included)
Accessories ..............................................Stand 3 2
Speaker cord [2 m (6.6 feet)] 3 2
Nonskid pad 3 8
Screws 3 4
* Specifications are subject to change without notice.

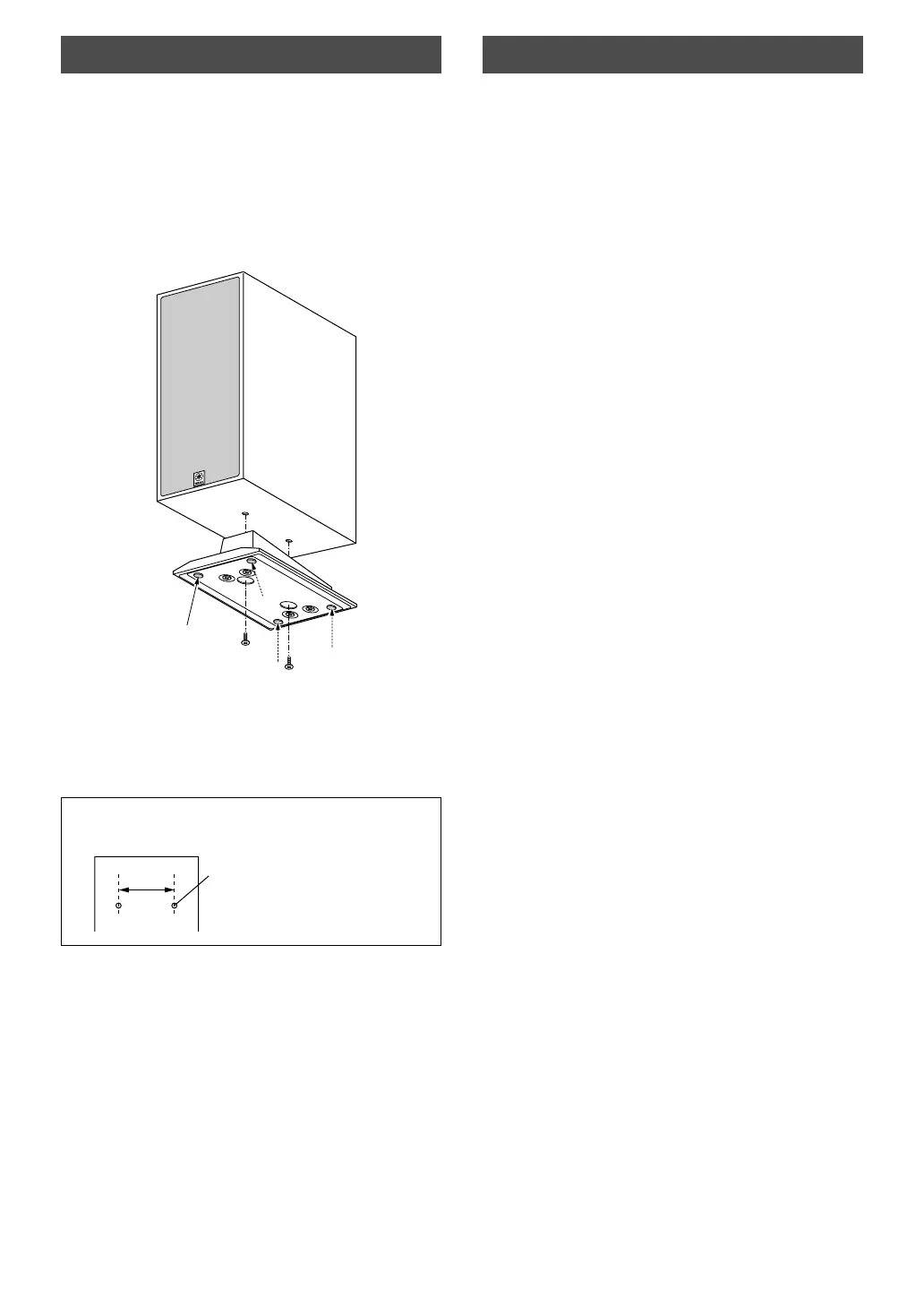

Attach the included stands to the speakers using two
screws each. By attaching the stands, the speakers
can be used at an appropriate angle, with the front of
the speakers slanting slightly upward. Be sure to
attach the stands to the speakers correctly as shown
in the figure. If you attach them incorrectly or in the
opposite direction, the speakers may fall and be
damaged or cause personal injury.
* Nonskid pad
To prevent the speakers from sliding, attach the
supplied pads as shown in the figure.
You can also use the screw holes on the rear of
the speakers to install them.
ATTACHING THE STAND SPECIFICATIONS
*
*
*
@
60 mm
* Nonskid pad
A screw with a diameter of 4 mm
and a pitch of 0.7 mm can be
used. (Depth of hole: 8 mm)
