OWNER’S MANUAL
MODE D’EMPLOI
BEDIENUNGSANLEITUNG
NX-E300
Speaker System
Systeme D’enceintes
Lautsprecheranlage
2
PRECAUTIONS
Read this before using the speakers.
• To assure the finest performance, please read this manual
carefully. Keep it in a safe place for future reference.
• Install the speakers in a cool, dry, clean place – away from
windows, heat sources, sources of excessive vibration, dust,
moisture and cold. Avoid sources of humming (transformers,
motors). To prevent fire or electrical shock, do not expose the
speakers to rain or water.
• To prevent the enclosure from warping or discoloring, do not
place the speakers where they will be exposed to direct sunlight
or excessive humidity.
• Do not place the following objects on the speakers:
Glass, chine, etc.
If glass etc. falls by vibrations and breaks, it may cause
personal injury.
A burning candle etc.
If the candle falls by vibrations, it may cause fire and personal
injury.
A vessel with water in it
If the vessel falls by vibrations and water spills, it may cause
damage to the speakers, and/or you may get an electrical
shock.
• Do not place the speakers where foreign objects such as water
drips might fall. It might cause a fire, damage to the speakers,
and/or personal injury.
• Do not place the speakers where they are liable to be knocked
over or struck by falling objects. Stable placement will also
ensure better sound performance.
• Placing the speakers on the same shelf or rack as the turntable
can result in feedback.
• Never put a hand or a foreign object into the port located on the
rear of the speaker as this might cause personal injury and/or
damage to the speaker.
• When moving the speaker, do not hold the port as it might cause
personal injury and/or damage to the speaker.
• Any time you note distortion, reduce the volume control on your
receiver to a lower setting. Never allow your receiver to be
driven into “clipping”. Otherwise the speakers may be damaged.
• When using a receiver with a rated output power higher than the
nominal input power of the speakers, care should be taken never
to exceed the speakers' maximum input.
• Do not attempt to clean the speakers with chemical solvents as
this might damage the finish. Use a clean, dry cloth.
• Do not attempt to modify or fix the speakers. Contact qualified
YAMAHA service personnel when any service is needed. The
cabinet should never be opened for any reasons.
• Secure placement or installation is the owner's
responsibility.
YAMAHA shall not be liable for any accident caused by
improper placement or installation of speakers.
• Place the speakers on a sturdy, vibration-free surface. You may
not be able to obtain good bass quality when the speakers are
placed directly on the floor. Put a block, etc. under the speakers.
• Better stereo images will be obtained when the speakers are
slightly angled in towards the listening position.

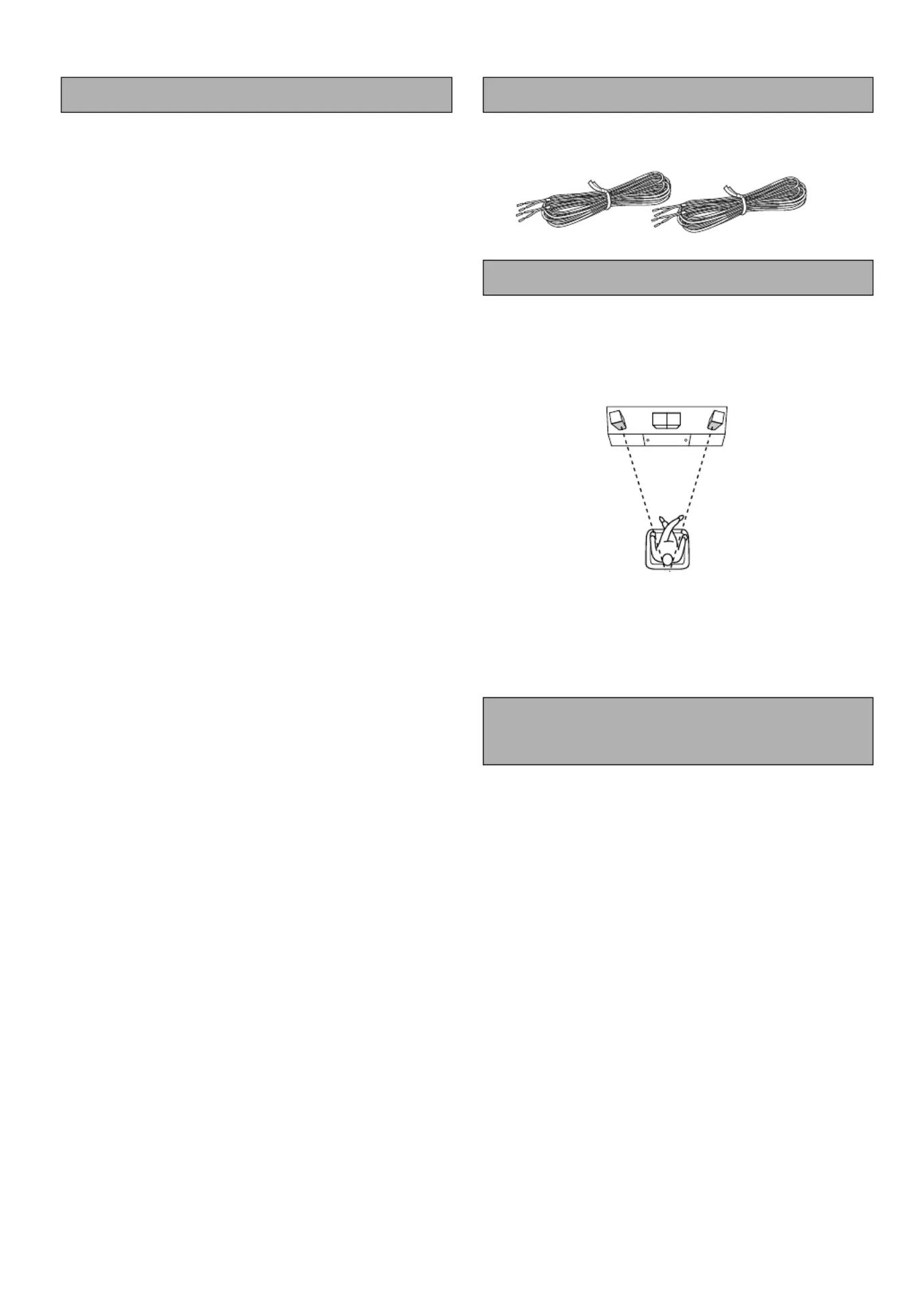

PLACING THE SPEAKERS
CONNECTION TO YOUR CRX-E300
CD RECEIVER
BEFORE MAKING CONNECTIONS, MAKE SURE THAT
THE CRX-E300 CD RECEIVER IS SWITCHED OFF.
• When this unit is connected to the CRX-E300 CD receiver, refer
also to the owner's manual supplied with the receiver.
■CONNECTIONS
• Connect the screw-type input terminals at the rear of the speakers
to the speaker output terminals of the receiver with the provided
speaker cables.
• One side of the speaker cable is red and the other side is black.
Connect the (+) terminals on the receiver and speakers using the
red side. Connect the (–) terminals on both components using the
black side of the cable.
• Connect one speaker to the left (marked L) terminals of the
receiver, and the other to the right (marked R) terminals. Make
sure not to reverse polarity (+, –).
If a speaker is connected with reverse polarity, the sound will be
unnatural and lack bass.
Note
These speakers feature a magnetically shielded design,
but there is still a chance that placing them too close to a
TV set might impair picture color. Should this happen,
move the speakers away from the TV set.
Check that the following item is included.
ACCESSORIES
Speaker cable (4m) x 2
3
CRX-E300
Red (+)
Red line
Speaker (L)Speaker (R)
Black line
Red line

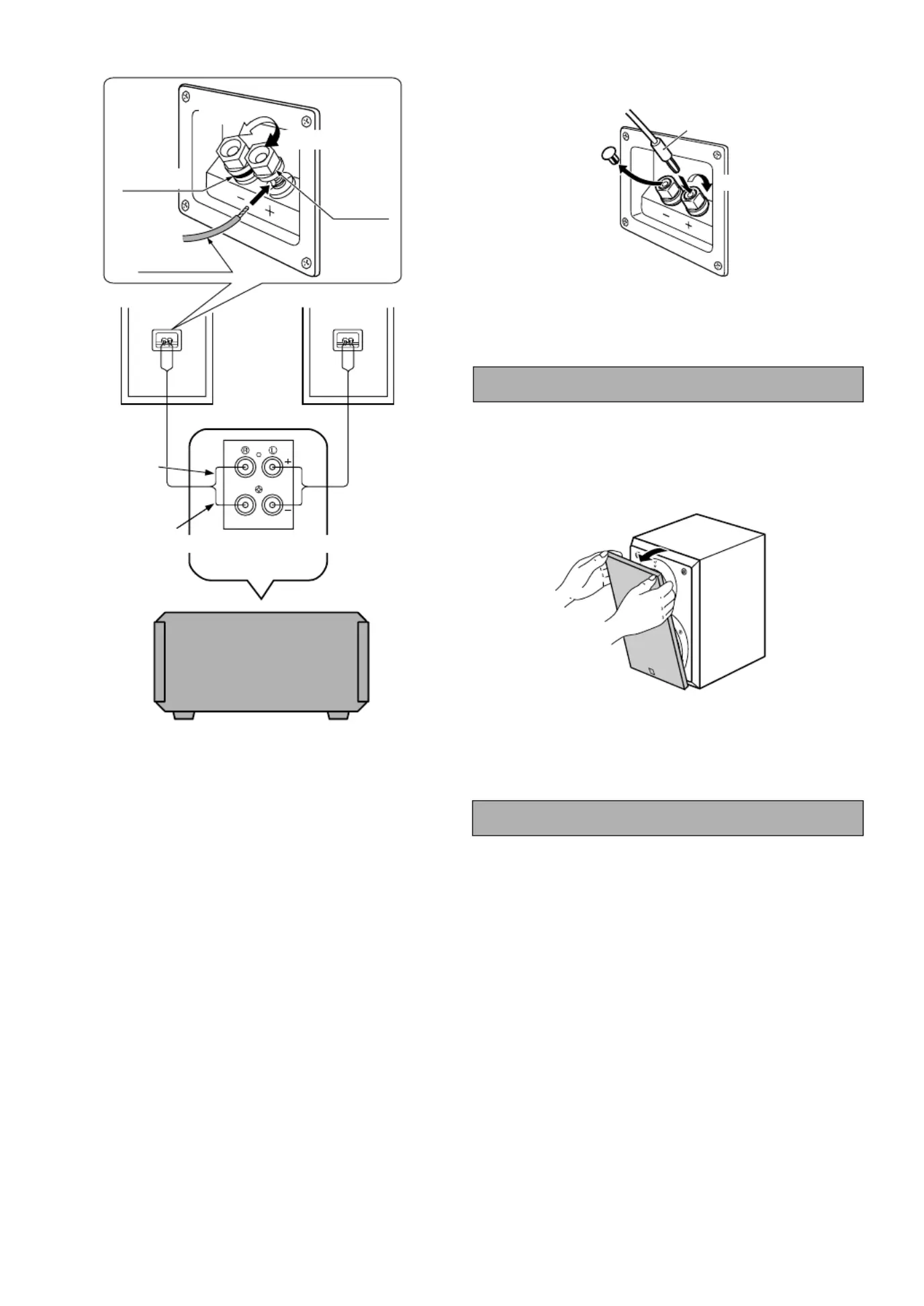

How to connect:
1Loosen the knob.
2Remove the insulation coating at the extremity of each speaker
cable by twisting the coating off.
3Insert the bare wire.
4Tighten the knob and secure the cable.
Test the firmness of the connection by pulling lightly on the
cable at the terminal.
Note
Do not let the bare speaker wires touch each other as
this could damage the speaker or the receiver, or both of
them.
The front cover is fastened to the enclosure at four point and can be
removed if desired. To remove the cover, hold on to both sides and
slowly pull straight away from the speaker.
To reattach, line up the four pegs on the inner surface of the cover
with the four corresponding holes on the speaker and push gently.
REMOVING THE FRONT COVER
Note
When the cover is removed, be sure not to touch the
speaker units with your hands or to exert excessive force
with tools.
Type ............................................. 2-way bass-reflex speaker system
Magnetic shielding type
Driver .................................................... 11 cm (4-1/2") cone woofer
2.5 cm (1") dome tweeter
Impedance .................................................................................. 6 Ω
Frequency Response ............................................... 60 Hz to 28 kHz
Nominal Input Power ............................................................... 40 W
Maximum Input Power ........................................................... 110 W
Sensitivity ................................................................ 85 dB/2.83 V/m
Crossover Frequency ............................................................... 3 kHz
Dimensions (W x H x D) ................................. 165 x 255 x 183 mm
(6-1/2" x 10" x 7-3/16")
Weight ......................................................... 3.4 kg (7 lbs. 8 oz.) x 2
Accessories ................................................. Speaker cable (4 m) x 2
* Specifications are subject to change without notice due to
product improvements.
* Care should be taken not to exceed the input power values noted
above.
SPECIFICATIONS
Loosen
Tighten
Black (–)
Speaker output terminals of
the receiver
When using a banana plug
1Remove the cover by pulling it toward you.
2Tighten the terminal knob.
3Simply insert the banana plug into the terminal.
3
1
2
Banana plug
