P-871M

VDSL Modem

User’s Guide

Version ME1

11/2009

Edition 2

DEFAULT LOGIN

Password 1234

Console Port Speed 38400 bps

P-871M User’s Guide

Overview

The P-871M is a VDSL modem in CPE (Customer Premises

Equipment) mode and can also act as CO (Central Office)

equipment. CO equipment is where home and office phone

lines terminate and connects to a much larger switching

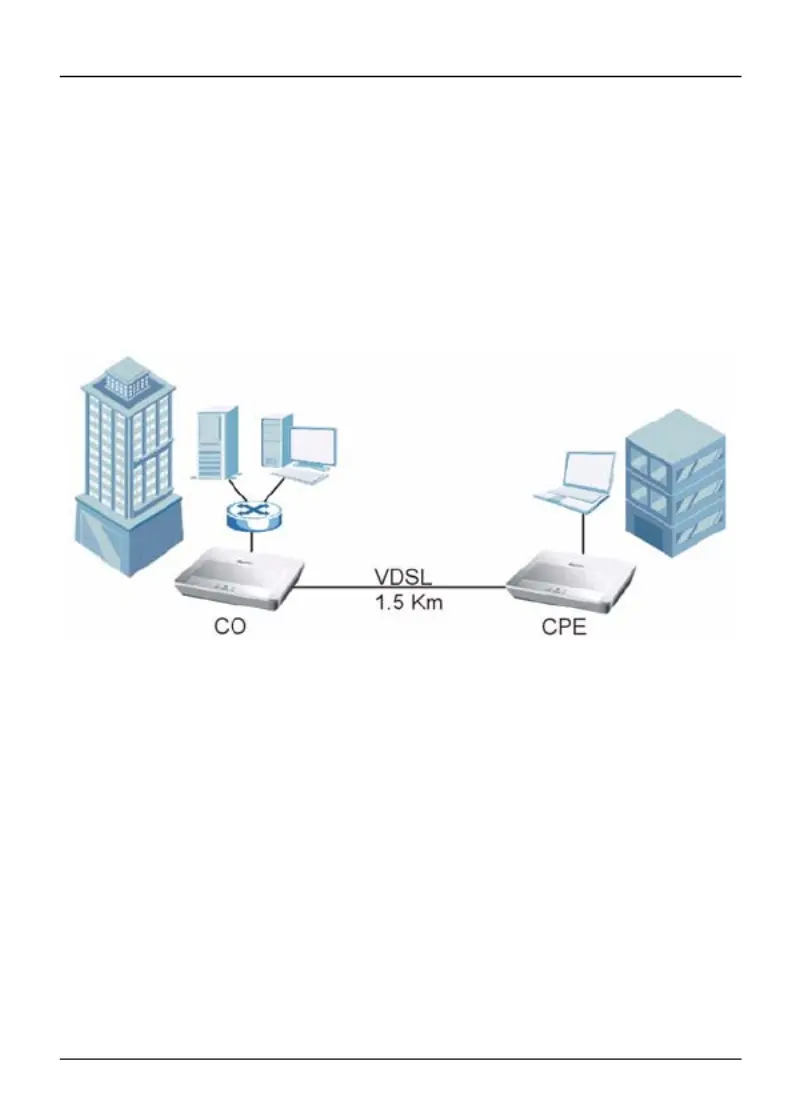

system. In the following example, you can build up a VDSL

bridge connection between two P-871Ms.

This guide covers:

•Overview, page 2

•Hardware Connections, page 3

•CLI Commands Configuration, page 6

•Firmware Upgrade, page 9

•Wall-mounting Instructions, page 12

P-871M User’s Guide

1 Hardware Connections

You can set the P-871M to work in either CO mode or CPE

mode. Follow the procedure below to complete the hardware

connections.

1.1 CO Mode

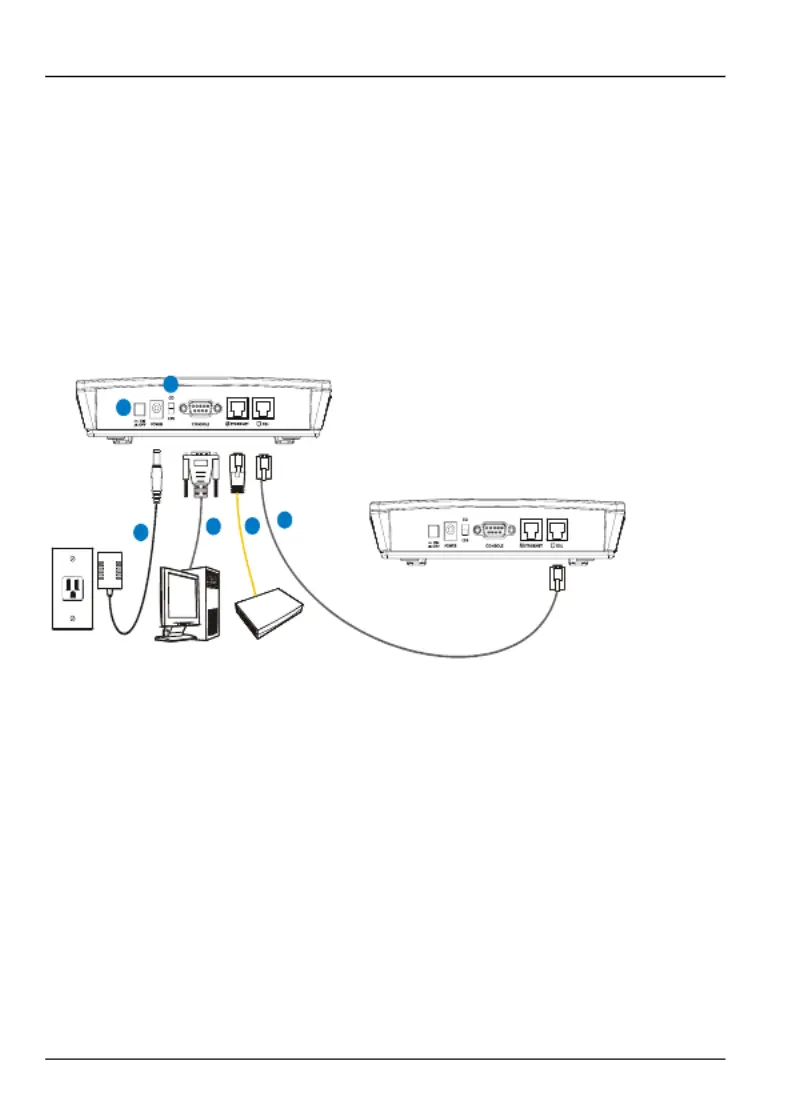

1Set the CO/CPE switch on the rear panel to the CO side.

2Use the included console cable to connect the CONSOLE

port to your computer’s COM port for configuration.

3Use the included yellow Ethernet cable to connect the

ETHERNET port to your network device, such as a switch.

4Over ISDN: Use the included gray cable with a RJ-45

connector to connect the DSL port to another P-871M in

CPE mode.

Over POTS: Use the included gray cable with a RJ-11

connector to connect the DSL port to another P-871M in

CPE mode.

CPE

Produkspesifikasjoner

Merke:	ZyXEL
Kategori:	Ruter
Modell:	P-871M
Vekt:	307 g
LED-indikatorer:	Ja
Sertifisering:	EN55022 Class B, EN61000-3-2: 2000, EN61000-3-3: 1995+A1:2001, FCC Part 15 (Class B), CSA 60950-1, UL 60950-1, EN 60950-1:2001+A11, IEC 60950-1:2001
Oppstrøms datahastighet:	40 Mbit/s
Nedstrøms datahastighet:	80 Mbit/s
Støttede protokoller:	1 x WAN (RJ45)
Antall ethernets-/bredbåndstilkoblinger (RJ-45):	1
Driftstemperatur (T-T):	0 - 40 °C
Oppbevaringstemperaturomåde (Celsius):	-20 - 60 °C
DC-inngangskontakt:	Ja
Samsvar med industristandarder:	IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.1D
USB-strøm:	Nei
Relativ luftfuktighet under drift (H-H):	20 - 85
Nettverksgrensesnitt:	Ethernet, Fast Ethernet, VDSL1/2
Intern:	Nei
Strømningskontroll støtte:	Ja
Tilkoblingsdioder:	Ja
Luftfuktighet, uvirksom:	20 - 90
