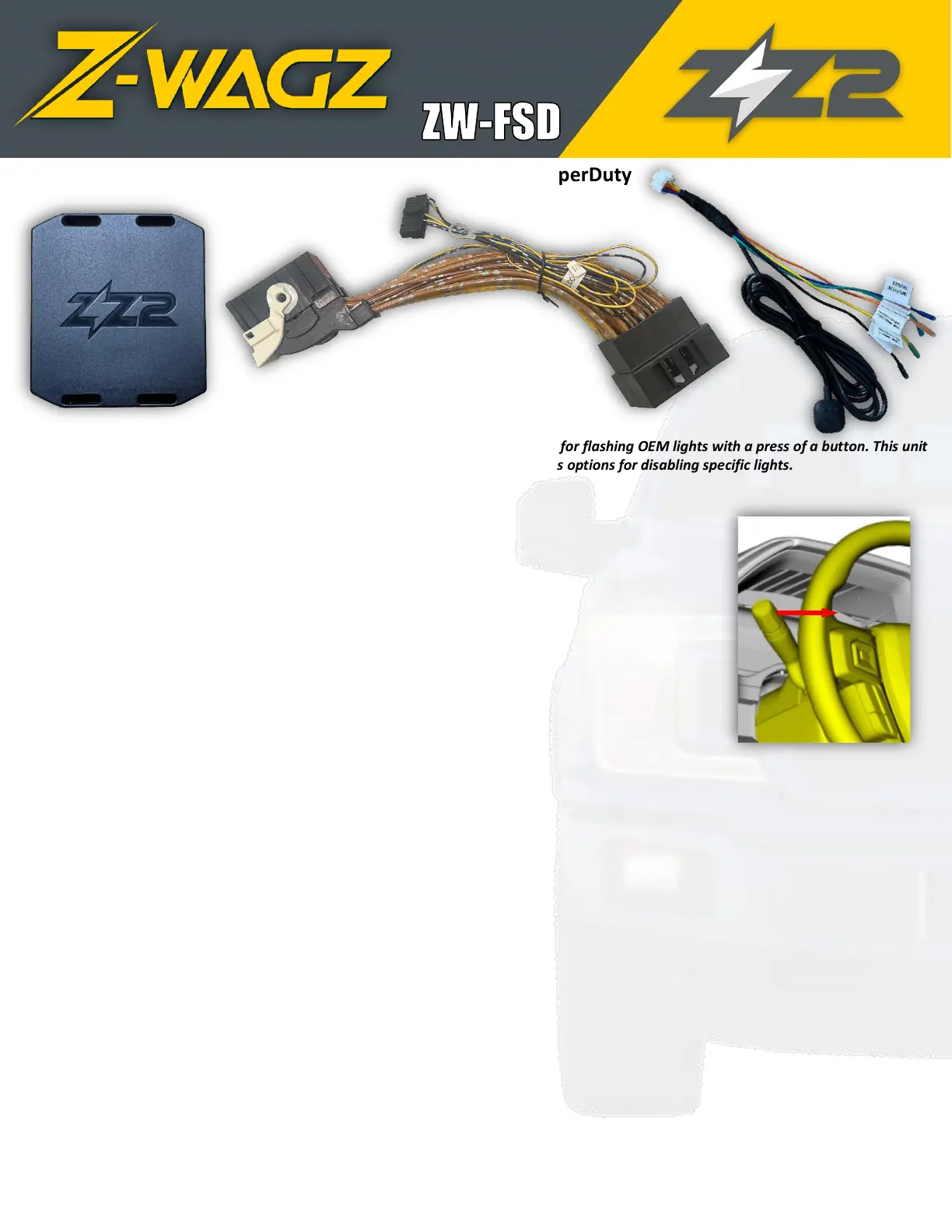

Plug & Play, OE Light-Controller for ’24 FORD F150 & ‘23+ SuperDuty
Thank you for purchasing a genuine Z-WAGZ unit, the simplest Plug & Play module for flashing OEM lights with a press of a button. This unit
comes pre-programmed with 3 different light patterns and has options for disabling specific lights.
ZW-FSD Operation:
1. Install the Z-WAGZ unit to the factory Body Control Module (BCM). Follow instructions on page
2 for more details and important information with this process.
2. Turn Ignition ON or start vehicle (Ignition must be ON or vehicle running for proper operation)
3. To activate Z-WAGZ:
o Press and HOLD the high beam lever (5 sec) OR
o Press and HOLD the provided push button (3 sec) OR
o Send a 12v (+) signal to the blue wire (designed to be extended for OE up-fitter
switches or any aftermarket toggle). For this input method, as long as the wire has 12v
(+), the Z-WAGZ unit will stay active.
Pattern 1 will begin to flash. Once pattern 1 begins, the cluster turn signal (indicators) will blink 1 time,
indicating Pattern 1 has been selected. The LED on the unit will blink BLUE. See chart on page 4 for
remaining pattern color indication.
4. To switch to Pattern 2: (Pattern 1 must be currently active)
o Engage either turn signal, then press and HOLD the high beam lever once more (5
sec). OR
o Press & release the provided push button one time
The cluster turn signal (indicators) will blink twice indicating Pattern 2 has been selected. Repeat this
process to switch to the next pattern.
5. To deactivate Z-WAGZ:
o Press and HOLD the high beam lever (5 sec) OR
o Press and HOLD the provided push button (3 sec) OR
o Release 12v (+) signal to the blue wire (if connected this way) OR
o Turn vehicle OFF
GENERAL NOTES:
• Vehicles equipped with LED lights should use LED patterns. Vehicles equipped with standard bulbs should use bulb patterns
but may get away with LED patterns (although some consistency may be lost).
• Not all lights on the vehicle are necessarily used, some lights are not controllable via CAN data commands.
• Z-WAGZ will retain the last used pattern, even after being disconnected from the harness (if ever).
• Turn signals, headlights & reverse lights will override pattern flashing when used, until turned off again.
• Lights on the external mirrors will only flash if wired with turn signals from factory.
• ‘Plow Mode’, when active (INPUT 2), disables High & Low beam flashing and slows the pattern down so that the relay box
(plow module) can keep up with the flashing (prevents overheating).
Activation Switch
and I/O Harness
ZW-FSD BCM
T-Harness
2 | P a g e
555 S Pompano Pkwy, Pompano Beach, FL 33069 | 929-220-1212
OE Ford BCM

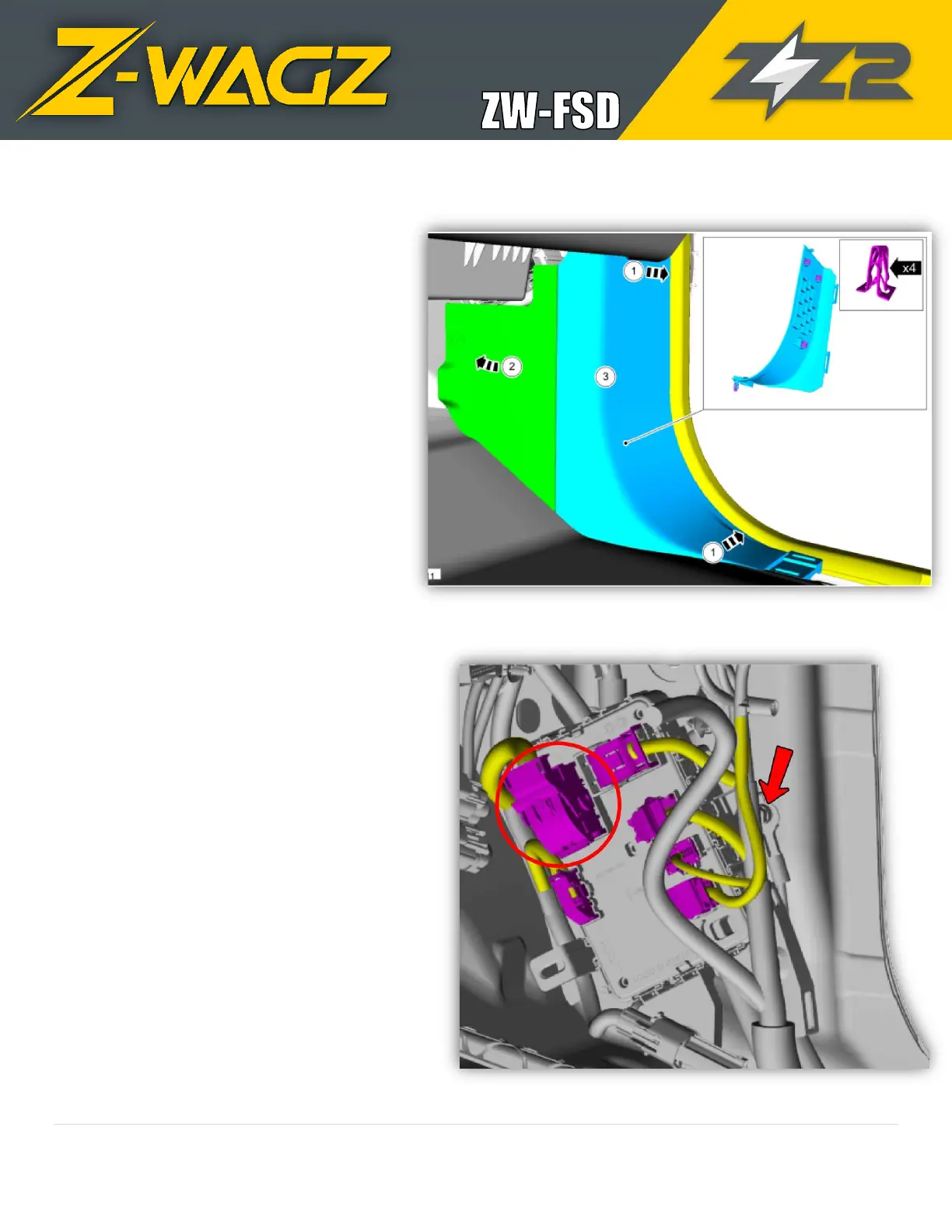

1. On the passenger side of the truck,
remove the weather stripping near the
kick panel.
2. Remove the BCM access cover.
3. Release (4) clips and remove the right-
hand side lower cowl trim panel to expose
the BCM.
ZW-FSD Vehicle module installation
4. With the vehicle OFF: disconnect the (1)
circled plug shown. Connect the male side
of the provided T-Harness to the BCM and
the removed, OE plug into the female side
of the Z-WAGZ BCM harness. This connector
can only fit in one place and connect in one
way. Make sure the cam-lock is closed all
the way and the connector is seated fully.
5. Connect the provided ground to the factory
Ford ground location (indicated by the red
arrow).
6. Connect the ZW-FSD unit to the 22-pin
connector, tie-wrap the unit to another
harness if desired.
7. Return to page (1) for operation
instructions.
J2
3 | P a g e
555 S Pompano Pkwy, Pompano Beach, FL 33069 | 929-220-1212
MAKE
MODEL
YEAR
Ford
F150
2024
F250, F350, F450
2023+
Compatible Vehicles:
