Side 1/26
ALF-SCK51TS-D
Thank you for purchasing this product
For optimum performance and safety, please read these instructions carefully before connecting,
operating or adjusting this product. Please keep this manual for future reference.
Surge protection device recommended
This product contains sensitive electrical components that may be damaged by electrical
spikes, surges, electric shock, lighting strikes, etc. Use of surge protection systems is
highly recommended in order to protect and extend the life of your equipment.

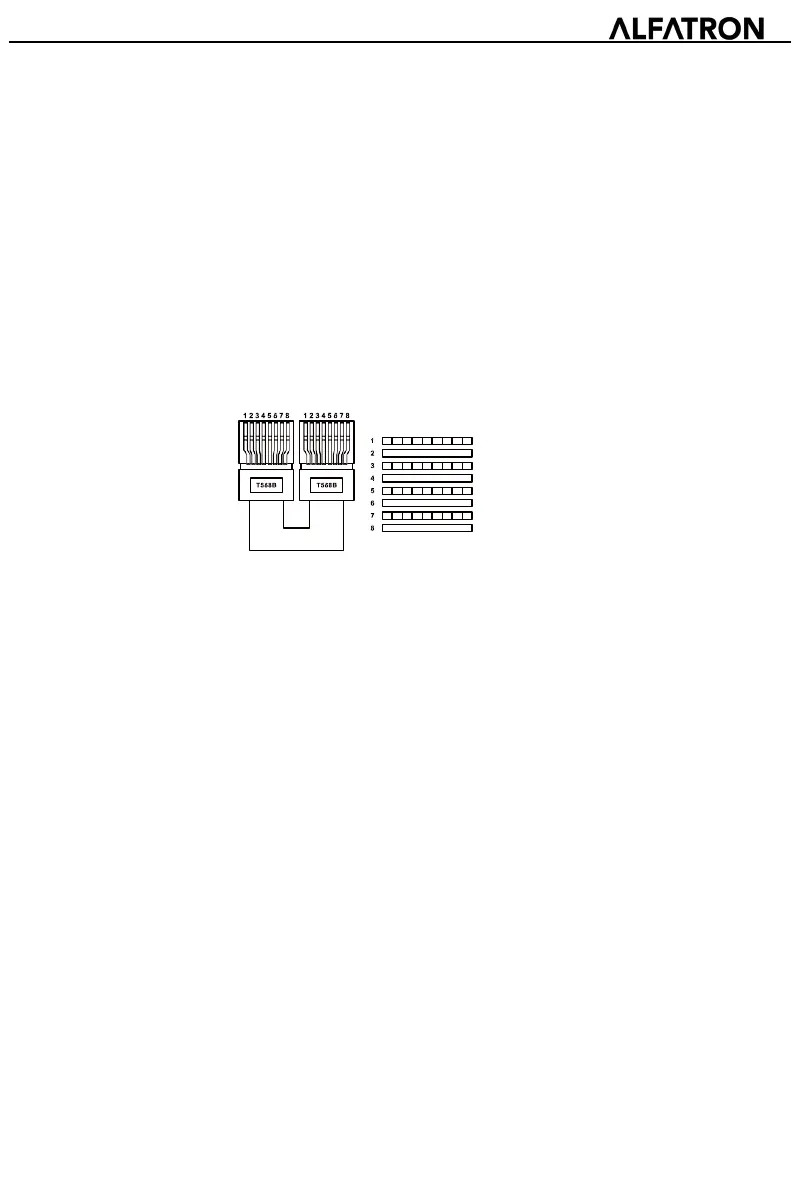

Caution
The product requires the use of UTP connectors. Please connect in direct interconnection
method and do not cross connect.
White and Orange
Orange
White and Green
Blue
White and Blue
Green
White and Brown
Brown
Direct Interconnection Method
Table of Contents
1. Introduction ........................................................................................................................... 1
2. Features ................................................................................................................................. 1
3. Specifications ........................................................................................................................ 2
4. Operation Controls and Functions ...................................................................................... 4
4.1 Switch Panel .................................................................................................................... 4
4.2 HDBaseT Receiver Panel ............................................................................................... 6
4.3 IR Cable Pin Assignment ................................................................................................ 9
5. IR Remote .............................................................................................................................. 9
6. Web GUI User Guide ........................................................................................................... 10
7. Dante Web GUI User Guide ................................................................................................ 20
8. RS-232 Control Command.................................................................................................. 23
9. Connection Diagram ........................................................................................................... 24
1
ALF-SCK51TS-D
1. Introduction
This 5x1 seamless presentation switch features 3 HDMI inputs, 2 USB-C inputs (DP Alt mode,
USB 2.0, 100M Ethernet and 60W charging), 1 HDMI output and 1 HDBT mirrored output.
HDBT supports standard PoE power supply and can extend uncompressed signal up to a
distance of 230ft/70m (4K@30Hz 4:4:4) or 131ft/40m (4K@60Hz 4:4:4) via a single CAT6A
(F/FTP) cable. This 5x1 seamless presentation switch output supports single full screen or
various Multiview display modes (Single/PIP/PBP/Triple/Quad). This product supports USB
2.0 local KVM switching and local Hub/HDBT USB pass-through function (from TX to RX). It
also supports bi-directional RS-232 and IR control signal pass-through function.
This presentation switch is featured with 1 analog audio input, 1 analog audio output, and
Dante 2x2 audio input and output. It built-in 3x3 audio matrix with independent audio EQ/
volume/delay adjustment.
2. Features
HDCP 2.2 and DP 1.2 compliant
Support 18Gbps video bandwidth
Support video resolution up to 4K@60Hz 4:4:4, as specified in HDMI 2.0b
Uncompressed 4K60 over HDBT 3.0 up to 132ft/40m via single CAT6A (F/FTP) cable
Uncompressed 1080P&4K30 over HDBT 3.0 up to 230ft/70m via single CAT6A (F/FTP) cable
Up to 5 categories of Multiview display modes: Single/PIP/PBP/Triple/Quad
Support 5x1 seamless switching (single screen) and fast switching (Multiview) function
Input: 2x USB-C, 3x HDMI, 1x Analog audio, 1x Dante 2ch
Output: 1x HDMI and 1x HDBT mirrored, 1x Analog audio, 1x Dante 2ch
HDMI and HDBaseT (PoE) outputs (Mirrored)
Dante 2x2 audio input and output
USB-C supports DisplayPort Alt mode for A/V, USB 2.0, 100M Ethernet and 60W charging
Local USB 2.0 KVM switching and extending USB 2.0 over HDBT 3.0
Signal input supports manual switching and automatic switching modes
Support analog/Dante audio embedding, analog/Dante audio de-embedding output
CEC/RS-232 control external devices ON/OFF
Advanced EDID management
Flexible control via front panel buttons, IR remote, RS-232, TCP/IP or Web GUI
Package Contents
1 x 5x1 Seamless Presentation Switch
1 x HDBaseT Receiver
1 x IR Blaster Cable (1.5 meters)
1 x IR Wideband Receiver Cable (1.5 meters)
2 x 3pin-3.5mm Phoenix Connector (male)
3 x 5pin-3.5mm Phoenix Connector (male)
4 x Mounting Ear
8 x Machine Screw
1 x 24V/8A Desktop Power Supply & 1 x AC Power Cord (1.5 meters)
1 x IR Remote
