www.alfatronelectronics.com
ALFATRON ELECTRONICS GmbH GERMANY

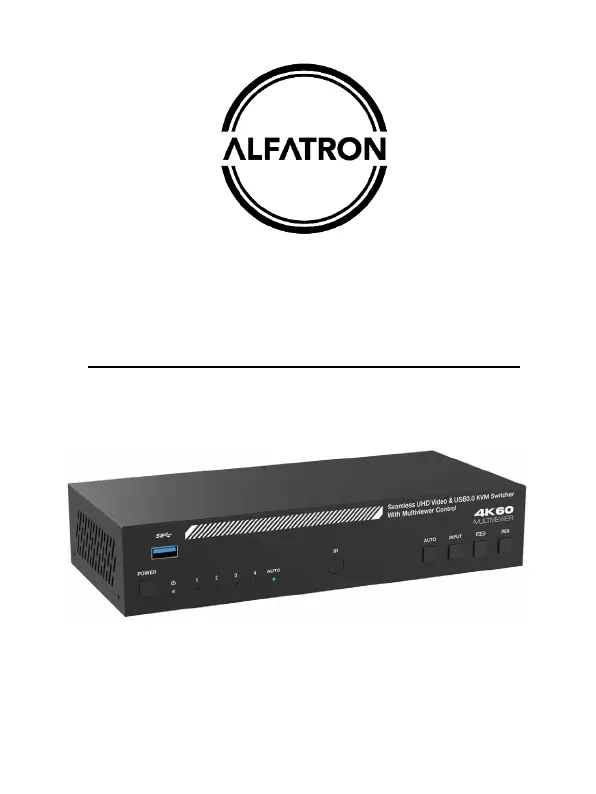

ALF-WUK4HUB(IN)
2 / 27
ALF-WUK4HUB(IN)
Surge protection device recommended
This product contains sensitive electrical components that may be damaged
by electrical spikes, surges, electric shock, lighting strikes, etc. Use of surge
protection systems is highly recommended in order to protect and extend the
life of your equipment.
Table of Contents
1. Introduction ................................................................................................. 3
2. Features ....................................................................................................... 3
3. Package Contents ...................................................................................... 4
4. Specifications .............................................................................................. 5
5. Operation Controls and Functions ............................................................. 6
5.1 Front Panel ............................................................................................. 6
5.2 Rear Panel .............................................................................................. 8
5.3 IR Pin Definition .................................................................................... 10
6. IR Remote................................................................................................... 11
7. Hotkey Switch Function ............................................................................. 12
8. Keyboard & Mouse Hotkey Function ....................................................... 12
9. EDID Settings .............................................................................................. 14
10. Video & Audio ..................................................................................... 15
11. Multiview .............................................................................................. 16
12. OSD Menu Navigation ......................................................................... 16
13. Controller Software Operation Guide ................................................ 20
13.1 Installation & Connection ............................................................. 20
13.2 Controller Main Interface .............................................................. 22
14. RS-232 Command ............................................................................... 25
15. Application Example .......................................................................... 33
3 / 27
ALF-WUK4HUB(IN)
1. Introduction
This 4K60 4x1 Seamless UHD Video & USB 3.0 KVM Switcher was designed
for the purpose of supporting higher output resolution (4K@60) for multiple
sources on a single screen. It can combine up to four video signals onto a
single UHD or HD displayer. The user can manage each input, and create
combinations of the four inputs on a single display, as well as adjust the
position of any input.
This product supports 8 display modes, within the mode range, users can
freely switch 4-channel HD input signals. It can realize single screen display
and multiview display on a single screen.
This device supports full range of input video resolutions up to 4K@60 (RB)
and audio RCA /Optical de-embedding supported for external audio
distribution systems.
Besides, the switcher can transmit USB 3.0 signal up to 5Gbps for KVM
function. It also supports direct switching through buttons on the front panel,
IR remote, and hotkey through keyboard/mouse connected to the special
USB port. It provides a wide compatibility choice for different operating
systems, such as Windows, Mac OS and Linux, no driver required and simple
plug and play.
This device can be controlled via front panel buttons, IR remote, keyboard/
mouse hotkeys, OSD menu navigation, Controller software, RS-232
commands.
2. Features
• HDCP 2.2 and HDCP 1.x compliant
• Support 18Gbps uncompressed video bandwidth
• Input and output resolutions support up to 4K2K@60Hz 4:4:4,
as specified in HDMI 2.0b
• Support LPCM, DD+, DTS audio pass-through, up to 7.1 audio channel
• Seamless switching between input channels and combined
multiple images on single UHD monitor
• Up to 8 display modes: Single, PIP, PBP (1), PBP (2), Triple (1),
Triple (2), Quad (1), Quad (2)
