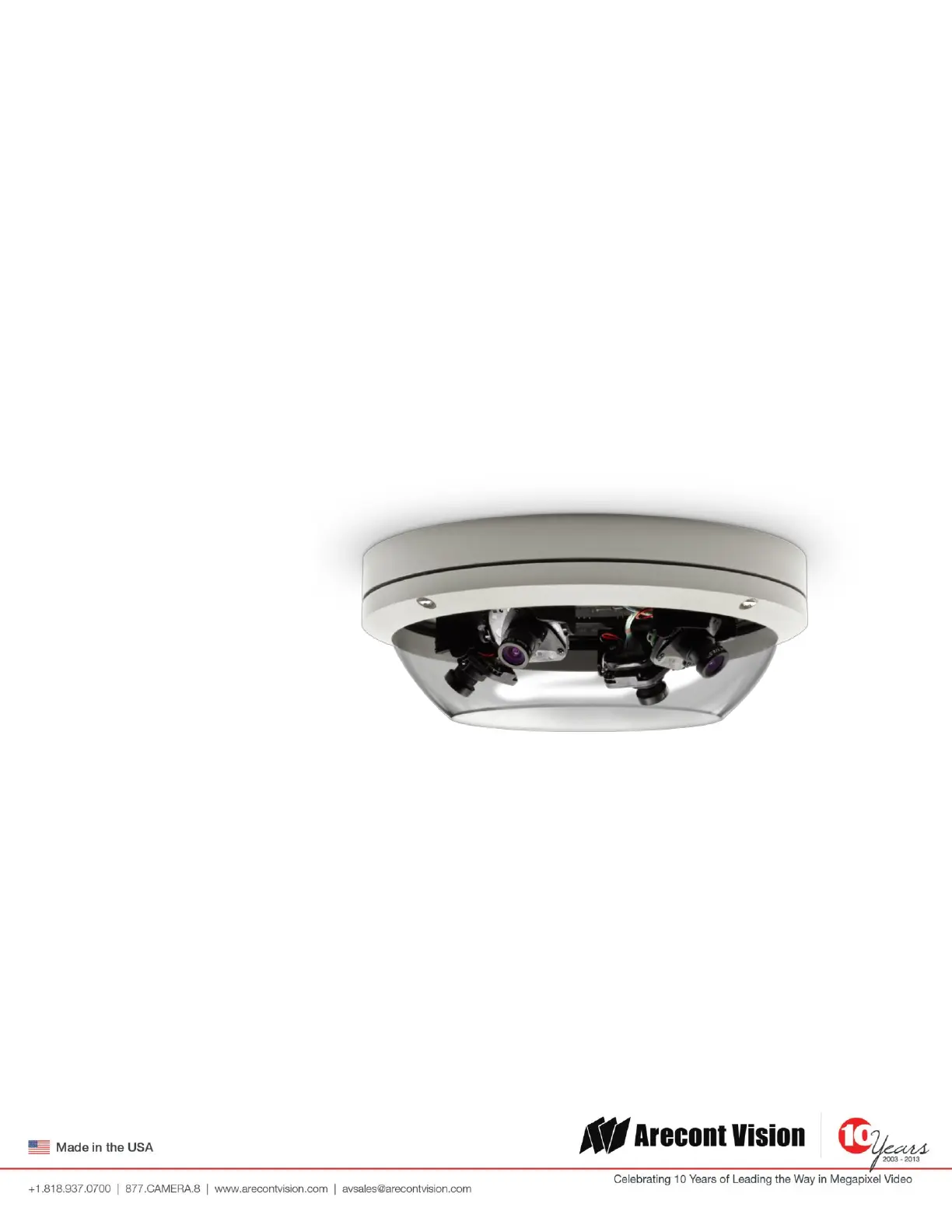

SurroundVideo® Omni

INSTALLATION MANUAL

AV12176DN-NL

AV12176DN-28

AV12176DN-08

AV20175DN-NL

AV20175DN-28

AV20175DN-08

Arecont Vision SurroundVideo

Omni Installation Manual

Page | 2 support@arecontvision.com

SurroundVideo® Omni

SurroundVideo® Omni Installation

Contents

Package Contents ....................................................................................................................................................... 3

Warranty Information ................................................................................................................................................ 4

Installation Overview ................................................................................................................................................. 5

Installation Overview (with Adapter Plate) ............................................................................................................... 6

Camera Setup ............................................................................................................................................................. 7

Camera Adjustment ................................................................................................................................................... 8

Camera Alignment ................................................................................................................................................... 10

Installation ............................................................................................................................................................... 11

Changing the Lens .................................................................................................................................................... 13

Accessing the Digital Input and Output Connector ................................................................................................. 14

Digital Input and Output .......................................................................................................................................... 15

Auxiliary Power ........................................................................................................................................................ 16

LED Indicators .......................................................................................................................................................... 17

Installation Best Practice.......................................................................................................................................... 19

Wall Mount Accessory (AV-WMJB) .......................................................................................................................... 21

Pendant Mount Accessory (AV-PMJB) ..................................................................................................................... 22

Troubleshooting ....................................................................................................................................................... 24

Arecont Vision SurroundVideo

Omni Installation Manual

Page | 3 support@arecontvision.com

SurroundVideo® Omni

Package Contents

Item

Description

MegaPixel Camera

SurroundVideo® Omni

Mounting Kit

Ceiling template

3x Mounting Screws (#6x1” for wood or sheet

metal)

3x Drywall/Masonry Mounting Anchors

Ceiling Gasket

Network Patch Cable

Security Torx Tool

Adapter plate (for drop ceiling)

3x Mounting Screws ((#6x2” for adapter plate)

Power Cable

Aux Power Cord

I/O Cable

Digital Input and Output Adapter

Arecont Vision CD

Manual, Warranty, Installation Software

Notes:

1. Camera Operating Temperature : -40°C (-40°F) to +50°C (122°F)

2. Wiring methods shall be in accordance with the National Electrical Code/NFPA 70/ANSI, and

with all local codes and authorities having jurisdiction. Wiring should be UL Listed and/or

Recognized wire suitable for the application.

3. Always use hardware e.g. screws, anchors, bolts, locking nuts etc. which are compatible with

mounting surface and of sufficient length and construction to insure a secure mount.

4. For use in ducts, plenums and other air-handling areas, replace Auxiliary Cable provided with

CMP, CL2P or CL3P type wires.

Produkspesifikasjoner

Merke:	Arecont Vision
Kategori:	Sikkerhetskamera
Modell:	AV20175DN-NL
Bruksanvisning:	Ja
Bluetooth:	Nei
Wi-Fi:	Nei
Tilkoblingsteknologi:	Koblet med ledninger (ikke trådløs)
Maksimal oppløsning:	- piksler
Strømkildetype:	PoE
Antall kameraer:	4
Fokus:	Motorisert
Dag/natt-modus:	Ja
AC-inngangsspenning:	24 V
Produktfarge:	Hvit
Monteringssett:	Ja
Kabler inkludert:	AUX
Zoomfunksjon:	Ja
Formfaktor:	Kuppel
Modell/Type:	IP-sikkerhetskamera
Bithastighetskontroll:	Konstant bithastighet (CBR)
Minimumsbelysning:	- lx
Ethernet/bredbåndsforbindelse:	Ja
Støttede plasseringer/plasseringer som kan benyttes:	Inne & Ute
Montasjetype:	Tak/Vegg
Totale megapiksler:	12 MP
DC-ut, volt:	12, 48
Privacy maske:	Ja
Panoreringskontroll:	Ja
Vippekontroll:	Ja
Videobasert bevegelsesdeteksjon:	Ja
Streaming-metode:	Multicast
Fast fokus:	Ja
