Side 1/28
!
!

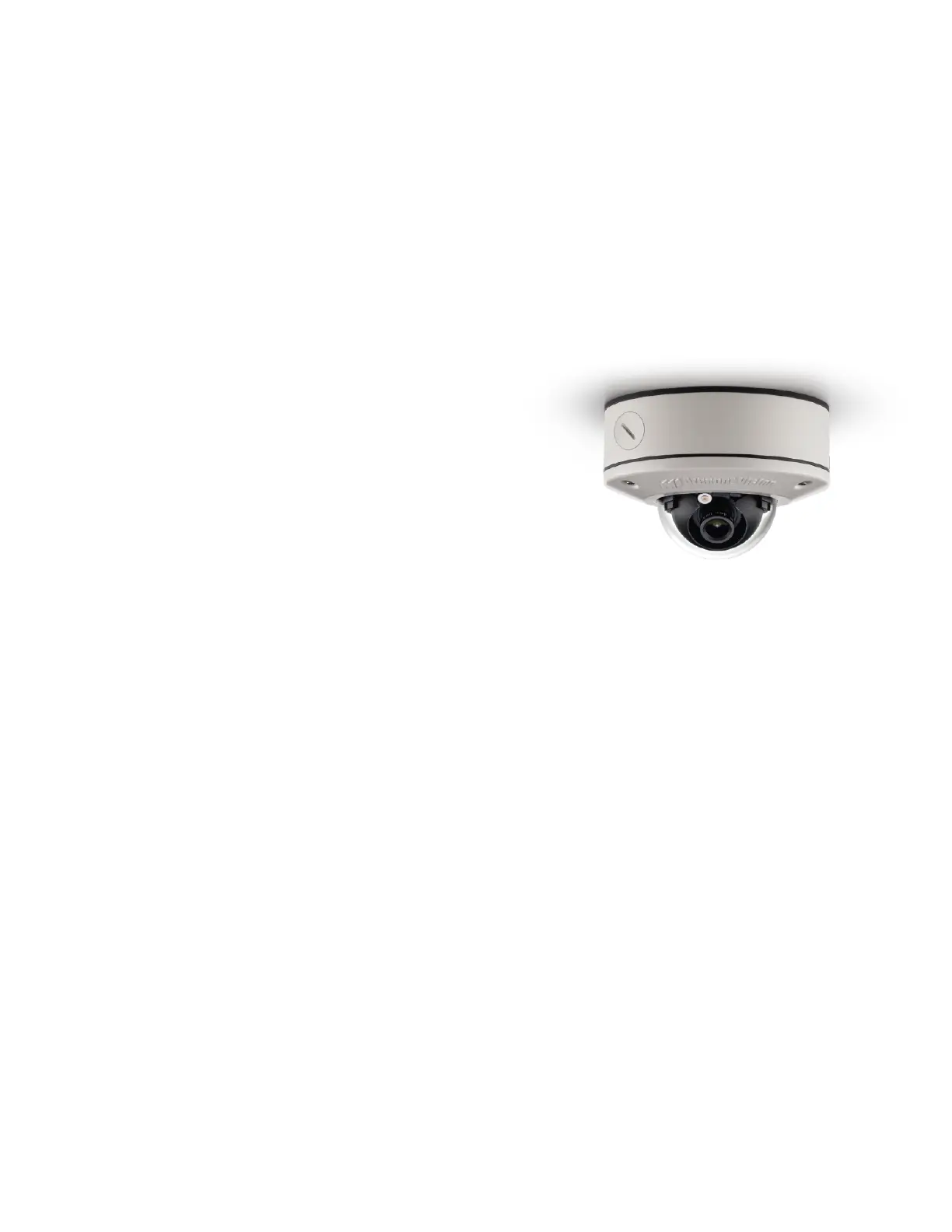

MicroDome®!G 2
-S Model Installation Manual!
Models:
1.2 Megapixel
• AV1555DN-S
• AV1555DN-S-NL
1080p
• AV2555DN-S
• AV2556DN-S
• AV2555DN-S-NL
• AV2556DN-S-NL
3 Megapixel
• AV3555DN-S
• AV3556DN-S
• AV3555DN-S-NL
• AV3556DN-S-NL
5 Megapixel
• AV5555DN-S
• AV555DN-S-NL
!! ! Installation!Manual!
Page | 2 support@arecontvision.com
!
!
!
+1.818.937.0700 877.CAMERA.8 www.arecontvision.com avsales@arecontvision.com
MicroDome®!G2
!
Contents
!
Package Contents!..................................................................................................................................................!3!
Camera Overview!...................................................................................................................................................!5!
Surface Mount (-S Model) Installation!.................................................................................................................!6!
Changing the Lens!...............................................................................................................................................!12!
Optional: Removing the Bubble!..........................................................................................................................!13!
Optional: Connecting Digital I/O!.........................................................................................................................!14!
Camera Discovery, Setup, and Configuration!..................................................................................................!18!
Network Protocols!................................................................................................................................................!18!
General Remote Focus!.......................................................................................................................................!19!
Refined Remote Focus!........................................................................................................................................!20!
AV IP Utility Focus Tab!........................................................................................................................................!22!
Wall Mount Accessory (MCD-WMT)!..................................................................................................................!23!
Pendant Mount Accessory (MCD-CMT)!................................................................................................ ...........!24!
Mounting Template: MicroDome
®
G2 Camera!.................................................................................................!25!
Mount Template: MicroDome
®
MCD-WMT Wall Mount!..................................................................................!26!
Mount Template: MicroDome
®
MCD-CMT Pendant Mount!...........................................................................!27!
Support!..................................................................................................................................................................!28!
!
!
!! ! Installation!Manual!
Page | 3 support@arecontvision.com
!
!
!
+1.818.937.0700 877.CAMERA.8 www.arecontvision.com avsales@arecontvision.com
MicroDome®!G2
&
CAUTION!
1. Do not attempt to service a damaged unit yourself. Refer all servicing to qualified service
personnel.
2. Wiring methods shall be in accordance with the National Electrical Code/NFPA 70/ANSI, and
with all local codes and authorities having jurisdiction. Wiring should be UL Listed and/or
Recognized wire suitable for the application.
3. Always use hardware e.g. screws, anchors, bolts, locking nuts etc. which are compatible with
mounting surface and of sufficient length and construction to insure a secure mount.
Package Contents
This equipment should be unpacked and handled with care. The original packaging is the safest
container in which to transport the unit and can be used if returning the unit for service. The packaging
contains:
• One (1) Arecont Vision MicroDome® G2 Camera
• One (1) ceiling template
• One (1) CD containing software and user manual (license key required for recording)
• One (1) 4-position external power plug
• 6x Mounting Screws (#6x1” for wood or sheet metal)
• 6x Mounting Anchors
• 3/8” NPT Male to 1/2” NPT Female Adapter
• Network Patch Cable
• 3x Security Torx Dome Cover Fasteners
• One (1) Flat-head screwdriver
• One (1) Philips head screwdriver
• One (1) Gasket
!
!
!
