Arecont Vision D4SO Outdoor Dome Series Installation Manual
0 | Page
Arecont Vision D4SO Outdoor Dome Series Installation Manual
1 | Page
D4SO Outdoor Dome Installation Manual
A. Arecont Vision D4SO Dome Camera
Inside the box:
B. Mounting template
C. Security L-key
D. One double sided hex key
E. One single sided hex key
F. 6-position external power & IO plug
G. Pack of four (4) wood screws and four (4)
dry wall anchors
• #1 Phillips head screw driver
Not included but needed:
• #2 Phillips head screw driver
• Small Flat Head screw driver
Image 1
Mounting the Camera:
1. Remove camera and hardware from the
box.
2. Using the Mounting Template, prepare
the mounting provisions for camera
installation. NOTE: the 19.5mm diameter
hole on the Mounting template is where
the Ethernet cable will be exiting the
D4SO, align accordingly. If using the
side conduit hole, please see step 7
below.
3. Using Security L-key, loosen the four (4)
screws securing the dome cover (Image
2). Remove vandal resistant dome
cover. NOTE: Do not remove screws
from the dome cover.
Image 2
G
F
E
C
A
D
B
Arecont Vision D4SO Outdoor Dome Series Installation Manual
2 | Page
4. Run Ethernet cable through the hole on the
bottom of D4SO and plug it into the RJ45 port
on Arecont Vision’s compact MegaVideo
®
camera. (Image 3) . NOTE: If the camera will
be powered via PoE, please skip to step 5.
Image 3

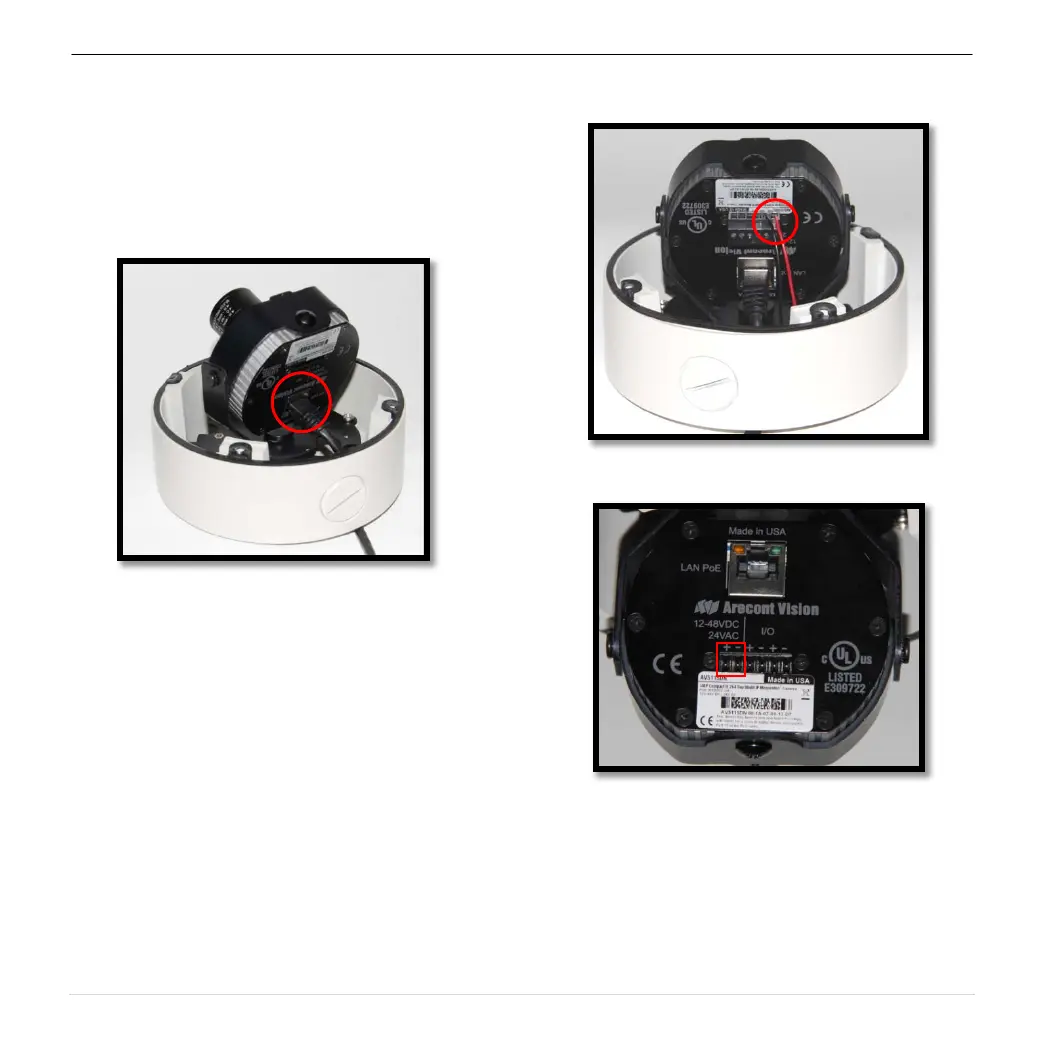

5. If the camera is powered by an outside power
supply, run power wires through the hole and
connect power wires to appropriate contacts
of 6-postion connector using small flat screw
driver and connect 6-position plug to camera
as shown in Image 4-1.
Note: Please make sure the polarity of the
AC/DC input on the camera match the way
wires are installed in connector shown in
Image 4-2.
Image 4-1
Image 4-2
6. Align the holes in the camera with the
prepared holes on the mounting surface.
Attach the camera to the mounting surface
with the wood screws or any optional
hardware suitable for the mounting surface.
