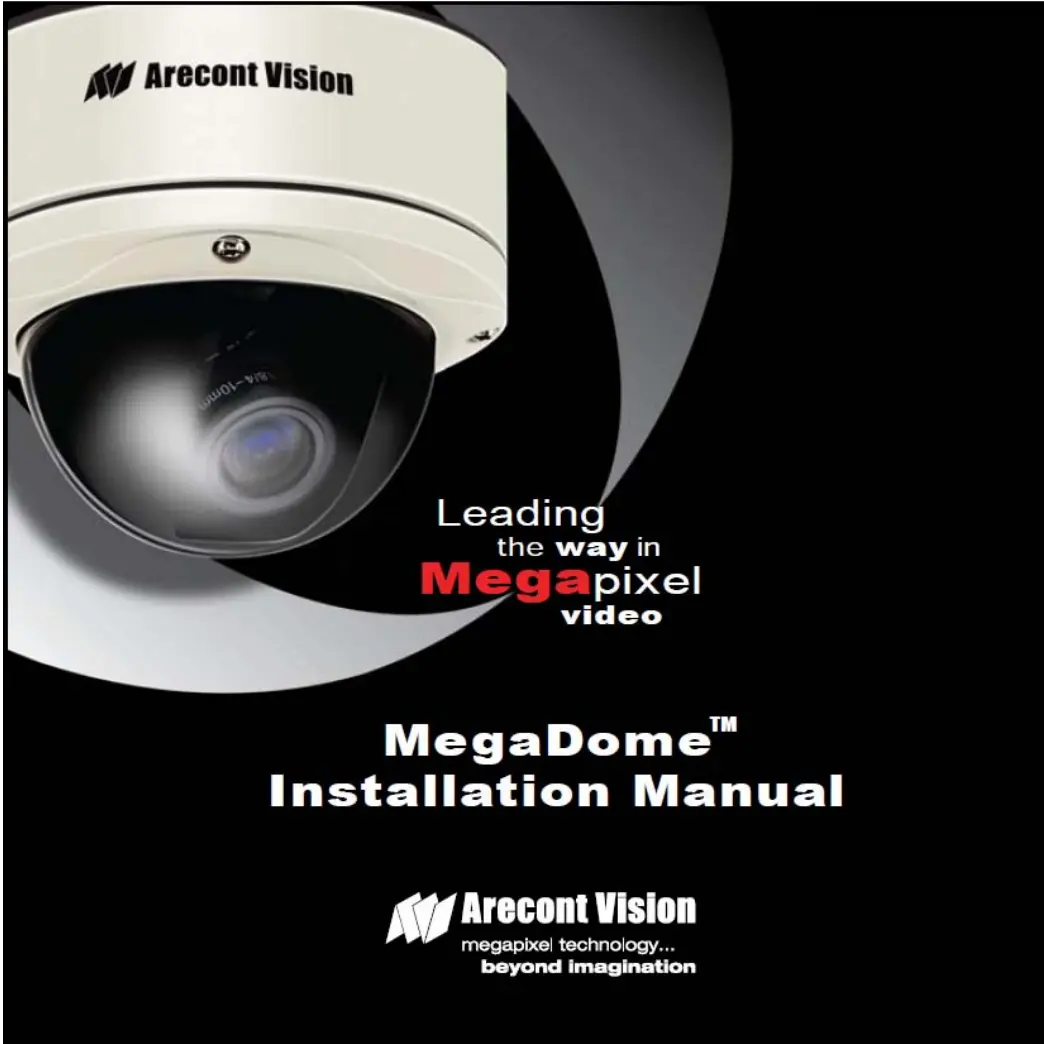

Installation Manual
0 | Page
Arecont Vision MegaDome
TM
Installation Manual
1 | Page
MegaDome™ Installation Manual
A. Arecont Vision MegaDome
TM
Inside the box:
B. Mounting template
C. Magnetic core
D. Pack of four (4) wood screws and four (4)
dry wall anchors
E. One double sided hex key
F. One single sided hex key
G. Security L-key
H. Power cable
• #1 Phillips head screw driver
Not included but needed:
• #2 Phillips head screw driver
Image 1
Mounting the Camera:
1. Remove camera and hardware from the
box.
2. Using the Mounting template, prepare the
mounting provisions for camera
installation. NOTE: the 19.5mm diameter
hole on the Mounting template is where
the Ethernet cable will be exiting the
MegaDome
TM
, align accordingly. If using
the side conduit hole, please see step 9
below.
3. Using Security L-key, loosen the four (4)
screws securing the dome cover (Image
2). Remove vandal resistant dome
cover. NOTE: Do not remove screws
from the dome cover.
Image 2
H G F E C
RJ-45
POWER
HOLE
A
D B
Arecont Vision MegaDome
TM
Installation Manual
2 | Page
4. Run Ethernet cable through the hole on the
bottom of the camera (Image 3) and plug it
into the RJ45 port. NOTE: If the camera will
be powered via PoE, please skip to step 6.
5. If the camera is powered by an outside power
supply, run the supplied power cable through
the hole and connect it to its respective
connector inside the camera (Image 3).
NOTE: Make sure that your installation of
wires complies with Electrical Code of the
local government where the camera is
installed and no bare wires are exposed.
6. Align the holes in the camera with the
prepared holes on the mounting surface.
Attach the camera to the mounting surface
with the wood screws or any optional
hardware suitable for the mounting surface.
7. Install the included magnetic core onto the
Ethernet cable as shown in Image 4. NOTE:
Ensure both tabs are tightly secured.
Image 3
Image 4
HOLE
POWER
RJ-45
