OWNER’S MANUAL ~ AMPLIFIER AM100 Sig
ATOLL ELECTRONIQUEPage 5Page 4

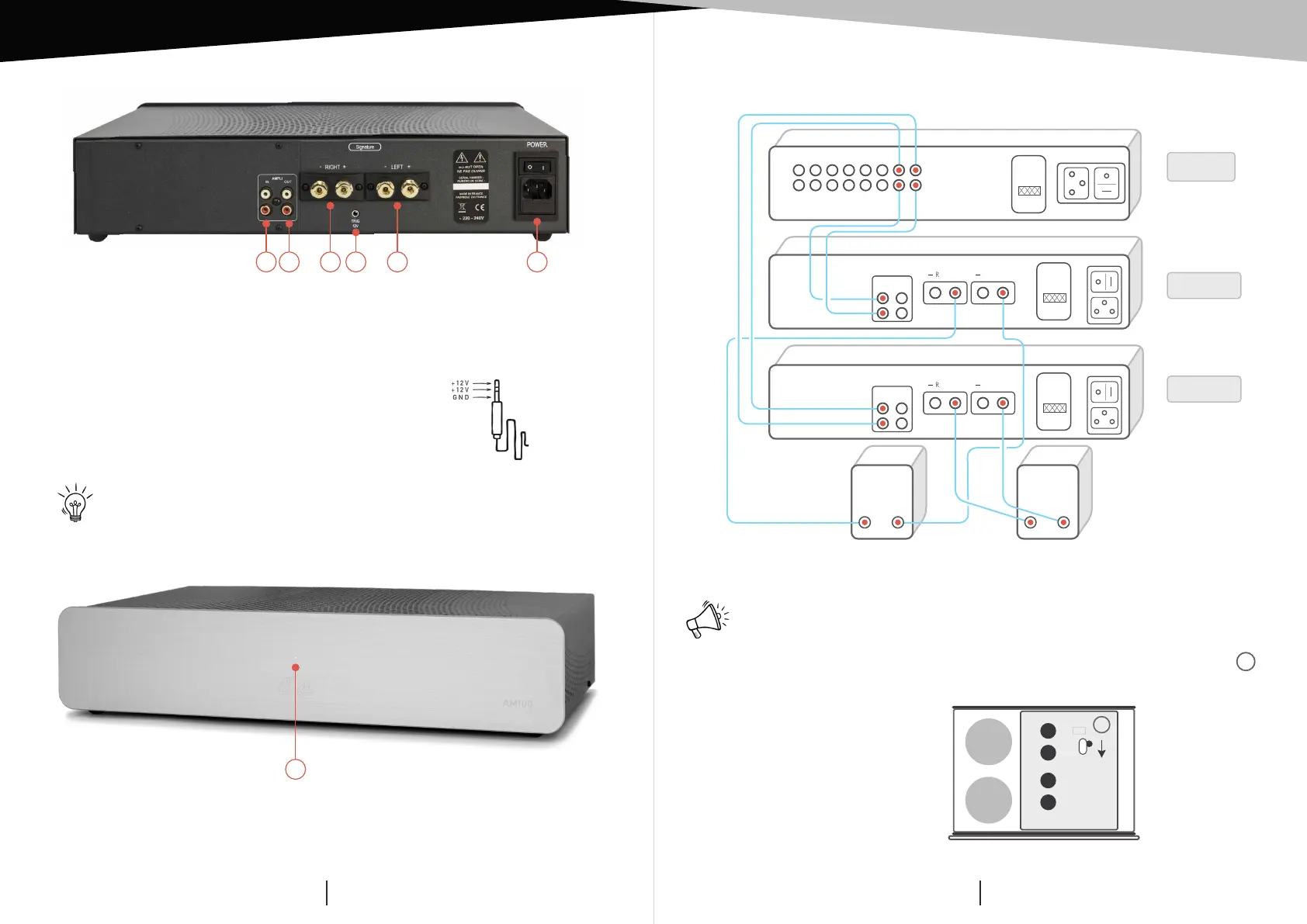

1) Amplifier input.
2) Amplifier output (to another power
amplifier for bi-amp).
3) Right channel output.
4) Trigger 12V input
(1)
.
5) Left channel output.
6) General power plug and ON/OFF
switch (with internal fuse).
7) Power indicator led.
CONNECTING
DETAILS OF FUNCTIONS
1 2 3 54
7
(1)
Trigger input: This input allows the control ON/OFF of your
amplifier simultaneously to any device with a 12V Trigger
outlet. In order that the system is operating, the ON/OFF
button of your Amplifier must remain in position OFF (0). If
the switch is in the ON position (I), the amplifier will work but
not the Trigger function.
Trigger cable must be a Male to Male stereo jack plug Ø 3,5 mm (1/8”).
To transform your Power Amplifier from Stereo to Mono, you have to push the switch
a
placed inside the appliance as shown below:
Internal view.
MONO BRIDGE MODE
Warning: for the AM100 Signature, bridged mono mode is not recommended on
speakers with an impedance of less than 6 .Ω
Warning: be sure
that your amplier
is unplugged
and that no other
appliance is plug
in during this
operation.
(Configuration: 1 Preamplifier and 2 mono amplifiers).
CONNECTING
PREAMP
AMP 2
AMP 1
a
LEFT
Jack
Ø 3,5 mm
DO NOT
OPEN
NE PAS
OUVRIR
SERIAL NUMBER
NUMERO DE SERIE
MADE IN FRANCE
FABRIQUE EN FRANCE
DO NOT
OPEN
NE PAS
OUVRIR
SERIAL NUMBER
NUMERO DE SERIE
MADE IN FRANCE
FABRIQUE EN FRANCE
DO NOT
OPEN
NE PAS
OUVRIR
SERIAL NUMBER
NUMERO DE SERIE
MADE IN FRANCE
FABRIQUE EN FRANCE
L
R
PRE-OUT
L
R
AMPLI
IN OUT
L
R
AMPLI
IN OUT
+ –
POWER
POWER
IGHT
+
IGHT
+
LEFT
+
LEFT
+
+ –
6
ATOLL ELECTRONIQUE
OWNER’S MANUAL ~ AMPLIFIER AM100 Sig
ATOLL ELECTRONIQUEPage 3Page 6
E.C. marking certified the conformity with low tension directive 73/23/CEE, directive
CEM 89/336/CEE and national transpositions.
E.C. MARKING
Before any cleaning, switch off your appliance. Use a soft and dry rag to clean up the
device. Never use acetone, white-spirit, ammoniac, or any kind of product containing
an abrasive agent. Never try to clean up inside the appliance.
ATOLL ELECTONIQUE warranty is period from the date of purchase; date two years
and stamp of the seller being authentic. We recommend you to keep your proof of
purchase (invoice). The warranty, as well as the terms of service, should be specified
at the time of purchase by your dealer who will advise you, in case of faulty behaviour
or failure. This warranty covers labour and replacement of parts acknowledged to be
faulty, and not the normal wear and tear caused.
Devices with traces of disassembly, drop, immersion, abnormal voltage or any cause
of degradation and damage resulting from a contrary use of the indications included
in this owner manual, automatically lose the benefit of the guarantee.
CLEANING
WARRANTY CONDITIONS
CAUTIONS
• Do not make any connections when your device is powered on.
• Put your amplifier in a dry and well ventilated place, far from source of
heat.
• Do not put something on your amplifier.
• Avoid any short-cut.
• Respect polarity
+
& and switch left & right:
• Do not plug in two speakers in parallel on the same output.
ADVICES
• To optimize the performance of your device, you should switch it on at
least half an hour before any listening, the time for the power stage to
reach its ideal working temperature.
• Your device will give you optimal listening quality after this time-lapse.
• Between two uses, it is, therefore, preferable to let the device on so that
it remains at its optimum temperature.
• At night or when you leave your home, it is best to use the main switch
to turn off the device.
• To optimize the sound quality of your system, we recommend that you
choose good-quality connection cords. Do not hesitate to ask your
specialist dealer for advice.
• Your Amplifier is equipped with a temporised switch on. A relay
protects loudspeakers on output power stage from over-voltage.
Power:
Impulse power:
Supply:
Total of capacitors:
Number of inputs:
Switch OFF consumption:
ON consumption:
Input impedance:
Sensibility:
Signal/Noise ratio:
Distortion at 1kHz:
Bandwidth:
Rising time:
Dimensions:
Weight:
100 W /ch. /8Ω
140 W /ch. /4Ω
180 W /ch.
2×340 VA
32 247 µF
2
0 W
11 W - 500 W
47 kΩ
1,77 V
100 dBA
0,05% / (10 W)
5 Hz - 100 kHz
1,3 µs
440×291×95 mm
11 Kg
TECHNICAL DATA
ATOLL ELECTRONIQUE
OWNER’S MANUAL ~ AMPLIFIER AM100 Sig
ATOLL ELECTRONIQUEPage 7Page 2
You have just bought an amplifier with exceptional audiophile performance.
We really thank you for your confidence in our products. To get the best part
of your amplifier, please read carefully this manual.
YOU WILL FIND
ENCLOSED
– A power amplifier AM100 Signature.
– One power cord.
– This manual with the warranty certificate.
The power-on indicator
does not light up.
One of the speakers
remains silent.
Problem encountered Possible solutions
– The main switch (6) is in the wrong position.
– The power cord is not properly connected.
– Check the fuse in the general power plug (6).
– Check the quality of the connections between
the amplifier and the speaker in question.
– Check the quality of the connections between
the preamplifier and the amplifier.
TROUBLESHOOTING
ATOLL ELECTRONIQUE®
is a French Company that designs, manufactures,
and commercializes all its products.
