8803-000034 Rev. B 05/05

CHIEF MANUFACTURING INC. 1-800-582-6480, Fax: 1-877-894-6918, Email: chief@chiefmfg.com

INSTALLATION INSTRUCTIONS

FPM SERIES

SMALL FLAT PANEL DISPLAY

PITCH-ADJUSTABLE WALL MOUNT

Exclusive Q2™ Mounting System

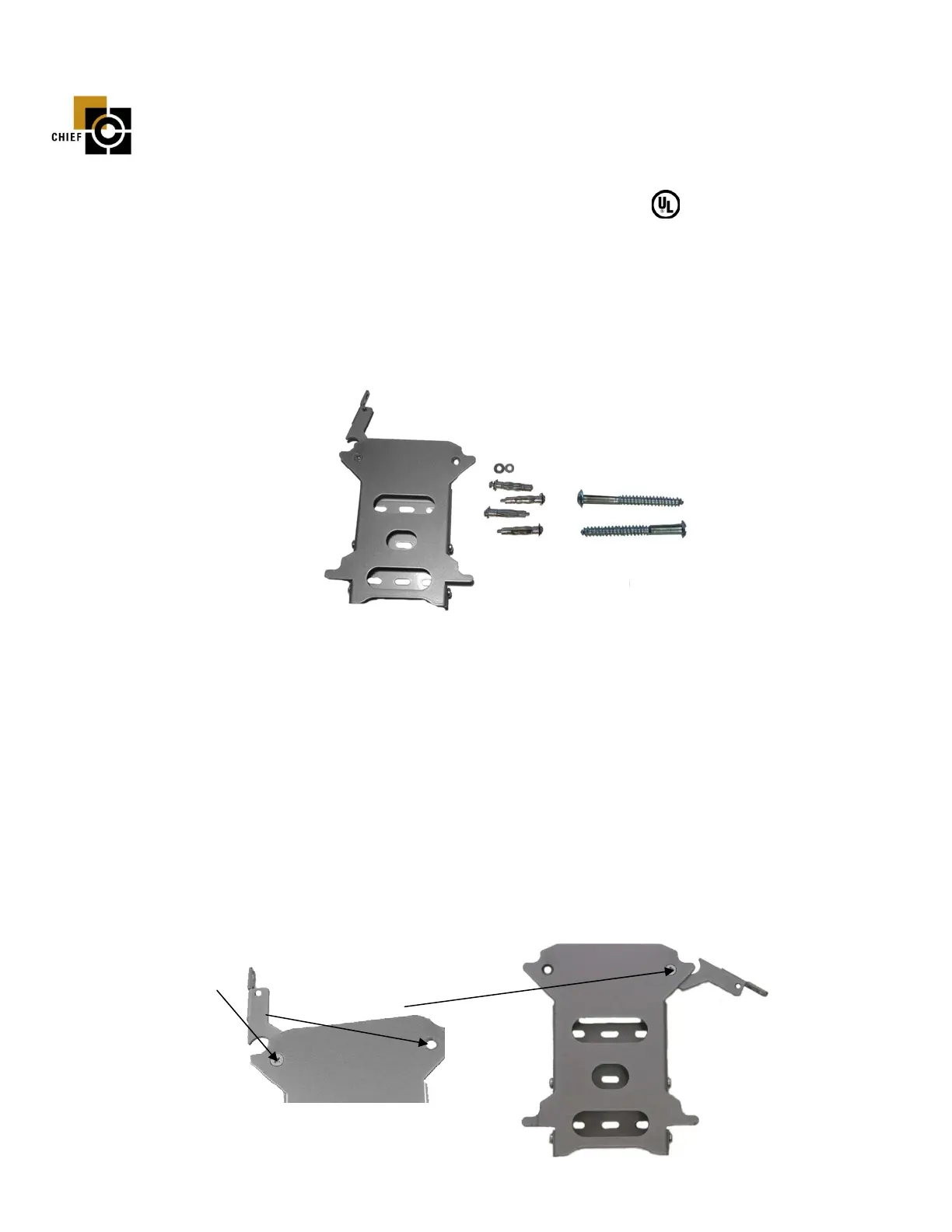

Prior to assembly, unpack carton completely and verify contents.

If you are missing any of the following components, please contact Customer Service at 1-800/582-6480

(1) FPM Wall Bracket (4) Drywall Anchor

(2) Wood Screw (2) Washer, Flat, .25 ID X .56 OD

BEFORE PROCEEDING, READ INSTALLATION INSTRUCTIONS COMPLETELY

Flat Panel Displays are Extremely Fragile.

If Monitor Uses a Screw Size Other Than M4 X 10mm (M4 X 20mm),

DO NOT USE M4 Screws Provided. Monitor Damage Could Occur.

Interface Bracket Installation:

1. See installation procedures accompanying your mounting bracket.

Optional Latching Flag Placement:

1. Remove Phillips head screw, Nylock nut and latching flag (see Figure 2).

2. Reposition latching flag and secure using Phillips head screw, Nylock nut.

CAUTION!

Figure 1

Remove screw

and nut

Move latch

Figure 2

Produkspesifikasjoner

Merke:	Chief
Kategori:	Flatpanelstøtte
Modell:	FPM4101
Bredde:	143 mm
Dybde:	38 mm
Høyde:	175 mm
Produktfarge:	Sølv
Vippevinkelområde:	-18 - 5 °
Kroppsmateriale:	Metall
Montasjetype:	Vegg
Maksimalvekt (kapasitet):	20.4 kg
Monteringsgrensesnitt, kompatibilitet (min):	75 x 75 mm
Monteringsgrensesnitt, kompatibilitet (maks):	100 x 100 mm
