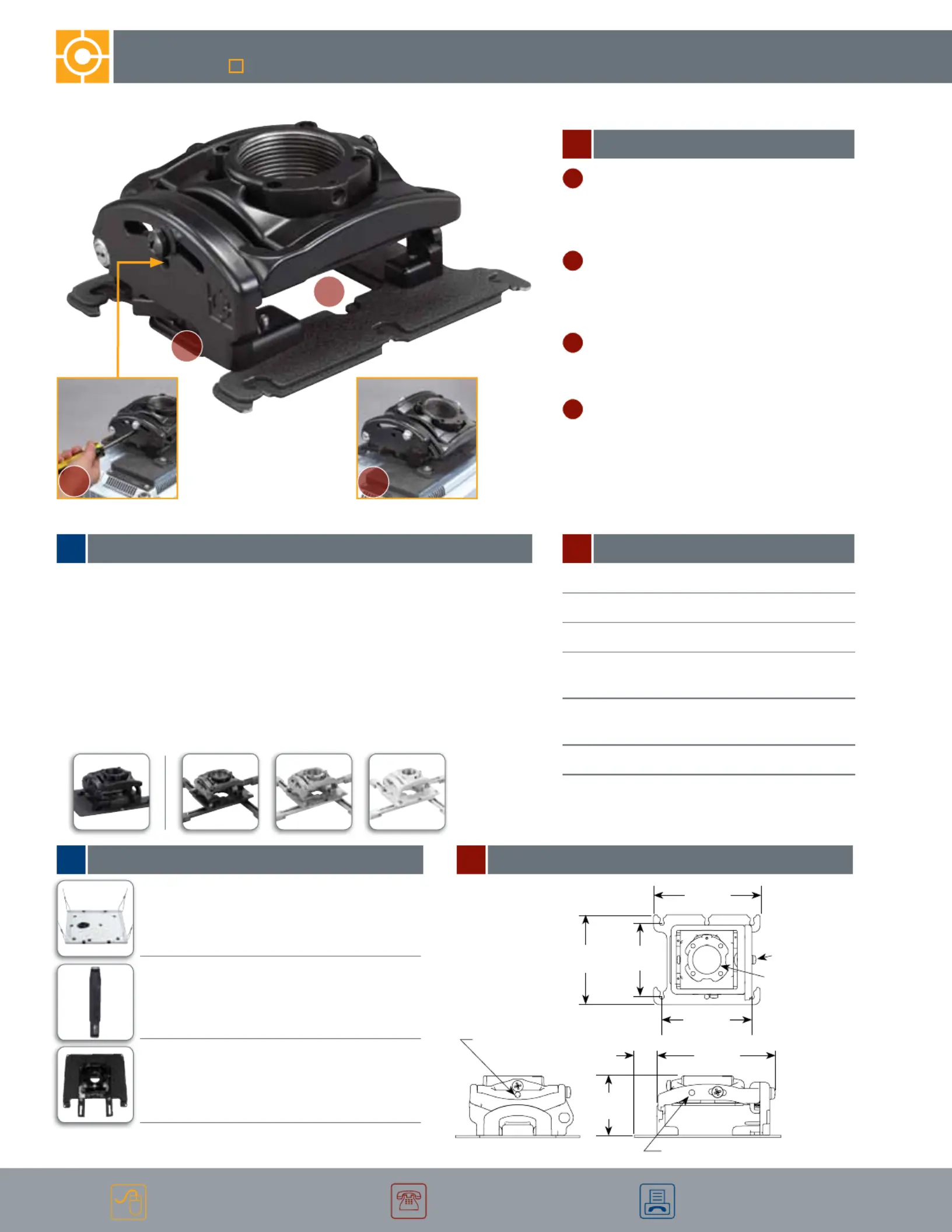

Side 1/1

CLICK

www.chiefmfg.com

CALL

800.582.6480

FAX

877.894.6918

SPECIFICATIONS

FEATURES

TECHNICAL DRAWINGS

WHAT YOU NEED TO KNOW

RECOMMENDED ACCESSORIES

rPMa RPA ELITE

PROJECTOR MOUNT

MiCroZonE

™

AdjustMEnts

PATENT-PENDING

This feature makes projector registration fast

and precise (including ﬂush-mount installations).

CEntris

tEChnology

PATENT-PENDING

Enables effortless ﬁngertip positioning. Self-

adjusts to support different projector weights.

CAblE MAnAgEMEnt

Route cables through top of mount without

additional accessories.

Q-loCk

™

QuiCk rElEAsE lEvEr

Provides quick connect/disconnect of the

projector for service and enhanced security

with an integrated key and lock system.

* Dimensions don’t include interface bracket

Roll 3˚±

Pitch ±20˚

Yaw 360˚

Dimensions* 2.75” x 6.5” x 5.5”

(HxWxD) (69 x 165 x 140 mm)

Color, Custom Black

Color, Universal Black, Silver, White

Weight Capacity 50 lbs (22.7 kg)

For a complete list of projector mount accessories see page .21

cMS SuSPended ceiling kitS

cMS extenSion coluMnS

lSb101

n Lateral Shift Accessory

Yaw Adjustment

Point 20˚±

Roll Adjustment Point 3˚±

1.0”

(25 mm)

1-1/2” DIA NPT

2.72”

(69 mm)

5.24”

(133 mm)

6.5”

(165 mm)

4.5”

(114 mm)

5.5”

(140 mm)

5.5”

(140 mm)

Pitch Adjustment

Point 20˚±

about rPMa elite

• New universal interface with faster installation, and lamp and ﬁlter access

• Keyed locking options (A/B/C/D)

• Compatible with a wide array of accessories

• Ships fully-assembled with everything you need for installation

in one box

• Available in custom (black) or universal (black, silver, white)

ceiling MountS

Produkspesifikasjoner

Merke:	Chief
Kategori:	Flatpanelstøtte
Modell:	RPMA277
Bredde:	165 mm
Dybde:	140 mm
Høyde:	69 mm
Justerbar arm:	Nei
Produktfarge:	Sort
Montasjetype:	Tak
Maksimalvekt (kapasitet):	22.7 kg
