INSTALLATION INSTRUCTIONS

Chief Manufacturing, a products division

of Milestone AV Technologies

8401 Eagle Creek Parkway, Savage, MN 55378

P: 800.582.6480 / 952.894.6280 F: 877.894.6918 952.894.6918

8804-002002 Rev00

Duchossois Group Company

www.chiefmfg.com

04/09

FSB-018

FLAT SCREEN TABLE STAND

The Flat Screen Table Stand is designed to attach directly to VESA FDMI standard 75mm or

100mm mounting pattern.

(1) FSB-018 Stand Assembly (4) M4 x 10mm Phillips Head Screw

(1) 75mm Adapter Bracket (4) M4 x 6mm Phillips Head Screw

(1) 100mm Adapter Bracket (4) 10-24 Nylock Nut

(4) 10-24 x 3/8” Phillips Head Screw

Unpack and check contents: Inspect the Flat Screen Table Stand carefully for shipping damage.

If any damage is apparent, call your carrier claims agent.

CAUTION: The maximum weight to be installed on the FSB018 is 20 lbs (9 kg). Do not

use a power screwdriver to install screws. Use a hand screwdriver to

prevent damage to your monitor.

NOTE: For 75mm VESA mounting, perform Step 1 first. For 100mm VESA mounting, perform

Step 2 and Step 3 first.

For 75mm VESA Mounting Pattern

1. Secure the 75mm adapter bracket to your monitor using four M4 x 6mm Phillips head screws

(provided) (see Figure 2).

For 100mm VESA Mounting Pattern

2. Install 100mm adapter bracket using four provided M4 x 6mm or M4 x 10 Phillips head

screws (see Figure 3).

3. Secure the 100mm adapter bracket to the 75mm adapter bracket (see Figure 4).

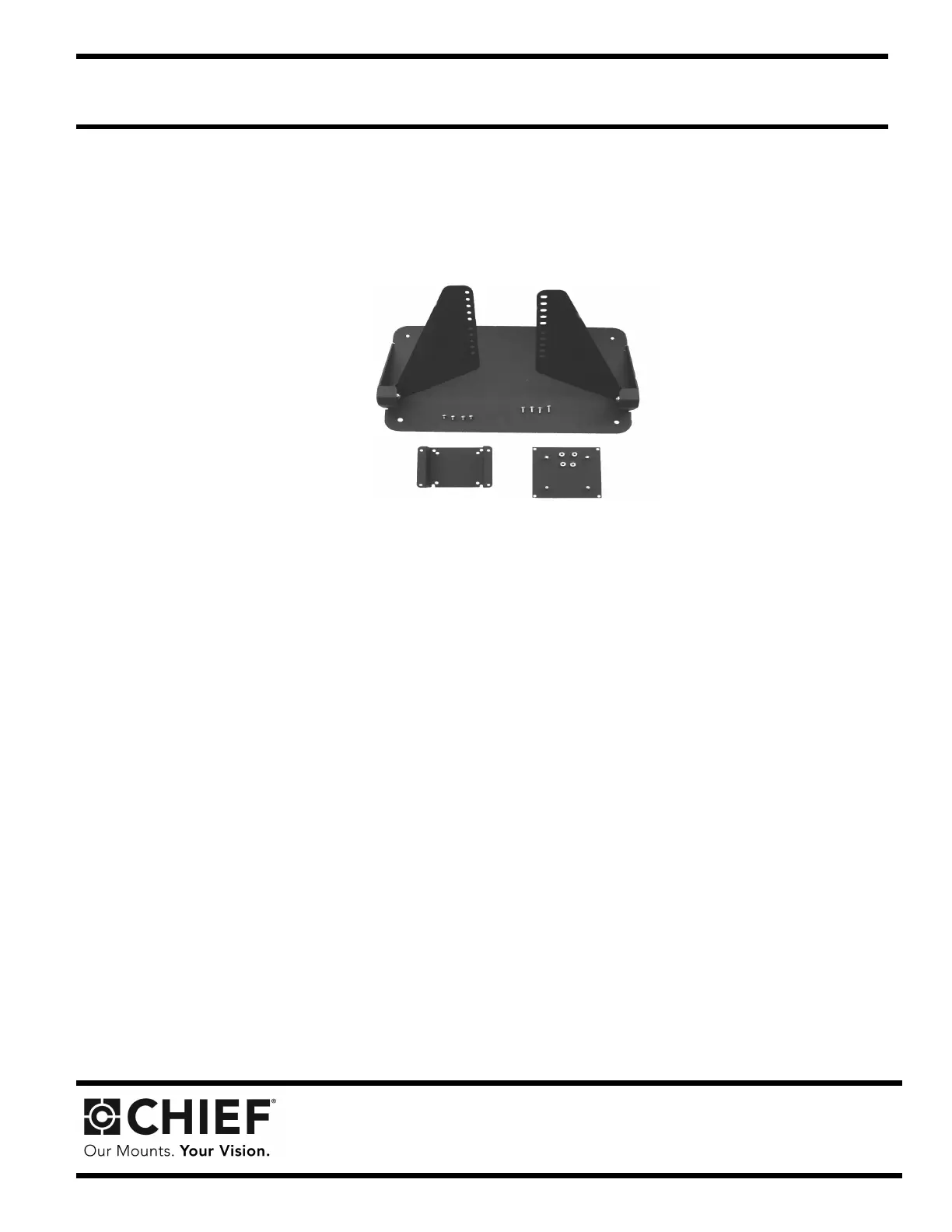

Figure 1

4. At the desired height, secure your monitor to the stand using four provided 10-24 x 3/8”

Phillips head screws (see Figure 5).

VESA FDMI

Standard 100mm

VESA FDMI

Standard 75mm

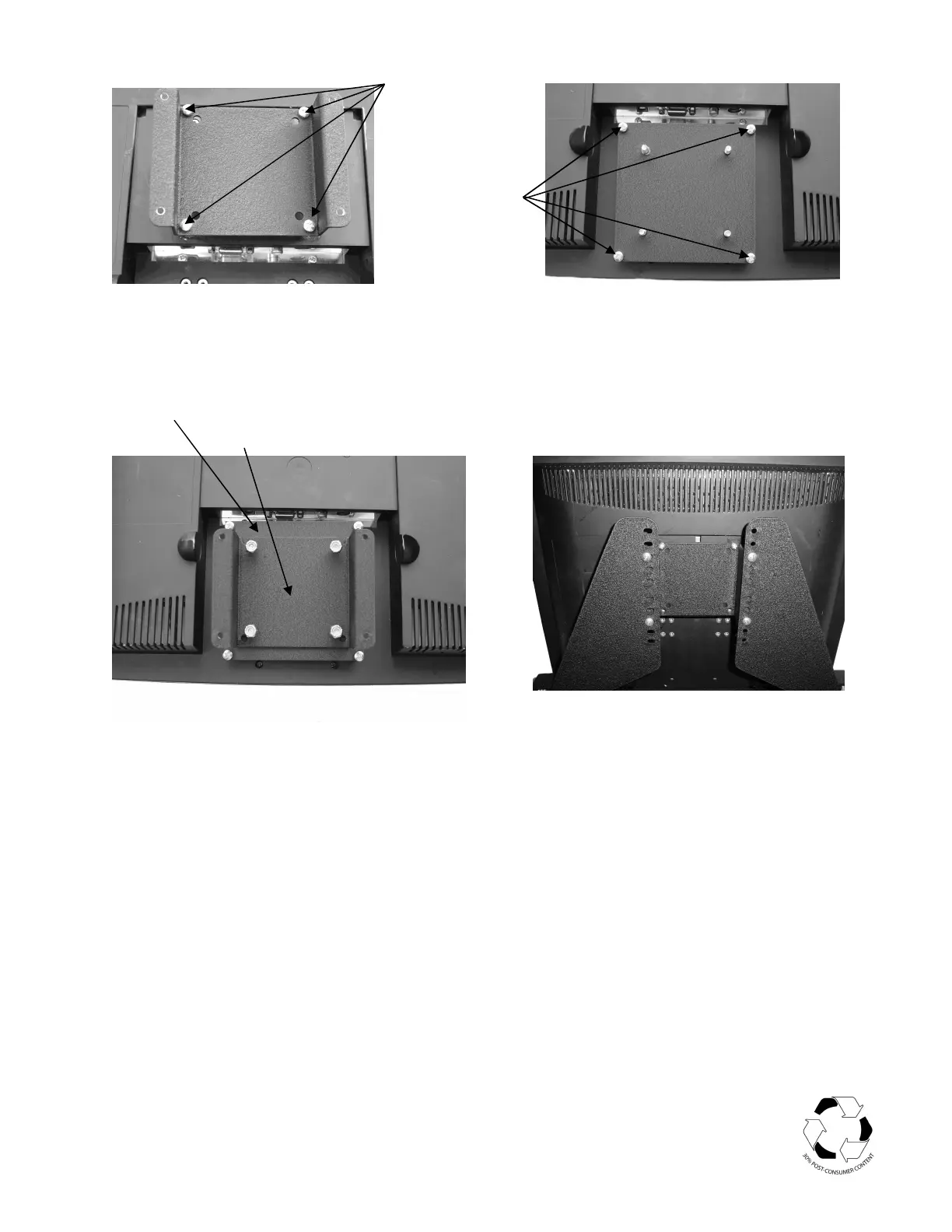

Figure 2. 75mm Bracket Installation

Figure 3. 100mm Bracket Installation

Figure 4. 100mm to 75mm Installation

Figure 5. Install Monitor to Stand

100mm Adapter Bracket

75mm Adapter Bracket

Produkspesifikasjoner

Merke:	Chief
Kategori:	Flatpanelstøtte
Modell:	FSB018BLK
Bredde:	398 mm
Dybde:	248 mm
Høyde:	261 mm
Produktfarge:	Sort
Vippevinkelområde:	0 - 90 °
Harmonisert system (HS)-kode:	85299097
Montasjetype:	Bord
Maksimalvekt (kapasitet):	9.1 kg
